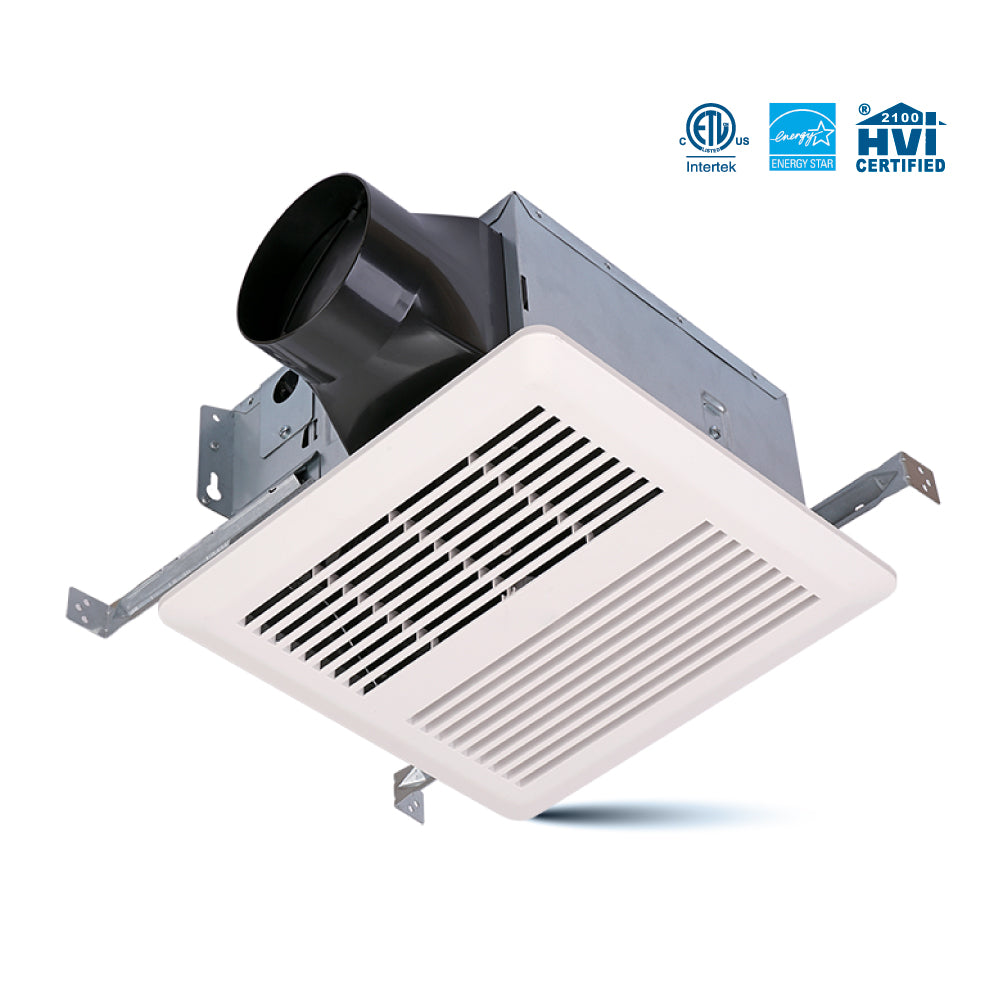

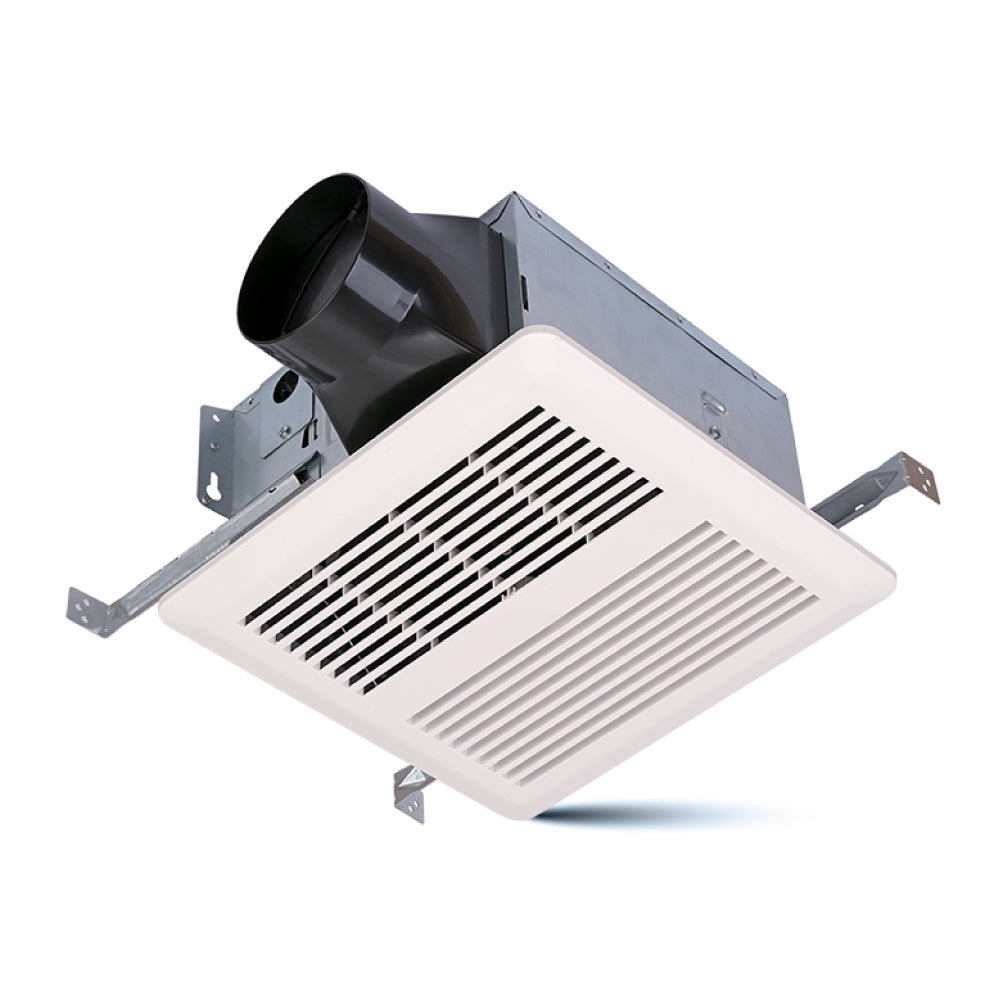

ODC-1109

Next Generation Universal Series 110 CFM Fan featuring a high-efficiency capacitor motor for reliable and powerful ventilation performance.

HIGHLIGHTS

  • Ultra Silent & High Performance: Engineered for powerful yet quiet operation
  • Ceiling Mounted Design: Ideal for discreet overhead installation
  • Efficient Motor: Equipped with a capacitor start motor for long-lasting reliability and energy efficiency

ENHANCED AND IMPROVED

Specifications
  • Static Pressure (in inches w.g.)
    0.1 / 0.25
  • Air Volume (CFM)
    116 / 106
  • Noise (sones)
    1.1 / NA
  • Fan Watts
    24.6W / 23.6W
  • Duct Diameter
    4"
  • Power Rating
    120V/60Hz
  • Housing Size
    9"×9"×5-3/4"
  • Grille Dimensions
    11-7/8"×11-3/8"
  • Fan Weight
    7.4 lbs
  • Warranty
    3 Years
  • Case Quantities
    6

CERTIFICATIONS

Compatible Grilles (sold separately)

PNP-SENSOR-DS
ODC-G1
(10-3/4" x 10-3/4" Polystyrene grille)

Product features

PRODUCT SHEETS

Spec Sheet

ODC-1109 Spec Sheet

Instruction Manual

ODC-1109 Instruction Manual

Revit Files

NA
