SB300-3CCT+W

Durable Commercial LED Area Lights Featuring a Socket Base and Rotatable Lens for Precision Lighting Control

HIGHLIGHTS

High-Efficiency LED Driver: Compatible with AC 120–347V input; built-in 6kV surge protection for enhanced durability.

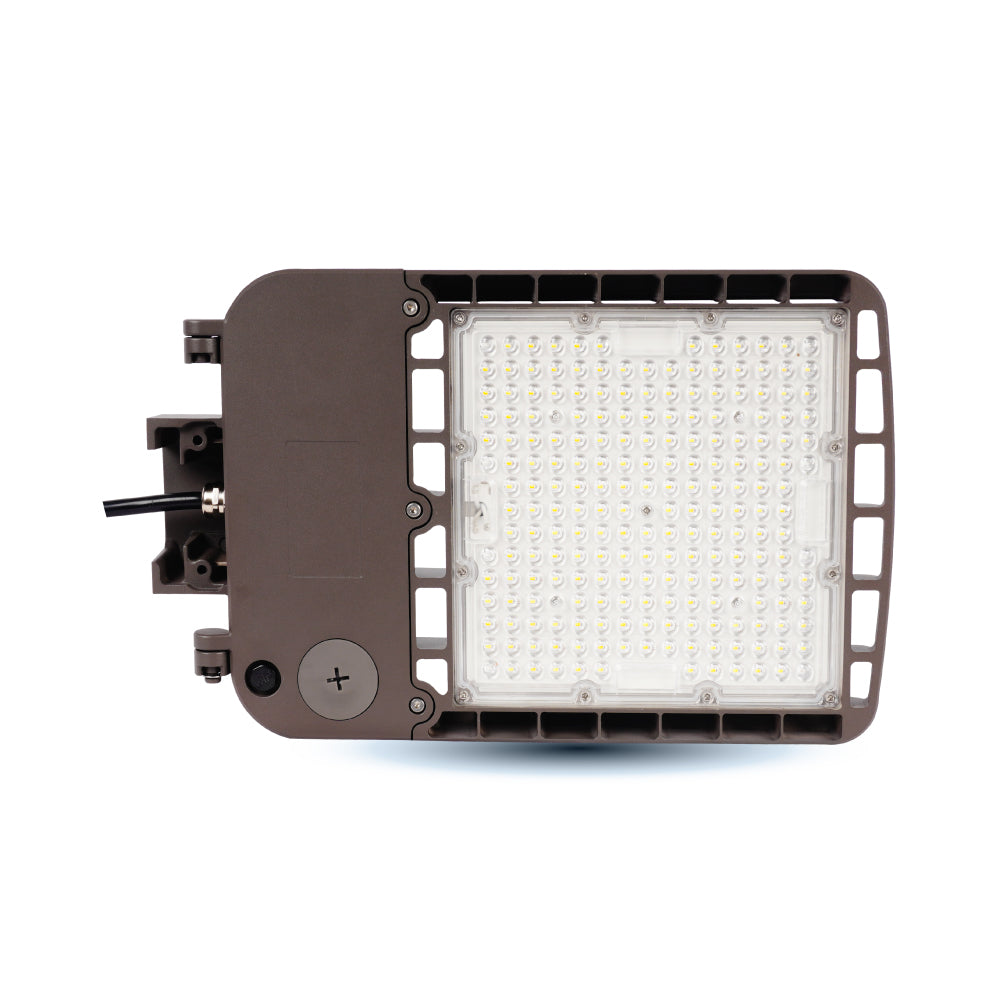

Premium Lumileds LEDs: Delivers high luminous efficiency and long lifespan for consistent, energy-saving performance.

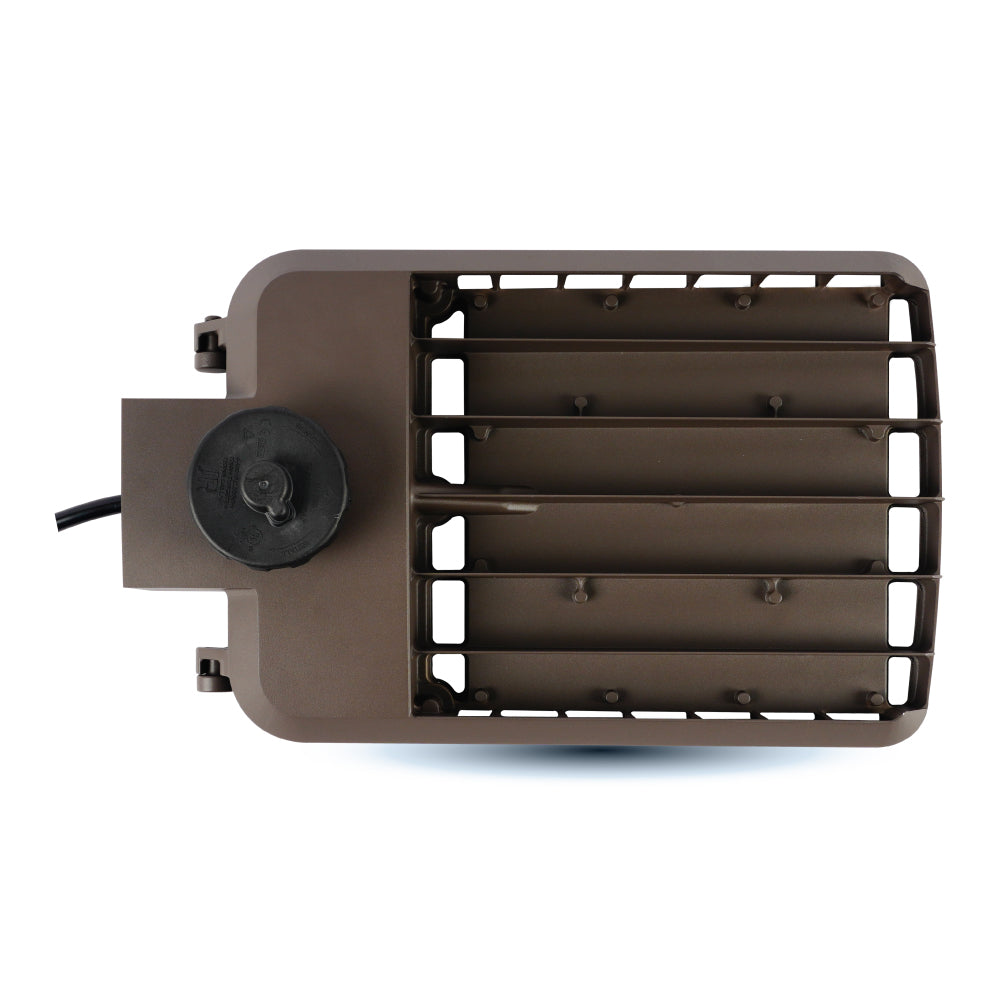

Robust Cast-Aluminum Housing: Offers excellent heat dissipation, easy maintenance, and long-term reliability. (LED junction temperature < 185°F)
Advanced Optical Design: Engineered for optimal light distribution and uniform illumination.
Rotatable Lens System: Specially designed adjustable lens enhances versatility across various lighting applications.

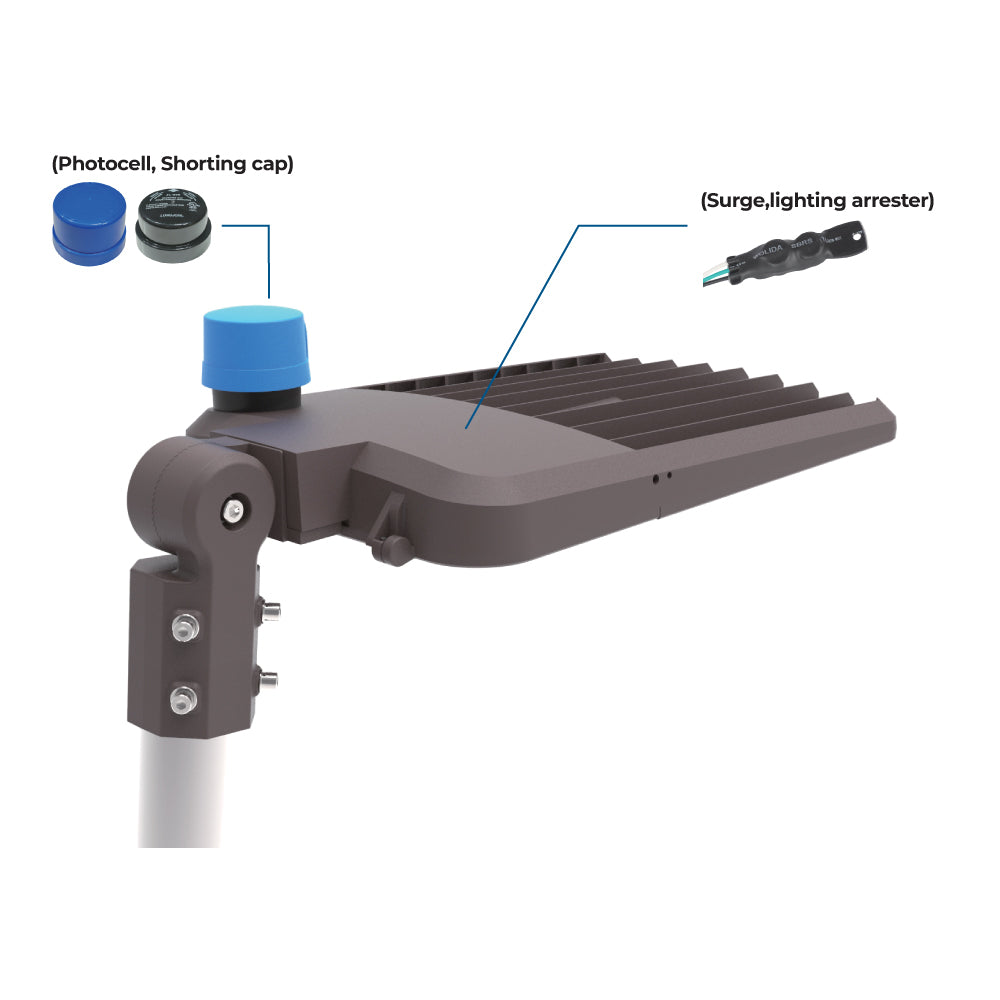

Sensor-Ready: Compatible with plug-and-play style photocell or motion sensors (sold separately).
Includes Shorting Cap: One shorting cap is provided in the package for immediate installation flexibility.

DLC No. / Product ID: S-SLN18I

3CCT AND WATTAGE SELECTABLE

Specifications

Wattage

200W/250W/300W
Voltage

AC120-347V, 50/60Hz
Lumens

130 lmn/W
Beam Angle

TYPE III
CRI

80Ra+
Dimmable

Yes (only 0-10V dimming available)
Lifetime

50,000 Hours
Rating

Wet Location
Grade of Protection

IP65
Application

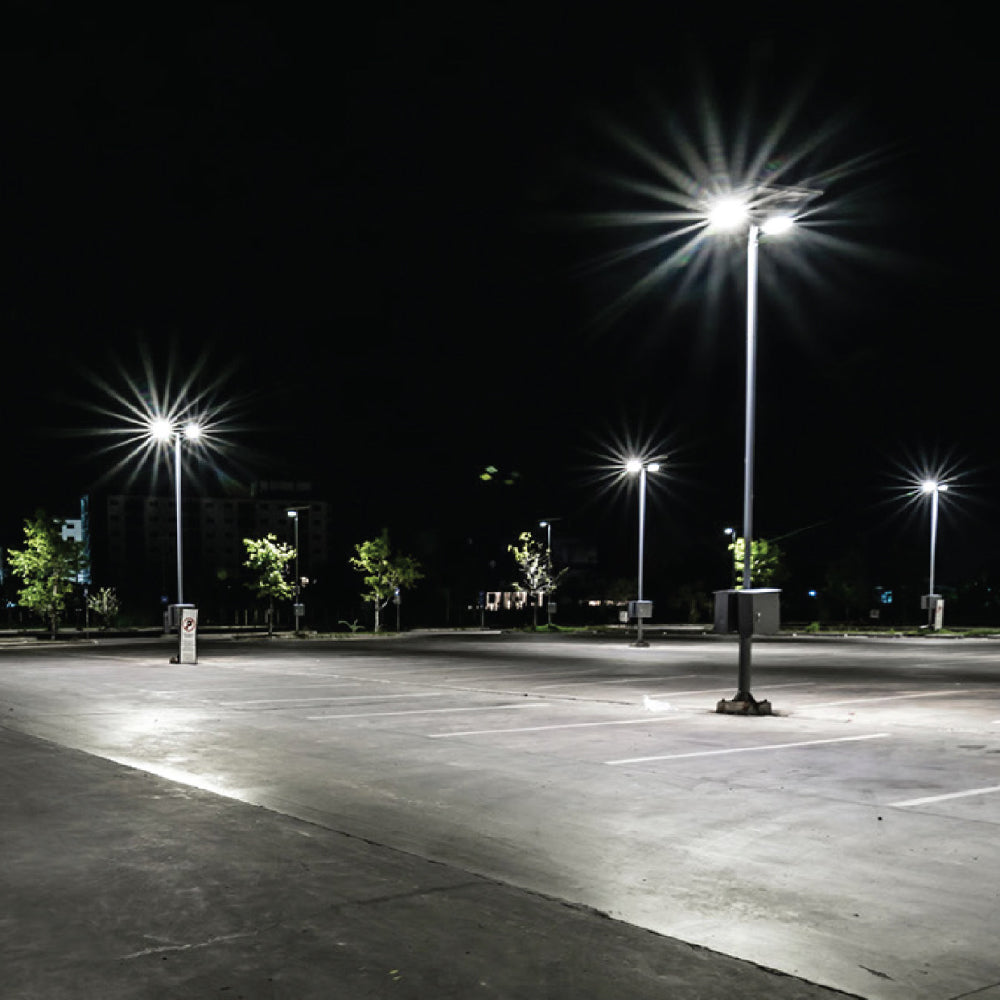

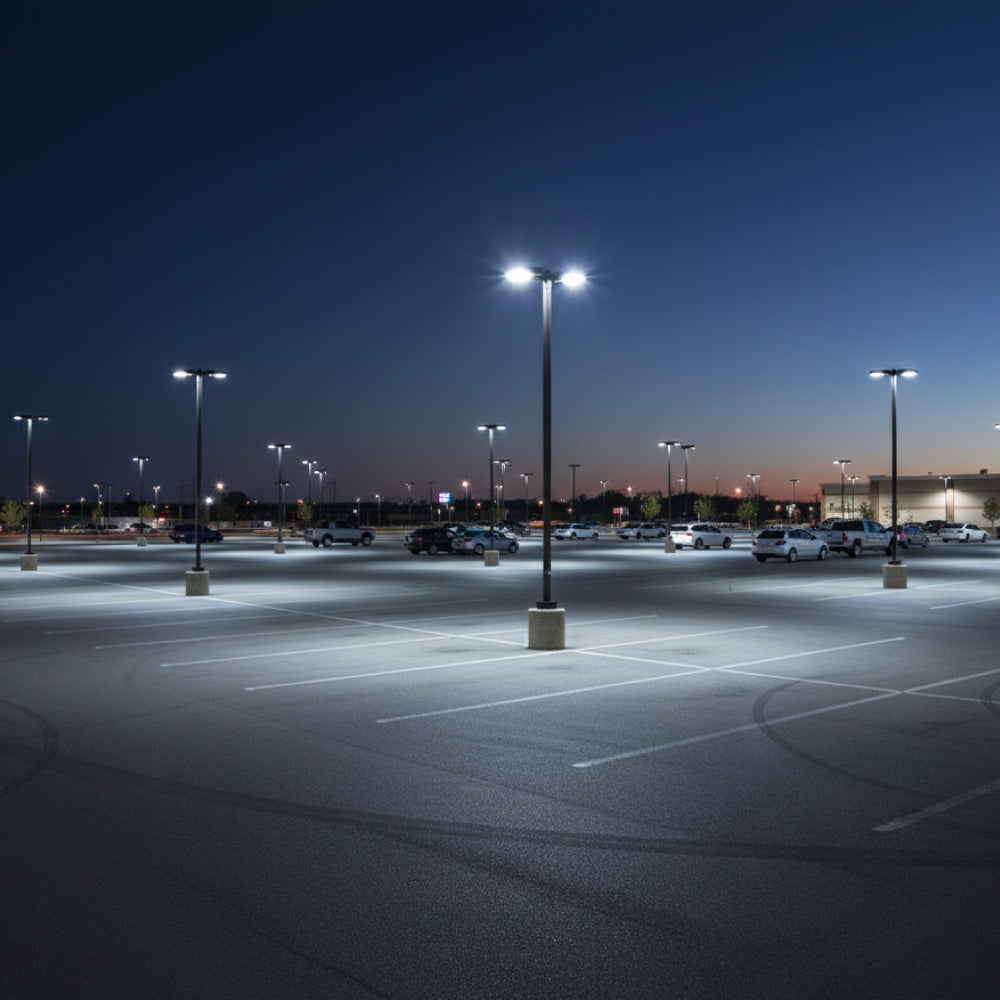

Parking Lots, Streets, Stadiums, Parks, Warehouses & Industrial Spaces.
Colour Temperature

3CCT [3000K/4000K/5000K]
Diffuser/Lens Material

PC
Operating Temperature

-40°C~45°C
Warranty

5 Years
Case Quantities

1

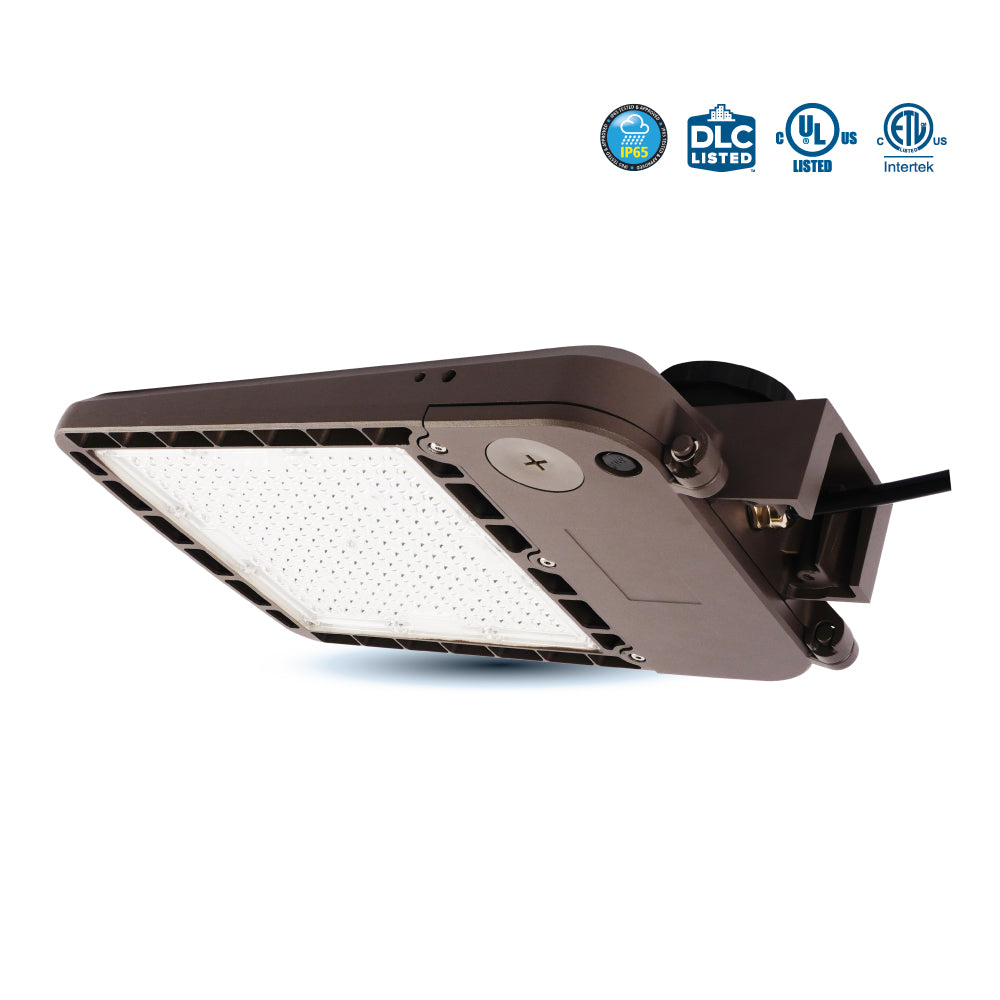

CERTIFICATIONS

Product features

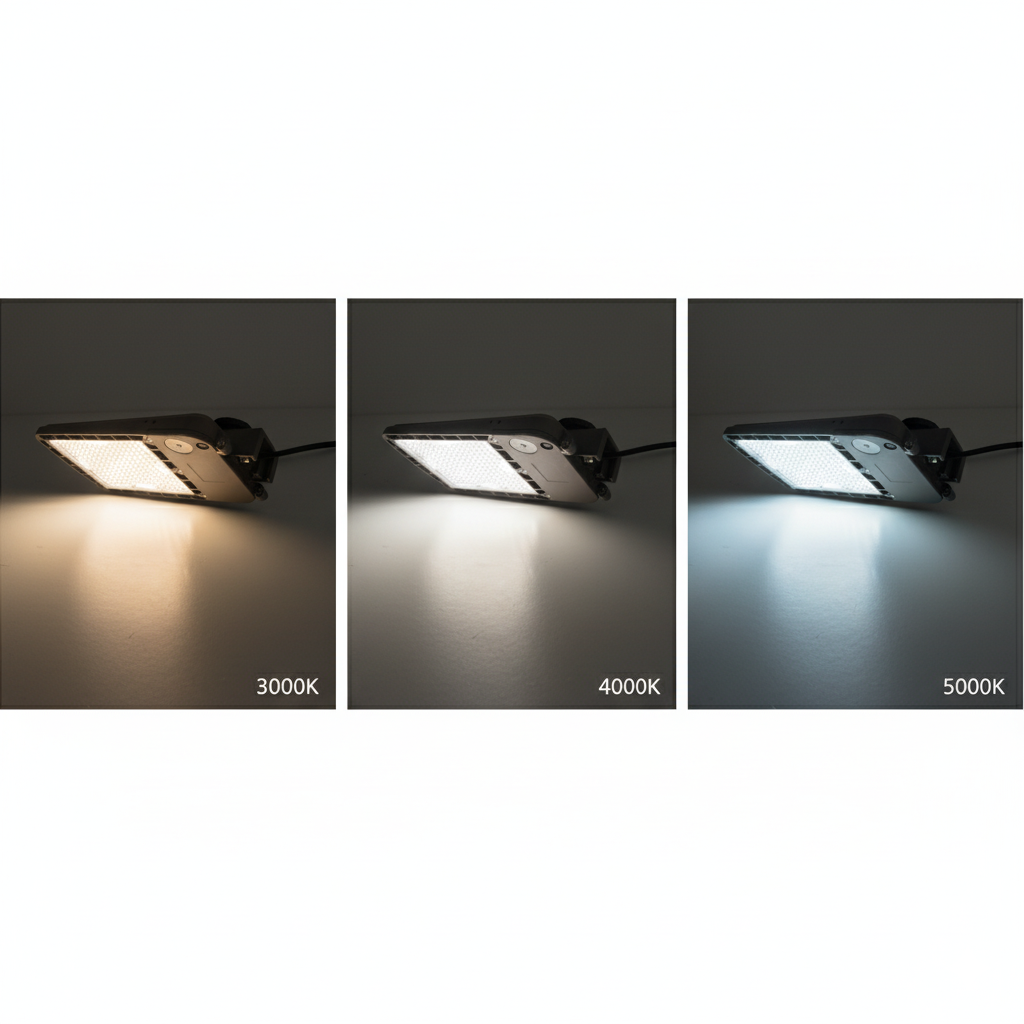

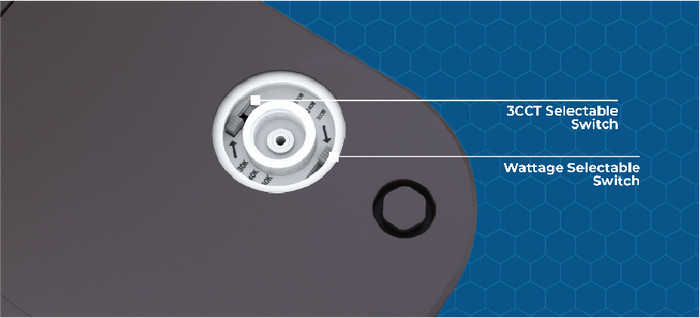

3CCT Selectable And 3 Wattage Selectable Switch

The 3CCT Selectable switch allows you to easily toggle between three different color temperatures, providing customizable lighting to suit various environments. The 3 Wattage Selectable feature enables users to adjust power consumption, offering flexibility in light output and energy efficiency depending on the application needs.

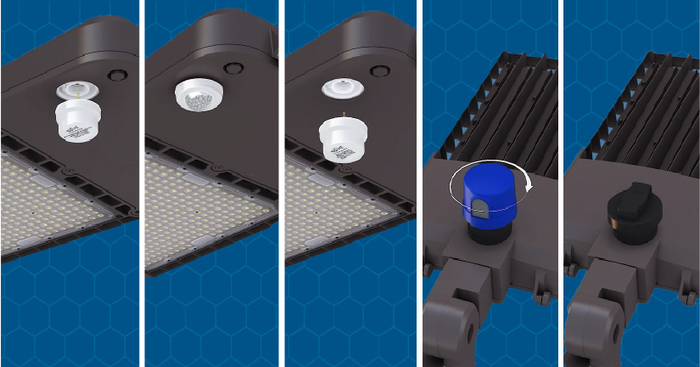

PIR SENSOR | MICROWAVE SENSOR | PNP SENSOR | SHORTING CAP

The Plug and Play sensors (PIR, Microwave, and PNP) offer quick and seamless integration for enhanced lighting control and efficiency. The shorting cap allows for sensor deactivation, giving you flexibility in usage while maintaining reliable performance.

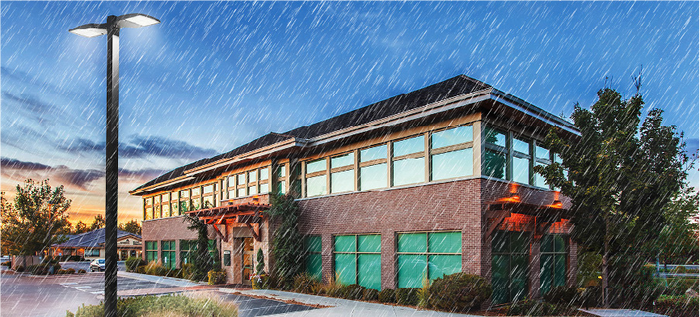

IP65 TESTED AND APPROVED

IP65 tested and approved ensures that the product is fully protected against dust & low-pressure water jets from any direction. This makes it ideal for both indoor and outdoor use, offering durability in challenging environments.

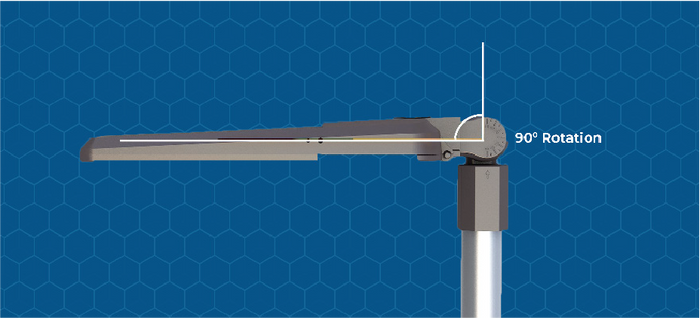

SB-SLIP FITTER

The SLIP Fitter bracket mount with 90-degree angle rotation offers versatile positioning for your lighting fixture, allowing precise adjustments to optimize light coverage. Its flexible design ensures easy installation and alignment to achieve the perfect lighting angle for any outdoor area.

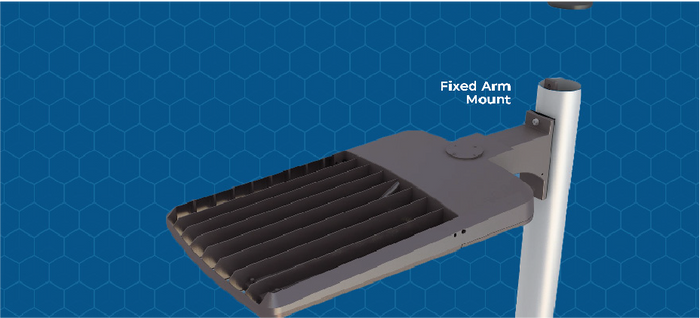

SB-POLE-M1

The fixed arm mount provides a sturdy, non-adjustable solution for secure lighting installation. It's designed for permanent positioning, ensuring reliable and consistent light direction in outdoor settings.

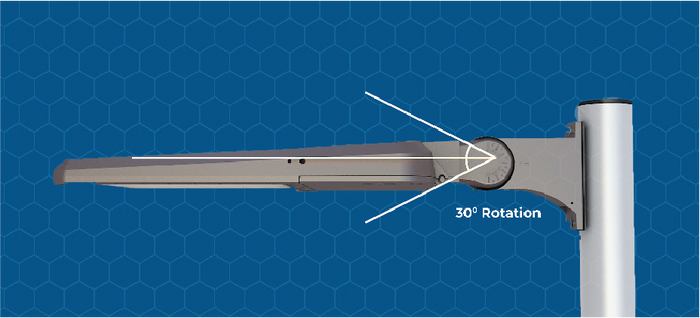

SB-POLE-M2

The adjustable arm mount with a 30-degree angle rotation allows precise control over the direction of your lighting, enhancing flexibility for optimal coverage. Its easy-to-use design ensures simple positioning, making it ideal for various outdoor lighting applications.

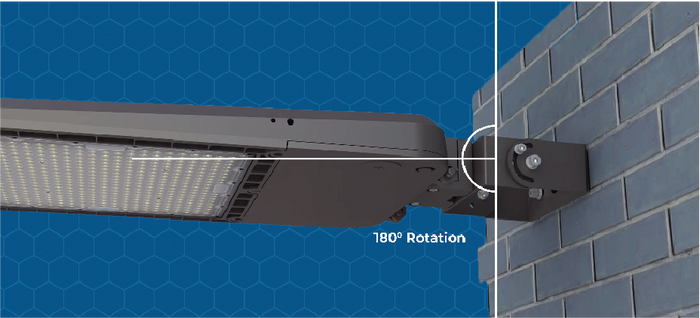

SB-TRUNNION-1

The trunnion mount with 180-degree angle rotation offers maximum flexibility for directing light where it's needed most. Its full rotational capability ensures precise, customizable positioning for optimal coverage in any environment.

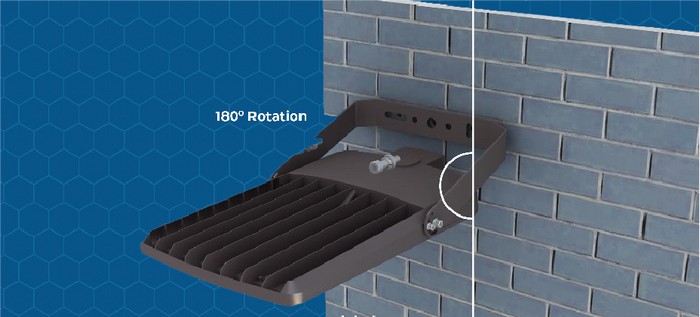

SB-YOKE-1 | SB-YOKE-2

The yoke mount with 180-degree angle rotation provides versatile installation, allowing easy adjustment for precision lighting. This mount offers sturdy support while enabling a full range of motion for optimal light placement.
