OD-DRBL-A

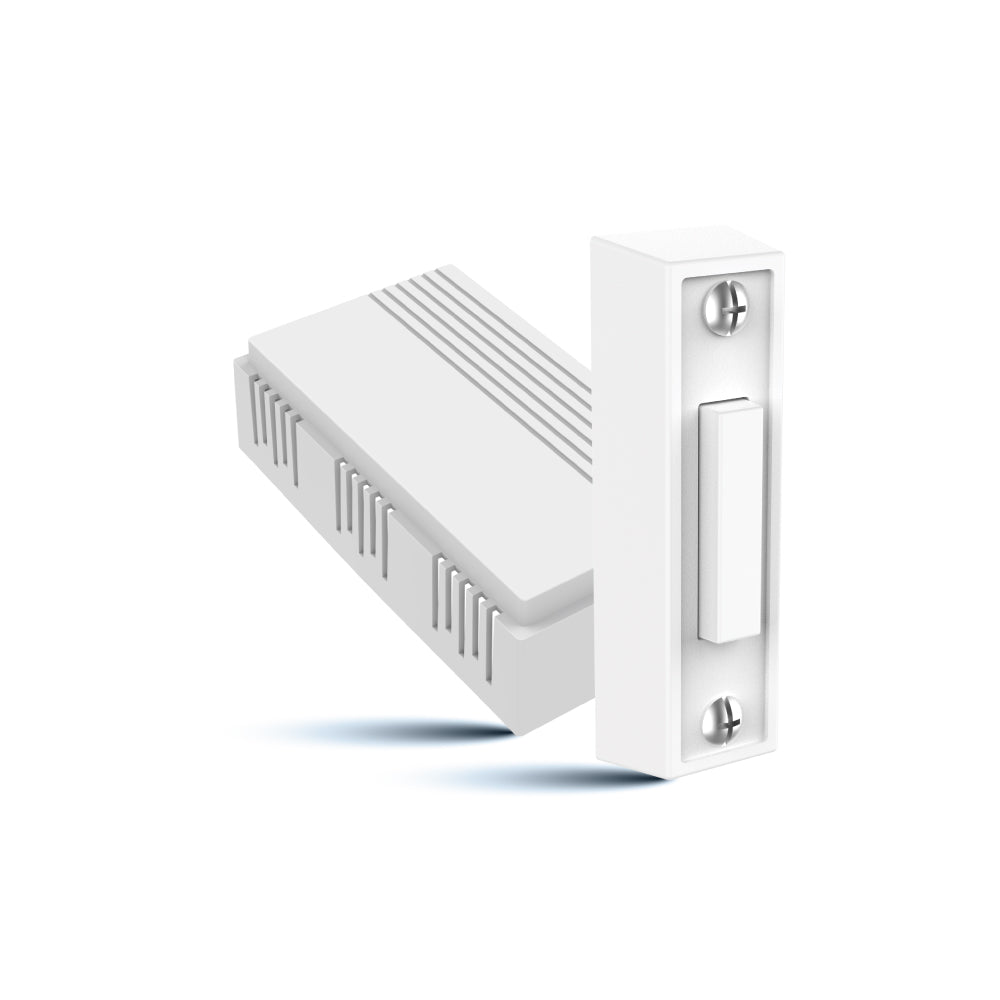

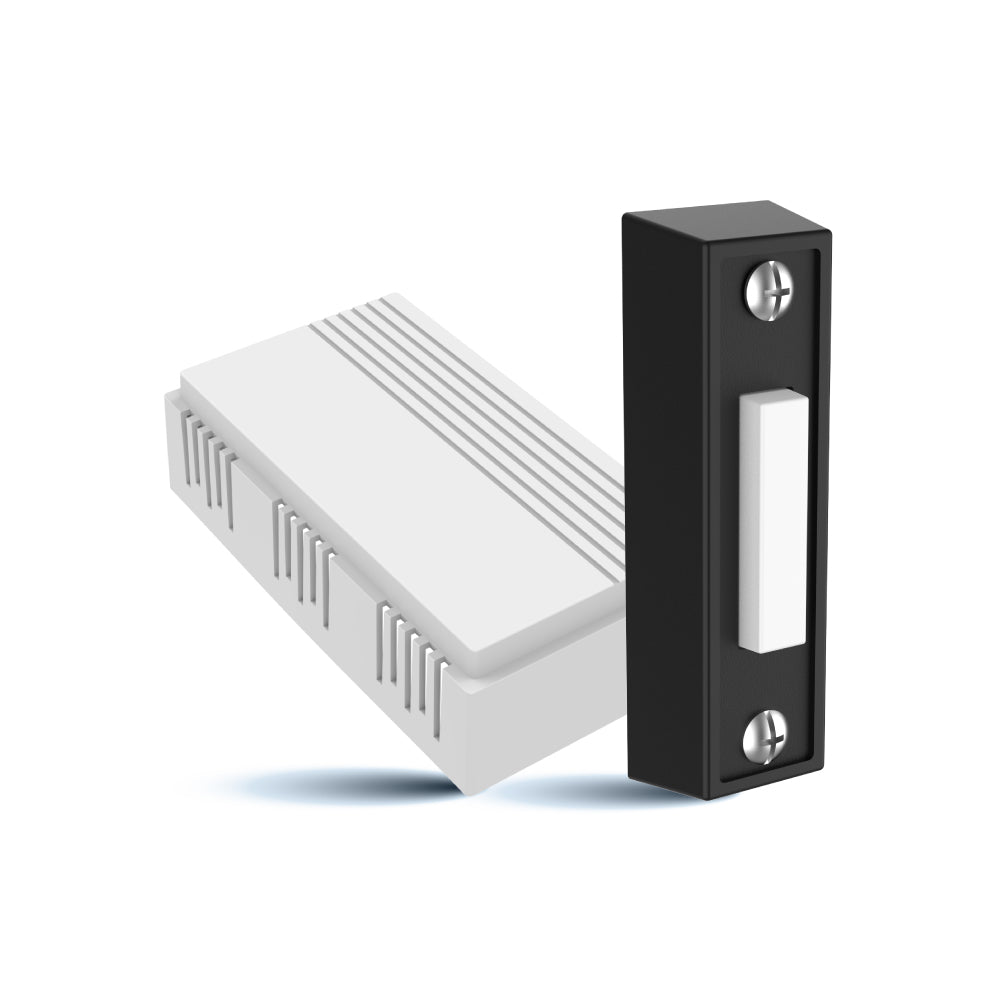

Wired Door Chime Kit featuring two illuminated push buttons, designed to provide a reliable and visually enhanced door notification system for residential or commercial entryways.

Color: White

HIGHLIGHTS

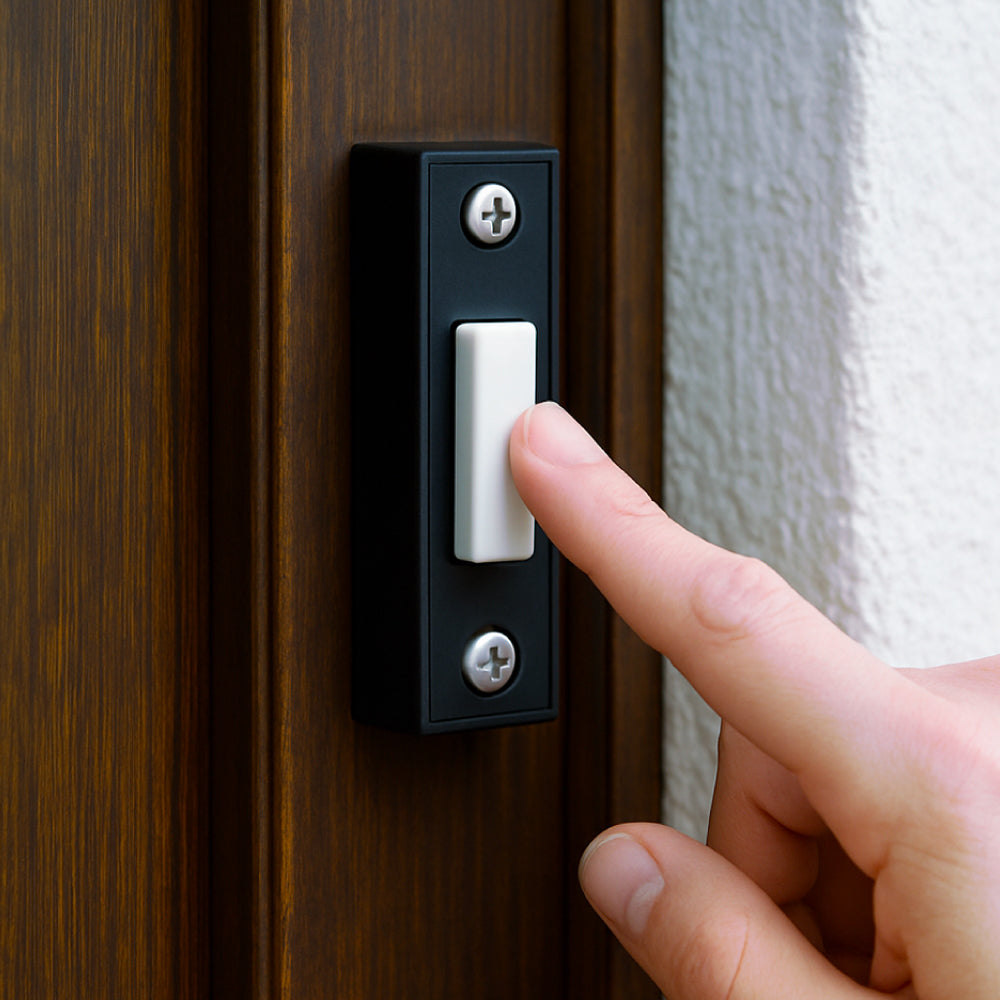

  • Reliable Wired Setup: Comes with two illuminated push buttons for dependable operation and enhanced visibility.
  • Simple Installation: Designed for quick and hassle-free setup.
  • Durable Construction: Made from high-quality materials to withstand daily use and environmental wear.
  • Battery-Free Operation: Maintains consistent power and performance without relying on batteries.
  • Distinct Chime Options: Features two chime sounds—two-note for the front door and one-note for the back door—for easy identification.
  • Loudness Levels: Front door chime reaches up to 85dB; back door chime up to 80dB.
  • Included Transformer: Comes complete with a transformer for immediate installation.

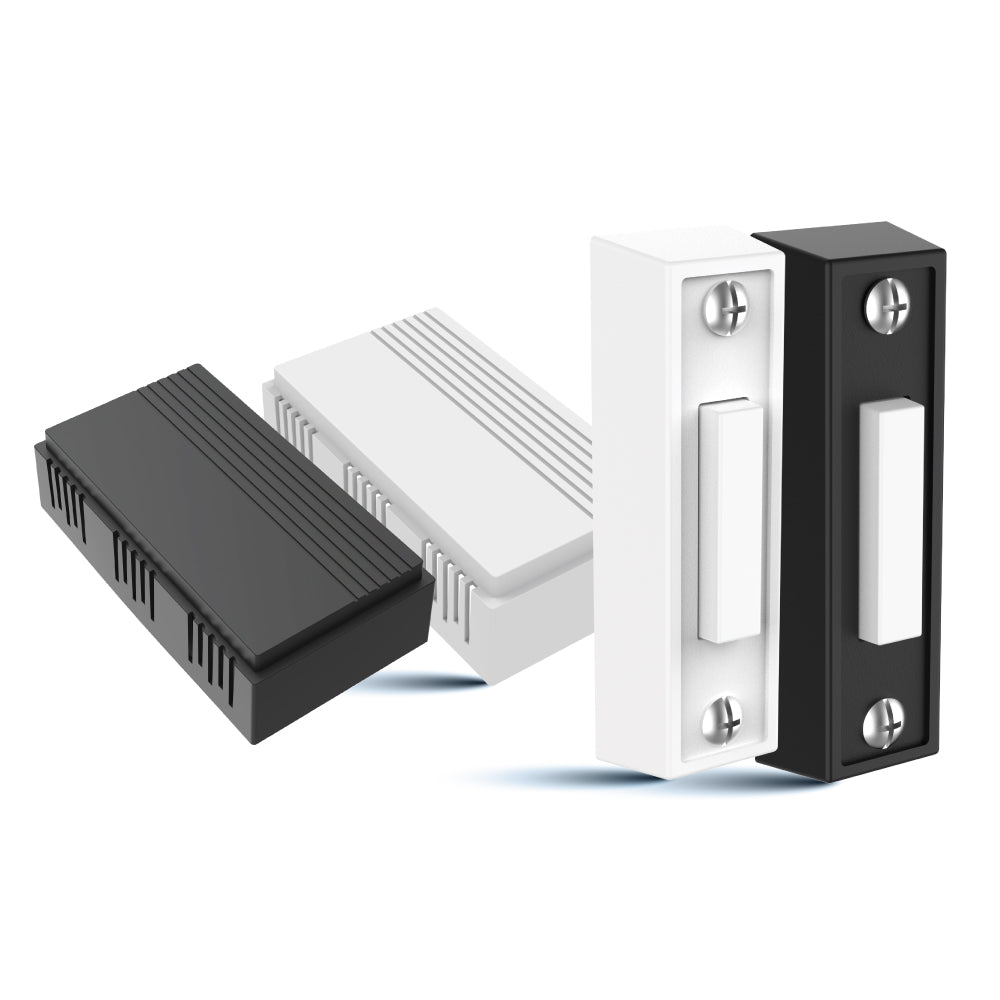

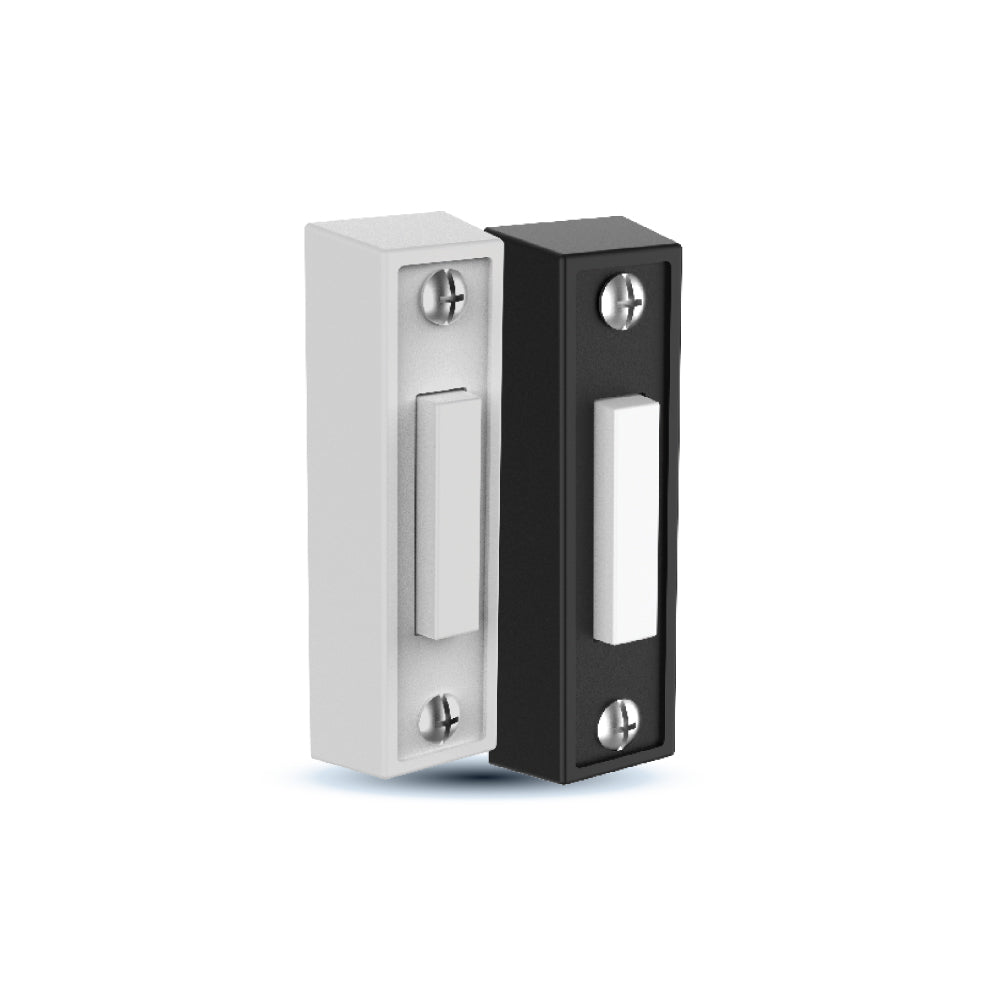

WITH 2 LIT UP PUSH BUTTONS

Specifications
  • Standby Current
    Wired bell push button (with light): <60mA
    Wired bell push button (without light): <50mA
  • Test Standards
    Test according to company standard
  • Working Voltage
    Transformer Output: 120VAC (60Hz)
    Transformer Input: 16VAC, 10VA
  • Working Current
    <200mA
  • Operating Temperature
    -20°C~+55°C

Doorbell Audio

Front Door Audio

Back Door Audio

PRODUCT SHEETS

Spec Sheet

OD-DRBL-A Spec Sheet

Instruction Manual

OD-DRBL-A Instruction Manual
