OD-C618

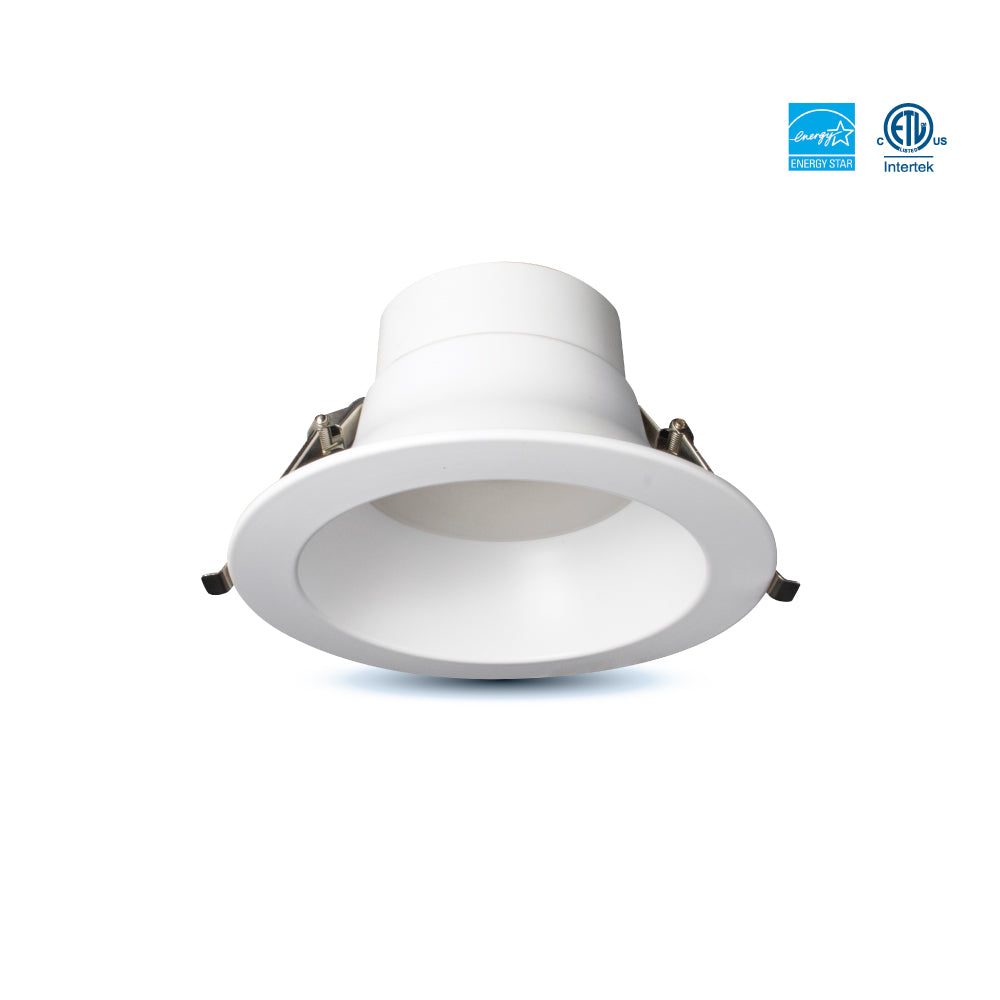

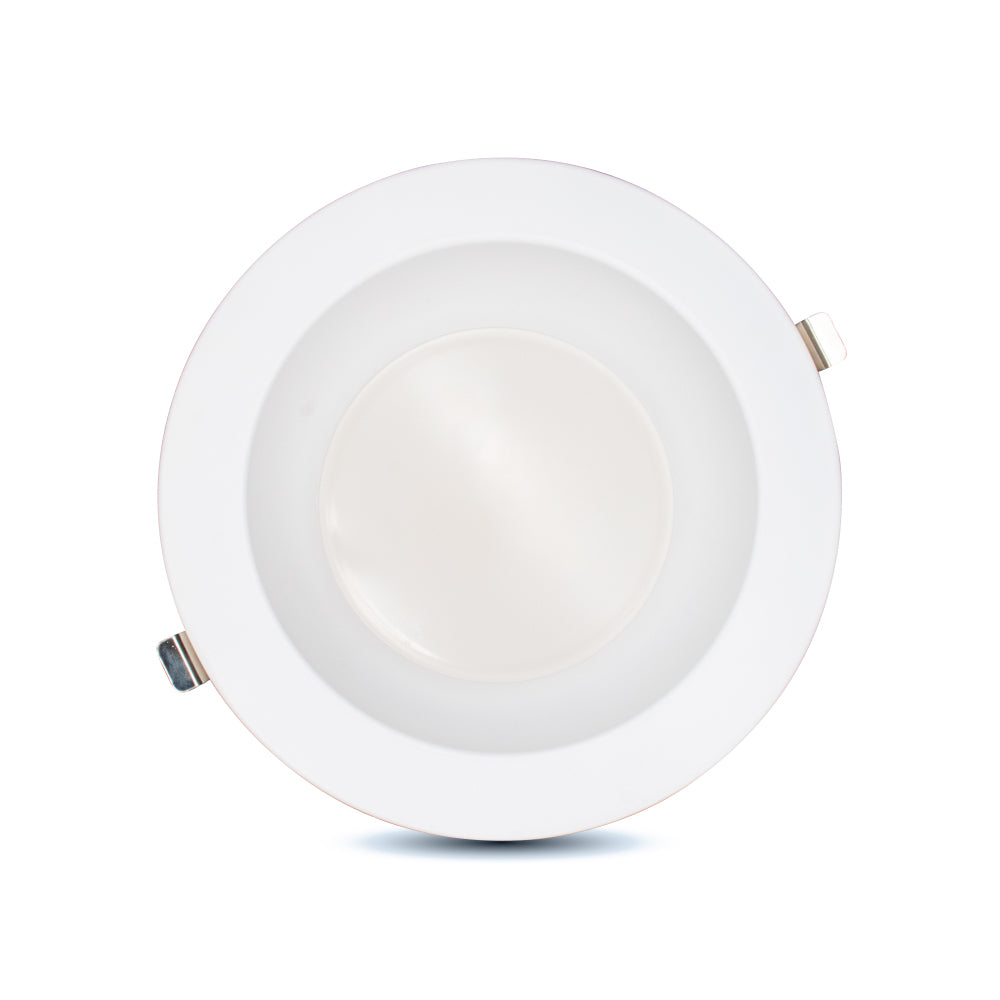

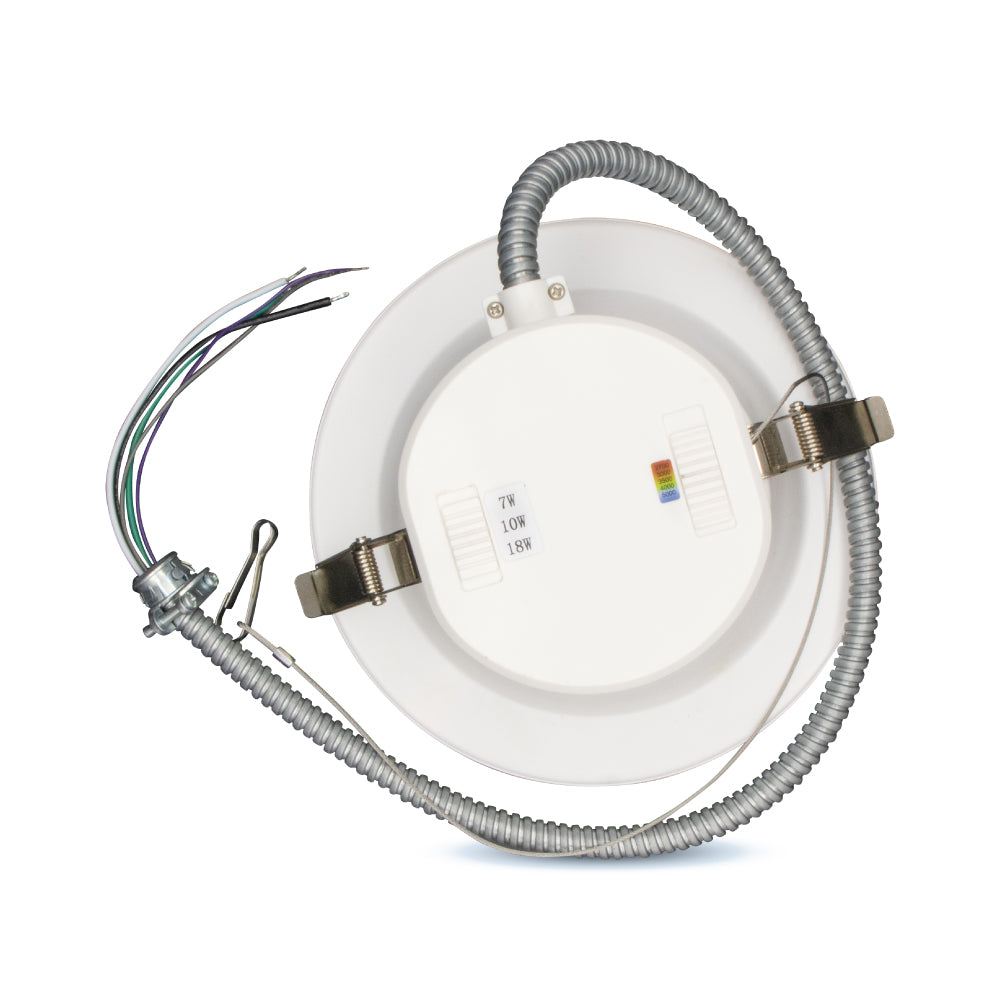

6" Commercial Downlights with Dual Selectable CCT & Wattage for Superior Color Rendering Accuracy

HIGHLIGHTS

  • Universal Voltage Input: Supports 120V–347V for broad compatibility across commercial installations.
  • 0–10V Dimmable: Seamless dimming capability for energy efficiency and lighting control.
  • High Color Accuracy: CRI 80+ ensures true color rendering for visually accurate environments.
  • IC Rated & Airtight: Safe for direct contact with insulation and compliant with airtight construction standards.
  • Low-Glare Regressed Optics: Designed to minimize glare while delivering clean, focused illumination.
  • Versatile Installation: Ideal for both new construction and retrofit projects.

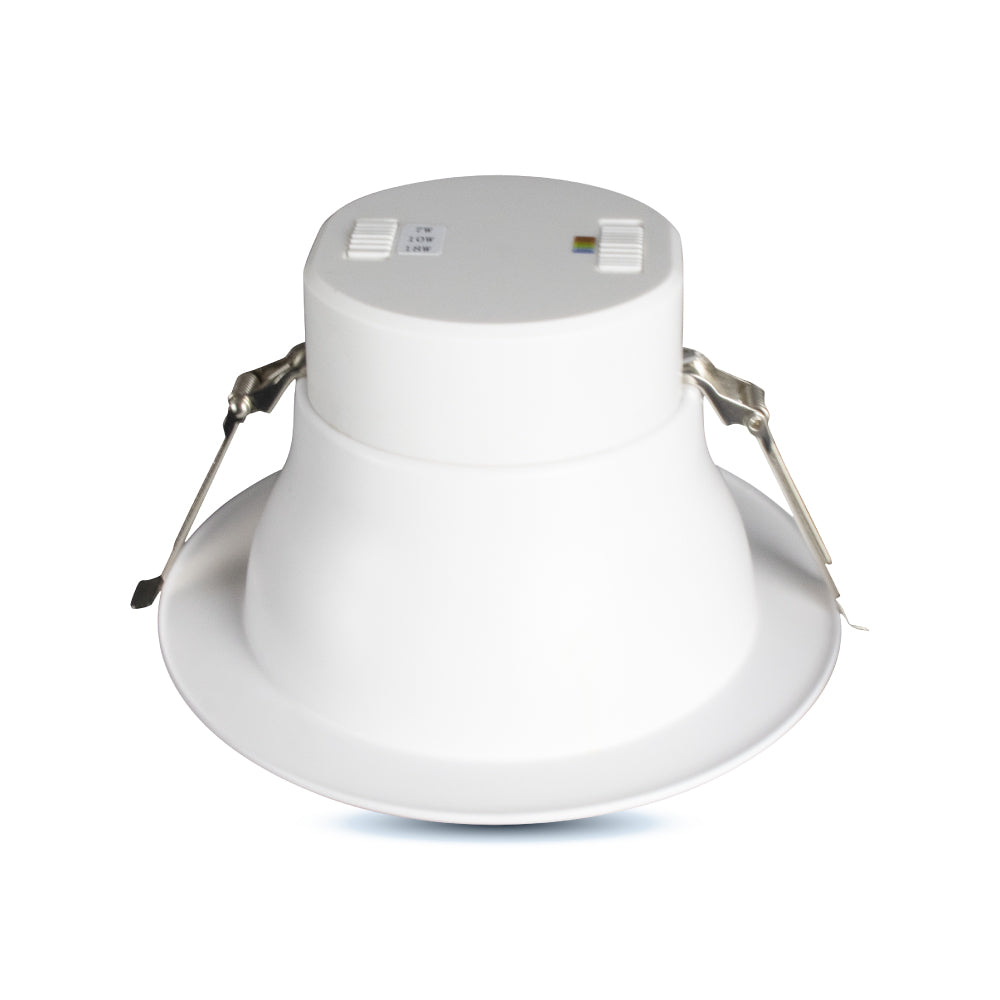

5CCT AND WATTAGE SELECTABLE

Specifications
  • Wattage
    7W/10W/18W
  • Voltage
    120-347V AC, 50/60Hz
  • Lumens
    650 lmn/950 lmn/1600 lmd
  • Beam Angle
    120º
  • CRI
    80Ra+
  • Air Tight
    Yes
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Dry And Damp Location
  • Grade of Protection
    IP54
  • Application
    New construction / Retrofit, etc.
  • Colour Temperature

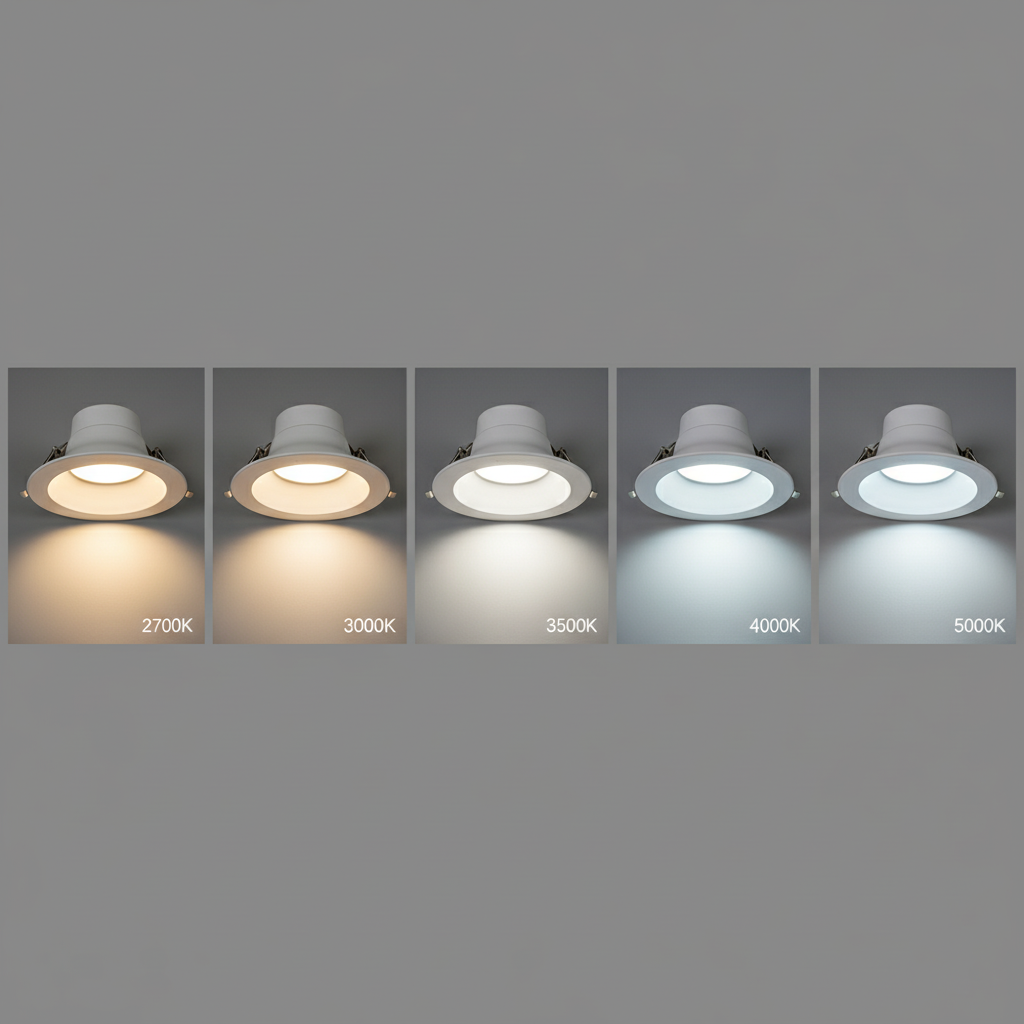

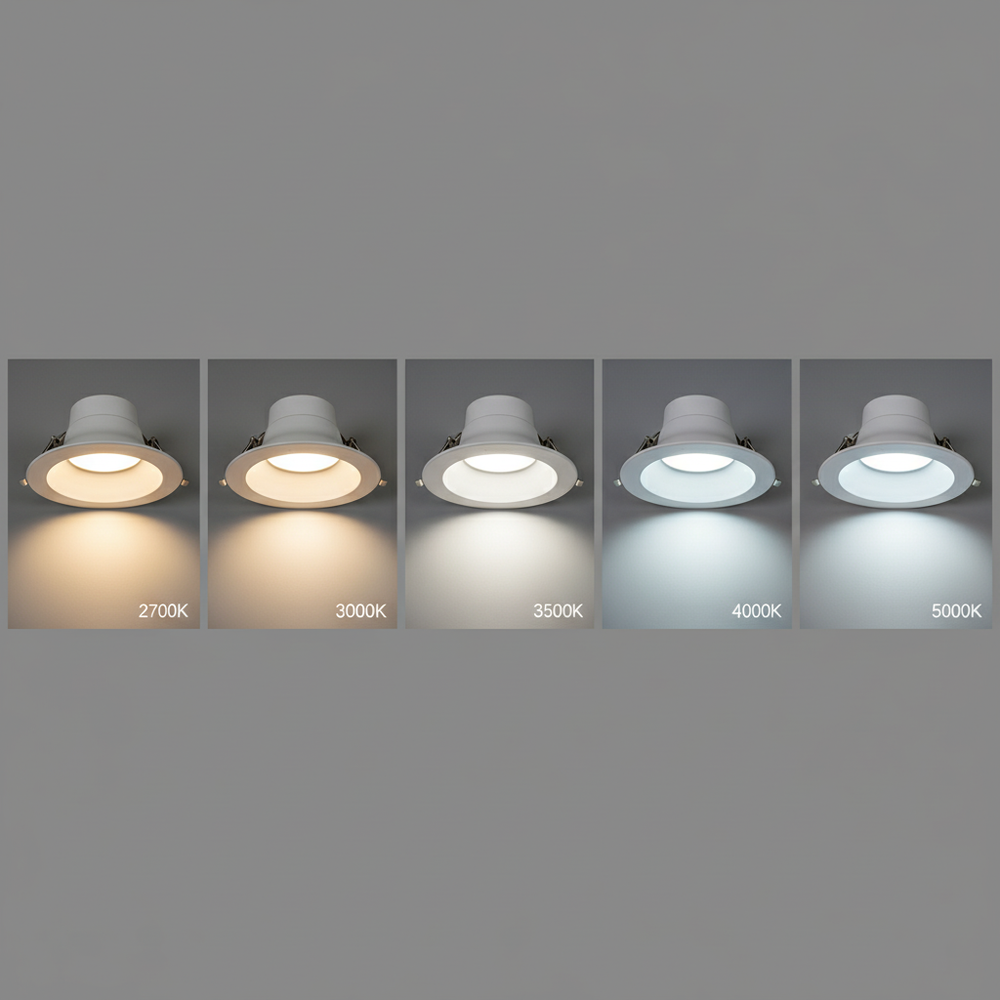

    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20ºC ~ +40ºC
  • Warranty
    5 Years
  • Case Quantities
    12

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

OD-C618 Spec Sheet

Instruction Manual

NA

Dimmer List

OD-C618 Compatible Dimmer List

IES Files

OD-C618 IES Files
