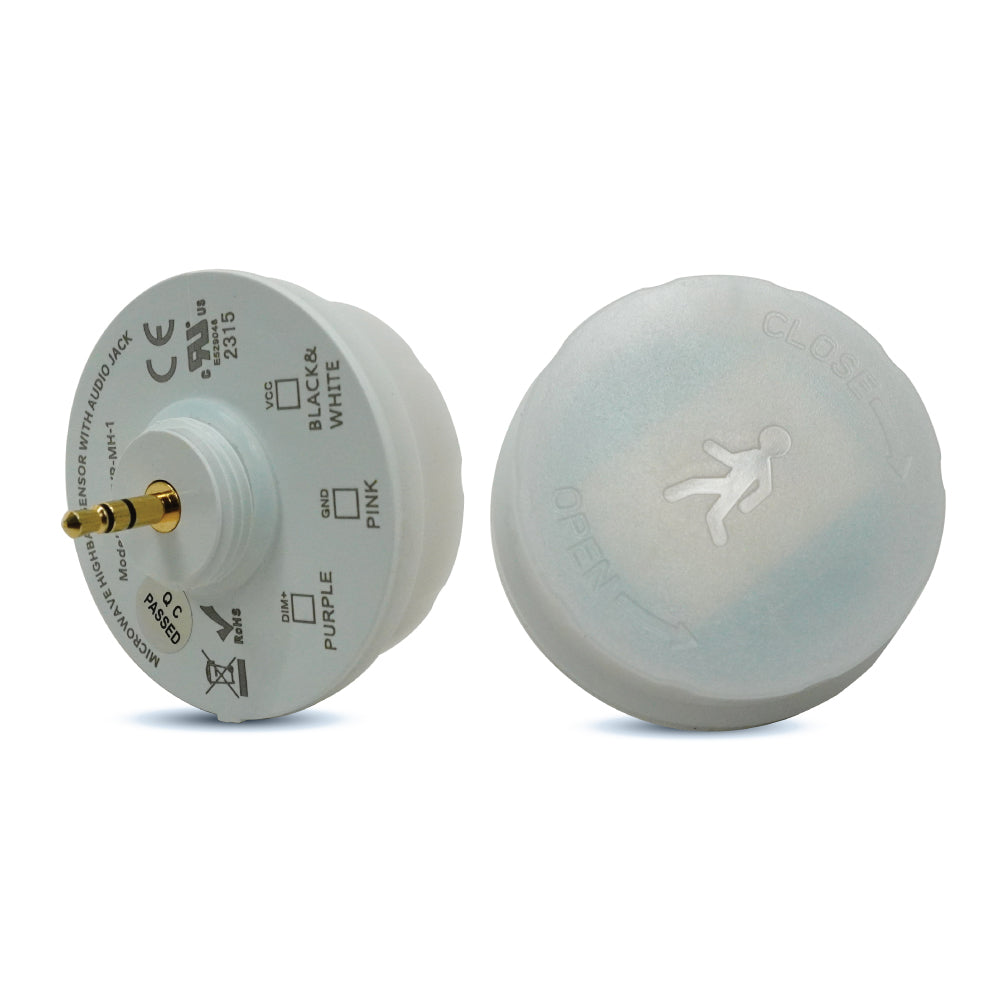

PNP-SENSOR

Microwave sensor head powered by 12V DC, featuring remote control operation

HIGHLIGHTS

Bi-level dimming with adjustable daylight threshold and dusk/dawn functions.
Equipped with a 3.5mm jack, compatible with UFO high bays, linear high bays, canopies, and area light applications.
Maximum mounting height of 12 meters.

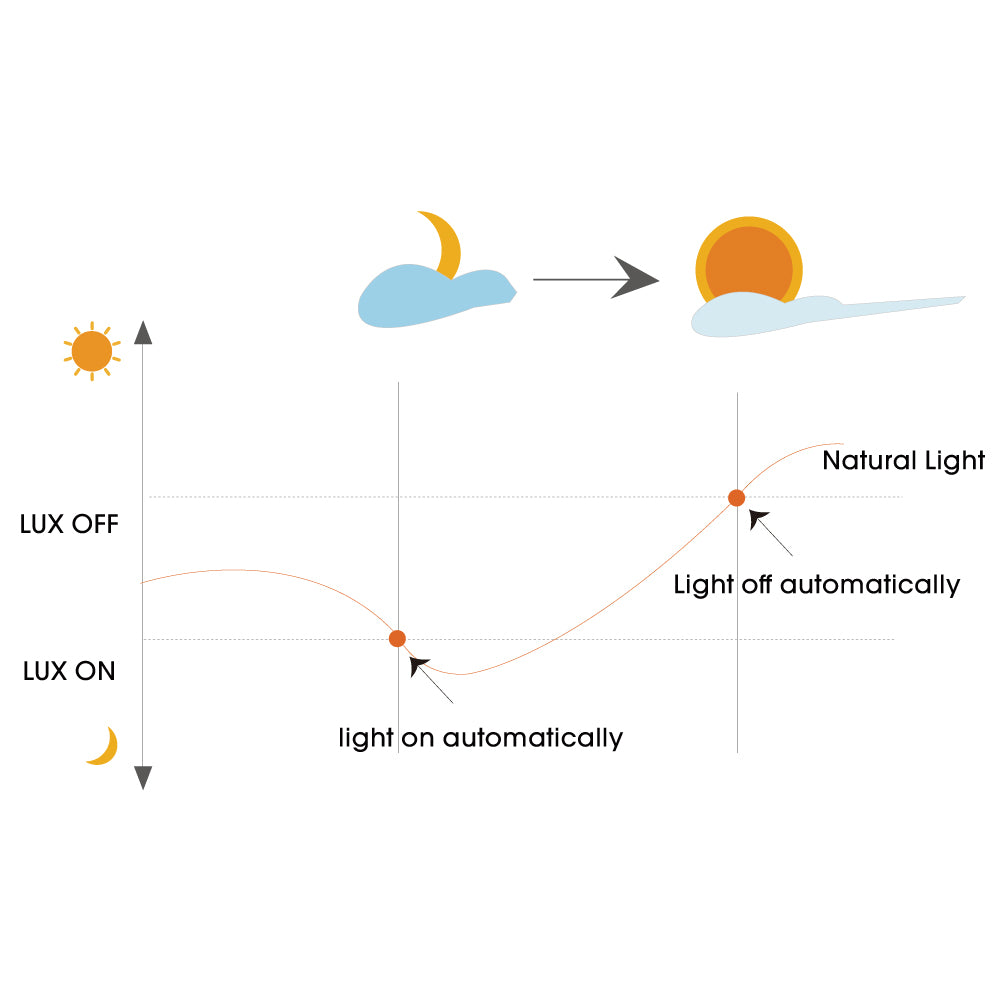

Distinguishes between artificial and natural light when installed inside the fixture, automatically turning off the light when ambient brightness exceeds the preset lux level.
Designed for indoor use; motion signals from semi-outdoor or fully outdoor environments may trigger the sensor.

COMPATIBLE WITH COMMERCIAL LIGHTS

Specifications

Voltage

10-15VDC
Connection

12VDC input
Standby Period

0s/10s/30s/1min/5min/10min/30min/60min+∞
Standby Dimming Level

10%/20%/30%/50%
Daylight Threshold

Disable/ 2lux/ 10lux/ 30lux/ 50lux/ 80lux/ 120lux
Holdtime

5s/30s/1min/3min/5min/10min/20min/30min

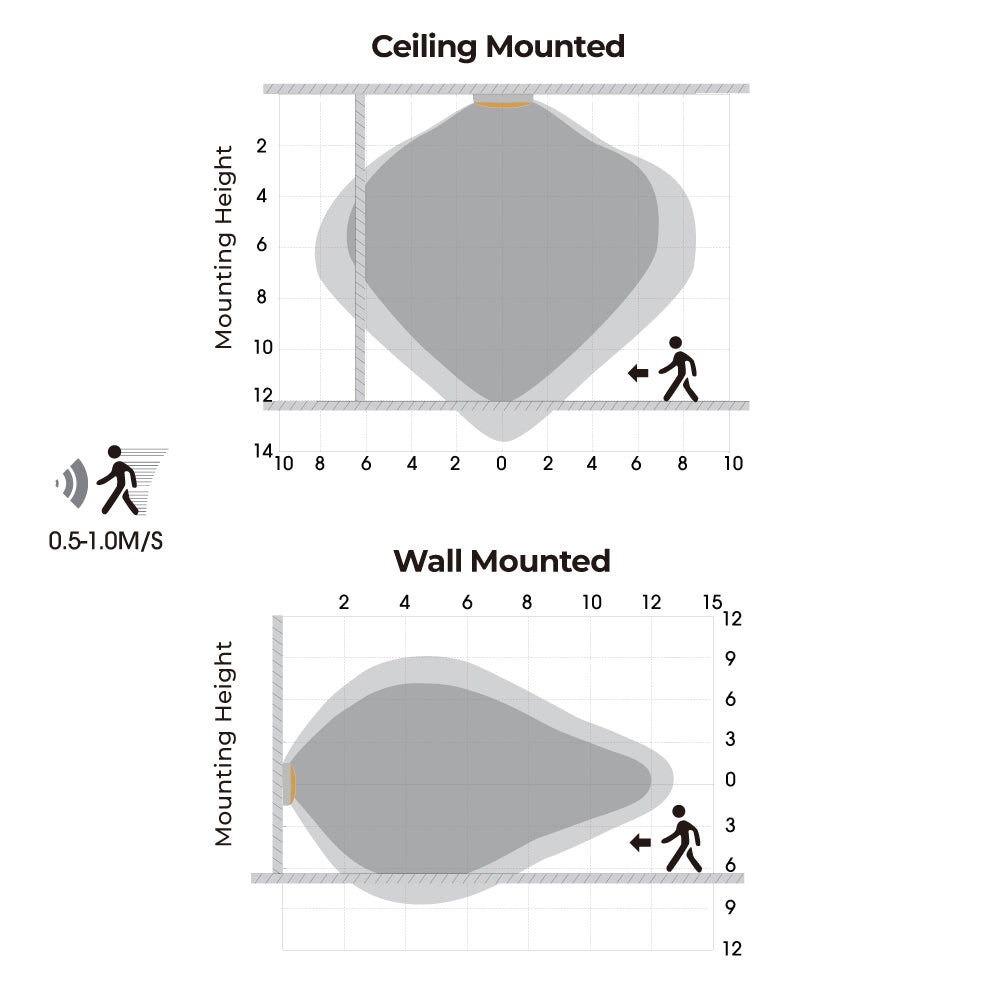

Detection Area

25%/50%/75%/100%
Installation Height

12m/39ft Max.
Microwave Power

<0.3mW
Sensor Detection Height (Max)

≥3m/9ft
Input Voltage

12VDC
Amps

≥30mA
Frequency Range

5.8GHz±75MHz
Warranty

5 Years

Compatible With

Area Lights

AREA LIGHTS
(SB150-3CCT+W | SB-300CCT+W)

Canopy Lights

CANOPY LIGHTS
(CNP40-3CCT+W | CNP100-3CCT+W)

Linear High Bays

LINEAR HIGH BAYS
(2HB165-3CCT+W+S | 4HB250-3CCT+W+S)

UFO Lights

UFO LIGHTS
(UFO-150-3CCT+W | UFO-240-3CCT+W)

Must be controlled by

PNP-REMOTE

PRODUCT SHEETS

Spec Sheet

PNP-SENSOR Spec Sheet

Instruction Manual

PNP-SENSOR Application Notice
