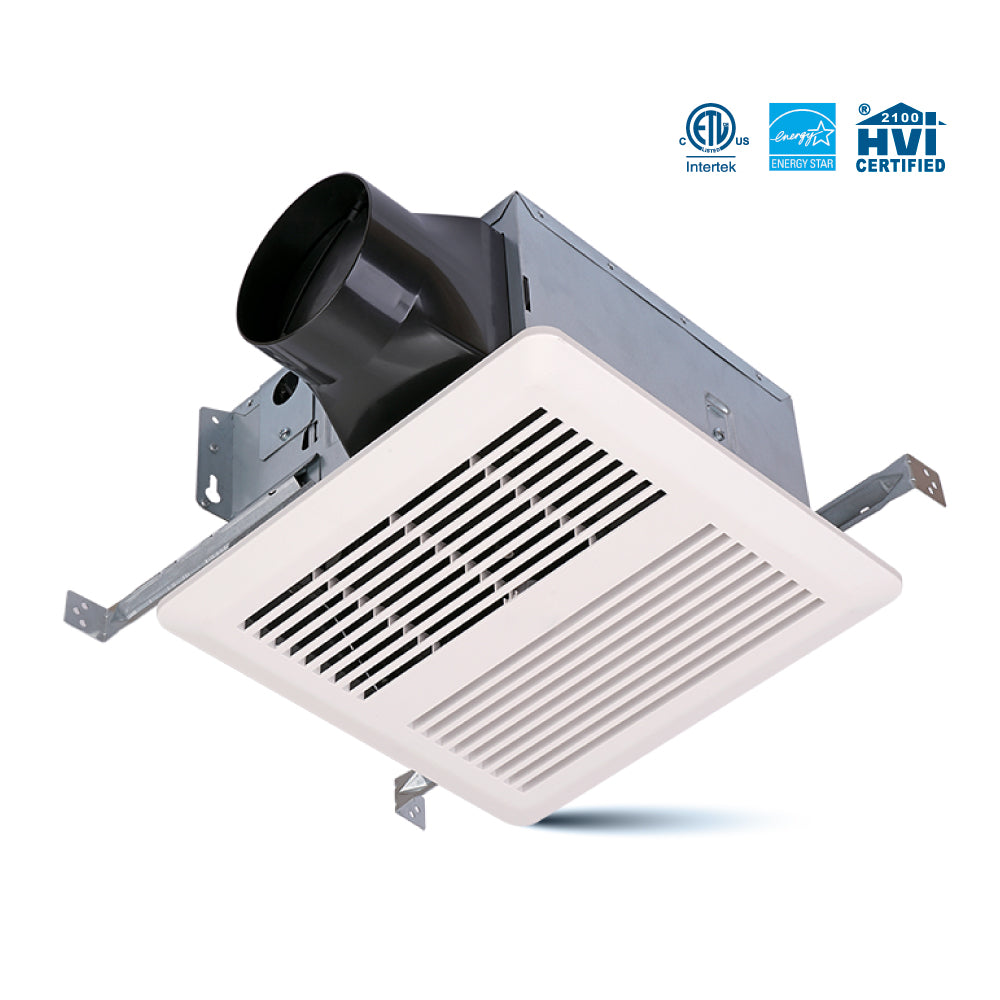

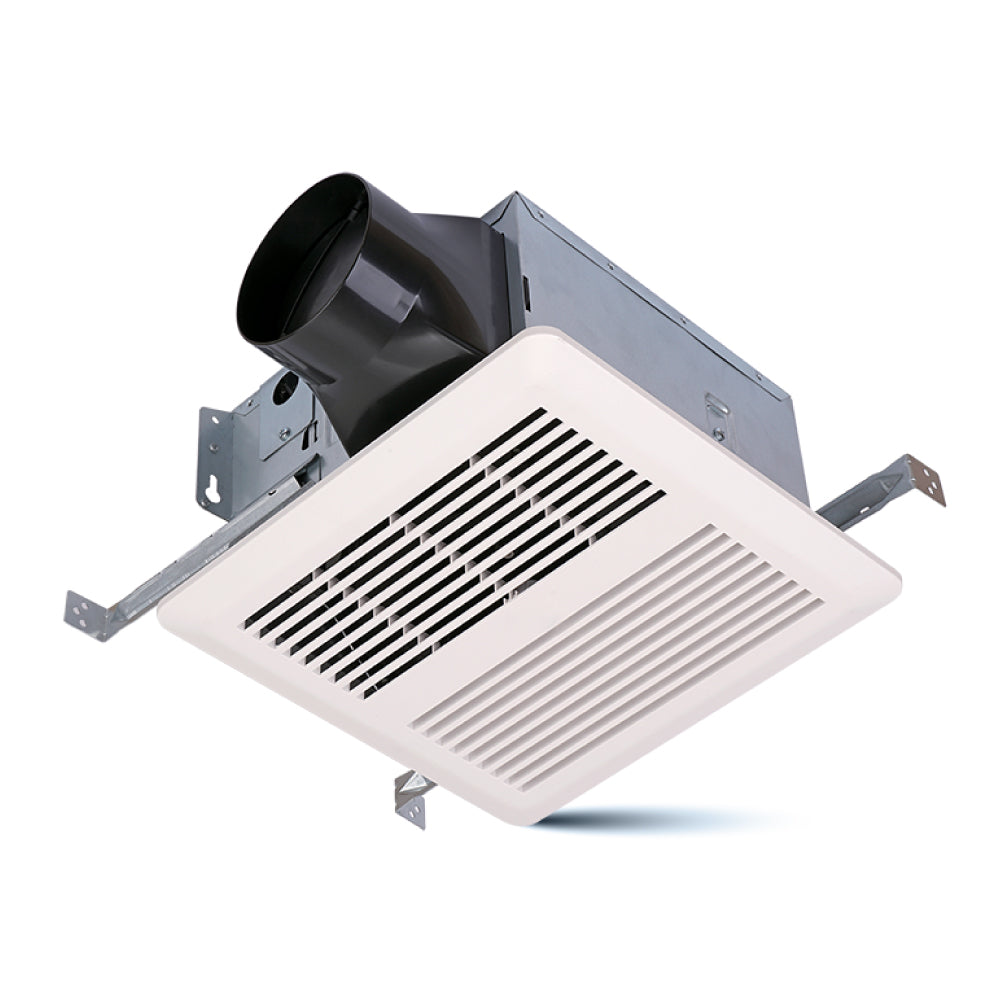

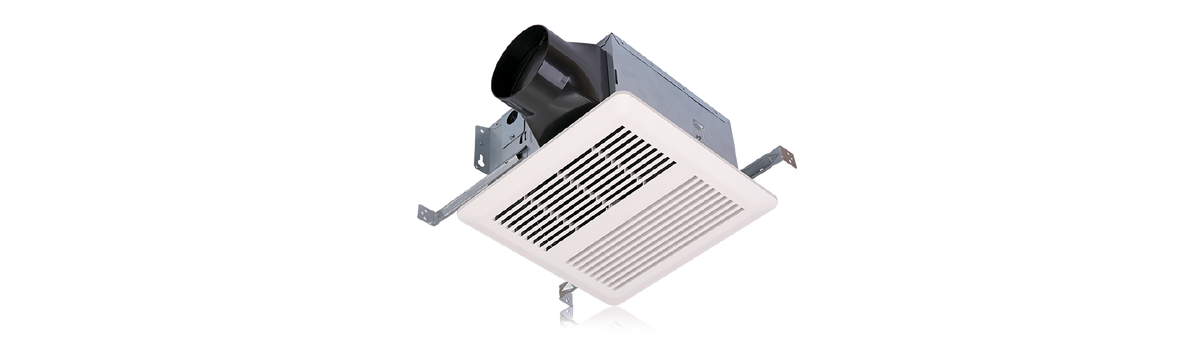

ODD-110HS

Compact Series Fan with three quiet speed settings and a sleek design, featuring a built-in humidity sensor for responsive and efficient ventilation control.

HIGHLIGHTS

  • Ultra Silent & High Performance: Delivers powerful ventilation with minimal noise

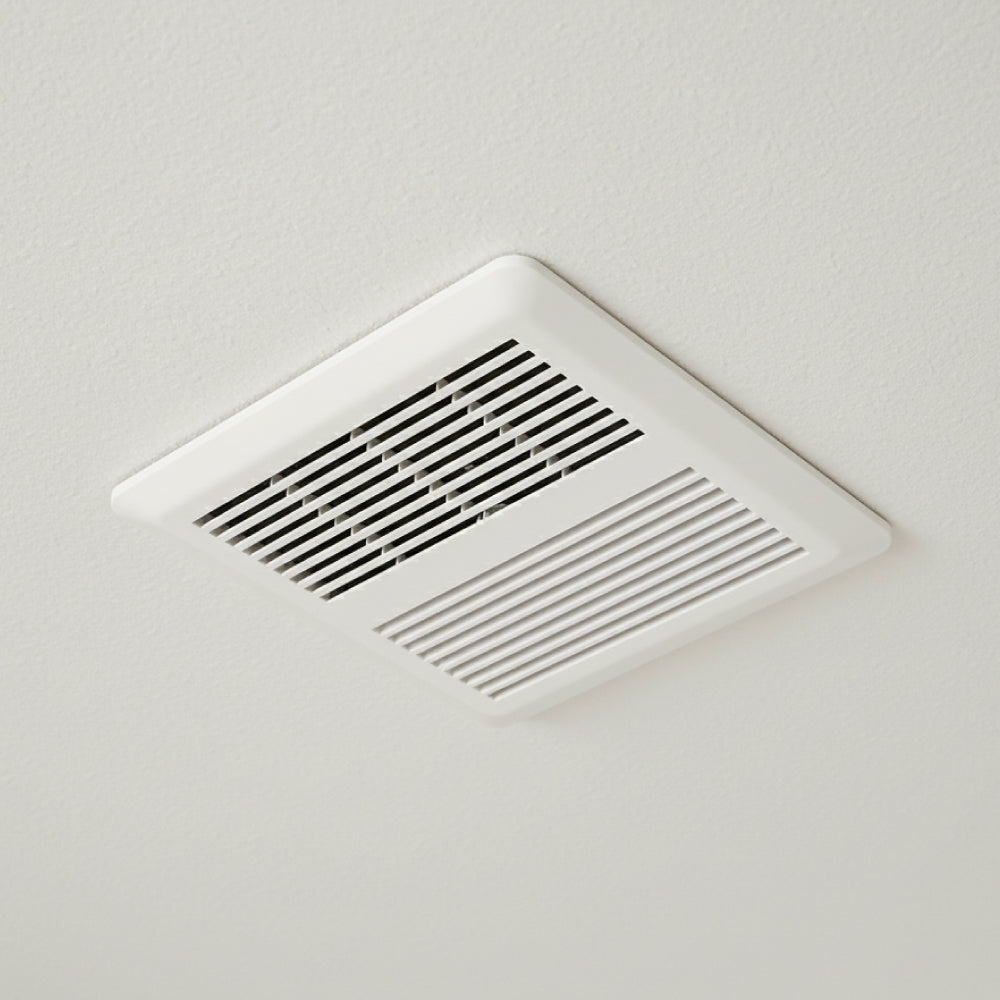

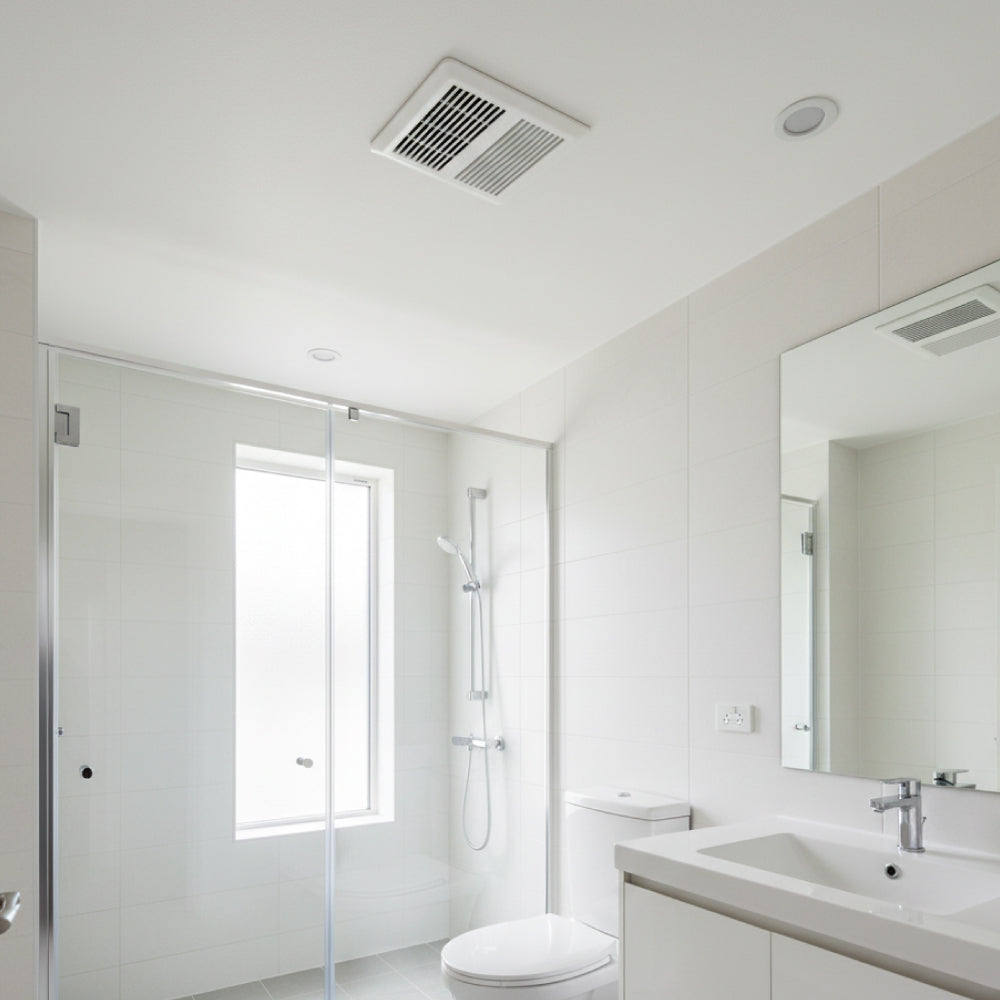

  • Ceiling Mounted Design: Ideal for quiet overhead installation
  • Three-Speed Operation: Designed to run continuously and quietly at selectable speeds
  • Built-in Humidity Sensor: Detects humidity levels from 50% to 100% RH for responsive control

ENHANCED AND IMPROVED

Specifications
  • Motor
    DC motor
  • Static Pressure (in inches w.g.)
    0.1 / 0.25
  • Speed Setting
    110CFM|80CFM|50CFM / 110CFM|80CFM|50CFM
  • Air Volume (CFM)
    113|88|55 / 97|70|45
  • Noise (sones)
    0.9|0.5|<0.3 / 1.5|1.2|1.3
  • Fan Watts
    9.6W|5.9W|3.5W / 11.2W/7.8W/5.9W
  • Duct Diameter
    4"
  • Power Rating
    120V/60Hz
  • Housing Size
    9"×9"×5 3/4"
  • Grille Dimensions
    11 7/8"x11 3/8"
  • Grille Material
    Plastic
  • Warranty
    5 Years

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODD-110HS Spec Sheet

Instruction Manual

ODD-110HS Instruction Manual

Revit Files

NA
