1 3

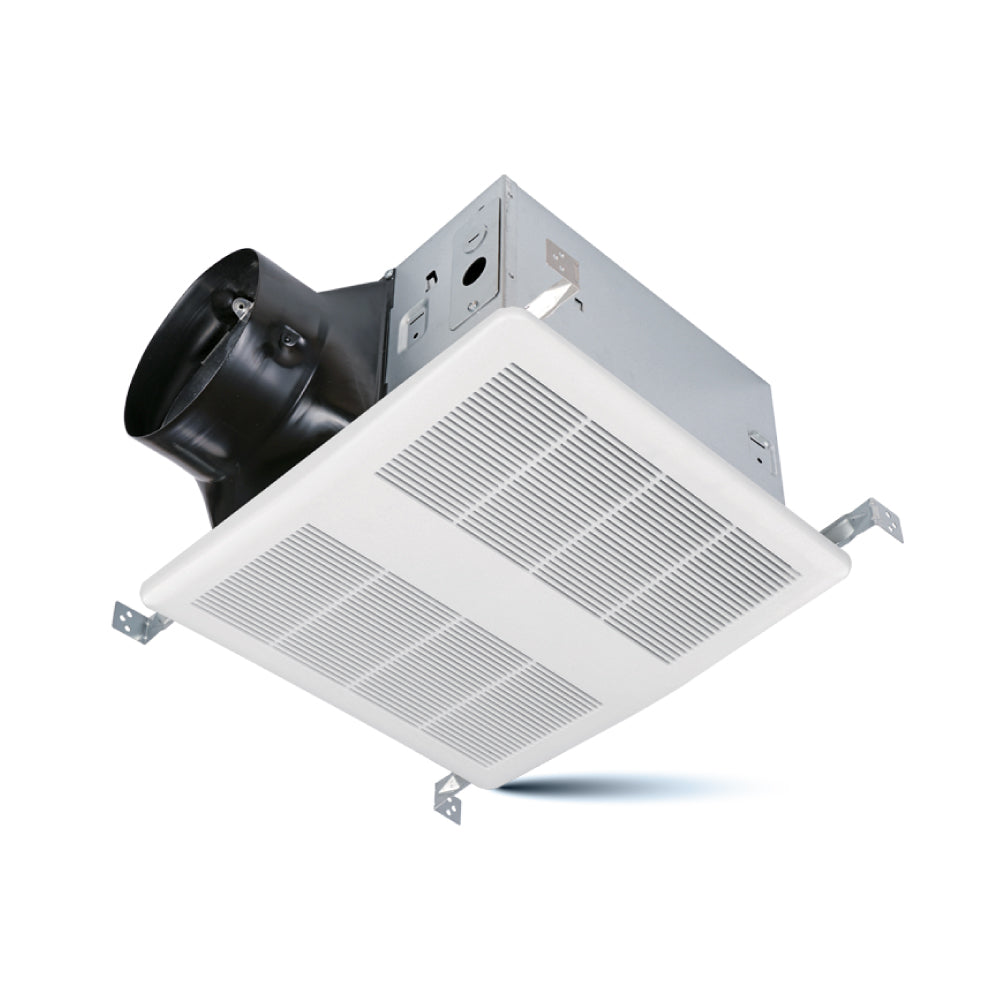

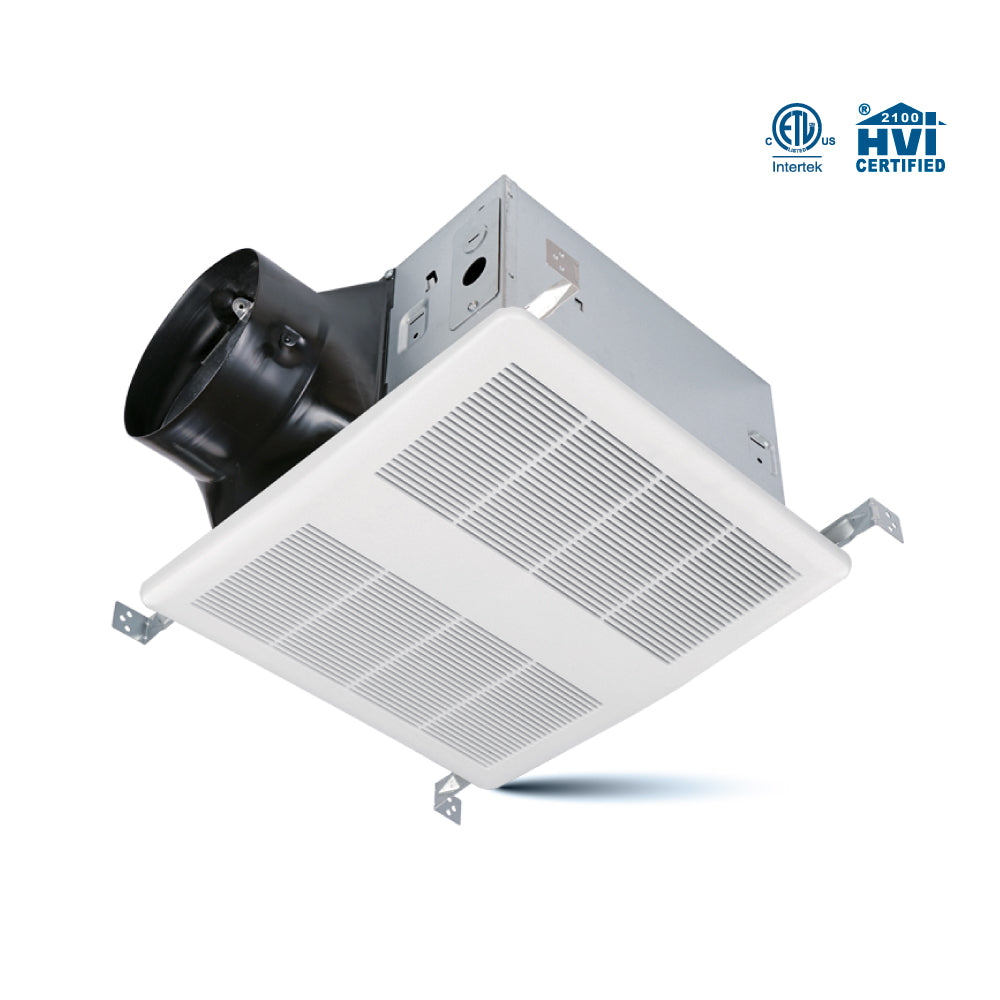

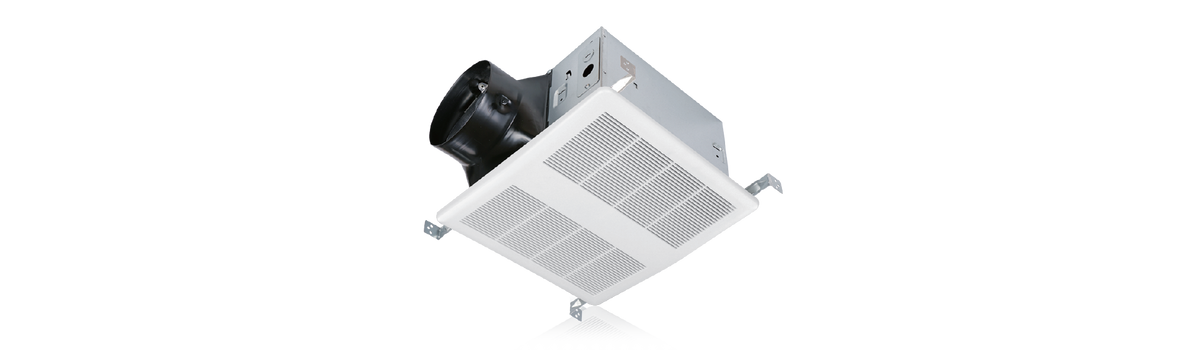

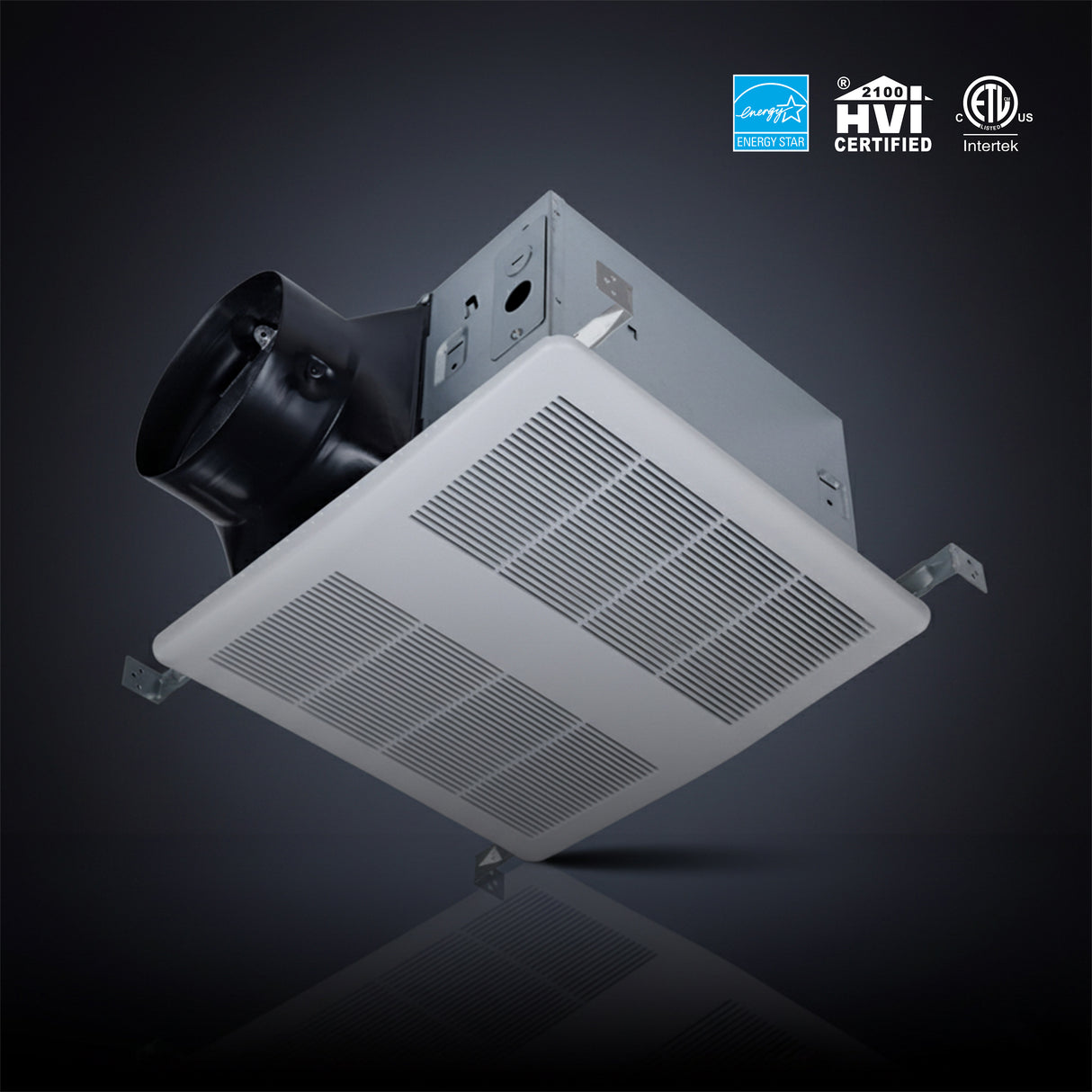

ODD-300-3

The Supreme Series fan features three speed settings and is engineered for continuous, whisper-quiet operation, delivering reliable performance around the clock.

HIGHLIGHTS

  • ETL and cETL Certified Complies with ASHRAE 62.2 standards for whole-house ventilation to meet local building code requirements
  • Three-Speed EC Motor Fan Energy-efficient motor with low power consumption
  • Optional Wall-Mount Speed Controller Allows convenient manual control of fan speed
  • Selectable High-Speed CFM Settings Adjustable airflow options: 210 CFM, 248 CFM, or 292 CFM
  • Quiet Operation Runs at lower RPM to maintain low sone levels for minimal noise

SUPREME SERIES

Specifications
  • Motor
    DC motor
  • Speed Setting
    Low / Medium / High
  • Air Volume (CFM)
    210 / 248 / 292
  • Noise (sones)
    1.2 / 2.0 / 3.0
  • Fan Watts
    19.9W / 29.7W / 44.6W
  • Duct Diameter
    6"
  • Power Rating
    120V/60Hz
  • Housing Size
    11-3/8" x 10-1/2" x 7-5/8"
  • Grille Dimensions
    13" x 13 3/4"
  • Fan Weight
    12.5 lbs
  • Warranty
    5 Years
  • Case Quantities
    1

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODD-300-3 Spec Sheet

Instruction Manual

ODD-300-3 Instruction Manual

Revit Files

NA
