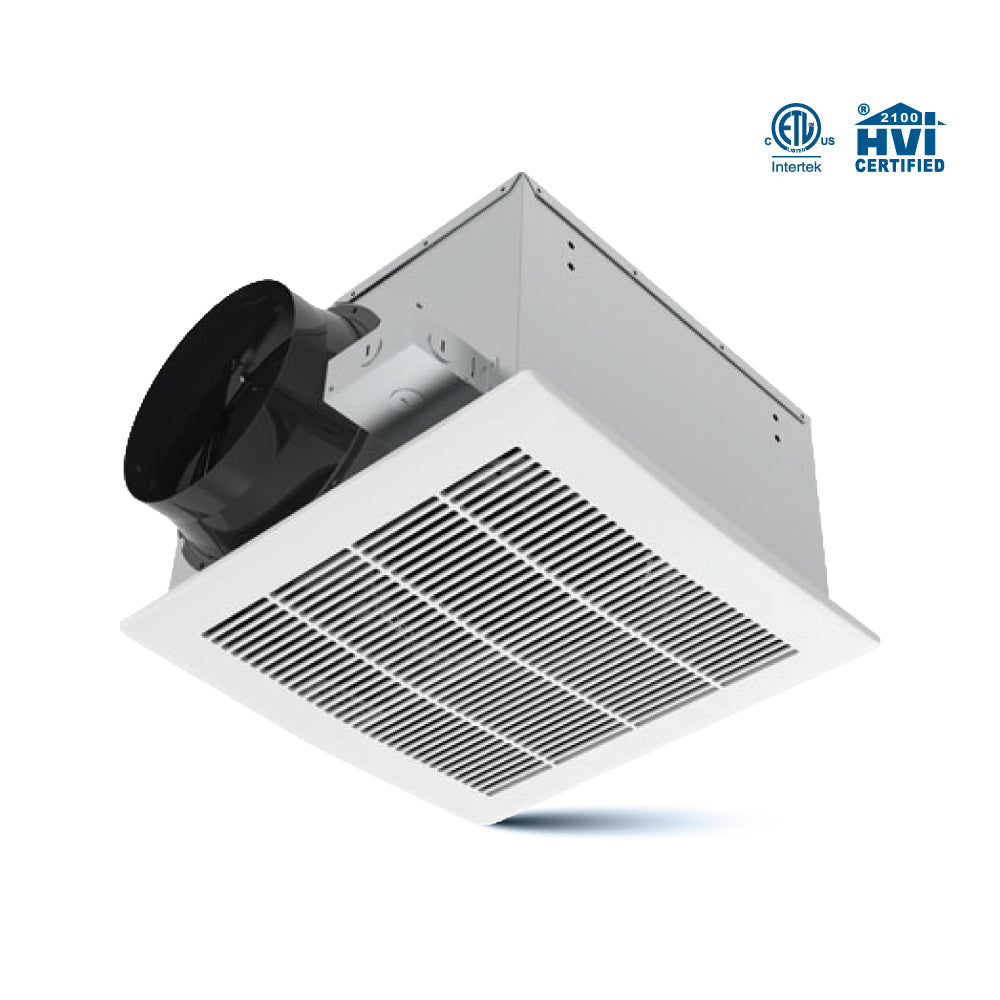

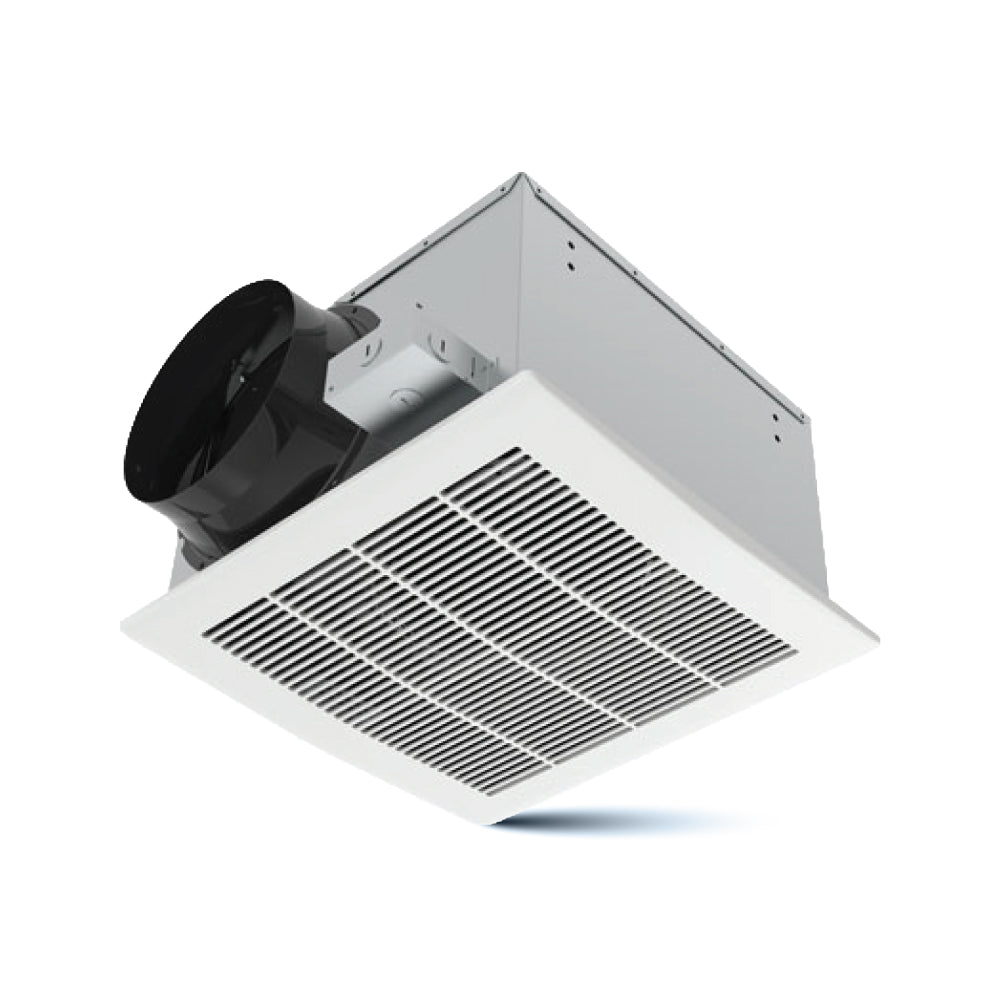

ODD-500-4

The Supreme Series fan offers four speed settings and is designed for high-efficiency operation, delivering powerful airflow with minimal energy consumption.

HIGHLIGHTS

  • ETL Evaluated and UL/cUL Compliant Meets recognized safety standards for reliable performance
  • High-Efficiency DC Motor Offers long-lasting reliability and energy-saving operation

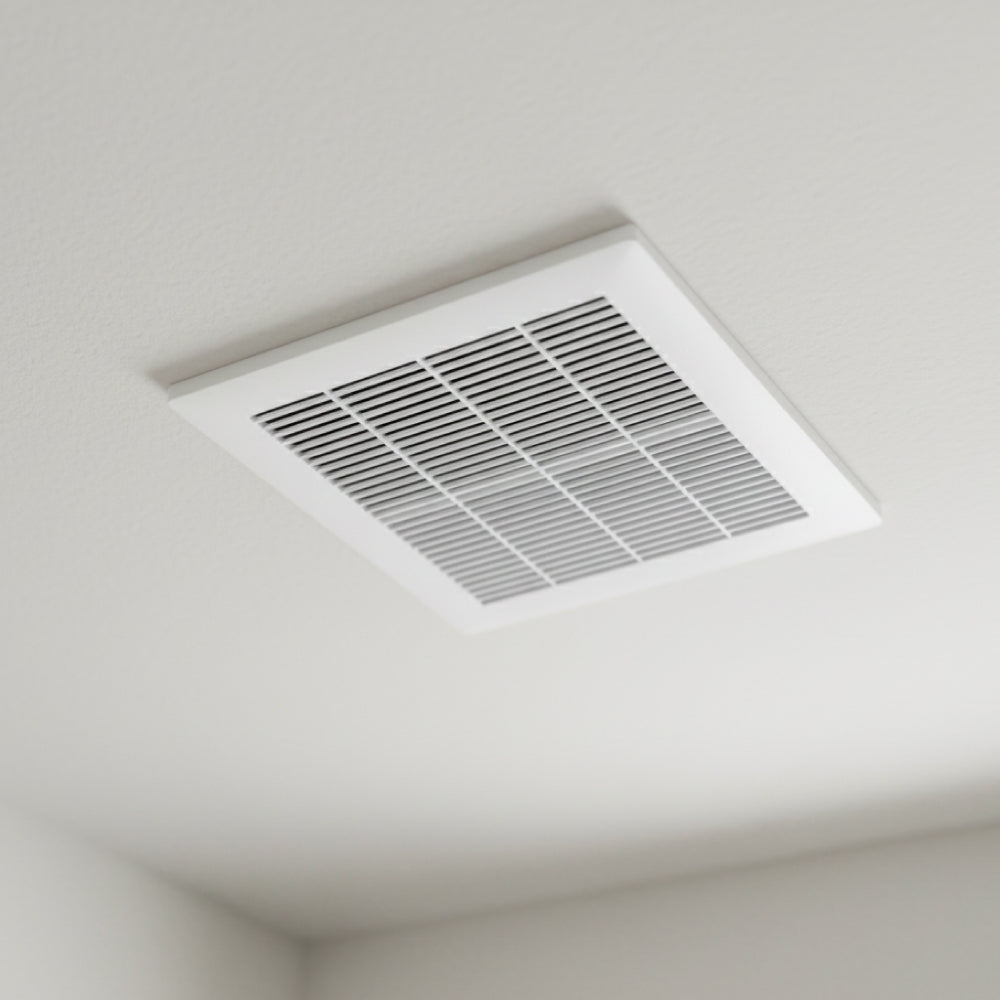

  • Ceiling-Mounted Ventilation Design Engineered to exhaust air quietly and efficiently from above

SUPREME SERIES

Specifications
  • Motor
    DC motor
  • Static Pressure (in inches w.g.)
    0.1|0.25 / 0.1|0.25 / 0.1|0.25 / 0.1|0.25
  • Speed Setting
    200 / 300 / 400 / 500
  • Air Volume (CFM)
    202|153 / 301|251 / 400|335 / 504|445
  • Noise (sones)
    0.4|1.4 / 1,4|2 / 3|3 / 4.5|5.5
  • Fan Watts
    12W|18W / 21.5W|26.5W / 37.5W|41.2W / 66W|70.2W
  • Duct Diameter
    8"
  • Power Rating
    120V/60Hz
  • Housing Size
    14-1/4" x 14-1/4" x 9"
  • Grille Dimensions
    17-1/4" x 17-3/4"
  • Warranty
    5 Years
  • Case Quantities
    1

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODD-500-4 Spec Sheet

Instruction Manual

ODD-500-4 Instruction Manual

Revit Files

NA
