ODD-70-1

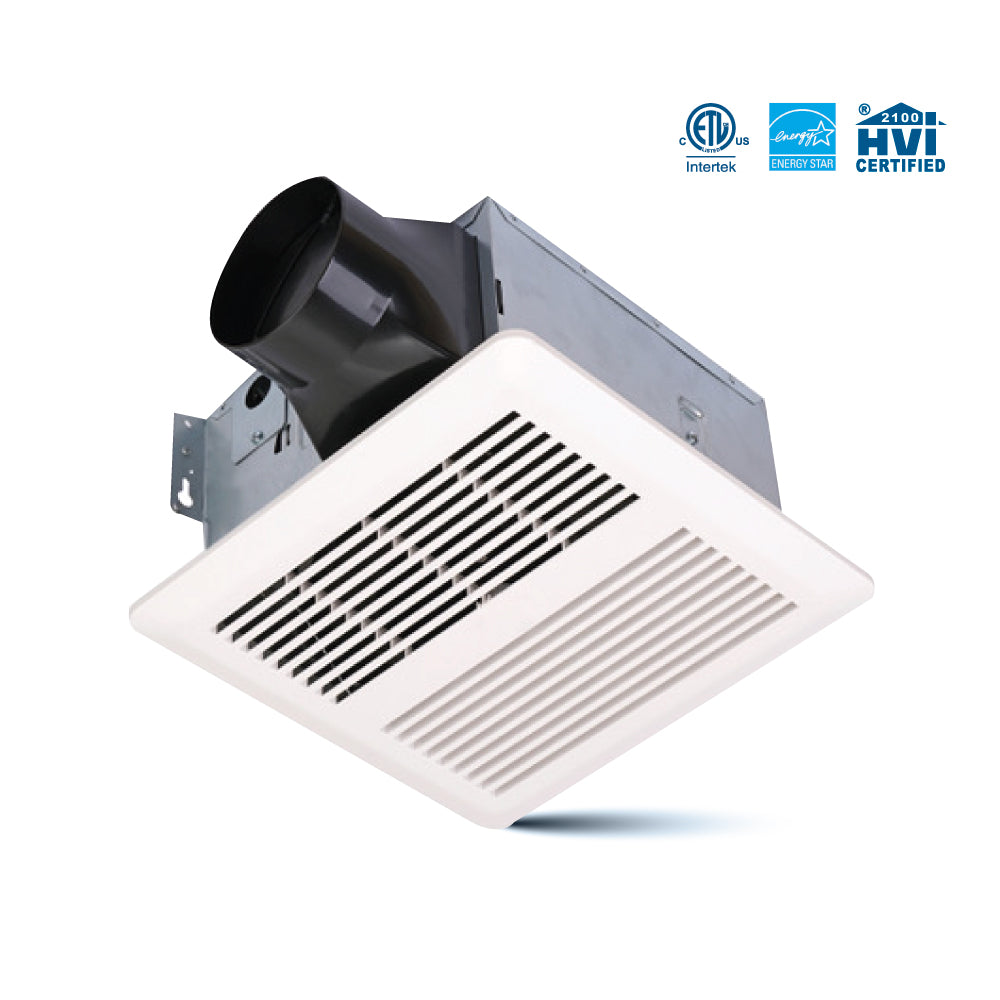

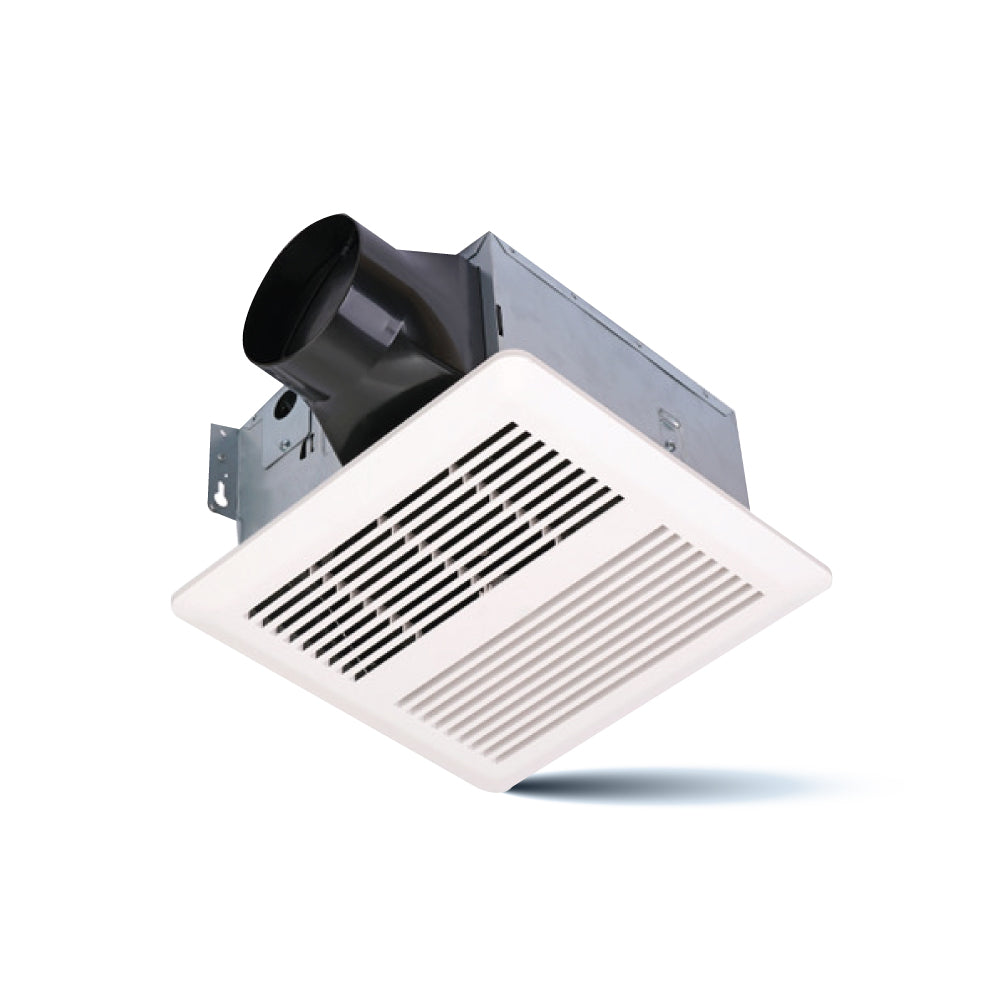

Next Generation Compact Series 70 CFM Single-Speed Fan designed for efficient, space-saving ventilation with reliable airflow performance.

HIGHLIGHTS

  • Ultra Silent & High Performance: Engineered for powerful ventilation with minimal noise

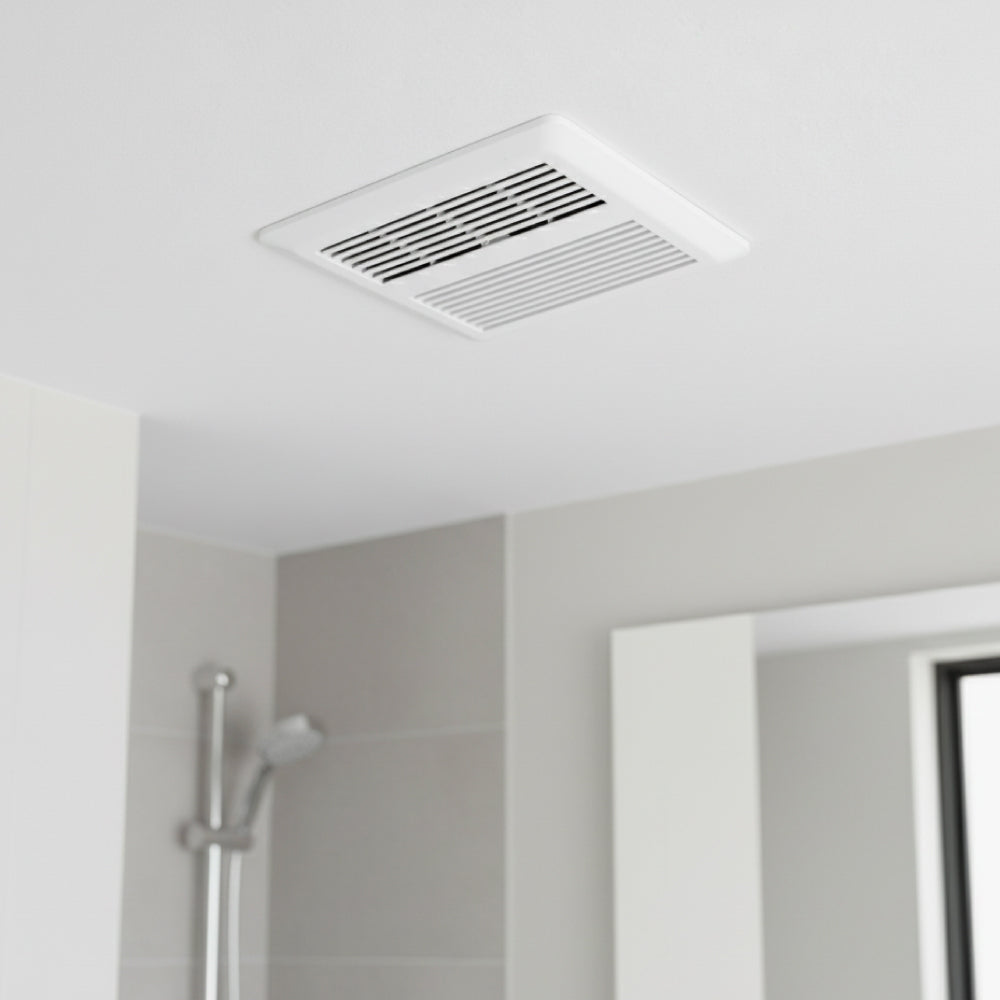

  • Versatile Mounting: Suitable for ceiling or wall installation
  • Efficient Motor: Capacitor start motor ensures high efficiency and long-term reliability

HOUSING

  • Durable Construction: Built from rugged 26 GA galvanized steel
  • Detachable 4" Polymeric Collar: Includes lightweight built-in backdraft damper for airflow control

MOTOR | BLOWER

  • DC Motor: Provides energy-efficient operation
  • Safety Feature: Motor includes built-in overload disconnect for enhanced safety and extended lifespan

HANGER BARS NOT INCLUDED - Sold Separately

COMPACT SERIES FAN

Specifications
  • Motor
    DC motor
  • Static Pressure (in inches w.g.)
    0.1 / 0.25
  • Speed Setting
    70CFM
  • Air Volume (CFM)
    75 / 62
  • Noise (sones)
    0.4 / 1.1
  • Fan Watts
    4.5W / 7.4W
  • Duct Diameter
    4"
  • Power Rating
    120V/60Hz
  • Housing Size
    9"×9"×5 3/4"
  • Grille Dimensions
    11 7/8"x11 3/8"
  • Efficacy (CFM/W)
    16.6 / 8.3
  • Fit for Bath (sq.ft.)
    45
  • Blower Wheel
    Centrifugal
  • Housing Material
    Galvanized steel
  • Grille Material
    Plastic
  • Discharge
    Horizontal
  • Warranty
    5 Years
  • Case Quantities
    6

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODD-70-1 Spec Sheet

Instruction Manual

ODD-70-1 Instruction Manual

Revit Files

NA
