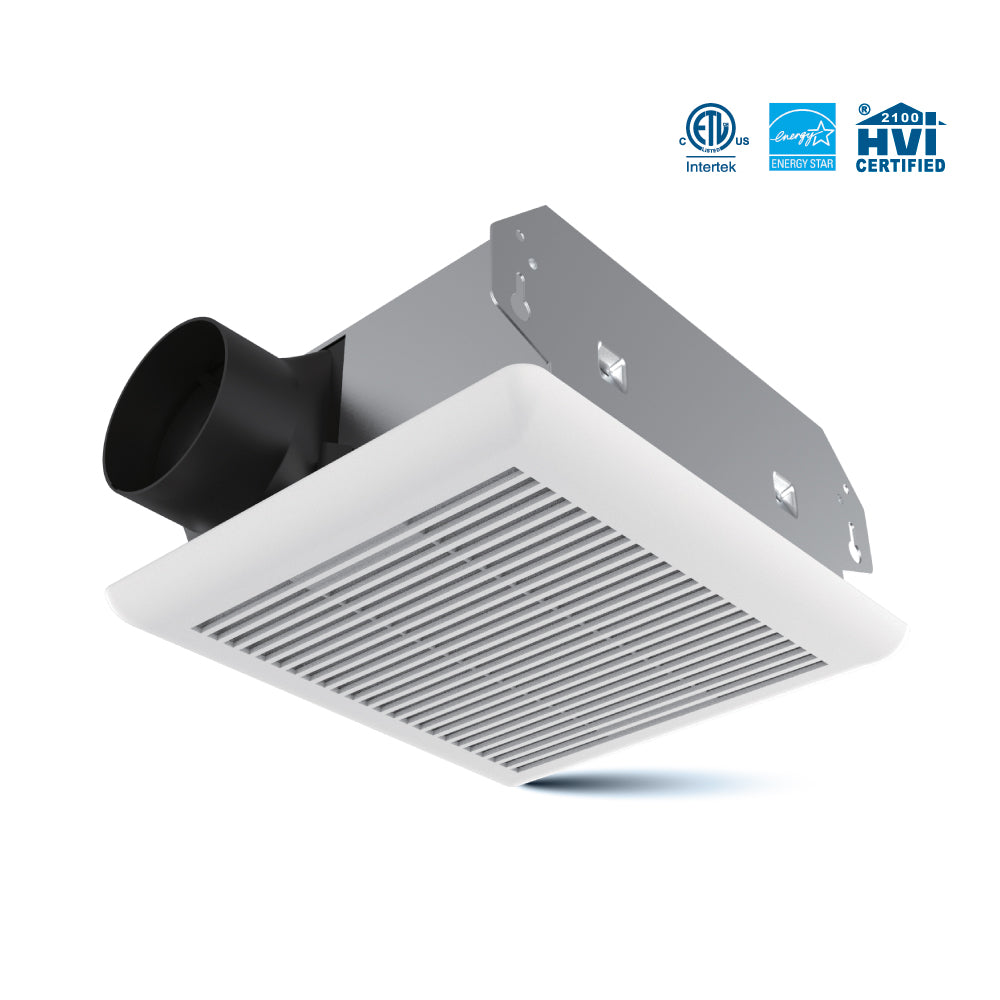

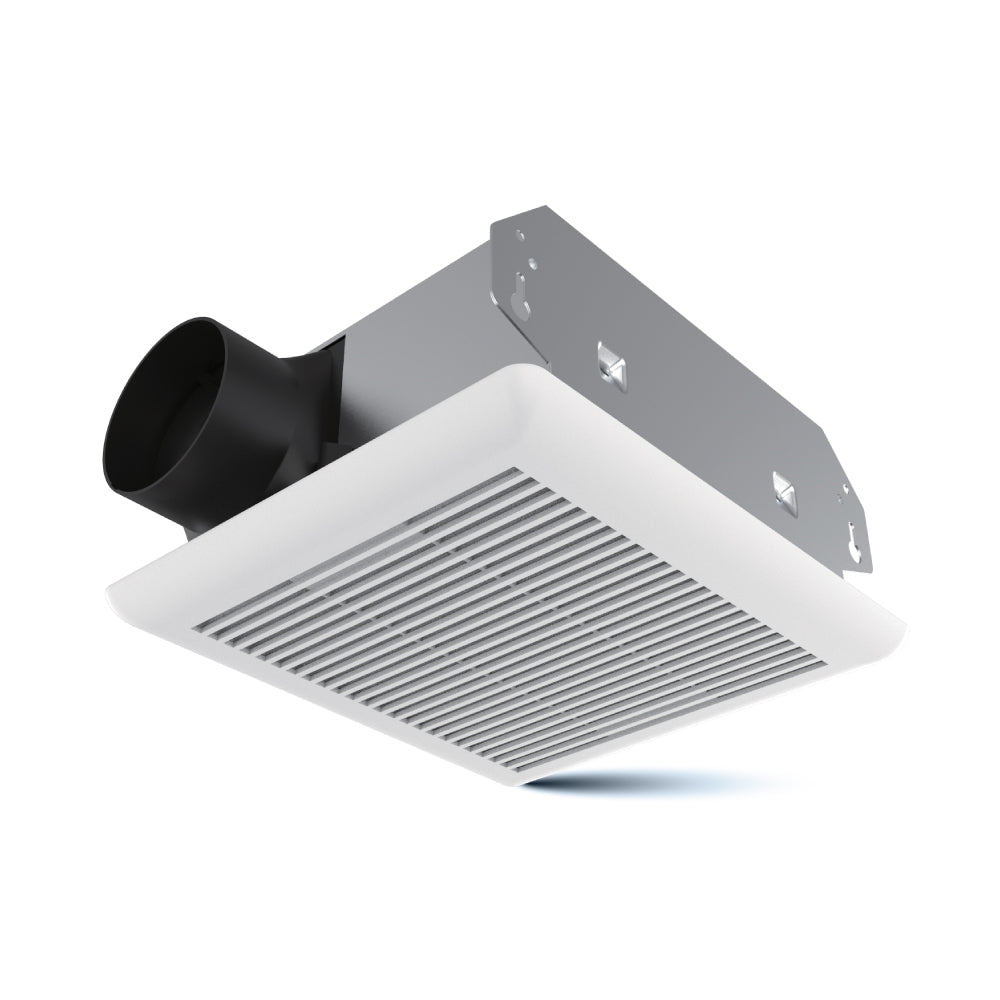

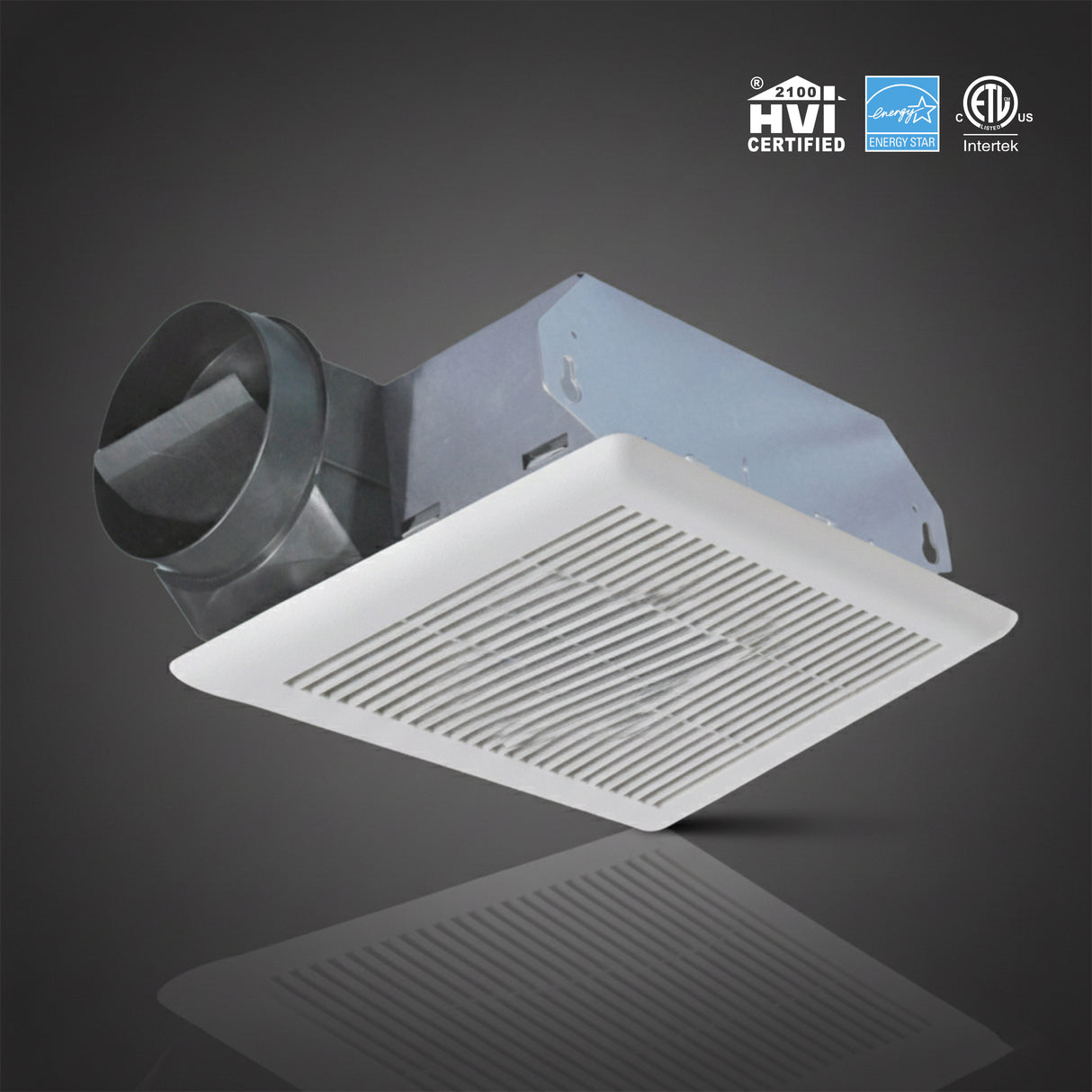

ODDE-50ES

Featuring advanced next-generation design, these fans utilize DC motor technology for superior energy efficiency, quiet performance, and long-term reliability.

HIGHLIGHTS

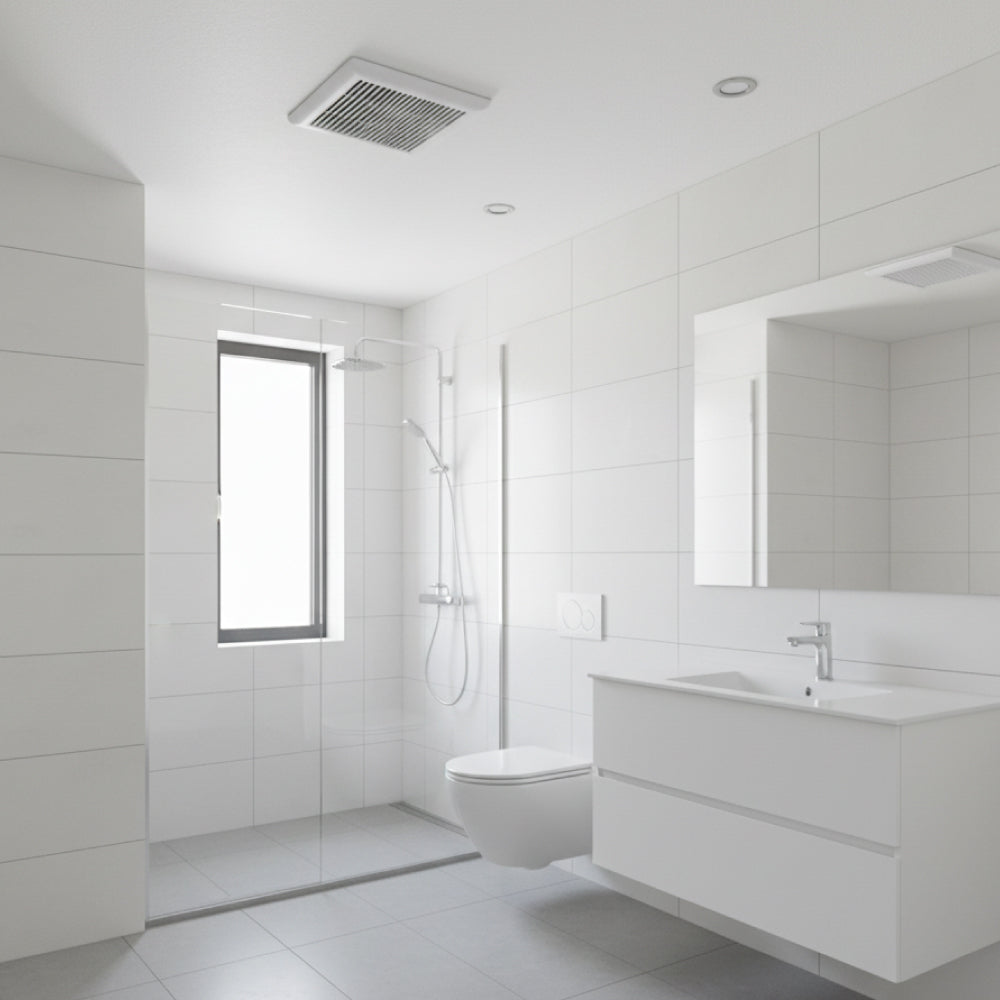

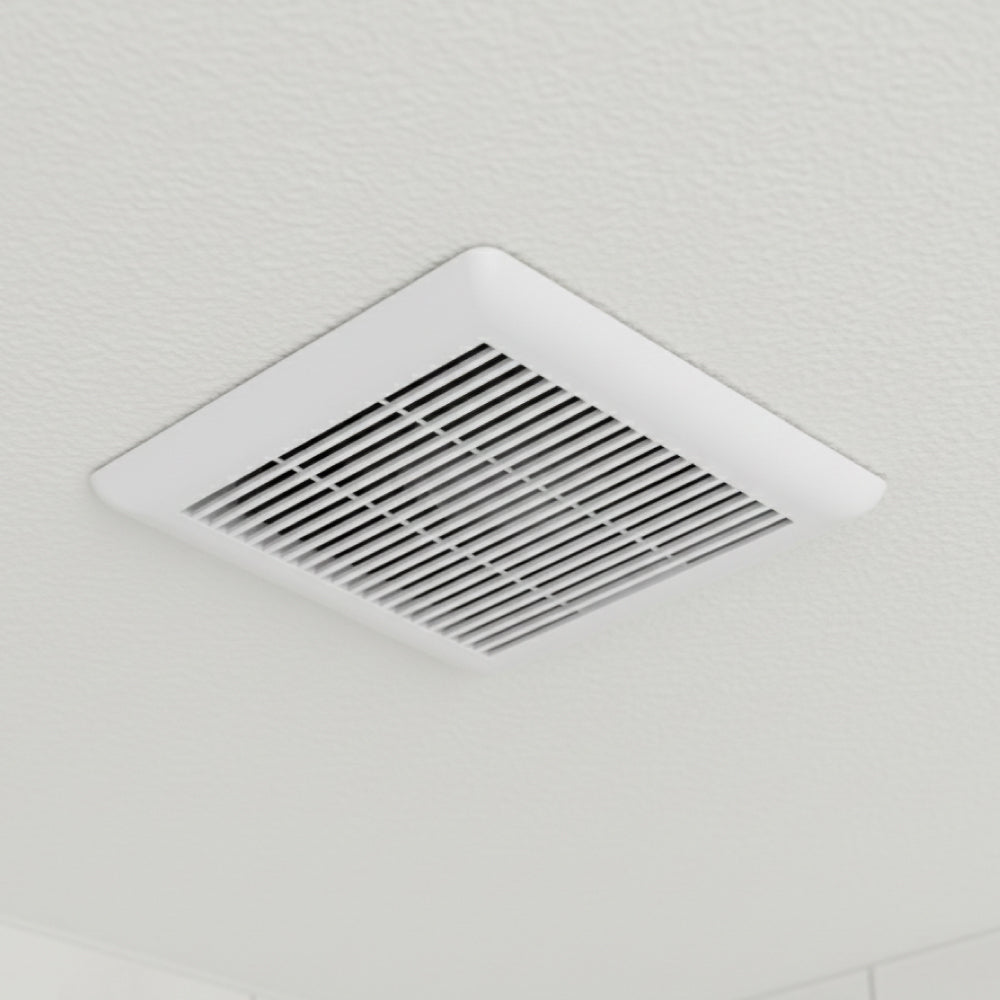

  • Ceiling or Wall-Mounted Ventilation Designed to exhaust air quietly and efficiently from either mounting position
  • Tool-Free Torsion Mounting Simplifies installation with no tools required

HOUSING

  • Built-In Mounting Ears Allows secure and easy attachment
  • Durable Construction Made from rugged 26-gauge galvanized steel for longevity
  • Flexible Installation Options Suitable for ceiling or wall mounting
  • Detachable 4” Polymeric Collar Enables easy duct connection and maintenance
  • Compact Housing Dimensions Measures 7-1/4” x 7-1/2” x 3-5/8” for versatile placement

MOTOR | BLOWER

  • DC Motor Fan with Low Energy Consumption  Operates efficiently to reduce power usage and support energy savings
  • Thermal Cut-Off Protection  Automatically shuts off the motor to prevent overheating and ensure safety

OPTIONAL - LED Light Grille

Advanced Next Generation Fans

Specifications
  • Motor
    DC motor
  • Static Pressure (in inches w.g.)
    0.1 / 0.25
  • Air Volume (CFM)
    50 / 39
  • Noise (sones)
    2.0 / NA
  • Fan Watts
    7W / 7.6W
  • Duct Diameter
    3"
  • Power Rating
    120V/60Hz
  • Housing Size
    7-1/4"×7-1/2"×3-5/8"
  • Grille Dimensions
    9-1/2"x8-5/8"
  • Housing Material
    Galvanized steel
  • Grille Material
    Plastic
  • Warranty
    2 Years
  • Case Quantities
    1

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODDE-50ES Spec Sheet

Instruction Manual

ODDE-50ES Instruction Manual

Revit Files

NA
