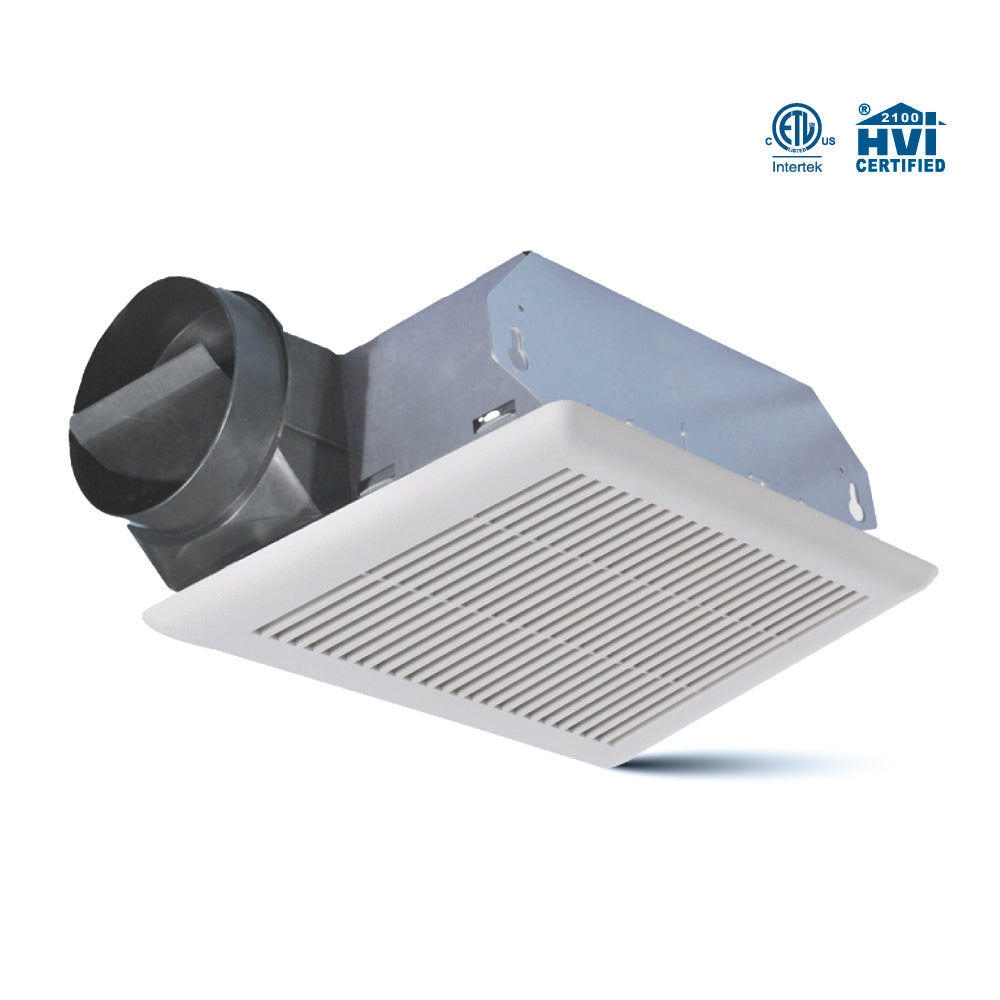

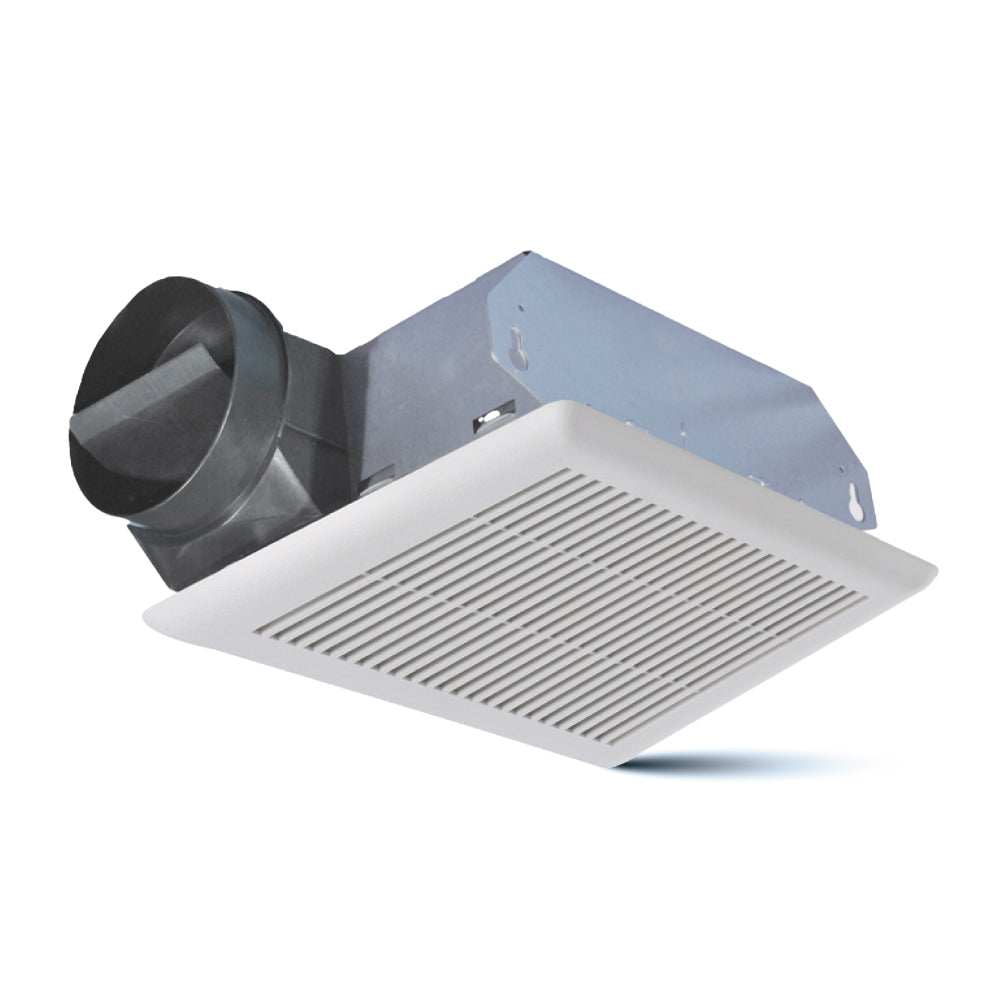

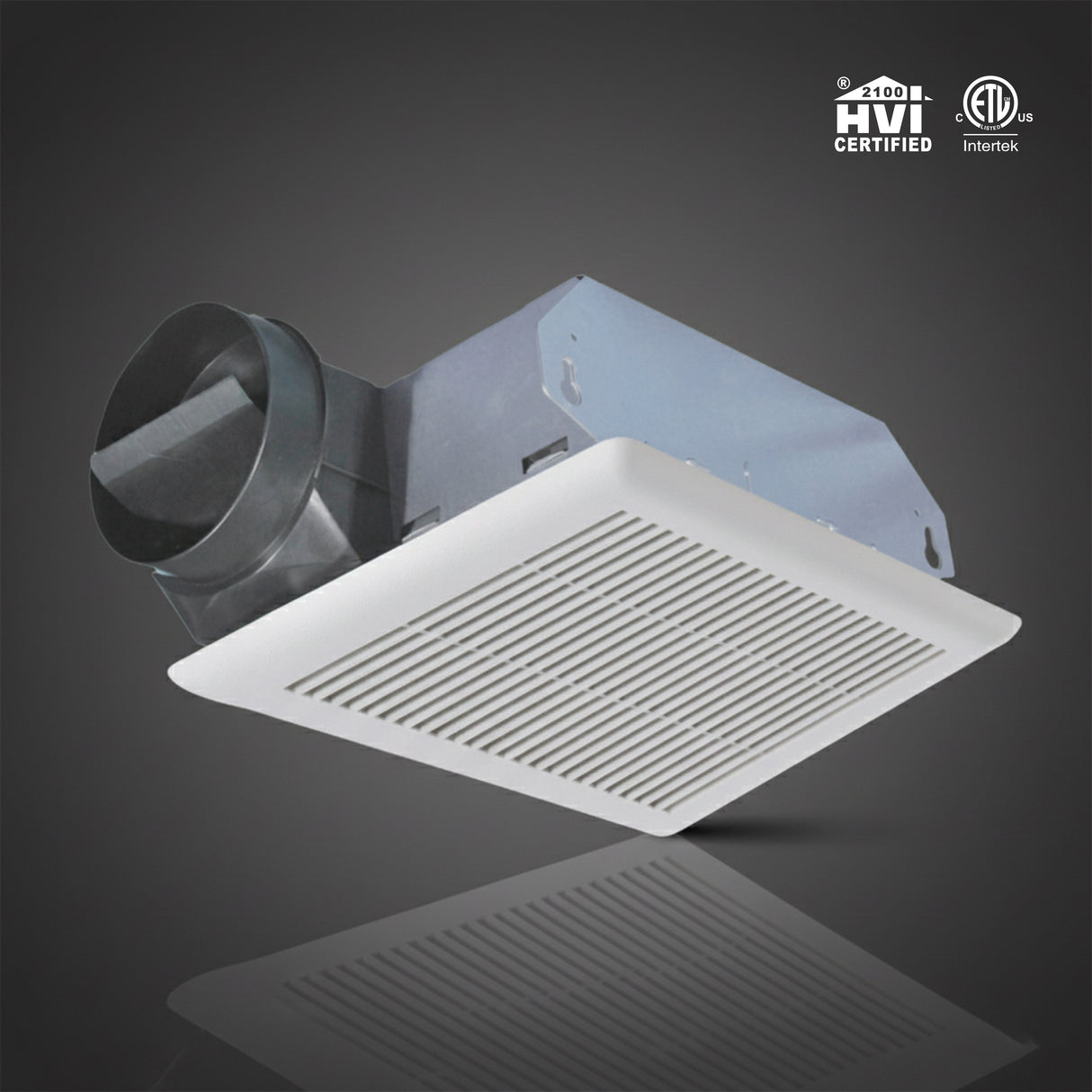

ODDE-70

Advanced next-generation fans equipped with DC motor technology deliver exceptional energy efficiency, quiet operation, and reliable long-term performance.

HIGHLIGHTS

  • Ceiling or Wall-Mounted VentilationDesigned to exhaust air quietly and efficiently from either mounting position
  • Tool-Free Torsion MountingAllows quick and easy installation without tools

HOUSING

  • Built-In Mounting Ears Simplifies secure attachment to ceiling or wall
  • Durable Construction Made from rugged 26-gauge galvanized steel for strength and longevity
  • Detachable 4” Polymeric Collar Enables easy duct connection and maintenance
  • Compact Housing Dimensions Measures 7-1/4” x 7-1/2” x 3-5/8” for versatile installation

MOTOR | BLOWER

  • High-Efficiency DC Motor Known for low energy consumption and long-lasting reliability
  • Thermal Cut-Off Protection Automatically shuts off the motor to prevent overheating

OPTIONAL - LED Light Grille

Advanced Next Generation Fans

Specifications
  • Motor
    DC motor
  • Static Pressure (in inches w.g.)
    0.1 / 0.25
  • Air Volume (CFM)
    70 / 56
  • Noise (sones)
    3.0 / NA
  • Fan Watts
    12.2W / 12.5W
  • Duct Diameter
    4"
  • Power Rating
    120V/60Hz
  • Housing Size
    7-1/4"×7-1/2"×3-5/8"
  • Grille Dimensions
    9-1/2"x8-5/8"
  • Housing Material
    Galvanized steel
  • Grille Material
    Plastic
  • Warranty
    2 Years
  • Case Quantities
    1

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODDE-70 Spec Sheet

Instruction Manual

ODDE-70 Instruction Manual

Revit Files

NA
