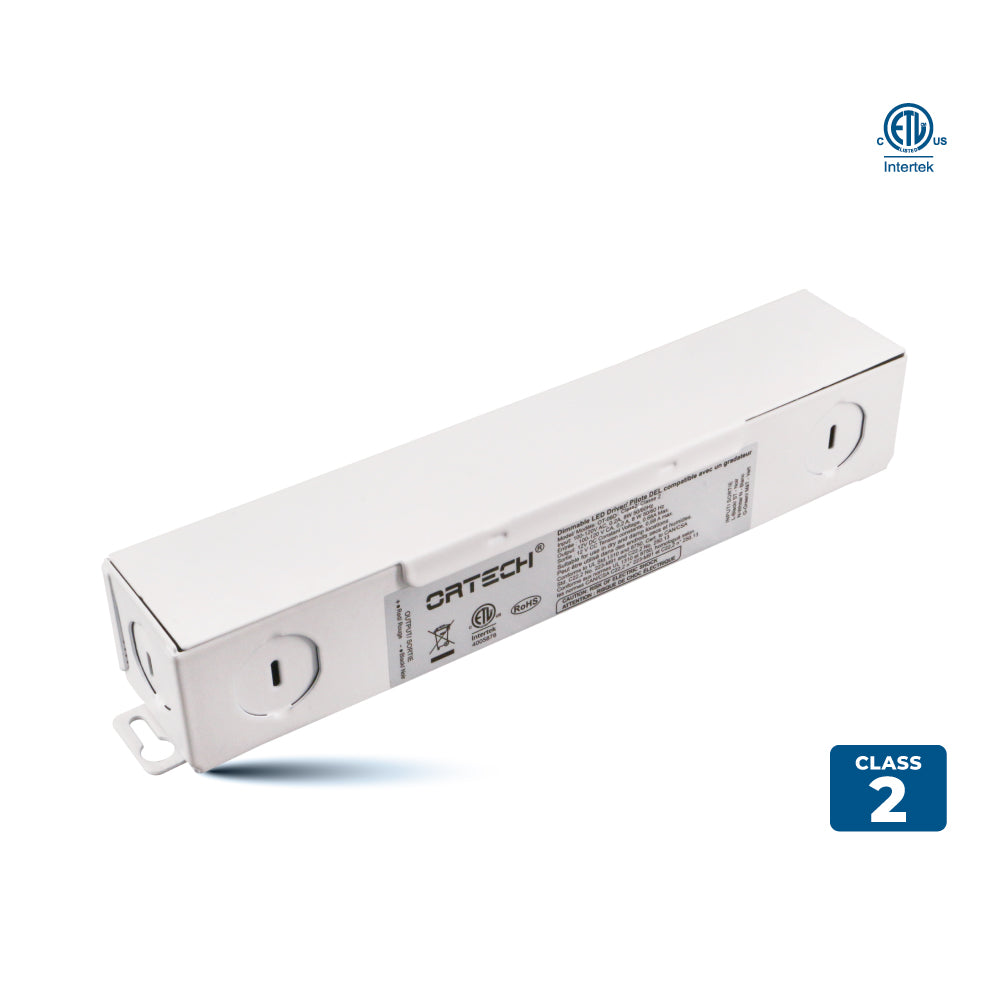

OT-08D

Maximum 8W Class 2 driver designed for LED lighting and moving sign applications, providing safe and efficient low-voltage power delivery with compliance to Class 2 standards for enhanced protection and reliability.

HIGHLIGHTS

  • Dry Location Rated: Safe for use in indoor, non-moisture environments.
  • High Efficiency: Operates at up to 80% energy efficiency for optimal performance.
  • Flicker-Free Dimming: Offers strong compatibility with dimmers for smooth, flicker-free lighting control.
  • TRIAC Dimmable Driver: Constant voltage phase dimming via TRIAC technology for reliable output.
  • Integrated Junction Box: Includes a built-in junction box for secure hardwire installation.

PRODUCT SHEETS

Spec Sheet

OT-08D Spec Sheet

Instruction Manual

OT-08D Instruction Manual

Dimmer List

OT-08D Compatible Dimmer list

IES Files

NA

12V CLASS 2 DRIVER

Specifications
  • Wattage
    8W
  • Voltage
    100-130V AC
  • Power Factor
    0.6 (Full loading)
  • Dimmable
    Yes
  • Grade of Protection
    IP20
  • Input Voltage
    100-130V AC
  • Output Voltage
    12V DC
  • Amps
    0.65A
  • Frequency Range
    47~63Hz
  • AC Current (max.)
    0.17A
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤120%
  • Efficiency
    80%
  • Operating Temperature
    -30°C to +45°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications
