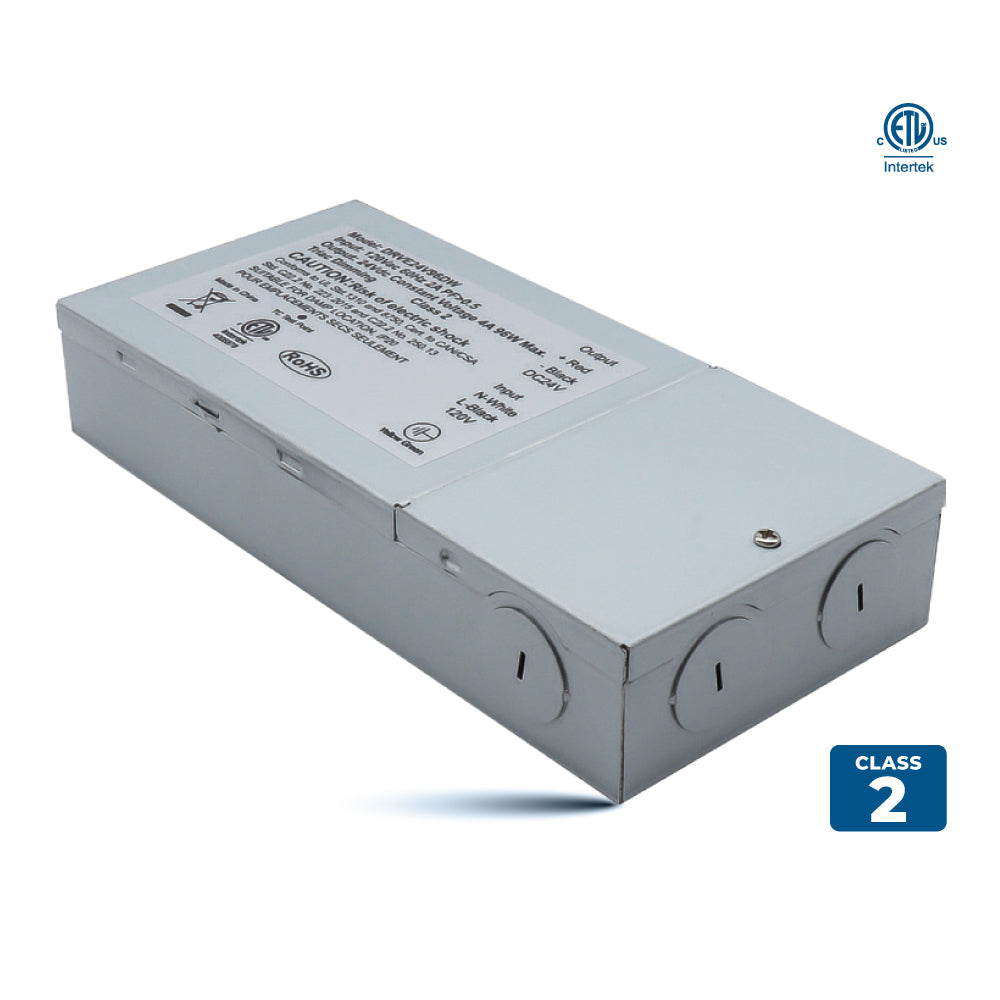

OT-36-NOND

Maximum 150W Class 2 non-dimmable LED driver available with a 12V DC output, designed to deliver stable and efficient low-voltage power for LED lighting systems while meeting Class 2 safety standards for dependable and secure operation in various applications.

HIGHLIGHTS

  • Constant Voltage Output: Provides stable 12V DC power for consistent LED performance.
  • High Efficiency: Operates at up to 80% efficiency for energy-conscious operation.
  • Built-In Protection: Safeguards against short circuits and over-voltage conditions.
  • Integrated Junction Box: Enables secure and straightforward hardwire installation.
  • Isolated Steel Case: Fully enclosed design with air convection cooling for safe and silent operation.
  • Dry/Damp Location Rated: Suitable for use in both dry and damp environments.

12V CLASS 2 NON DIMMABLE DRIVER

Specifications
  • Wattage
    36W
  • Voltage
    108-132V AC
  • Dimmable
    No
  • Grade of Protection
    IP20
  • Input Voltage
    108-132V AC
  • Output Voltage
    12V DC
  • Frequency Range
    47~63Hz
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤ 120%
  • Efficiency
    80%
  • Operating Temperature
    -25°C to +45°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications

    PRODUCT SHEETS

    Spec Sheet

    OT-36-NOND Spec Sheet

    Instruction Manual

    NA

    Dimmer List

    NA

    IES Files

    NA
