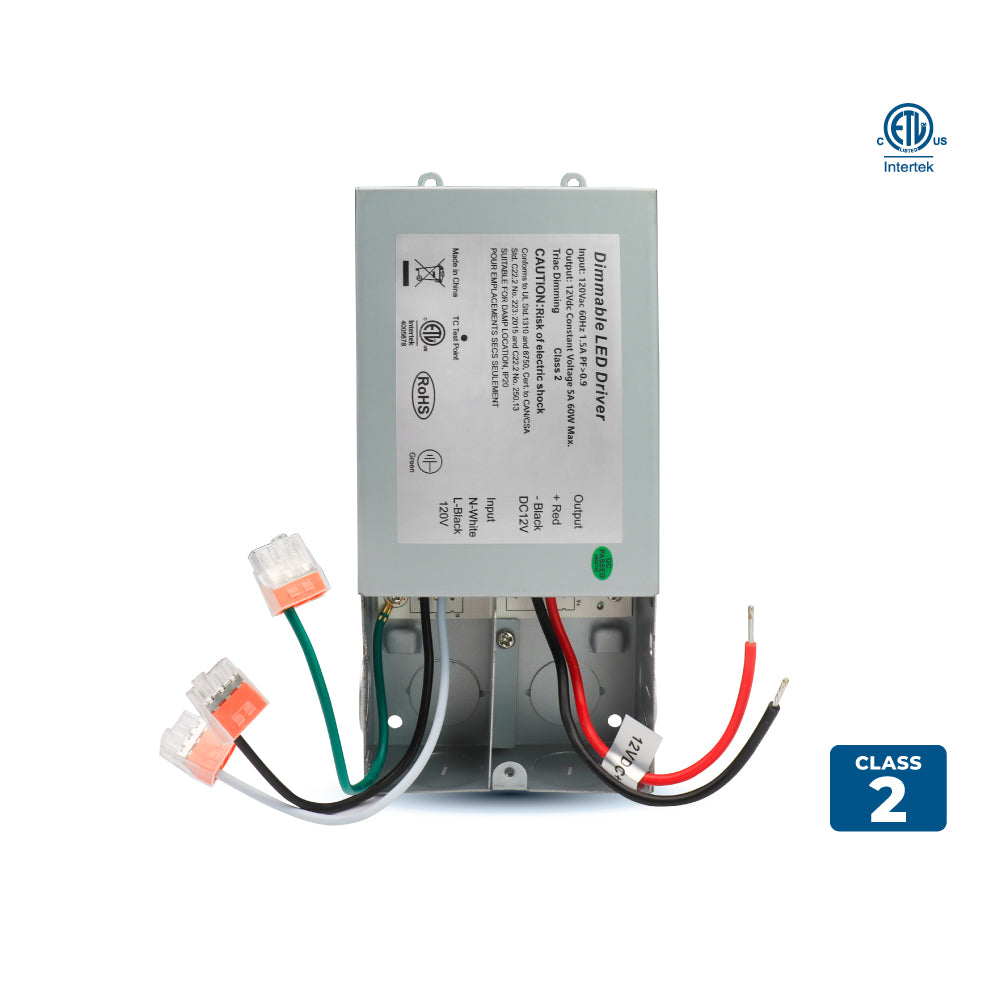

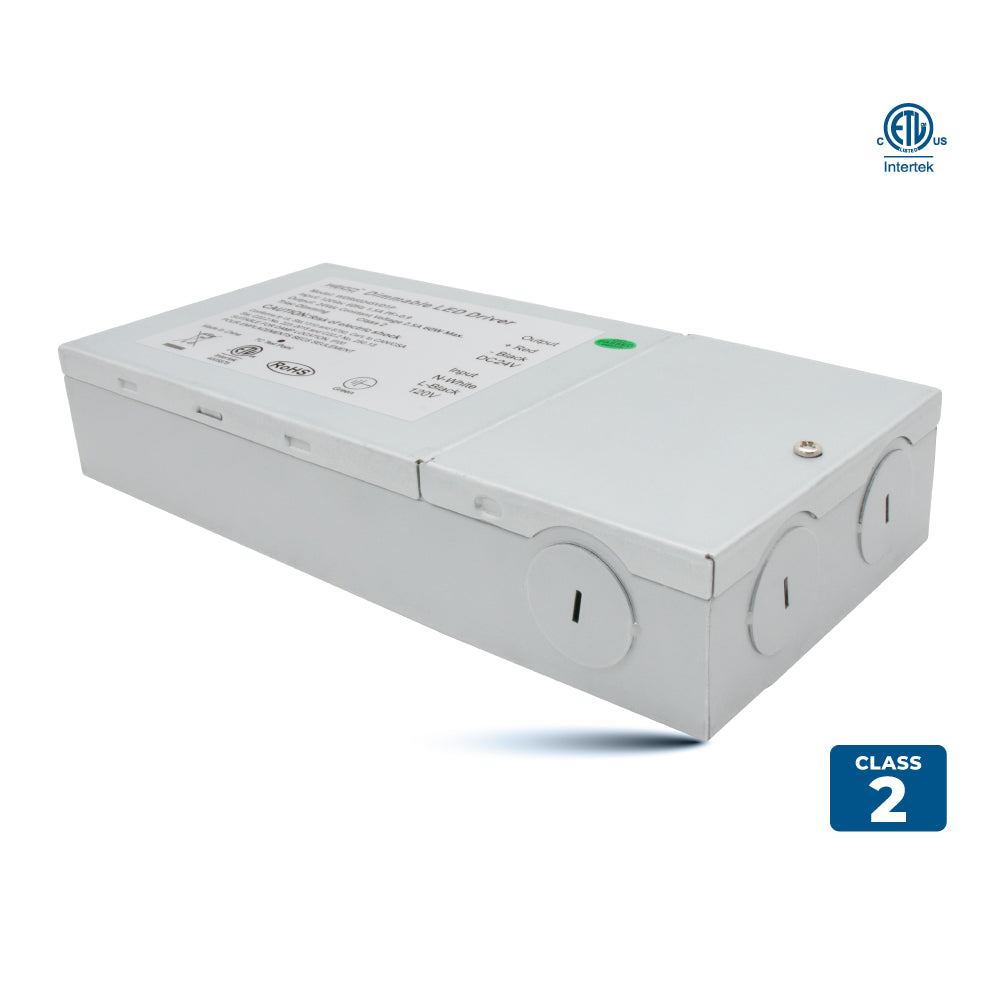

OT-48D

Maximum 48W Class 2 driver designed for LED lighting and moving sign applications, offering safe, efficient, and regulated low-voltage power delivery while complying with Class 2 safety standards for reliable performance and protection in indoor installations.

HIGHLIGHTS

  • Dry Location Rated: Designed for safe use in indoor, moisture-free environments.
  • High Efficiency: Delivers up to 86% energy efficiency for optimal performance.
  • Flicker-Free Dimming: Ensures smooth, flicker-free lighting with strong dimmer compatibility.
  • TRIAC Dimmable Driver: Provides constant voltage phase dimming using TRIAC technology.

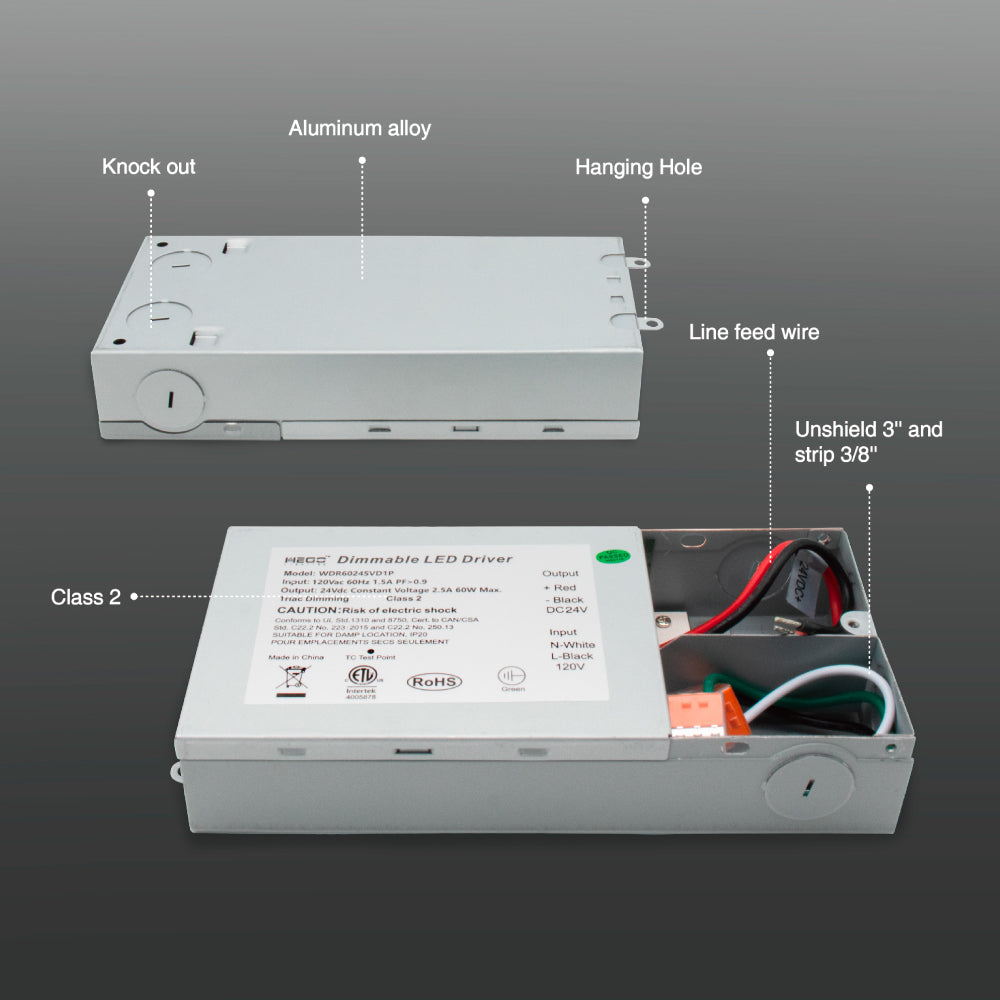

  • Integrated Junction Box: Includes a built-in junction box for secure hardwire installation.

12V CLASS 2 DRIVER

Specifications
  • Wattage
    48W
  • Voltage
    100-130V AC
  • Power Factor
    0.6 (Full loading)
  • Dimmable
    Yes
  • Grade of Protection
    IP20
  • Input Voltage
    108-132V AC
  • Output Voltage
    12V DC
  • Amps
    4A
  • Frequency Range
    47~63Hz
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤120%
  • Efficiency
    86%
  • Operating Temperature
    -25°C to +40°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications

PRODUCT SHEETS

Spec Sheet

OT-48D Spec Sheet

Instruction Manual

OT-48D Instruction Manual

Dimmer List

OT-48D Compatible Dimmer list

IES Files

NA
