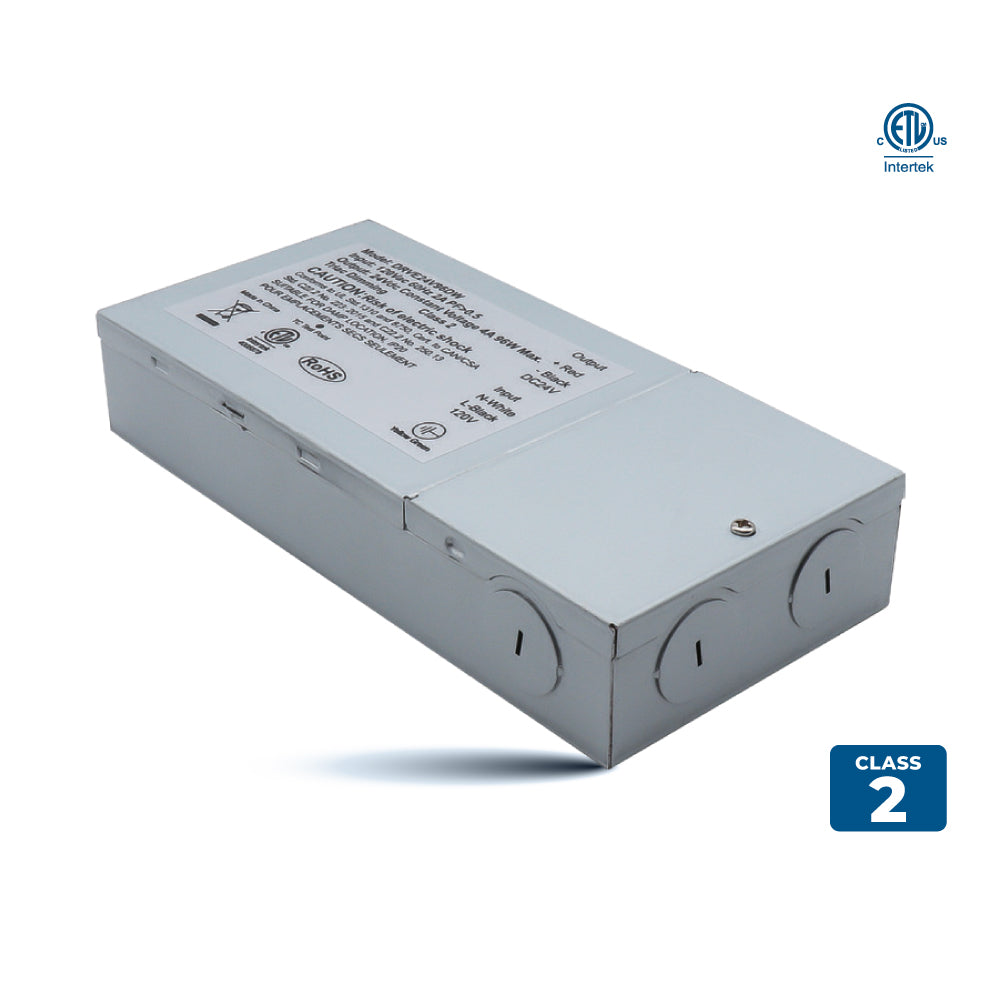

OT-60D-24V

Maximum 60W Class 2 driver designed for LED lighting and moving sign applications, offering safe, efficient, and regulated low-voltage power delivery while meeting Class 2 safety standards for reliable performance and protection in various indoor environments.

HIGHLIGHTS

  • Constant Voltage Output: Provides a stable and consistent voltage supply for connected devices.
  • Wide AC Input Range: Operates efficiently within 108–132V AC, suitable for standard North American power systems.
  • High Efficiency (Up to 80%): Converts power with minimal energy loss, reducing heat and improving performance.
  • Built-In Protection: Safeguards against short circuits and over-voltage conditions to ensure safe operation.
  • Integrated Junction Box: Designed for secure hardwire installation, simplifying setup and improving durability.
  • Isolated Steel Case with Air Cooling: Fully enclosed for safety, with passive air convection cooling—no fan required.
  • Flicker-Free Dimming Compatibility: Works smoothly with dimmers, ensuring stable light output without flickering.
  • Dry or Damp Location Rated: Suitable for use in indoor environments, including areas with moderate moisture.

24V CLASS 2 DRIVER

Specifications
  • Wattage
    60W
  • Power Factor
    0.6 (Full loading)
  • Dimmable
    Yes
  • Grade of Protection
    IP20
  • Storage Temperature Humidity
    -40~+60°C, 10~95%RH
  • Input Voltage
    108-132V AC
  • Output Voltage
    24V DC
  • Amps
    2.5A
  • Frequency Range
    47~63Hz
  • AC Current (max.)
    0.55A
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤120%
  • Efficiency
    80%
  • Isolation Resistance
    I/P-O/P:100M Ω /500VDC/25°C/70% RH
  • Operating Humidity
    20~90%RH, non-condensing
  • Operating Temperature
    -25°C to +45°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications

PRODUCT SHEETS

Spec Sheet

OT-60D-24V Spec Sheet

Instruction Manual

NA

Dimmer List

OT-60D-24V Compatible Dimmer list
