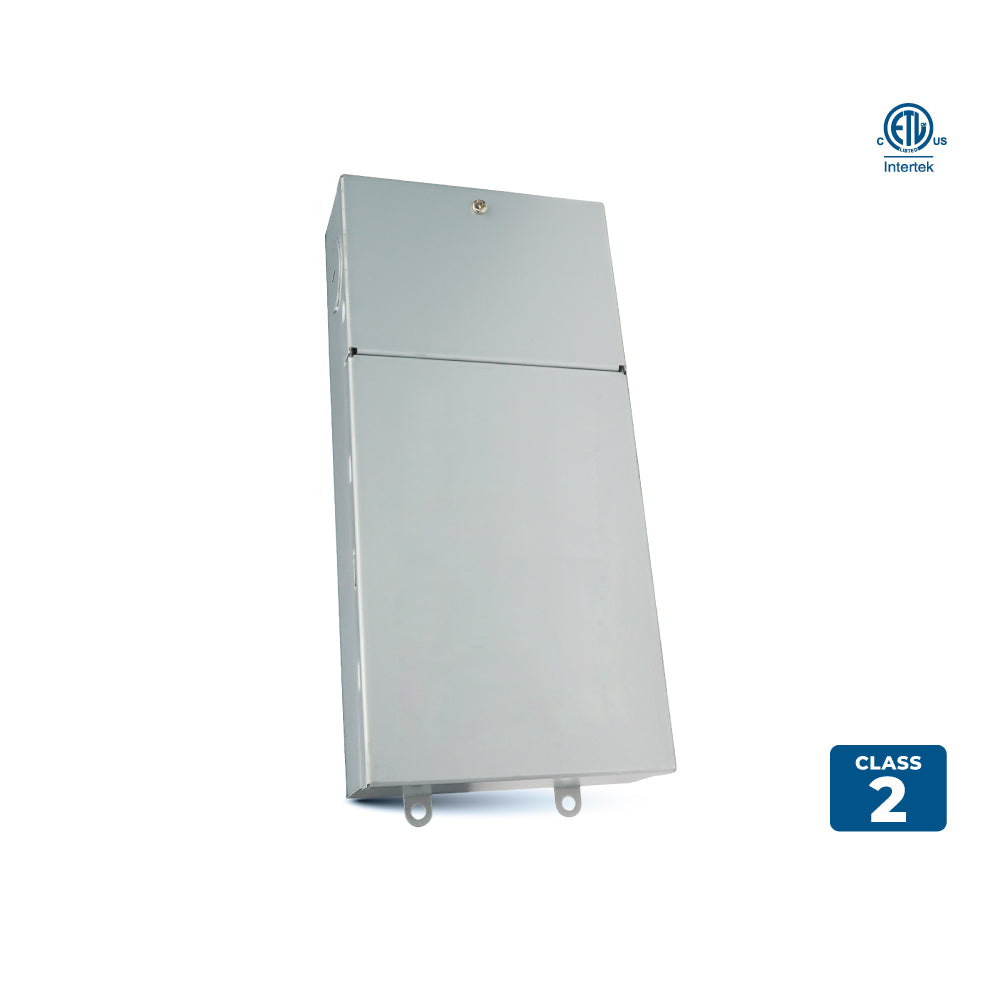

OT-96D

Maximum 96W Class 2 driver designed for LED lighting and moving sign applications, delivering safe, efficient, and regulated low-voltage power while meeting Class 2 safety standards for dependable performance and protection in indoor installations.

HIGHLIGHTS

  • Constant Voltage Output: Provides stable and consistent power for LED systems.
  • High Efficiency: Operates at up to 80% efficiency for energy-saving performance.
  • Built-In Protection: Safeguards against short circuit and over-voltage conditions.
  • Integrated Junction Box: Allows for secure and easy hardwire installation.
  • Aluminum Case with Air Convection: Fully isolated housing cooled by free air convection for silent operation.
  • Flicker-Free Dimming: Offers strong compatibility with dimmers for smooth, flicker-free lighting control.
  • Versatile Applications: Ideal for LED lighting, moving signs, and other low-voltage installations.
  • Dry/Damp Location Rated: Suitable for use in both dry and damp environments.

12V CLASS 2 DRIVER

Specifications
  • Wattage
    96W
  • Power Factor
    >0.5
  • Dimmable
    Yes
  • Grade of Protection
    IP20
  • Input Voltage
    108-132V AC
  • Output Voltage
    12V DC
  • Frequency Range
    60Hz
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤120%
  • Rated Current
    4A
  • Efficiency
    80%
  • Operating Temperature
    -25°C to +45°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications

PRODUCT SHEETS

Spec Sheet

OT-96D Spec Sheet

Instruction Manual

OT-96D Instruction Manual

Dimmer List

OT-96D Compatible Dimmer list

IES Files

NA
