OE-212BP

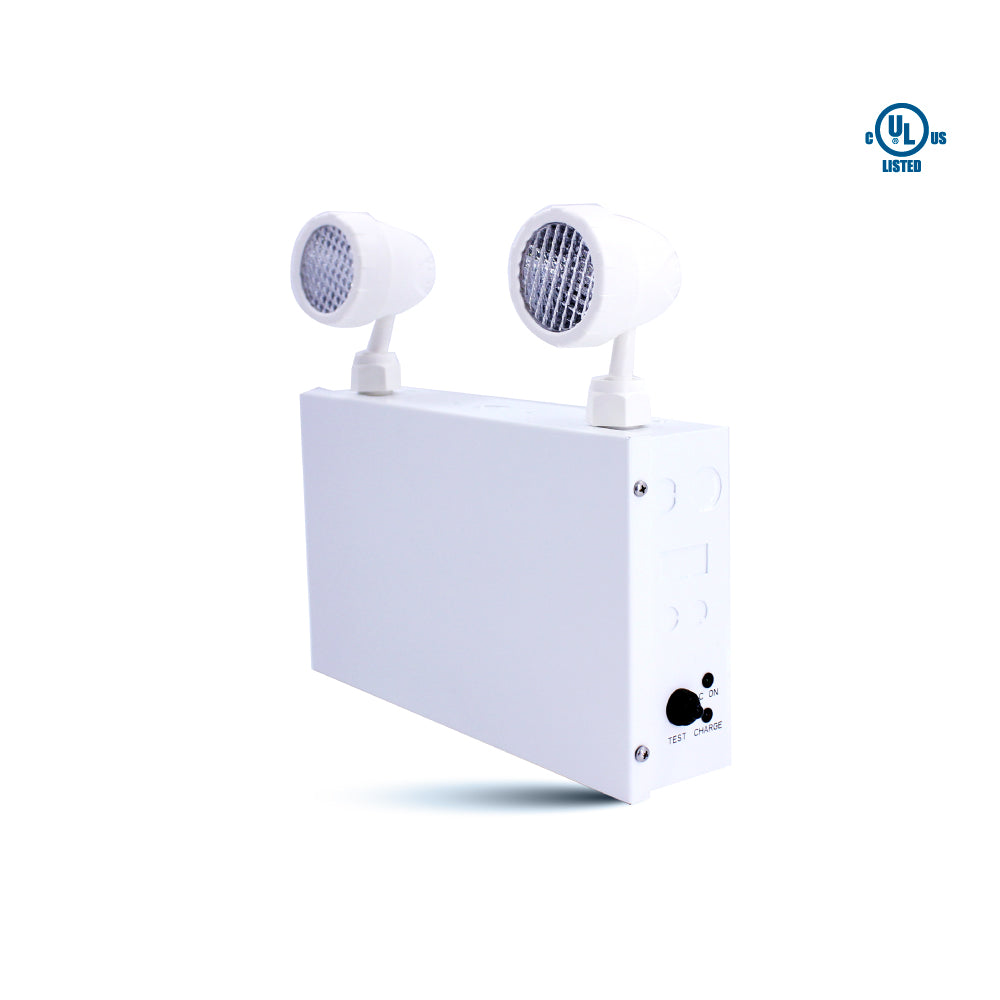

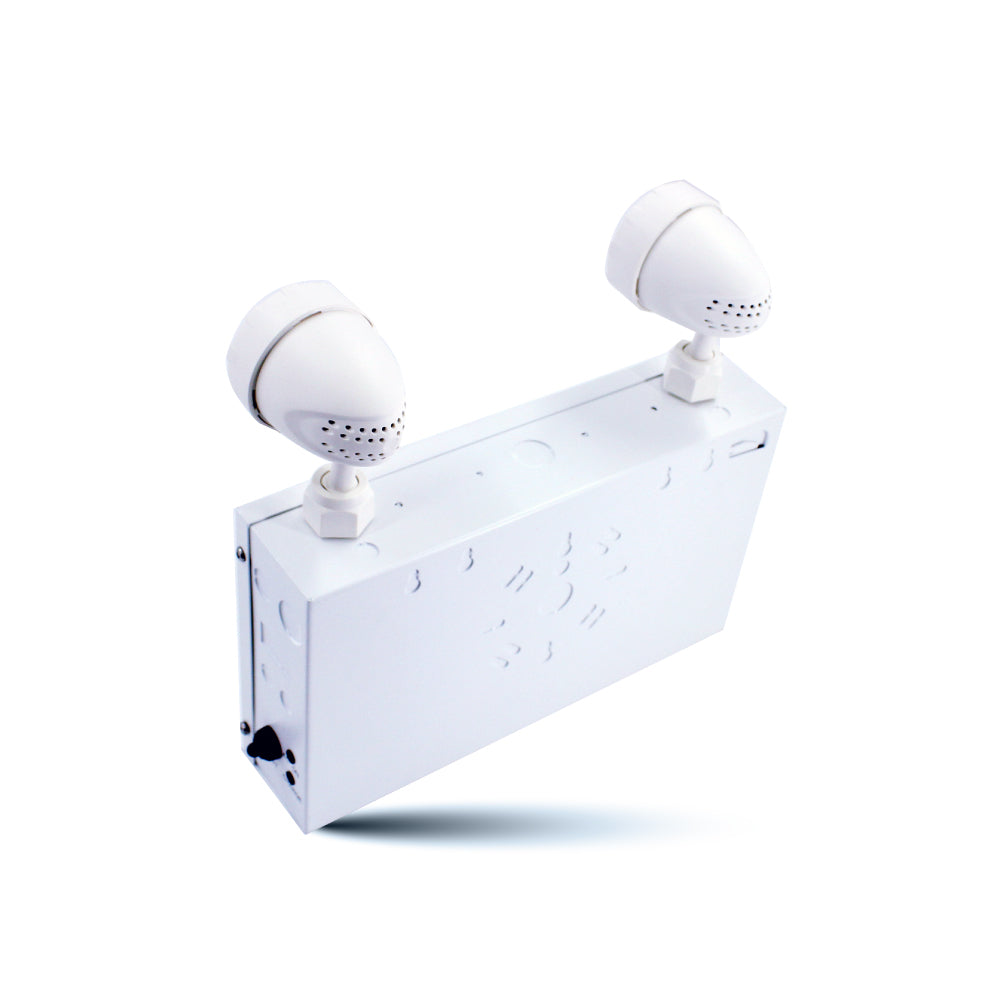

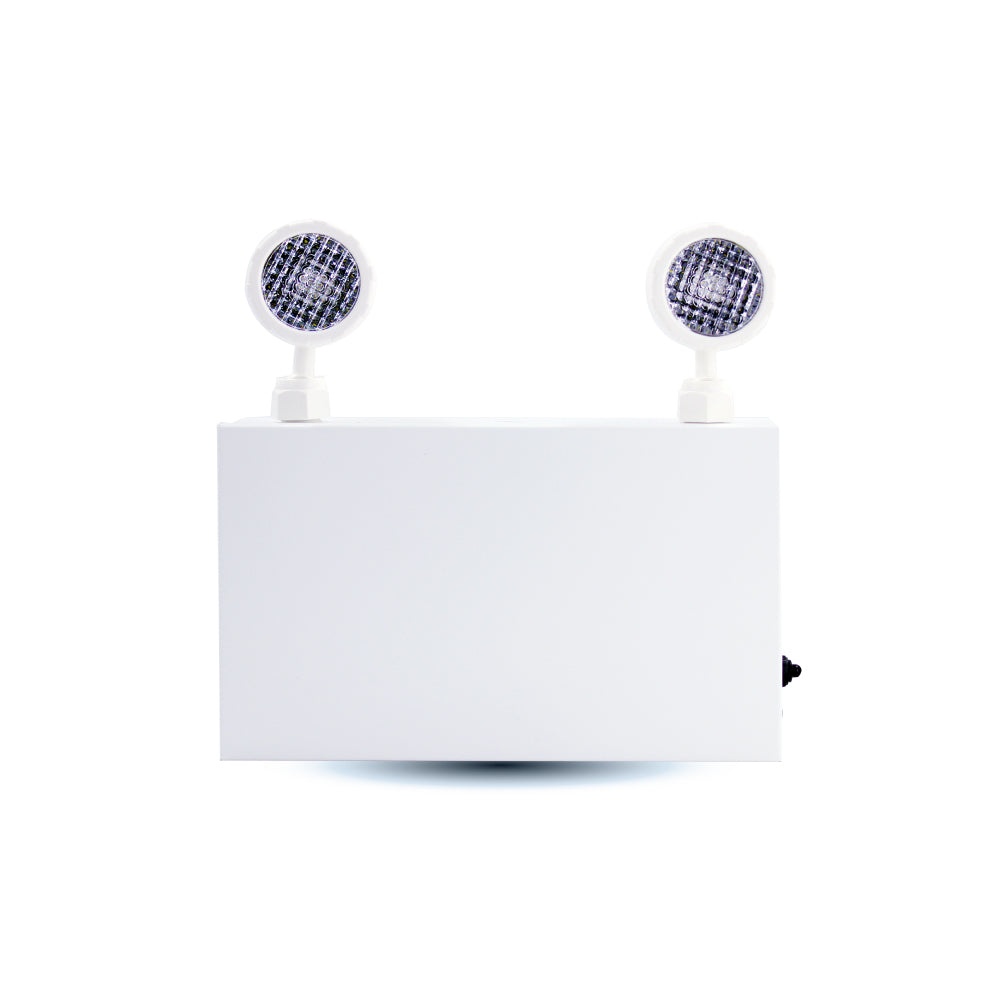

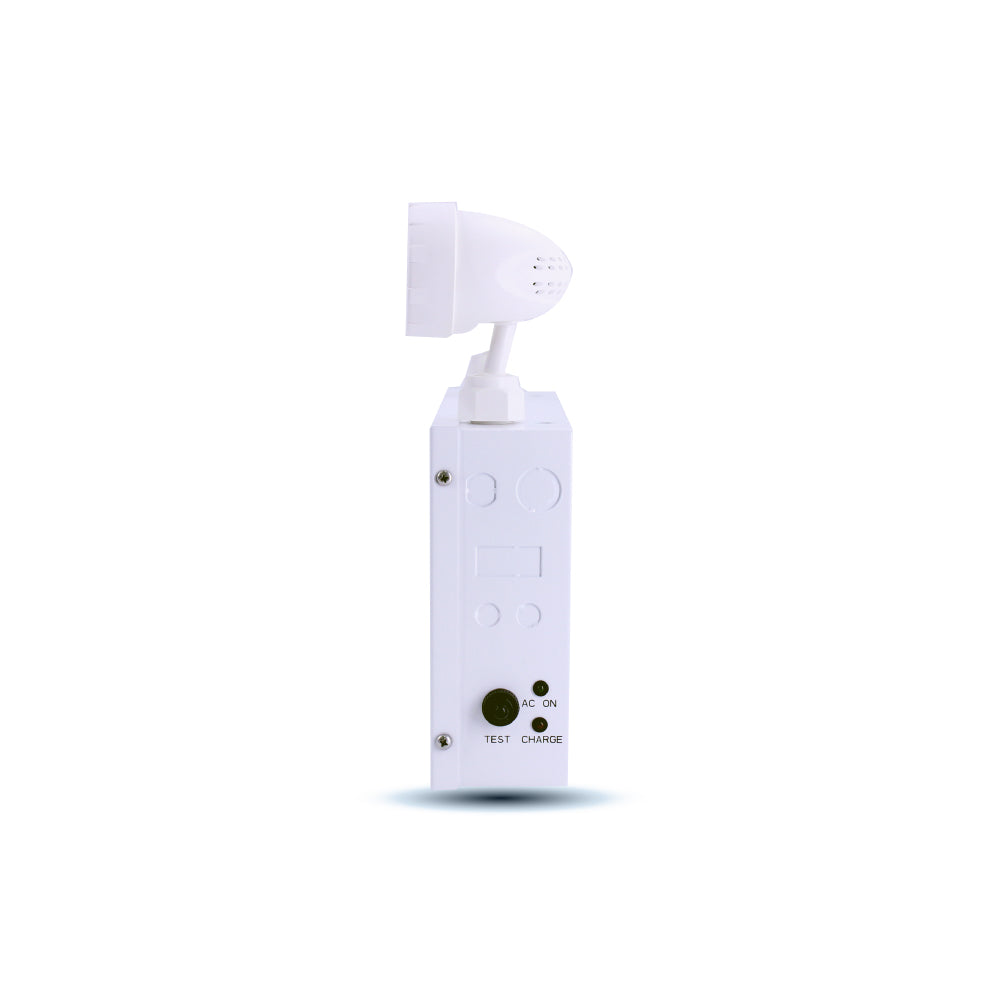

36W Max LED Dual-Head Emergency Light - Delivers up to 120 minutes of emergency illumination with powerful dual LED heads and a maximum output of 36 watts.

HIGHLIGHTS

  • Recharge Time: Fully recharges within 24 hours for consistent emergency readiness.
  • Environmental Suitability: Designed for indoor damp locations with an operating temperature range of 0°C to +40°C.
  • Emergency Illumination: Equipped with two lamp heads, each containing 12 ultra-bright 2835 SMT LEDs for high-visibility lighting during emergencies.
  • Battery Backup: Powered by a 3.6V 1200mAh Nickel-Cadmium battery, providing a minimum of 120 minutes of emergency operation.

PRODUCT SHEETS

Spec Sheet

OE-212BP Spec Sheet

Instruction Manual

OE-212BP Instruction Manual

Dimmer List

NA

IES Files

NA

120 minutes emergency duration time

Specifications
  • Wattage
    8.5W
  • Voltage
    120V AC or 277V AC or 347V AC
  • Colour Temperature
    6500K
  • Load Rating
    36W at 30mins battery backup time
    12W at 90mins battery backup time
    10W at 120mins battery backup time
  • Frequency Range
    60Hz
  • Charging Time
    ≥120 min
  • Discharge Current
    0.67-6.67A
  • Emergency Duration Time
    ≥120 min
  • Battery Type
    Lead-Acid Battery
  • Battery
    6V 7Ah
  • Lamp Head Lumens & Wattage (per head)
    2W & 130lm/head
  • DC Charging Current
    560mA DC Max.
  • DC Charging Voltage
    5.25-7.5V DC
  • AC Charging Current
    100mA AC Max.
  • Material
    Steel housing Lightweight thermal plastic heads in matching colour
  • Operating Temperature
    0°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    2
