OE-212BP-WET

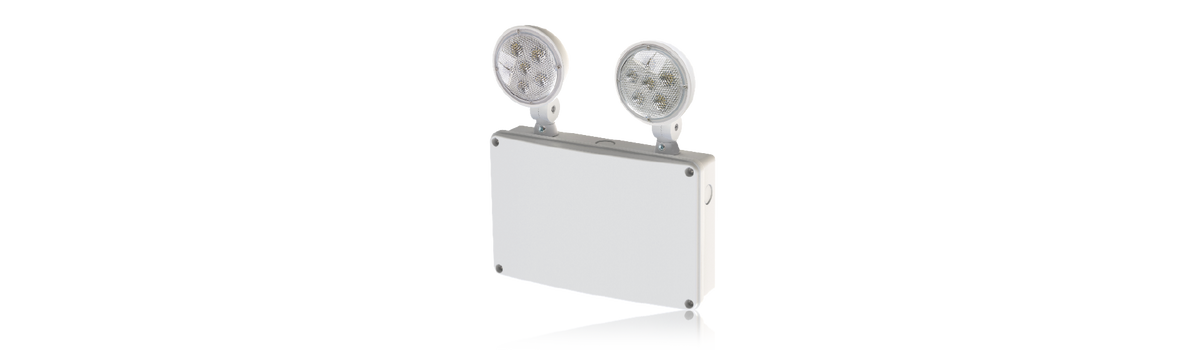

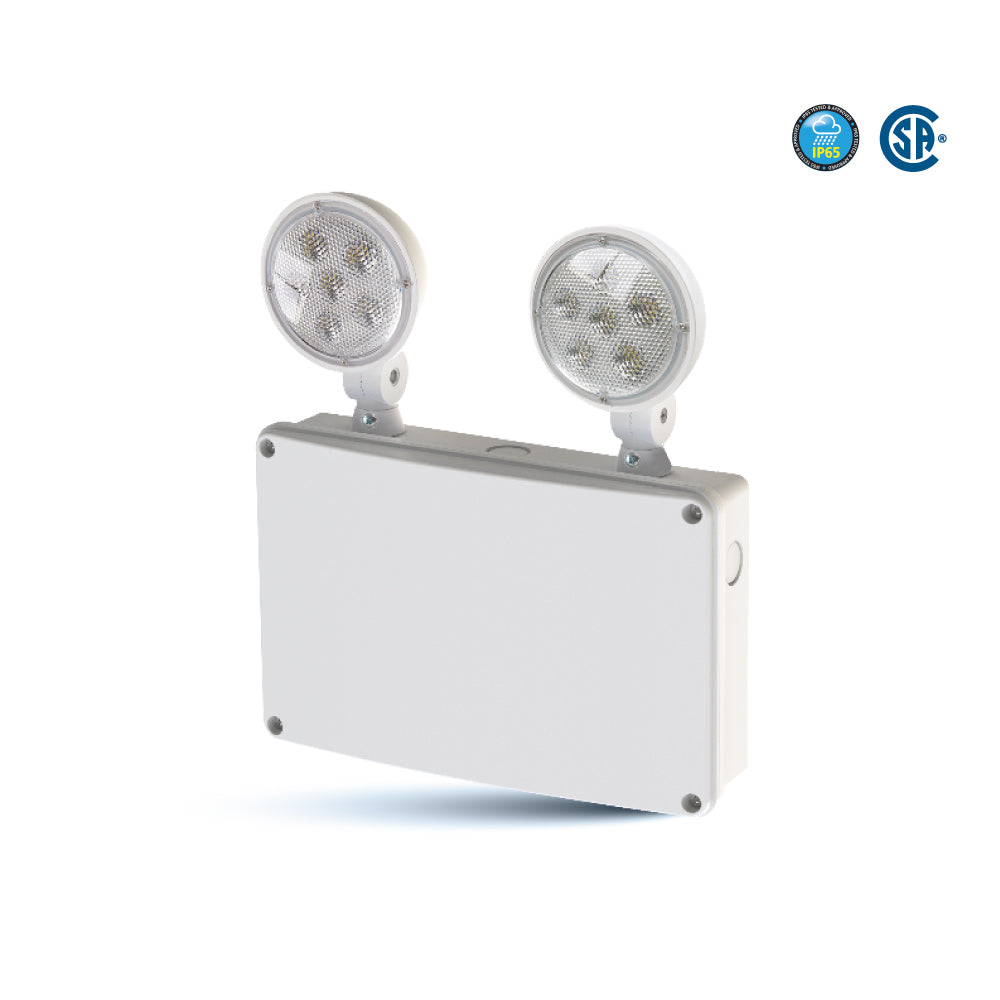

LED Dual-Head Emergency Light - Engineered for outdoor wet locations, offering reliable illumination in harsh environmental conditions.

HIGHLIGHTS

  • High-Performance Lighting: Features two ultra-bright 2.5W LED lamp heads for emergency mode, operating on a universal 120V–347V AC input.
  • Versatile Mounting: Includes a universal J-box mounting pattern on the back plate and conduit knockouts on both sides for flexible installation.
  • Reliable Battery Backup: Equipped with a built-in 7.2V 2Ah high-temperature Nickel-Cadmium battery, delivering a minimum of 2 hours of emergency illumination.
  • Durable Construction: Made from UV-stabilized polycarbonate housing and matching lamp heads, with a UL94V-5VA flame rating for enhanced fire resistance.
  • Outdoor Ready: Suitable for wet locations with an operating temperature range of 0°C to +50°C; full recharge time is 24 hours.
  • Battery Protection: Integrated overcharge and over-discharge safeguards ensure long-term reliability.
  • Maintenance Features: Includes a test switch and charge indicator for easy monitoring.
  • Quick Installation: Designed for fast and easy setup in just minutes.

CSA listed meets all requirement in C22.2 No. 141-15,C860 and UL924

PRODUCT SHEETS

Spec Sheet

OE-212BP-WET Spec Sheet

Instruction Manual

OE-212BP-WET Instruction Manual

Dimmer List

NA

IES Files

NA

FOR OUTDOOR WET LOCATIONS

Specifications
  • Wattage
    3.5W
  • Voltage
    AC120-347V / 50-60Hz
  • Rating
    Wet location
  • Colour Temperature
    5000K
  • Charging Time
    24 Hours
  • Discharge Current
    700mA
  • Emergency Duration Time
    ≥120 min
  • Battery Type
    High Temp. Ni-Cd Battery
  • Battery
    7.2V 2000mAh
  • Lamp Head Lumens & Wattage (per head)
    300 lm / 2.5W
  • DC Charging Current
    180mA
  • DC Charging Voltage
    7.2V
  • AC Charging Current
    45mA
  • Material
    Injection molded Polycarbonate housing
  • Operating Temperature
    0°C ~ +50°C
  • Warranty
    3 Year
  • Case Quantities
    2

CERTIFICATIONS

Product features

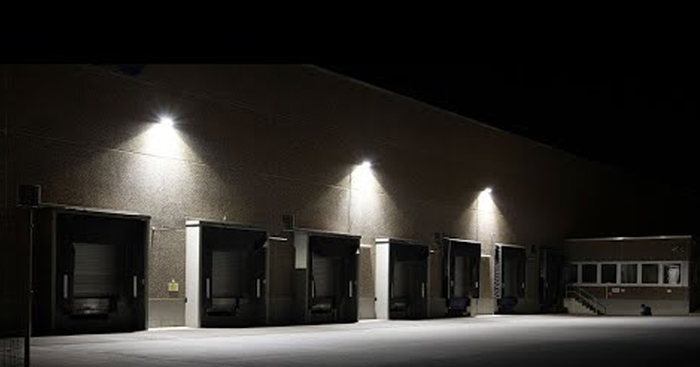

  • NO POWER? NO PROBLEM!

    Equipped with a built-in 7.2V 2Ah high-temperature Nickel-Cadmium (Ni-Cd) rechargeable battery, this emergency light ensures a reliable minimum of 2 hours of illumination during power outages, providing essential safety and visibility in critical situations.

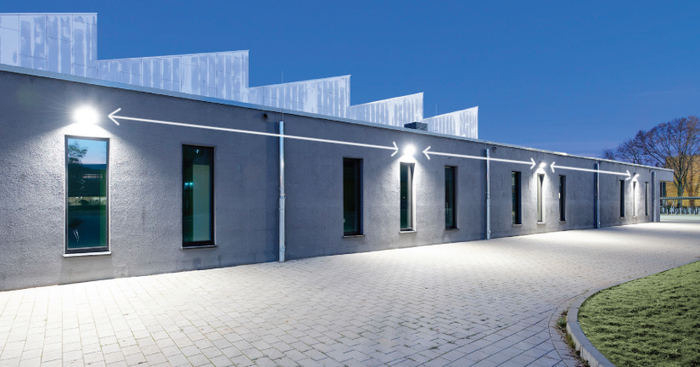

  • SPACING DISTANCE

    When wall-mounted at a height of 7.5 feet, the emergency light provides a spacing distance of up to 63 feet. At a 10-foot mounting height, it offers a spacing distance of up to 60 feet.

    These spacing guidelines are based on compliance with NFPA 101 Life Safety Code, which requires an average illumination of 1.0 foot-candle and a minimum of 0.1 foot-candle, with a maximum-to-minimum illumination ratio not exceeding 40:1.

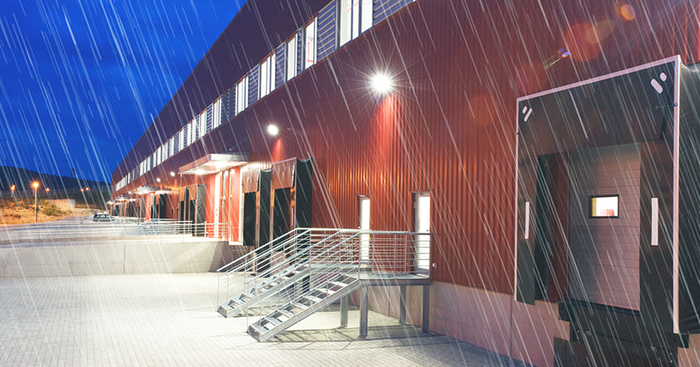

  • IP65 TESTED AND APPROVED

    Tested and approved with an IP65 rating, this fixture is fully protected against dust ingress and low-pressure water jets from any direction, making it ideal for wet and demanding outdoor environments such as building exteriors, walkways, and loading docks.
