OE-216-72W

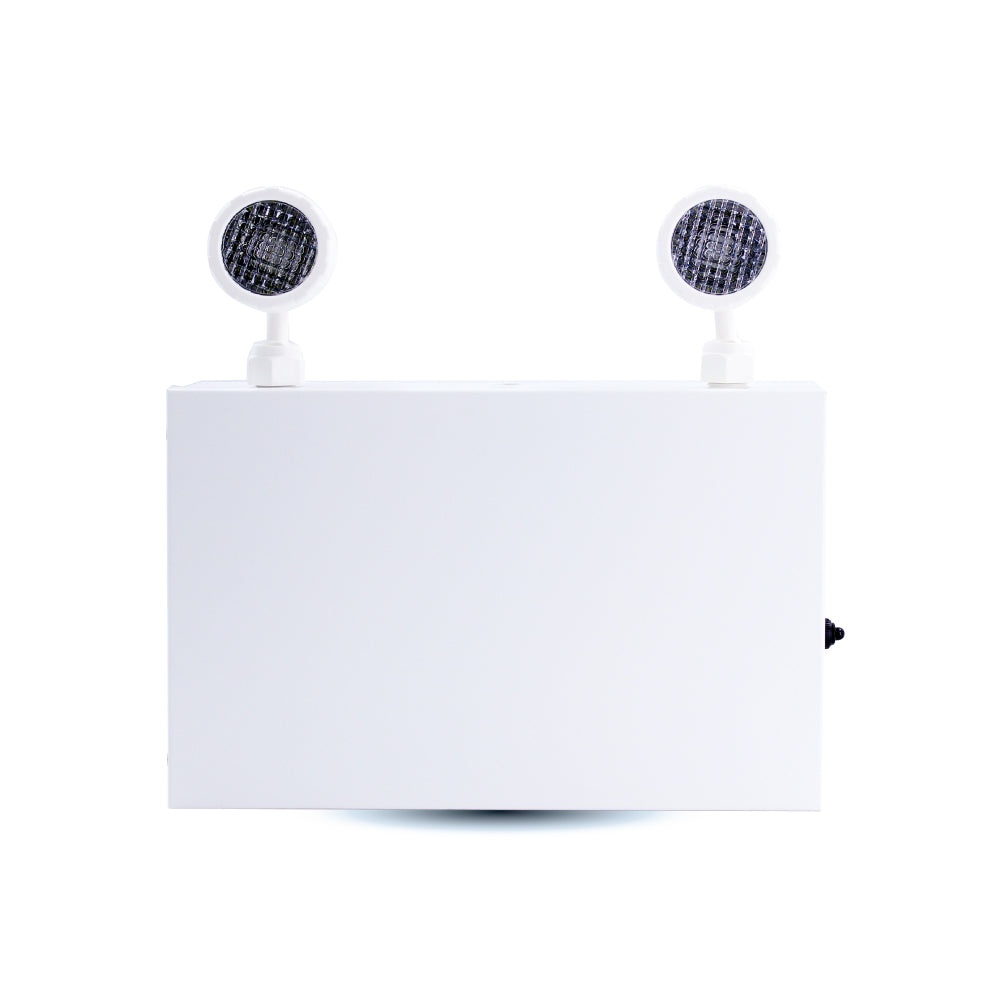

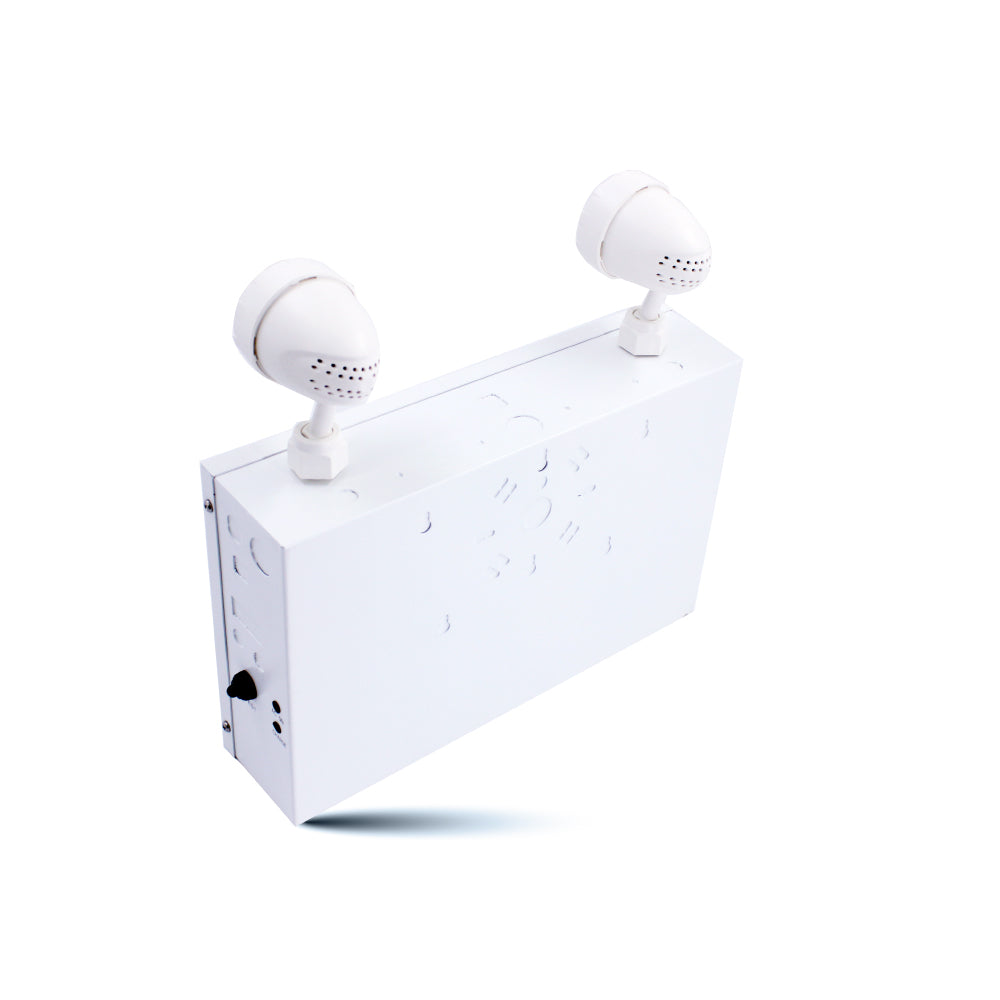

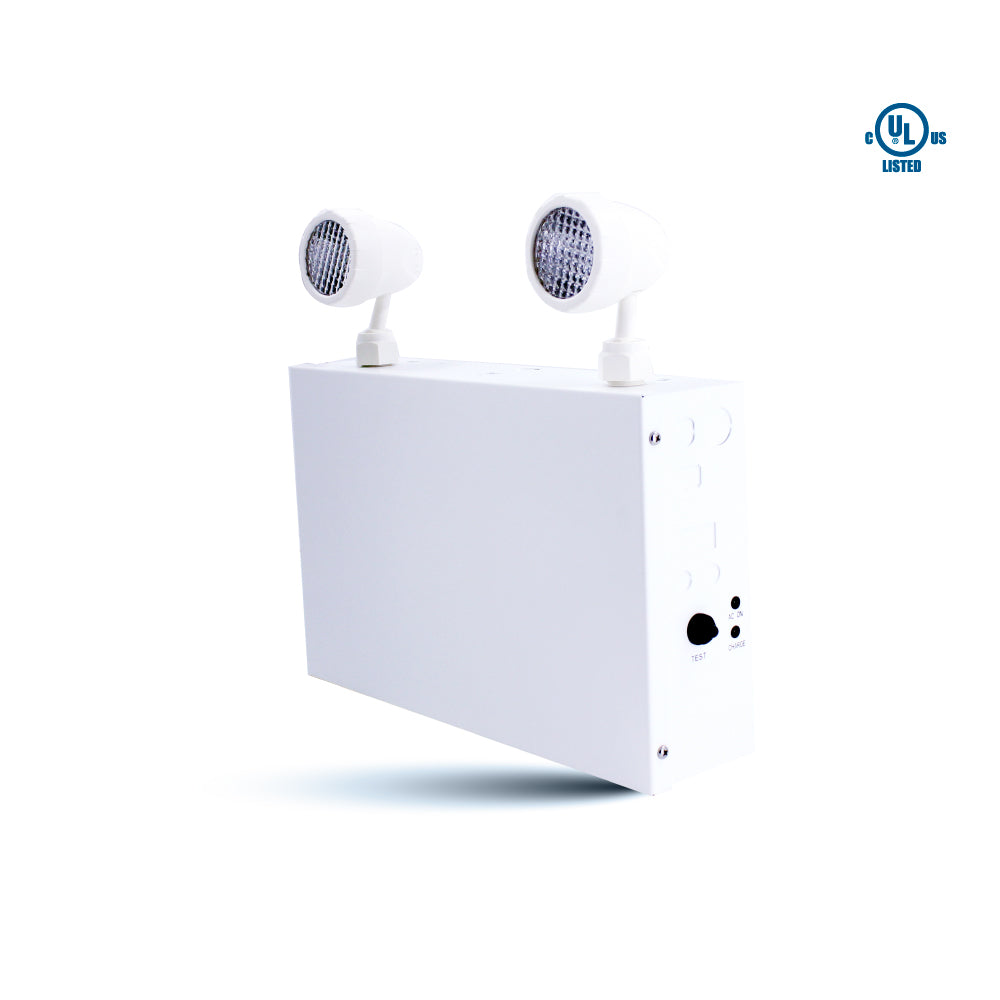

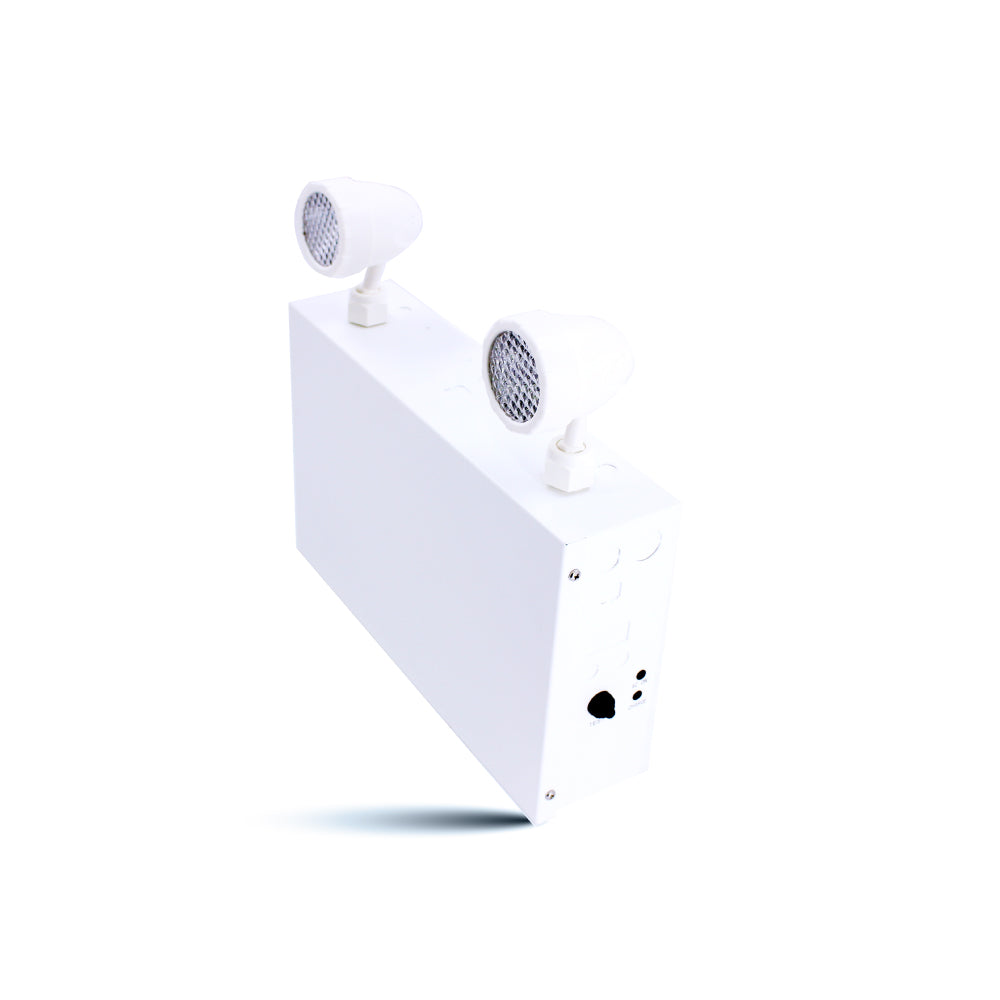

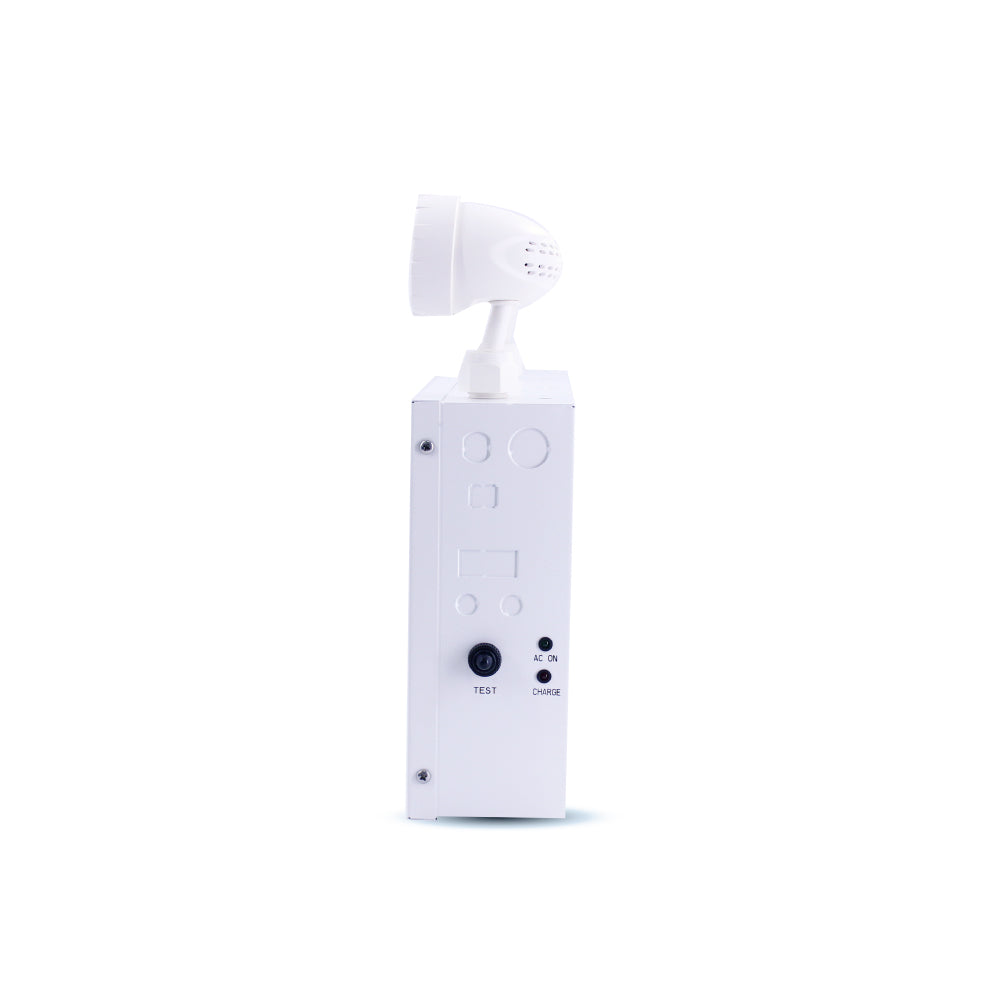

72W Max LED Dual-Head Emergency Light - Delivers up to 2 hours of emergency illumination with a maximum output of 72 watts.

HIGHLIGHTS

  • Recharge Time: Fully recharges within 24 hours to ensure consistent emergency readiness.
  • Environmental Suitability: Designed for indoor damp locations with an operating temperature range of 0°C to +40°C.
  • Emergency Lighting: Equipped with two ultra-bright 2W LED lamp heads for reliable illumination during power outages.
  • Battery Backup: Powered by two 6V 12Ah lead-acid batteries, delivering up to 2 hours of emergency operation.

dual head emergency light for up to 2 hours of emergency operation

Specifications
  • Wattage
    72W Max.
  • Voltage
    120V AC or 277V AC or 347V AC
  • Lumens
    260 lmn
  • Colour Temperature
    6500K
  • Charging Time
    24 hours
  • Discharge Current
    0.3-6.3A
  • Emergency Duration Time
    150W at 30mins battery backup time | 65W at 90mins battery backup time | 45W at 120mins battery backup time
  • Battery Type
    Lead-Acid Battery
  • Battery
    12V 7Ah
  • DC Charging Current
    630mA DC
  • DC Charging Voltage
    10.5-14.8V DC
  • AC Charging Current
    160mA AC Max.
  • Material
    Steel housing and light weight thermal plastic heads in matching colour
  • Operating Temperature
    0ºC ~ +40ºC
  • Warranty
    5 Years
  • Case Quantities
    1
