OE-C212

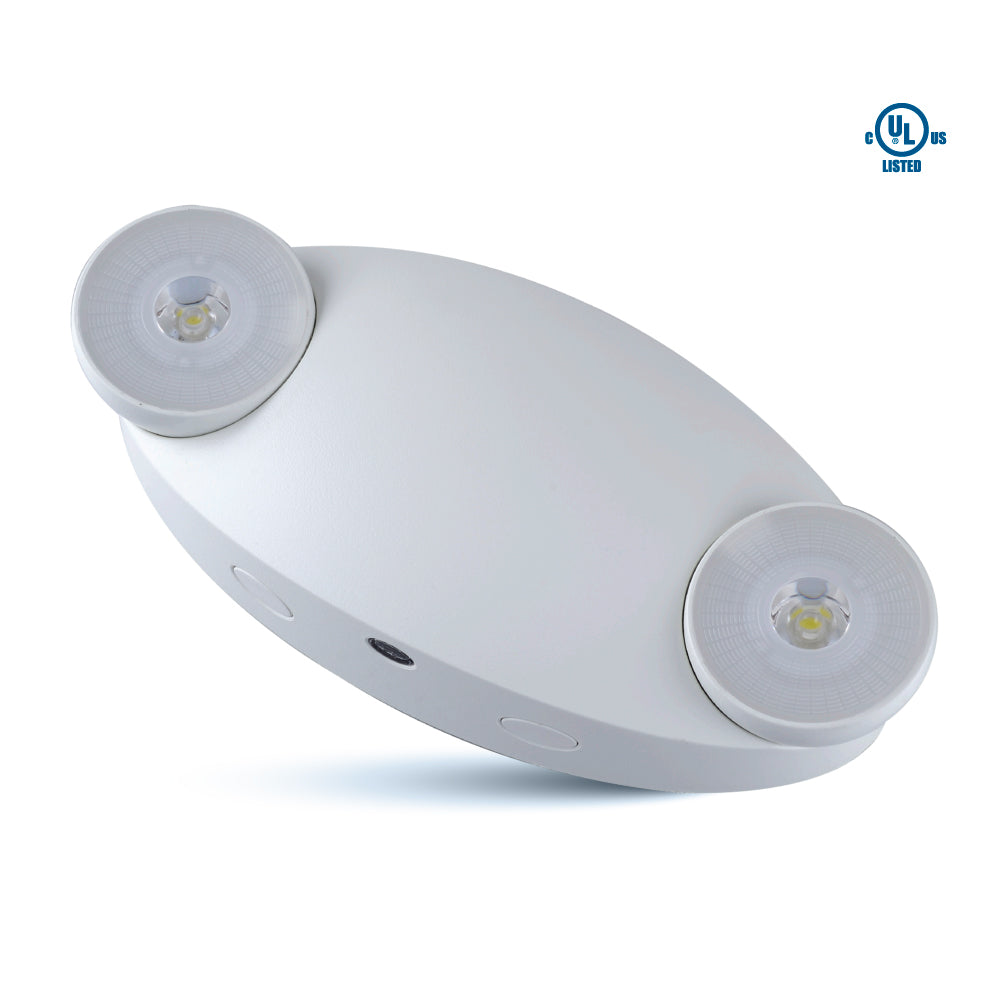

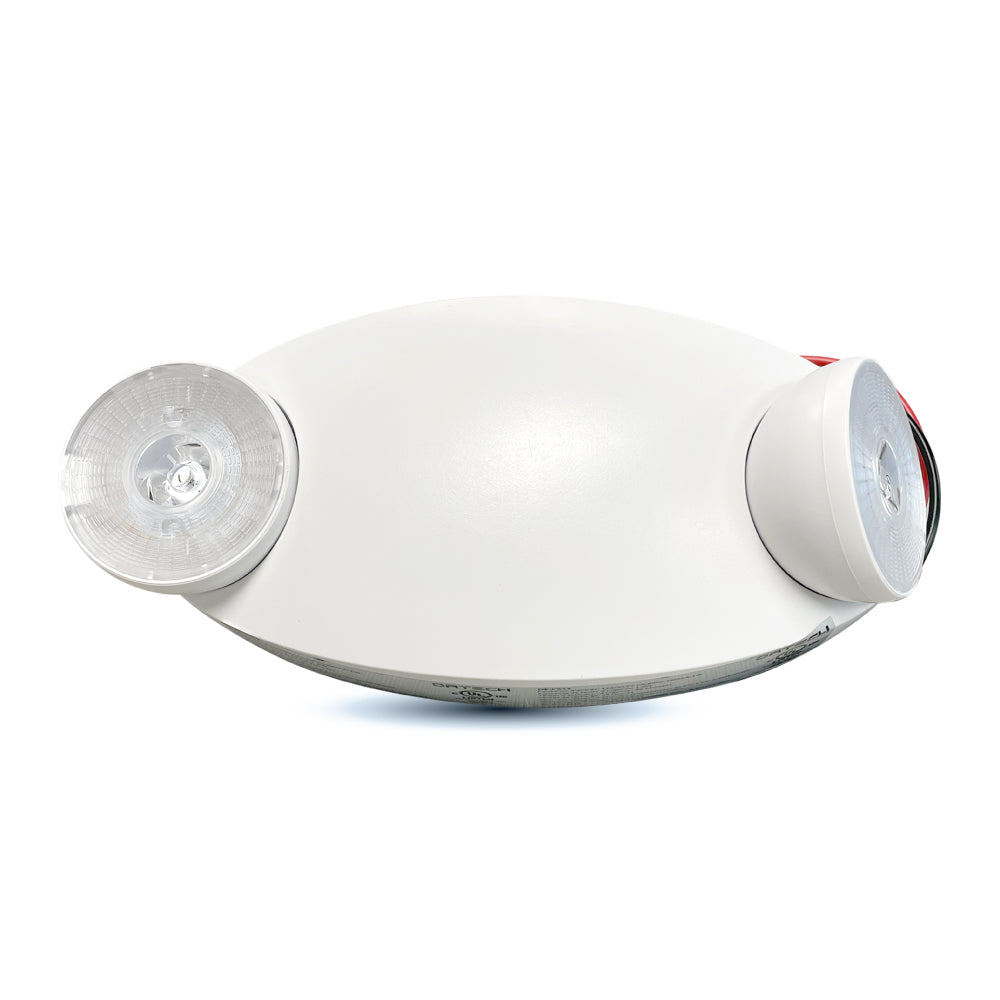

Fully Adjustable Compact LED Dual-Head Emergency Light - 2W unit operating on 120–277V AC, designed for flexible positioning and efficient emergency illumination.


HIGHLIGHTS

  • Compact & Adjustable Design: Fully adjustable dual-head LED emergency light with a universal J-box mounting pattern, ideal for wall-mounted applications.
  • Efficient Illumination: Features two ultra-bright 1W LED lamp heads, delivering over 200 lumens during emergency mode.
  • Dual Voltage Operation: Compatible with 120V/277V AC for flexible installation across various settings.
  • Reliable Battery Backup: Includes a built-in 3.6V 1000mAh Nickel-Cadmium battery, providing a minimum of 90 minutes of emergency lighting.
  • Durable & Safe Construction: Made from injection-molded thermoplastic ABS with a UL94V-0 flame rating for enhanced fire resistance.
  • Environmental Suitability: Designed for indoor damp locations with an operating temperature range of 0°C to +40°C; full recharge time is 24 hours.
  • Smart Monitoring: Equipped with a test switch and charge indicator for easy maintenance.
  • Quick Installation: Engineered for fast and easy setup in minutes.
  • Optimized Coverage: Provides consistent illumination with optimal 90-foot spacing when mounted at a height of 7.5 feet.

Fully Adjustable LED Dual Head Emergency Light

Specifications

  • Wattage
    2W
  • Voltage
    120V AC /50-60Hz or 277V AC /50-60Hz
  • Lumens
    >200 lmn
  • Colour Temperature
    6500K
  • Charging Time
    24 hours
  • Discharge Current
    700mA ~ 900mA
  • Emergency Duration Time
    ≥90 min
  • Battery Type
    Nickel Cadmium Battery
  • Battery
    3.6V 1000mAh
  • DC Charging Current
    75mA DC Max.
  • DC Charging Voltage
    4.2V DC
  • AC Charging Current
    100mA AC Max.
  • Material
    Injection-molded thermoplastic ABS housing
  • Operating Temperature
    0°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    30
