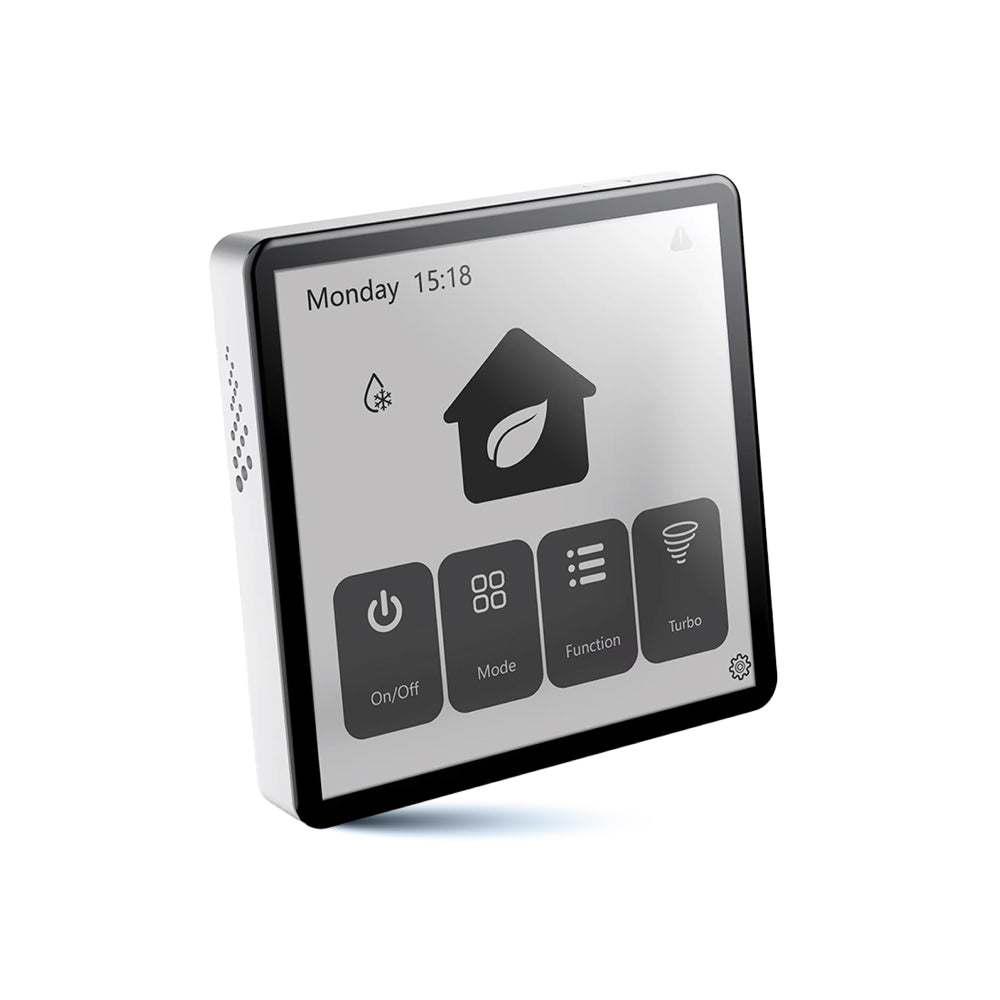

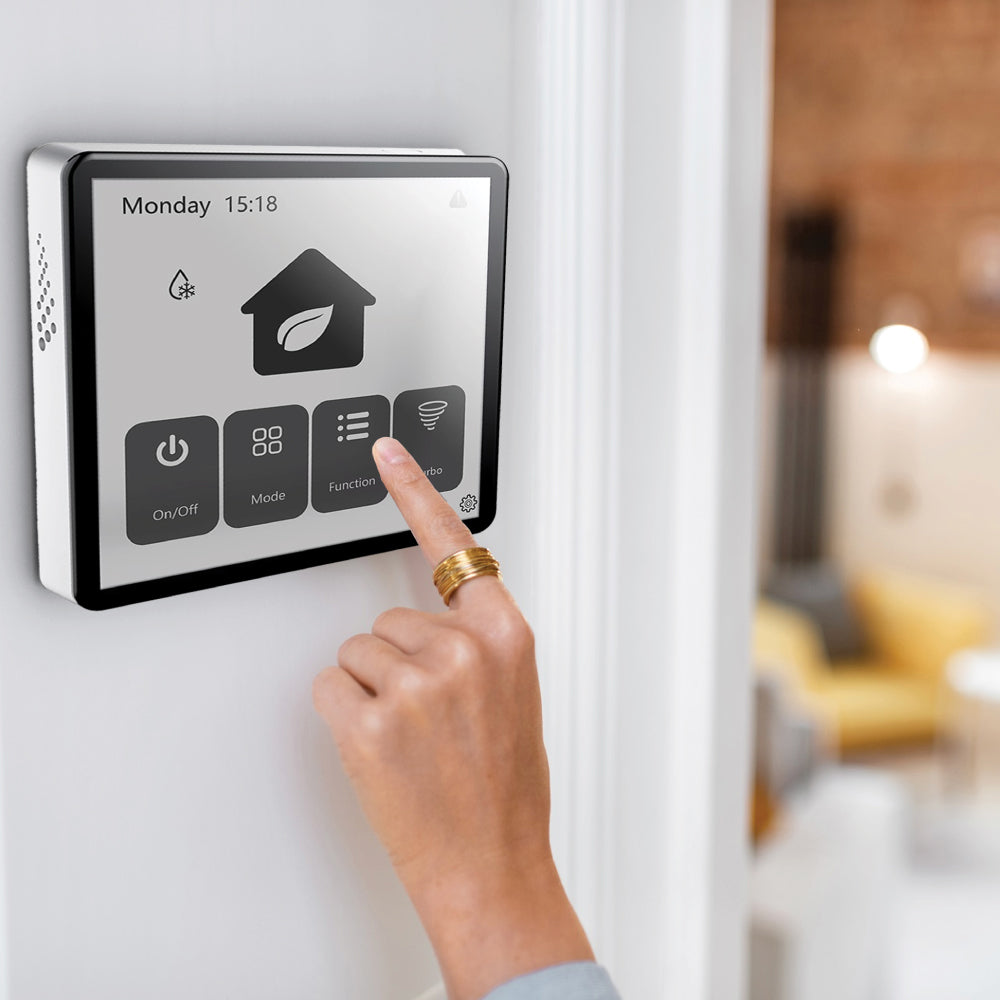

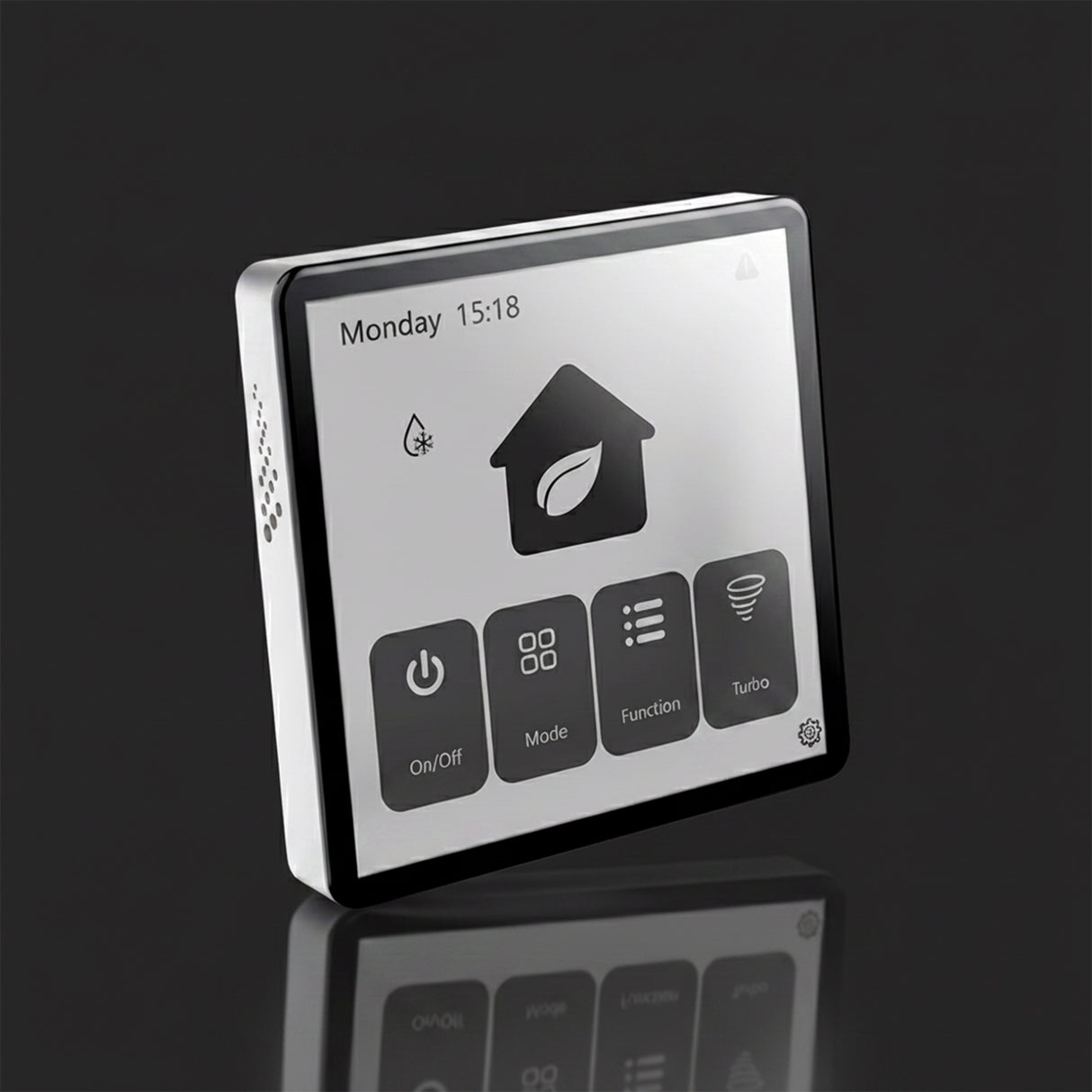

ERV-SC-2

The 24V low voltage wall-mounted screen controller offers a sleek interface for convenient and safe operation, combining modern design with reliable performance.

HIGHLIGHTS

  • Independent Fan Speed Adjustment Allows precise control by setting each fan speed based on percentage
  • Timer Compatibility Works seamlessly with multiple washroom timer systems
  • Simple Installation Designed for quick and hassle-free setup
  • Powered by ERV System Operates without the need for batteries
  • Lightweight Design Net weight of 135g for easy handling and mounting

Precision Airflow at Your Fingertips

Specifications
  • Wattage
    <5W
  • Wiring
    22-gauge wiring
  • Modes
    Five operation modes including Turbo mode
  • Battery
    No battery required
  • No. Of Wires
    4
  • Operating Voltage
    6-36V, Typical value of 12V
  • Operating Current
    120mA: VCC=12V, max backlight | 50mA: VCC=12V, backlight Off
  • Power Supply
    12V 1A DC
  • Brightness
    50nit
  • Backlight
    LED
