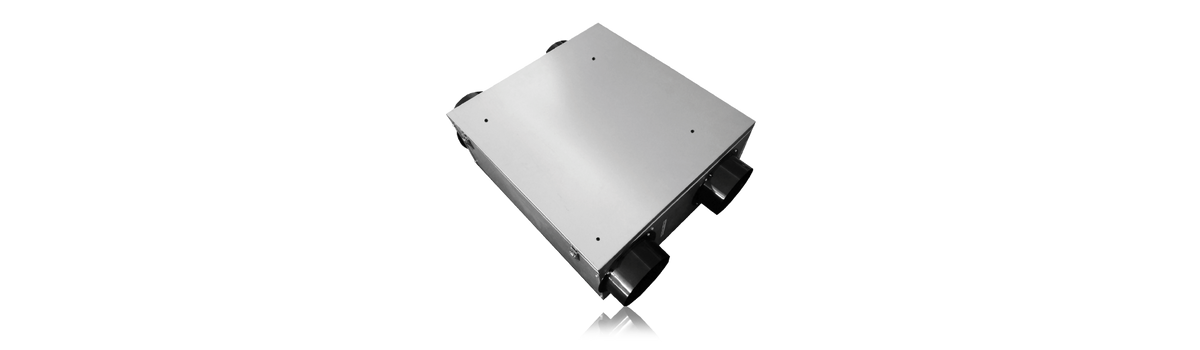

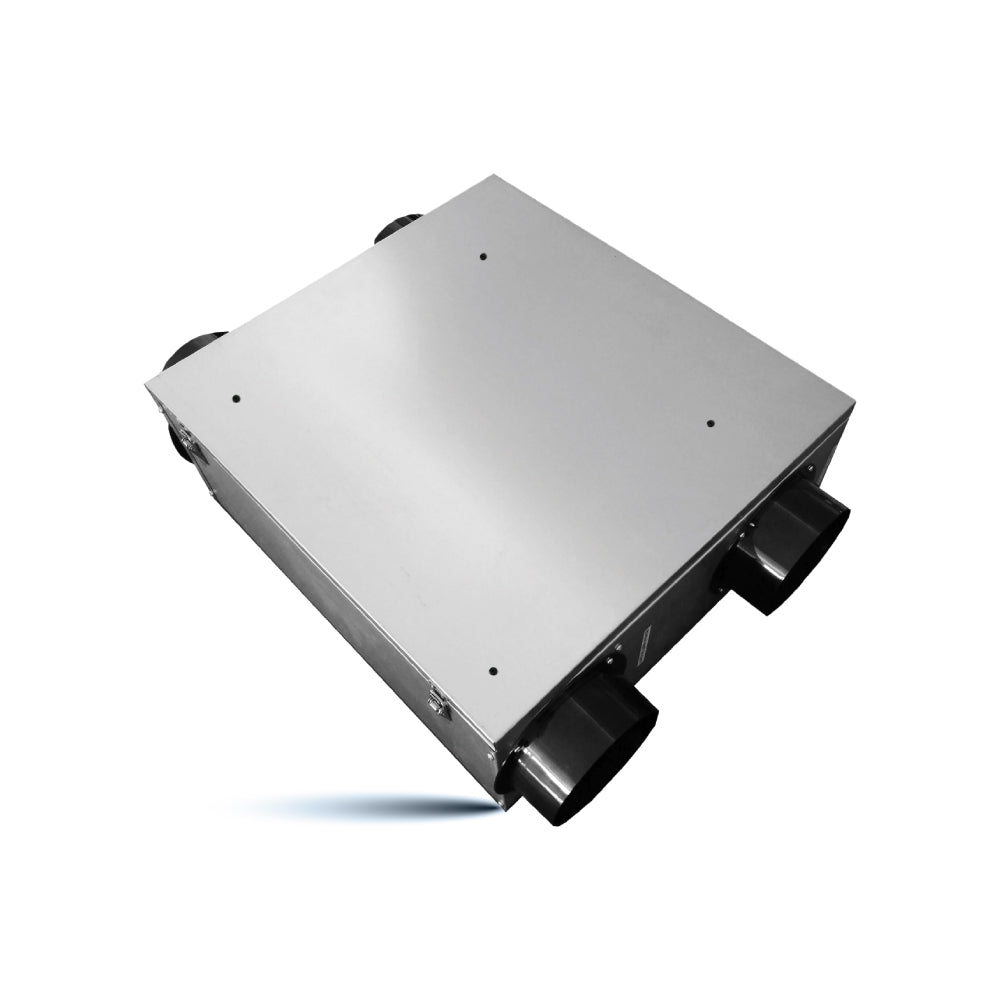

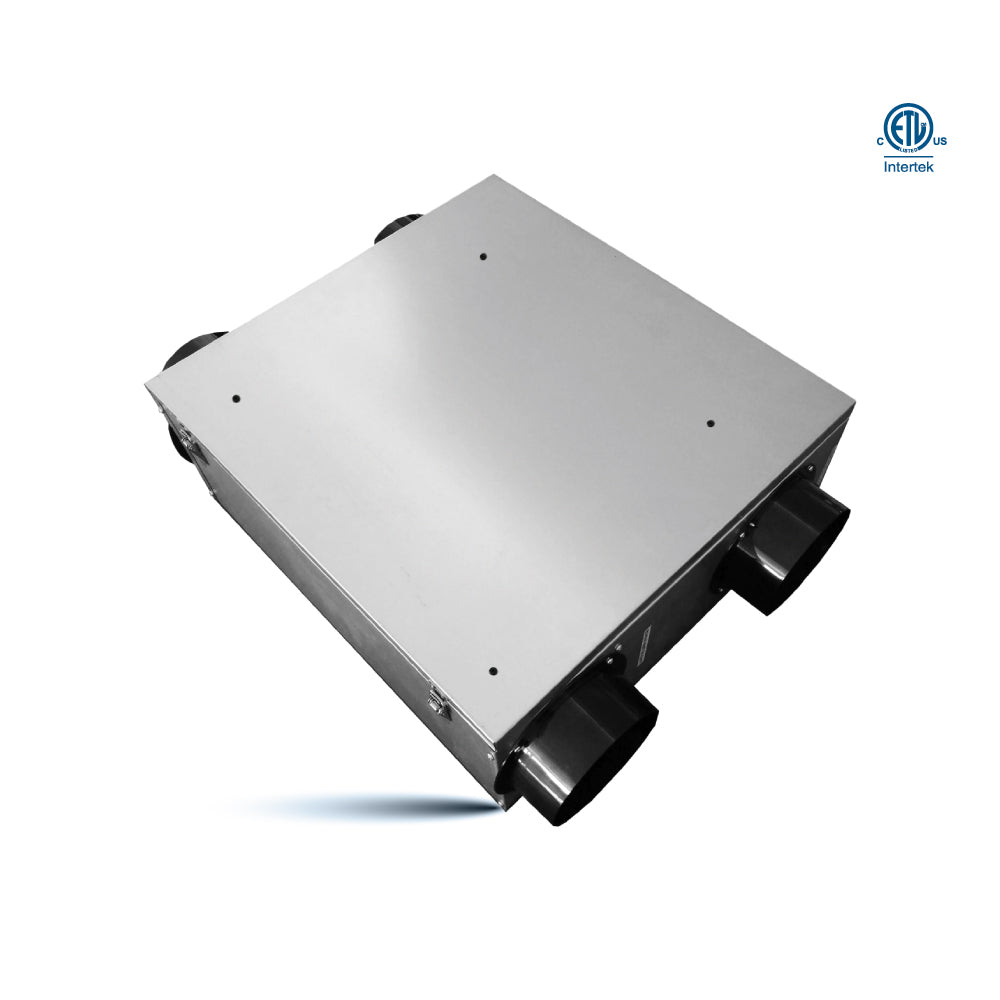

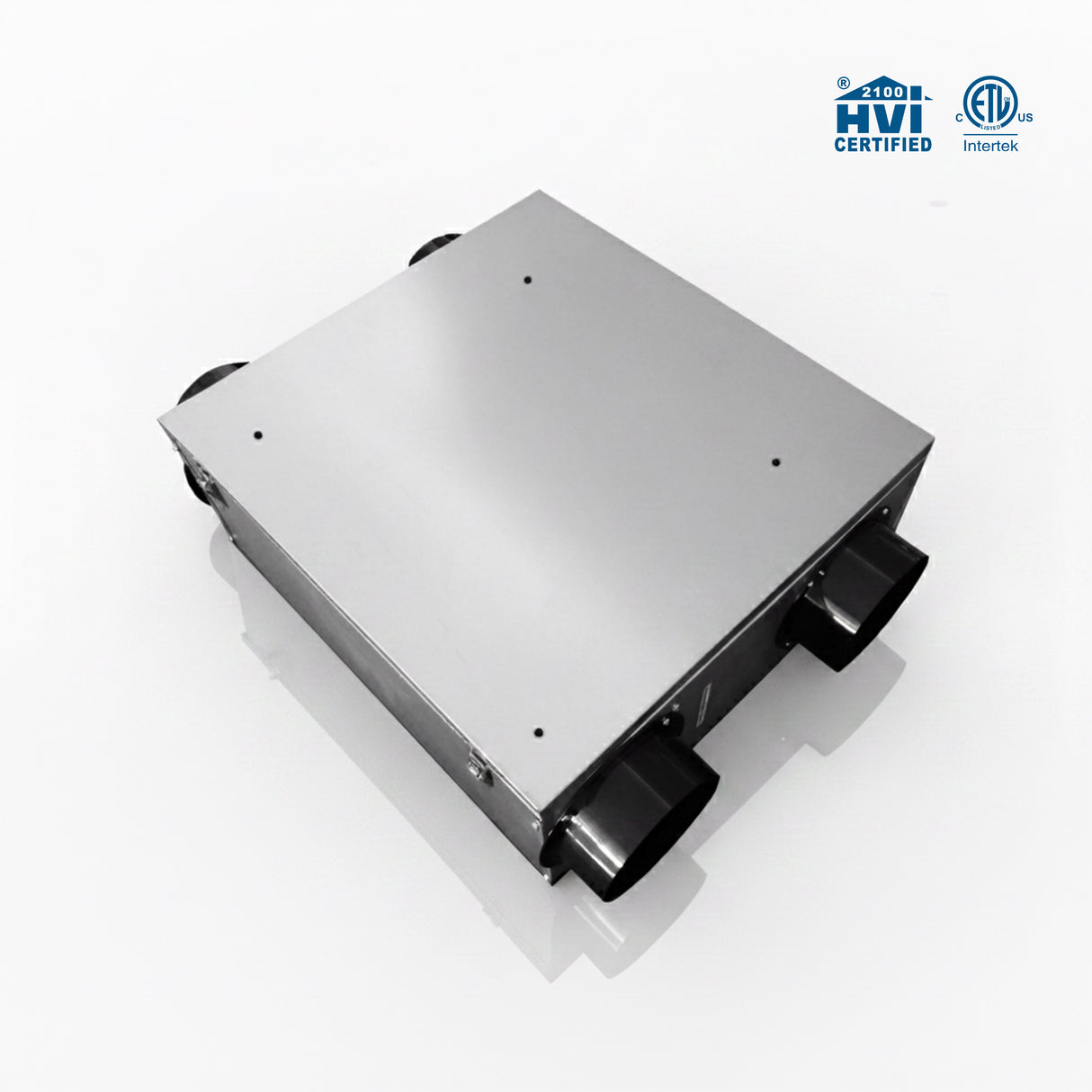

OD-ERV 150AC

The Energy Recovery Ventilator features an efficient cross-flow core and integrated pressure ports, enabling optimal air balancing and enhanced energy savings for residential or commercial ventilation systems.

HIGHLIGHTS

  • 6" Duct Connections & 6 ft Power Cord Standard sizing for easy integration and flexible installation
  • MERV 6 Filters Included Optional upgrade to MERV 13 for outdoor air (OA) stream filtration
  • LED Indicators Alerts for filter replacement and unit troubleshooting
  • Efficient Cross-Flow Core Includes pressure ports for precise airflow balancing
  • Low Profile Value Series Design Compact Energy Recovery Ventilation system for space-saving applications
  • Temperature Sensor Limits operation during extremely low temperatures to protect components
  • ASHRAE 62.2 Compliant Runtime Adjustable low-speed runtime from 0 to 60 minutes per hour
  • Auto-Reset Thermal Overload Protection Built-in motor safety with no need for drain pan or hose
  • Built-In Speed Control (30–100%) Adjustable for both OA and return air (RA) streams to balance and reduce airflow as needed
  • CSA standard C439-18 compliant

EFFICIENT AND POWERFUL

Specifications
  • Wattage
    125 / 38 / 39
  • Voltage
    120V / 1 Ph / 60Hz
  • Motor
    AC Fan Motor
  • Speed Setting
    High / Medium / Low
  • Air Volume (CFM)
    125 / 55 / 22
  • Noise (sones)
    4.8 / 2.1 / 2.4
  • Duct Diameter
    6"

CERTIFICATIONS

SPECIFICATIONS

SPEED NET AIRFLOW (CFM) SENSIBLE RECOVERY EFFICIENCY (SRE) ADJUSTED SENSIBLE RECOVERY EFFICIENCY (ASRE) ESP (in .w.g.) FA ESP (in .w.g.) RA AVERAGE POWER FILTER TYPE
High 125 46.0 52.0 0.4 0.43 125W MERV 6
Medium 55 62.0 67.0 0.1 0.1 39W MERV 6
Low 22 68.0 80.0 0.4 0.4 38W MERV 6




Accessories (sold separately)

OD-ERV-TIMER-23
OD-ERV-TIMER-23
(Timer)

Product features

PRODUCT SHEETS

Spec Sheet

OD-ERV 150AC Spec Sheet

Instruction Manual

OD-ERV 150AC Instruction Manual

Revit Files

OD-ERV 150AC Revit files
