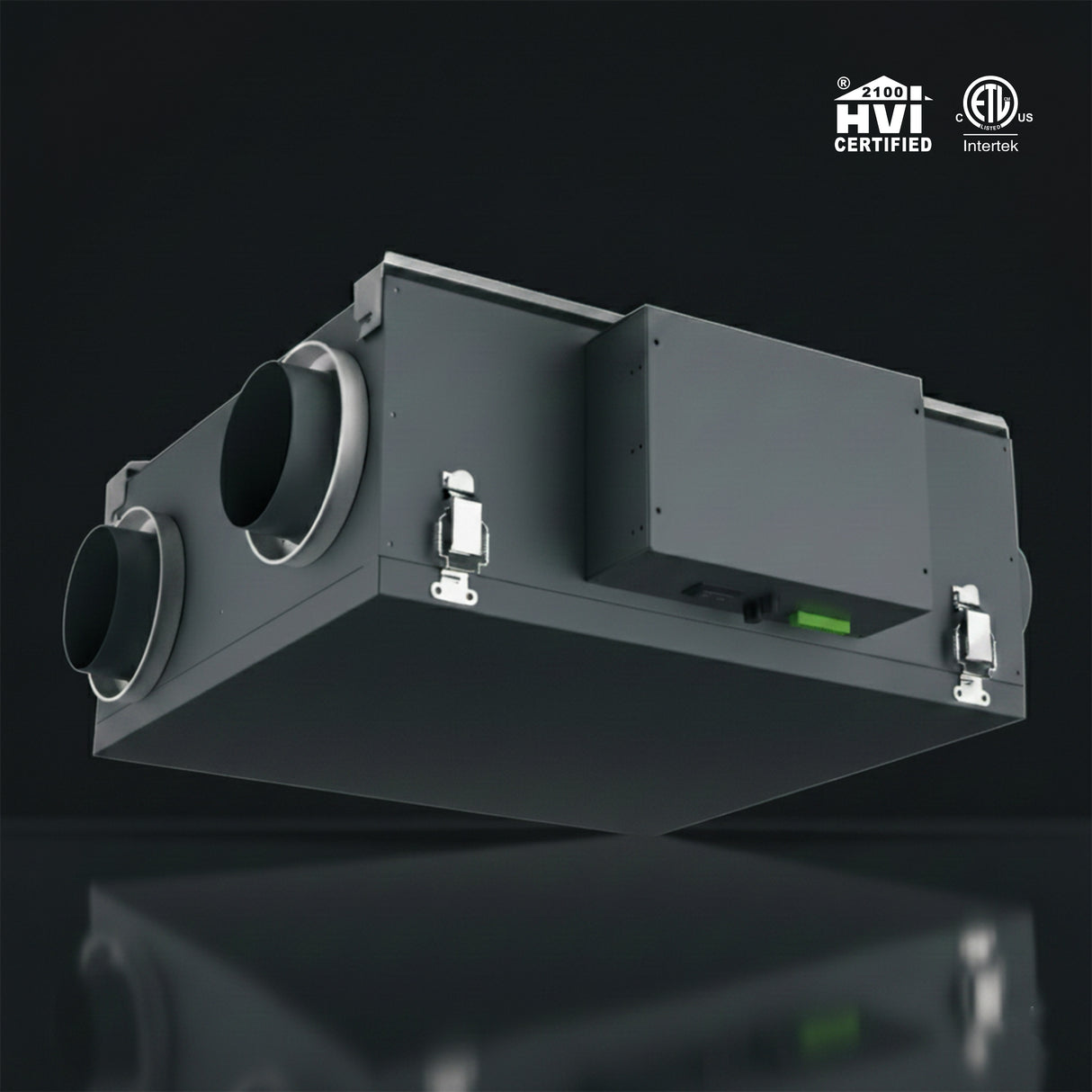

ODD-ERV-120R

Energy Recovery Ventilator featuring an efficient mirrored cross-flow core for optimized air exchange and energy savings.

HIGHLIGHTS

Continuous Fresh Air Supply Brings in fresh air while exhausting contaminated indoor air for improved air quality
Year-Round Operation Equipped with automatic defrost mechanisms for all-season use
Super Compact Size Dimensions: 24 ¹¹/₆₄" × 26 ¹³/₁₆" × 9 ¹¹/₆₄" for space-saving installation
Easy-Mount Bracket Included Simplifies setup and secure mounting
Advanced Energy Recovery Core Washable graphene-modified polymer membrane for efficient heat and moisture exchange
Quiet Performance Operates at 1.7 sones @ 120 CFM for low-noise ventilation
Easy Access Service Door Facilitates maintenance and filter replacement
Configurable Motors Allows airflow balancing for optimal performance
Durable Housing Constructed from galvanized steel and pre-painted steel for long-term reliability
Fully Insulated Cabinet Uses high-density expanded polystyrene for thermal efficiency
Washable Primary Filters Includes two reusable air filters for cost-effective maintenance
Push Button Timer Switch Enables timed ventilation cycles with simple control
Standard Power Cord Comes with a four-foot 110V electric cord
Flexible Installation Options Can be installed horizontally or vertically to suit various layouts
CSA standard C439-18 compliant

PRODUCT SHEETS

EFFICIENT AND POWERFUL

HEATING	SUPPLY TEMPERATURE	NET OUTDOOR AIRFLOW	SUPPLY / EXHAUST FLOW RATIO	AVERAGE POWER	SENSIBLE RECOVERY EFFICIENCY (SRE)	ADJUSTED SENSIBLE RECOVERY	FAN EFFICIENCY FOR 0°C	APPARENT EFFECTIVENESS	NET MOISTURE TRANSFER
i	0°C \| 32°F	33L/s \| 70cfm	0.99	24W	73%	75%	1.37L/s/W \| 2.9cfm/W	75%	0.65
ii	0°C \| 32°F	47L/s \| 100cfm	1.00	47W	68%	71%	1.00L/s/W \| 2.1cfm/W	71%	0.60
iii	0°C \| 32°F	52L/s \| 110cfm	1.00	58W	67%	70%	0.89L/s/W \| 1.8cfm/W	70%	0.58

COOLING	SUPPLY TEMPERATURE	NET OUTDOOR AIRFLOW	SUPPLY / EXHAUST FLOW RATIO	AVERAGE POWER	SENSIBLE RECOVERY EFFICIENCY (SRE)	ADJUSTED SENSIBLE RECOVERY	TOTAL RECOVERY EFFICIENCY	ADJUSTED TOTAL RECOVERY EFFICIENCY	APPARENT EFFECTIVENESS	NET MOISTURE TRANSFER
i	35°C \| 95°F	33L/s \| 70scfm	1.01	24W	65%	70%	62%	64%	74%	0.60
