OE-126

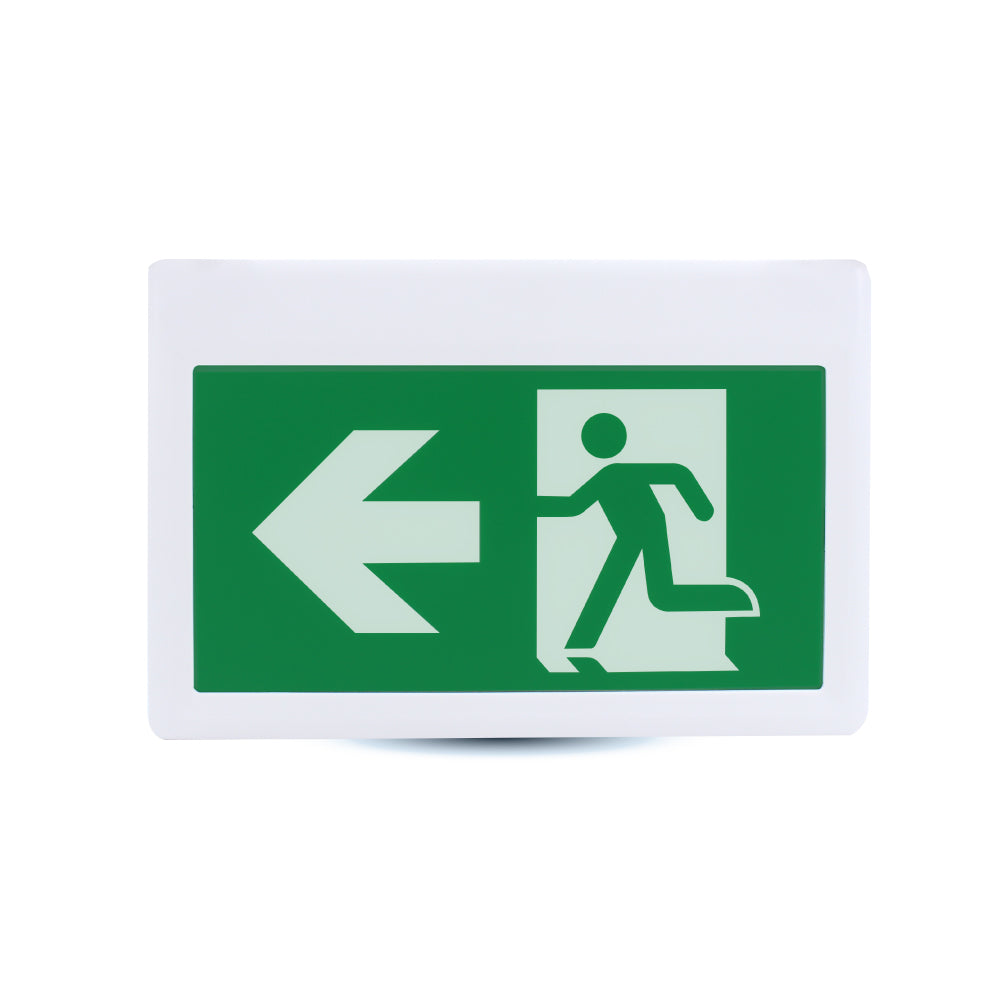

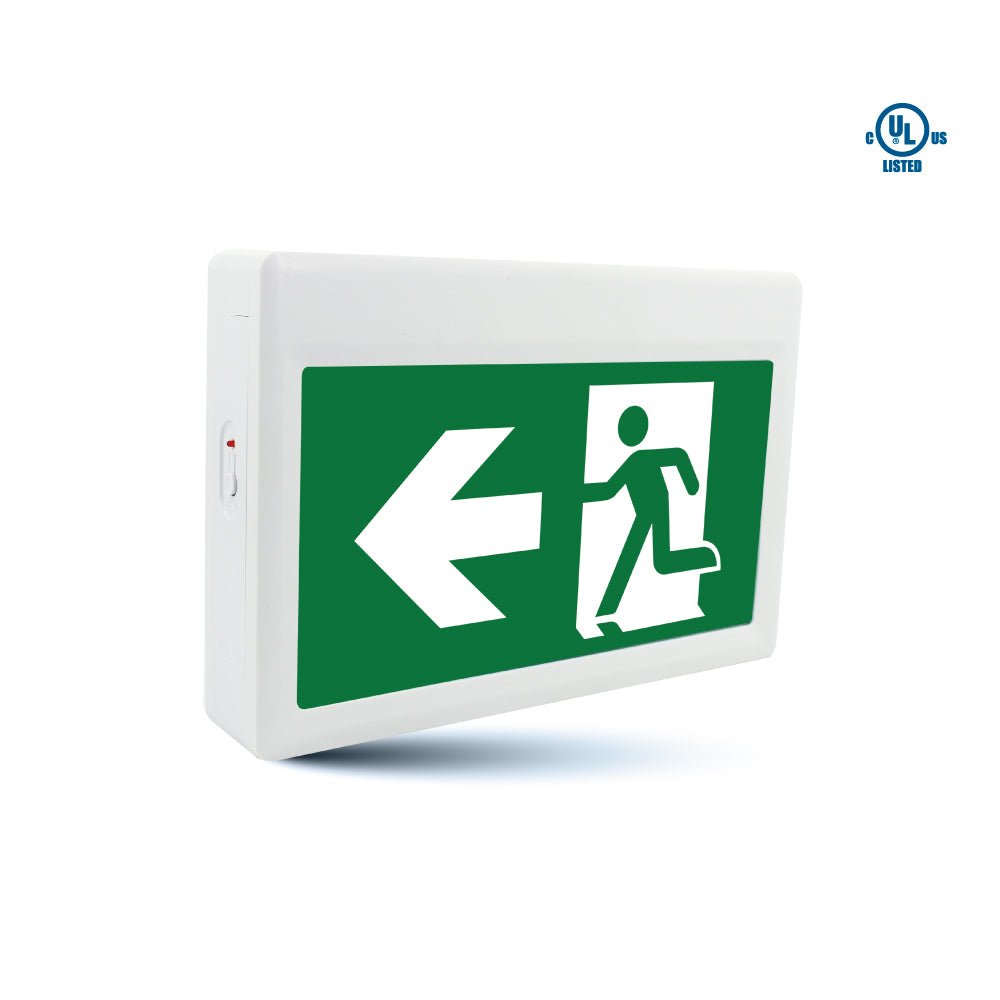

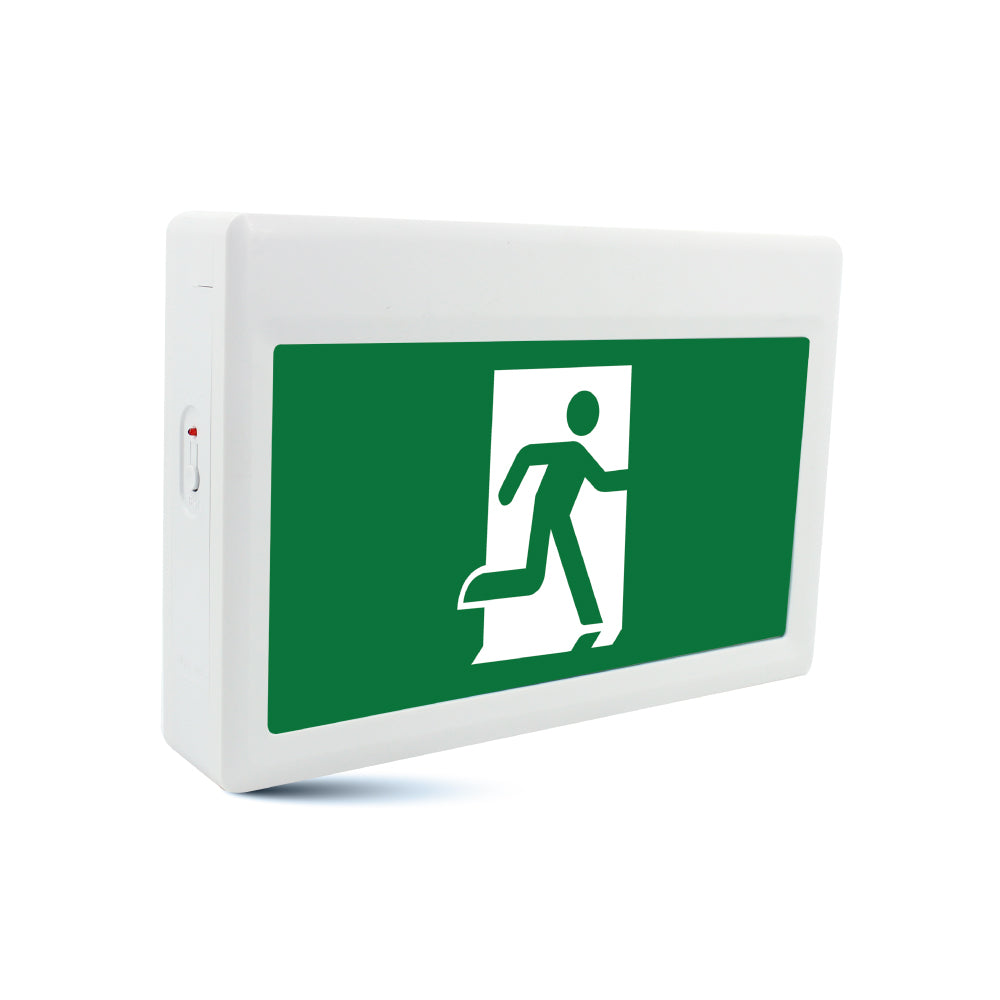

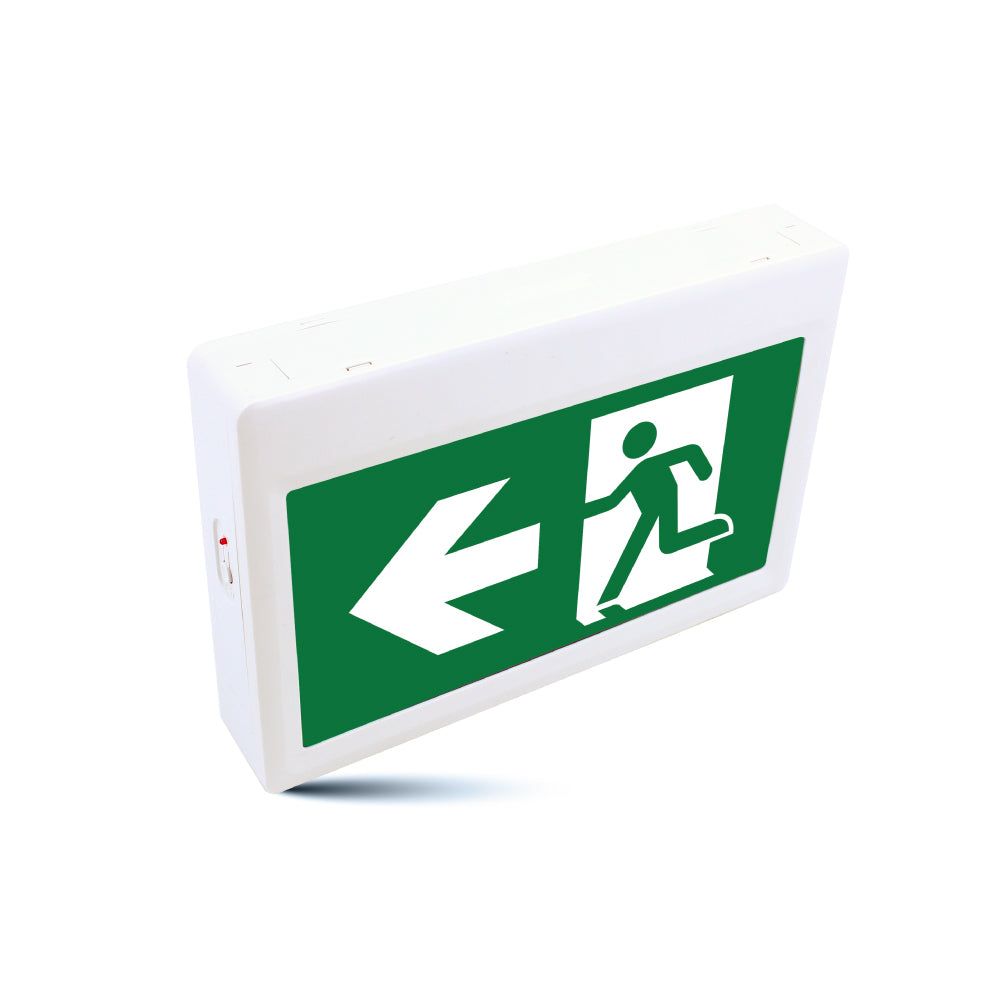

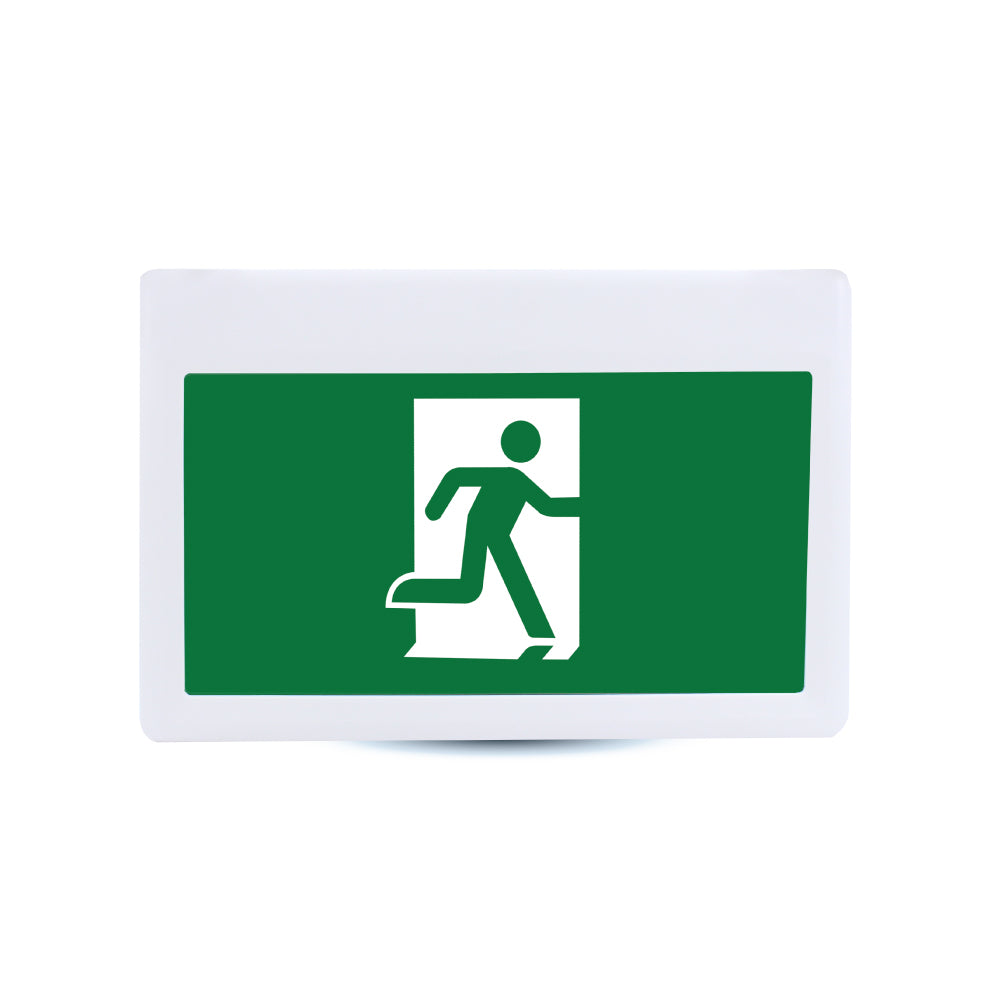

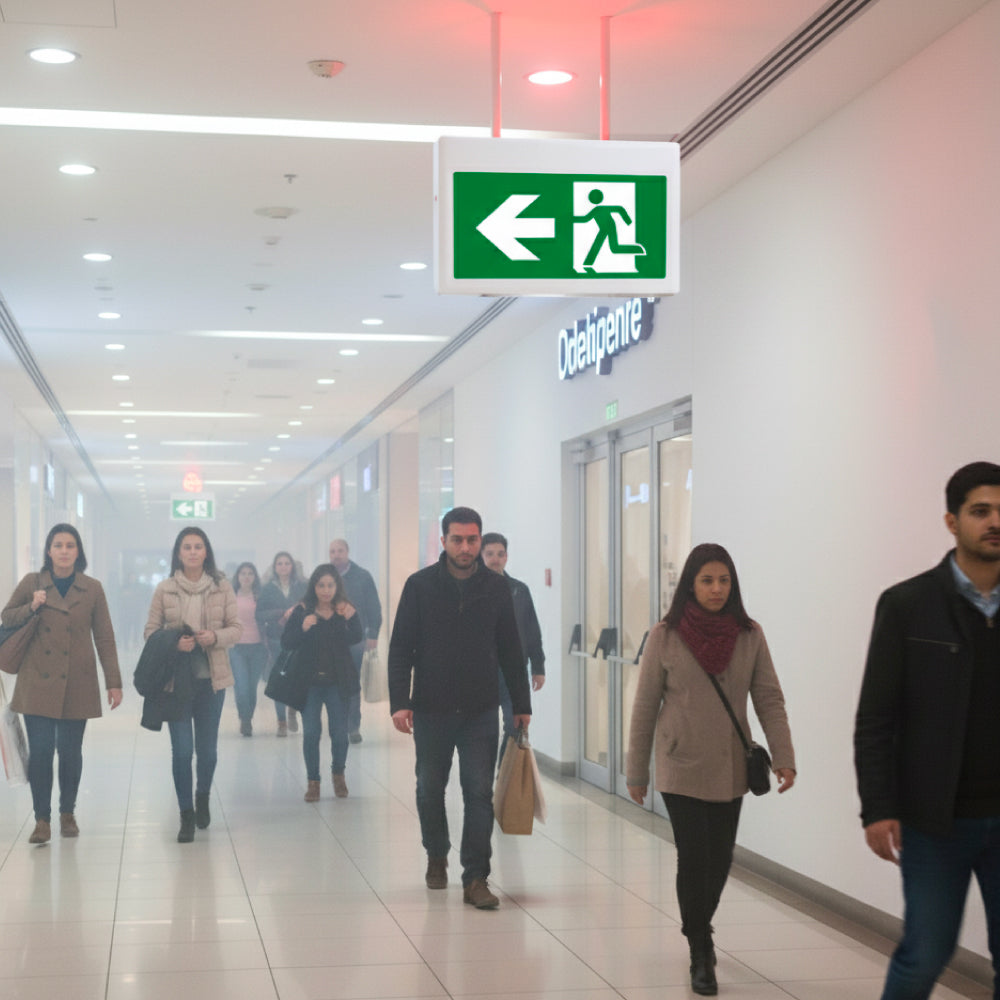

4.5W LED pictogram exit sign with a 120-minute emergency backup duration.

HIGHLIGHTS

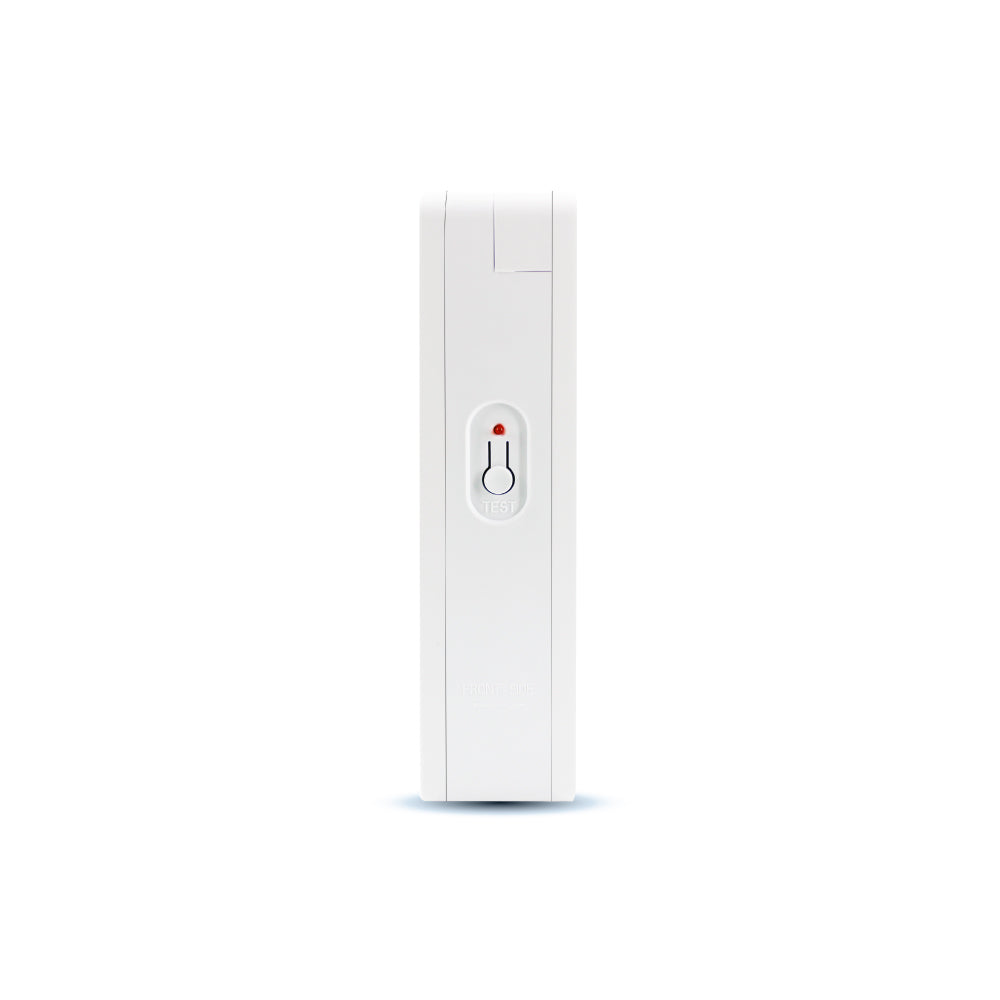

  • Test Button and Charge Indicator: Allows for quick functionality checks and real-time monitoring of charge status.
  • Fire Safety Compliance: Constructed with UL-94V-0 flame-rated, fire-retardant materials for enhanced protection.
  • Battery Management: Integrated overcharge and over-discharge protection ensures safe and efficient operation.

PRODUCT SHEETS

Spec Sheet

OE-126 Spec Sheet

Instruction Manual

OE-126 Instruction Manual

Dimmer List

NA

IES Files

NA

LED Pictogram Exit Sign With 120 Minute Emergency Duration Time

Specifications
  • Wattage
    4.5W
  • Voltage
    120V AC or 347V AC
  • Grade of Protection
    IP20
  • Colour Temperature
    6500K
  • Insulation
    II, Range: 80m²
  • Frequency Range
    60Hz
  • Conversion Time
    <0.2 seconds
  • Emergency Duration Time
    ≥120 min
  • Battery
    3.6V 900mAh
  • Material
    Injection molded thermoplastic ABS housing
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    3 Years
  • Case Quantities
    6
