OE-316

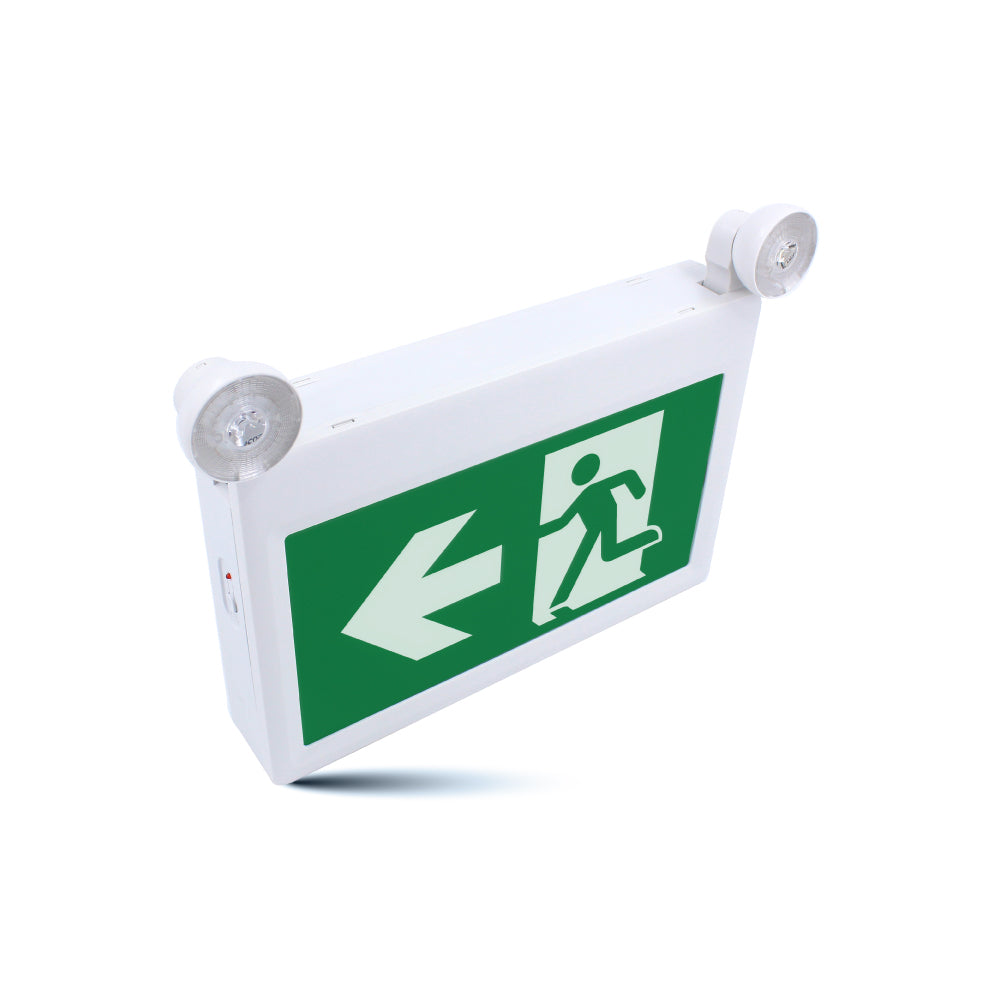

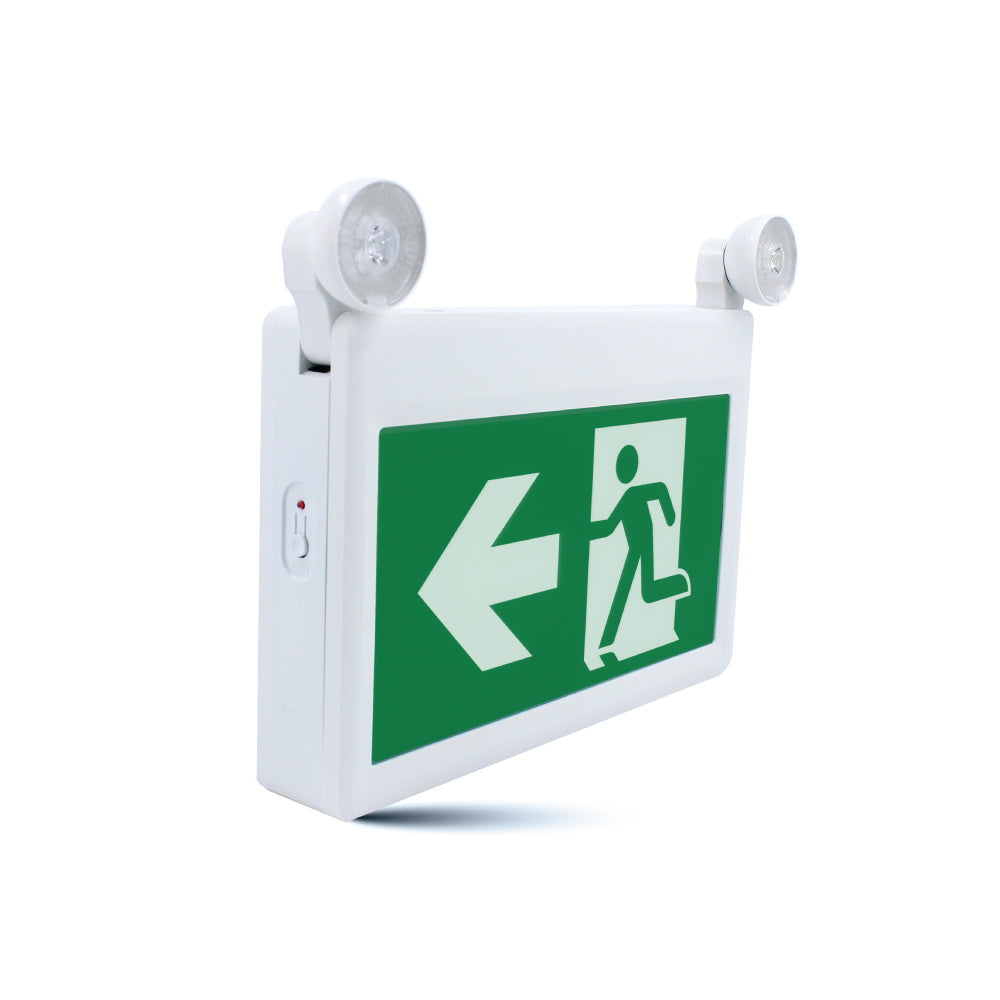

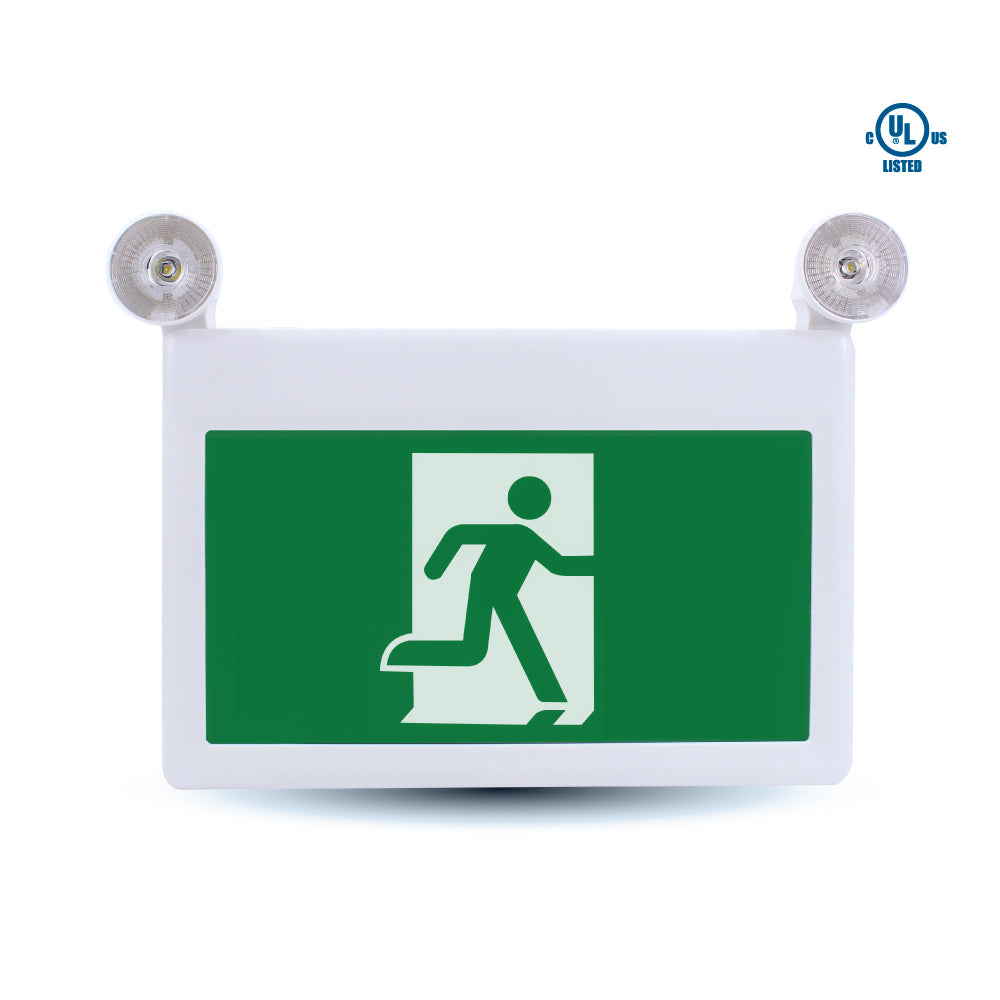

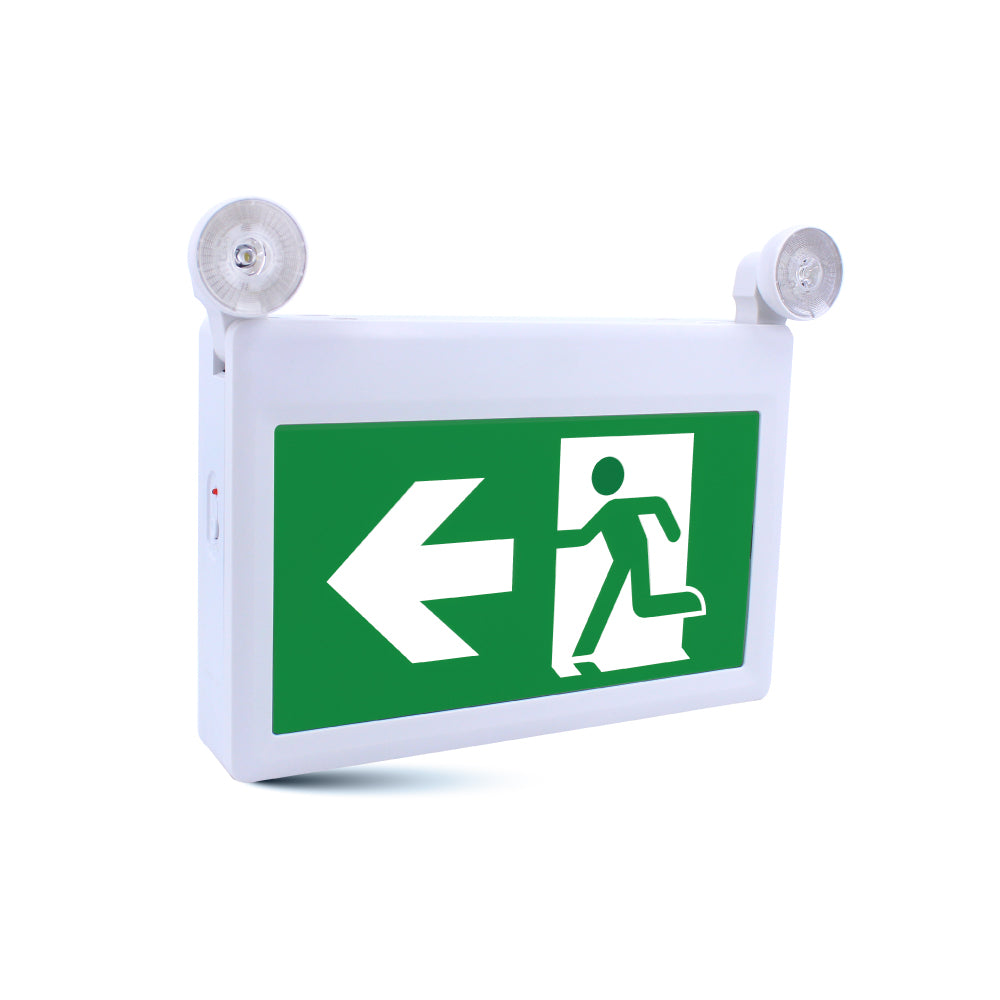

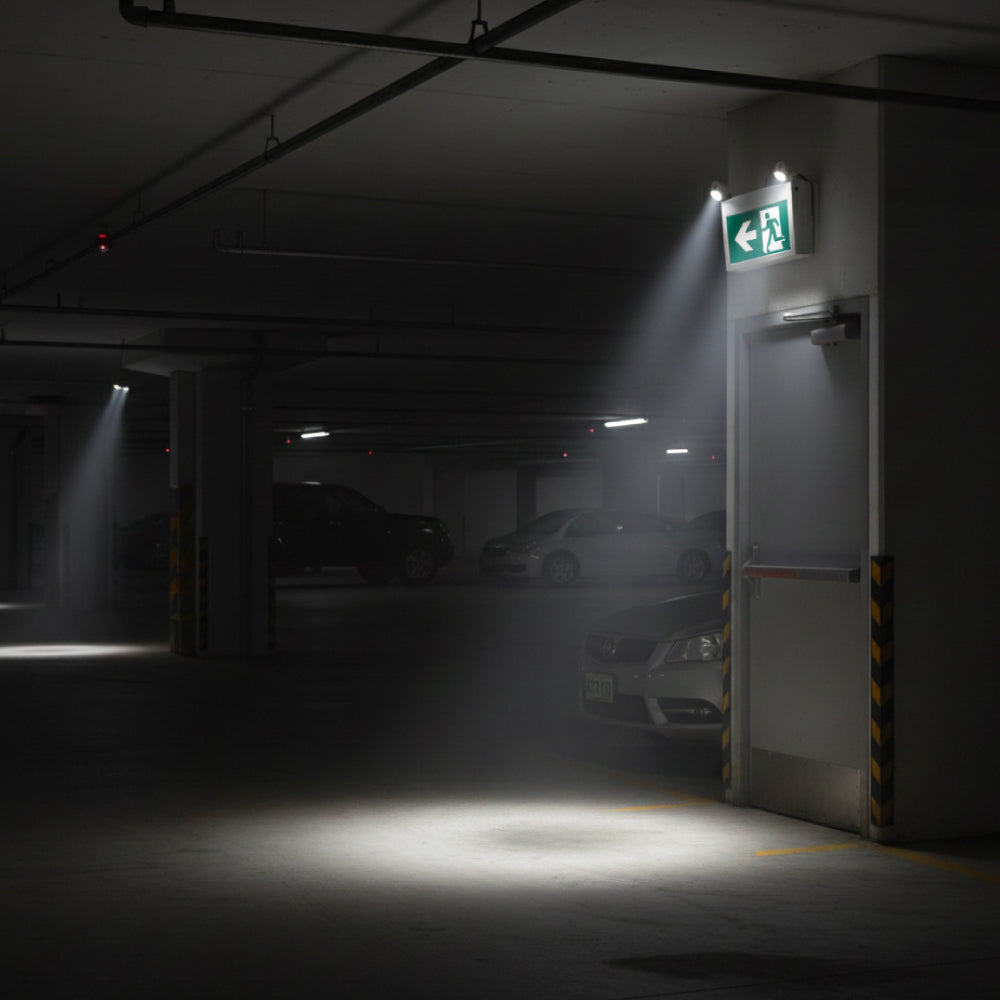

4.5W LED running man combo exit sign with 120-minute emergency backup

HIGHLIGHTS

  • UL-94V-0 Flame Rating: Built with fire-retardant materials to meet stringent safety standards.

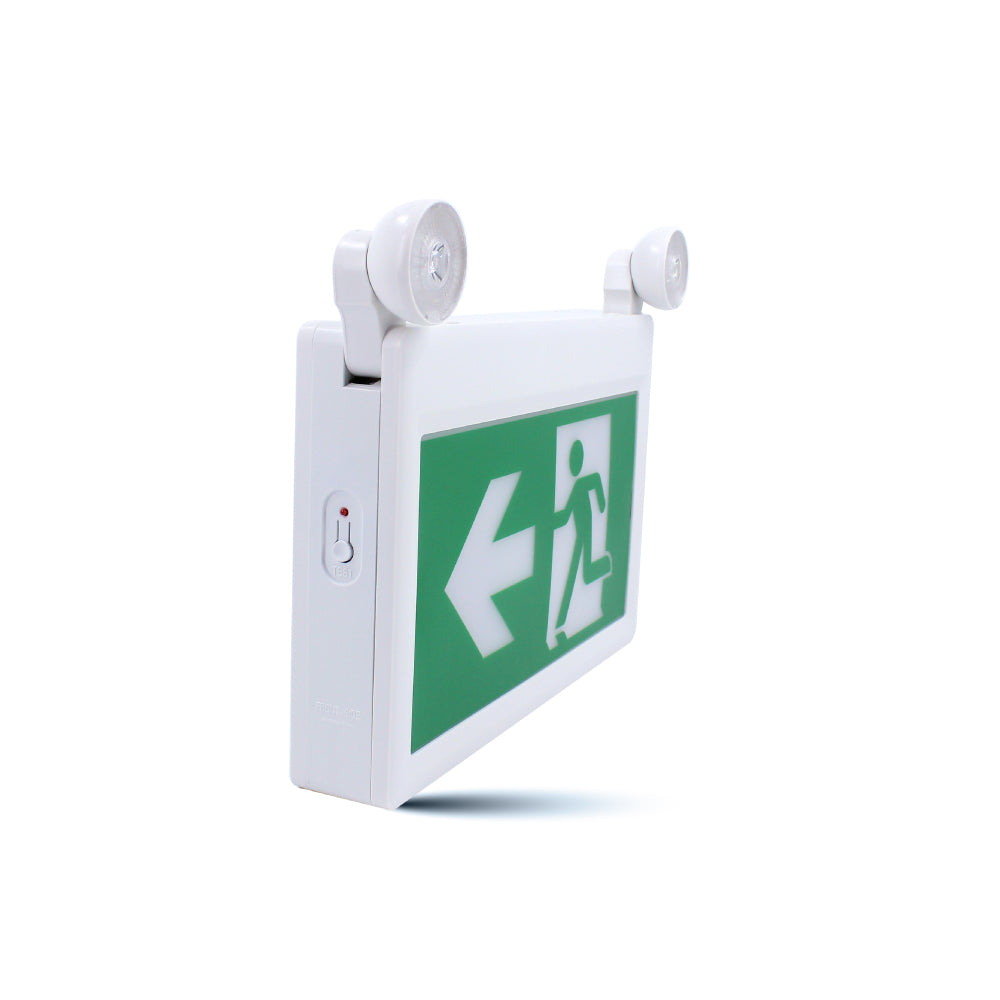

  • Functional Features: Includes a test button and charge indicator light for easy maintenance and monitoring.
  • Battery Protection: Offers reliable overcharge and over-discharge protection to extend battery life.
  • Durable Housing: Injection-molded thermoplastic ABS construction with universal mounting options—wall, side, or ceiling.
  • LED Edge-Lit Exit Sign: Features a modern Running Man design and an innovative snap-together system for fast, tool-free installation.

Running Man Combo Exit Sign With 120 Minutes Backup Time

Specifications
  • Wattage
    Total Fixture Wattage: 4.5W
  • Voltage
    120V AC or 347V AC
  • Grade of Protection
    IP20
  • Pictogram CCT
    AC: 7000K
    DC: 6500K
  • Remote Head CCT
    AC: 6100K
    DC: 6300K
  • Wattage and lumens of the pictogram part
    AC: 4.5w and 23 lumens
    DC: 130 lumens
  • Insulation
    II, Range: 80m²
  • Frequency Range
    60Hz
  • Conversion Time
    <0.2 seconds
  • Emergency Duration Time
    ≥120 min
  • Battery
    3.6V 1800mAh
  • Lamp Head Lumens & Wattage (per head)
    AC: 1w/head, 90 lumens (total) DC: 170 lumens (total)
  • Material
    Injection molded thermoplastic ABS housing
  • Operating Temperature
    0°C ~ +40°C
  • Warranty
    3 Years
  • Case Quantities
    6

Certifications

Product features

PRODUCT SHEETS

Spec Sheet

OE-316.Spec Sheet

Instruction Manual

OE-316 Instruction Manual

Dimmer List

NA

IES Files

NA
