OE-316-WET

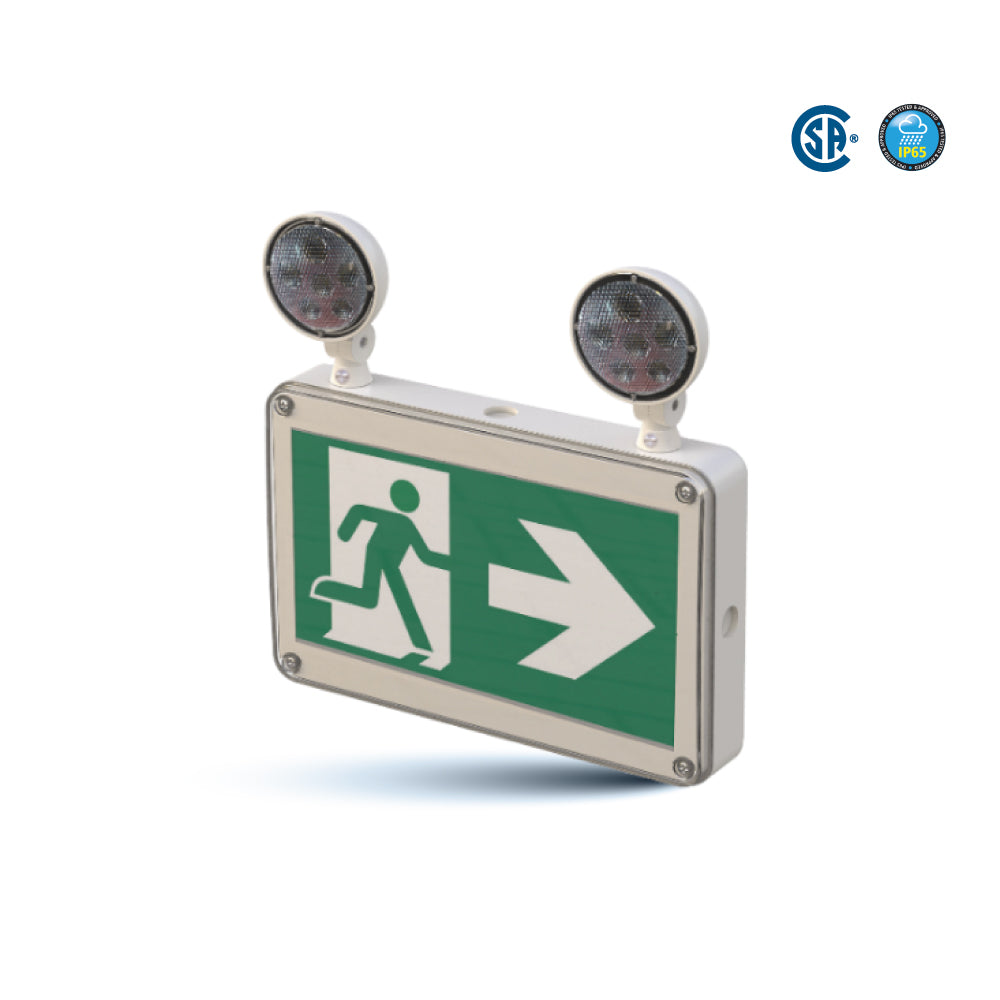

LED Running Man Combo Exit Sign - Designed for reliable performance in wet or damp locations.

HIGHLIGHTS

  • Durable Construction: Made of UV-stabilized, injection-molded polycarbonate housing with UL-94V-5VA flame rating for superior fire resistance.
  • Wet Location Rated: Engineered for reliable operation in wet or damp environments.
  • Emergency Backup: Provides 120 minutes of backup power with adjustable lamp heads for optimal illumination.
  • Innovative Design: LED exit signs feature a snap-together assembly for fast, tool-free installation.
  • Versatile Configuration: Available in single and double-face universal formats to suit various mounting needs.
  • Flexible Mounting Options: Supports wall and end mounting for adaptable placement.
  • Smart Monitoring: Includes a test button and charge indicator light for easy maintenance.
  • Battery Protection: Equipped with overcharge and over-discharge safeguards to ensure long-term reliability.

CSA listed meets all requirement in C22.2 No. 141-15,C860 and UL924

Suited For Wet Location

Specifications
  • Wattage
    4W
  • Voltage
    AC 120-347 / 60Hz
  • Grade of Protection
    IP65
  • Application
    Offices / Malls / Hotels / Restaurants / Schools / Hospitals / Airports / Train Stations / Cinemas / Warehouses
  • Pictogram CCT
    AC: 7000K
    DC: 6500K
  • Remote Head CCT
    AC: 6100K
    DC: 6300K
  • Insulation
    II
  • Conversion Time
    <0.2 seconds
  • Emergency Duration Time
    ≥120 min
  • Battery
    3.6V 1500mAh (2pcs)
  • Lamp Head Lumens & Wattage (per head)
    130 lmn / 1.15W
  • Material
    Injection molded PC enclosure and ABS housing
  • Operating Temperature
    0°C ~ +50°C
  • Warranty
    3 Years
  • Case Quantities
    6

Certifications

Product features

PRODUCT SHEETS

Spec Sheet

OE-316-WET Spec Sheet

Instruction Manual

OE-316-WET Instruction Manual

Dimmer List

NA

IES Files

NA
