OE-DC126

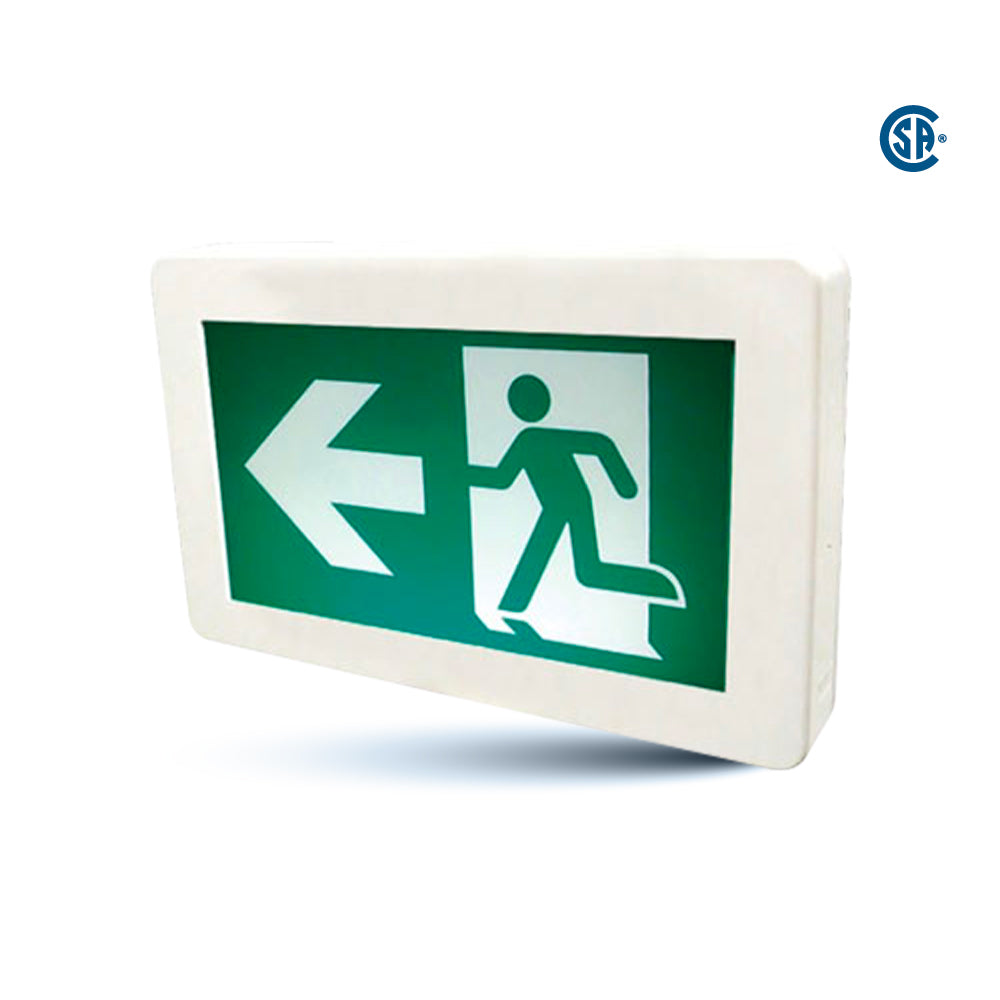

LED Pictogram Exit Sign - Operates at 1W, 120/347V AC and requires no battery for continuous, low-maintenance performance.

HIGHLIGHTS

  • Battery-Free Operation: Designed for direct AC power use—no battery required, minimizing maintenance.
  • Fire Safety Certified: Constructed with UL-94V-0 flame-rated, fire-retardant materials for added protection.
  • Quick Installation: Features an innovative snap-together design for fast and hassle-free setup.

PRODUCT SHEETS

Spec Sheet

OE-DC126 Spec Sheet

Instruction Manual

OE-DC126 Instruction Manual

Dimmer List

NA

IES Files

NA

Requires No Battery

Specifications
  • Wattage
    1W
  • Voltage
    120V AC or 347V AC 0r 6-24V DC
  • Grade of Protection
    IP20
  • Colour Temperature
    6500K
  • Insulation
    II, Range: N/A, unrequired
  • Frequency Range
    60Hz
  • Conversion Time
    ≤0.2 seconds
  • Emergency Duration Time
    None
  • Battery
    None
  • Material
    Injection molded thermoplastic ABS housing
  • Operating Temperature
    0°C ~ +40°C
  • Warranty
    3 Years

Product features
