OE-G026

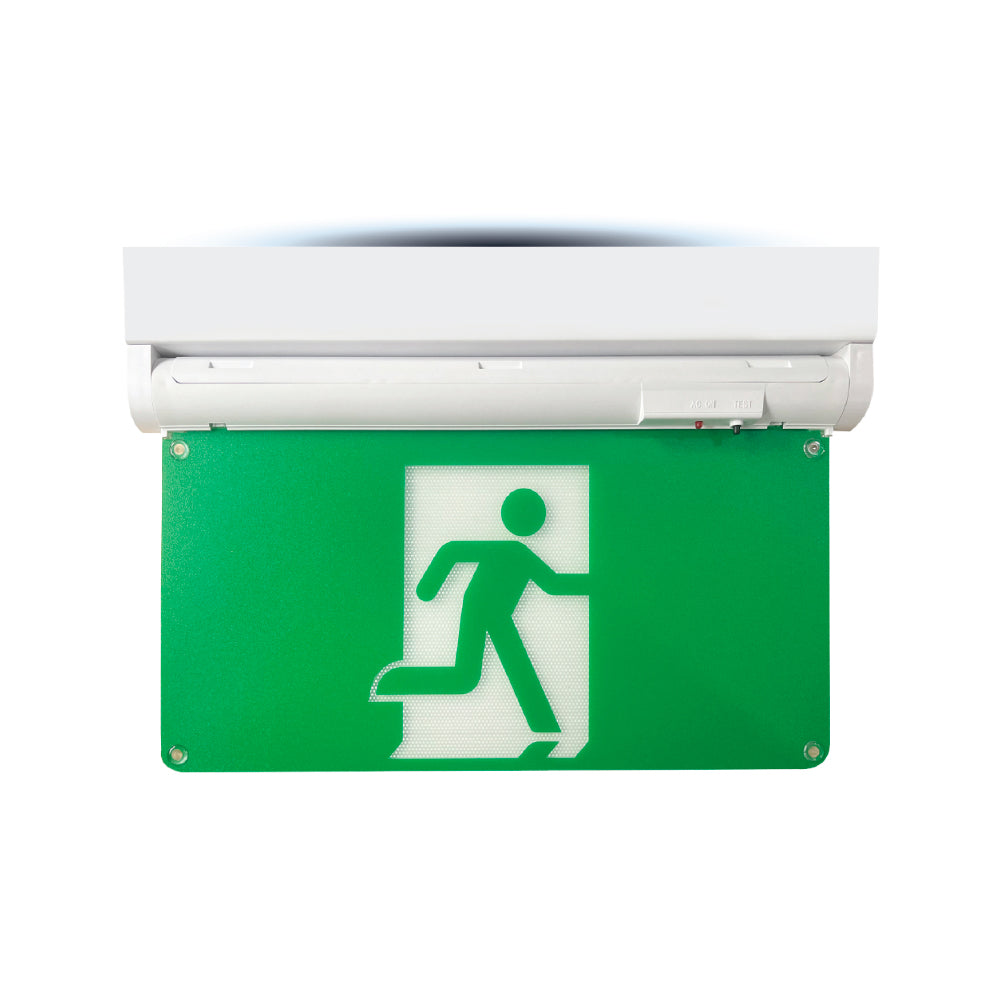

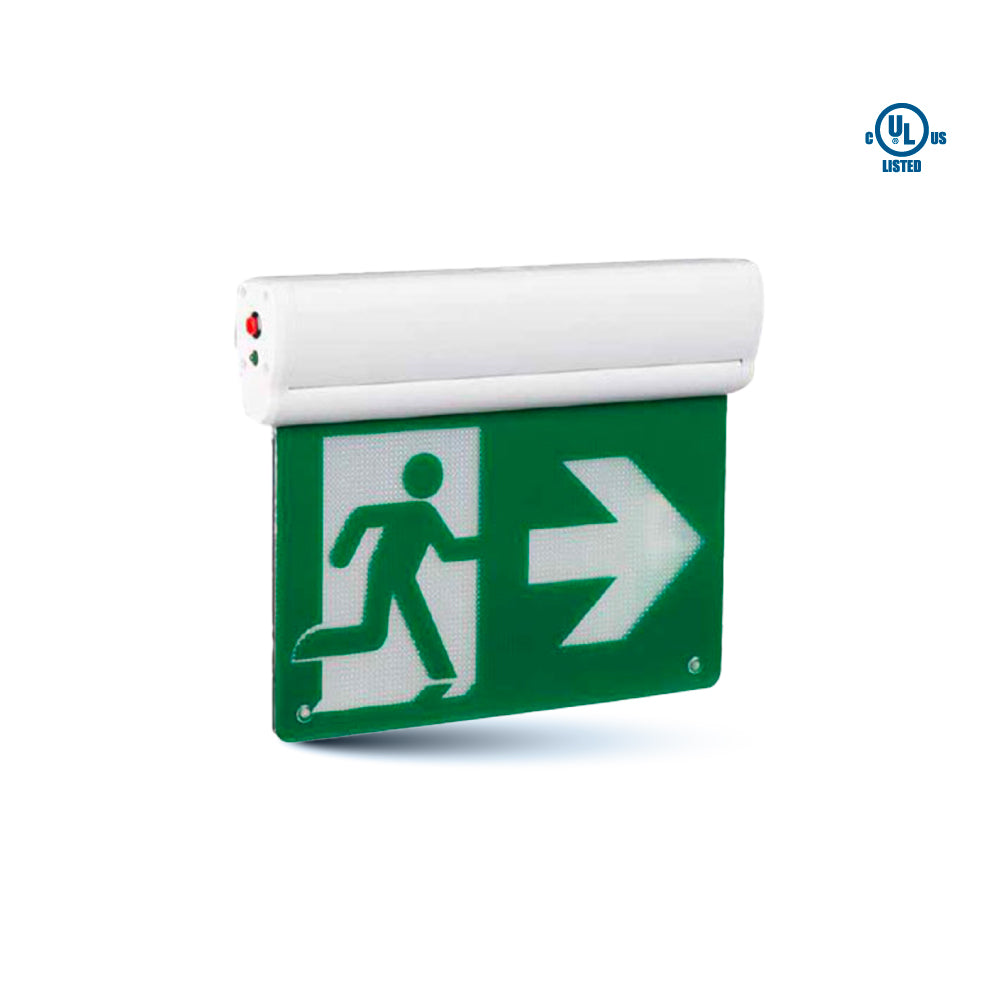

LED Edge-Lit Running Man Exit Sign - Energy-efficient 2W model operating at 120–347V AC, designed for universal mounting on walls, ceilings, or sides.

HIGHLIGHTS

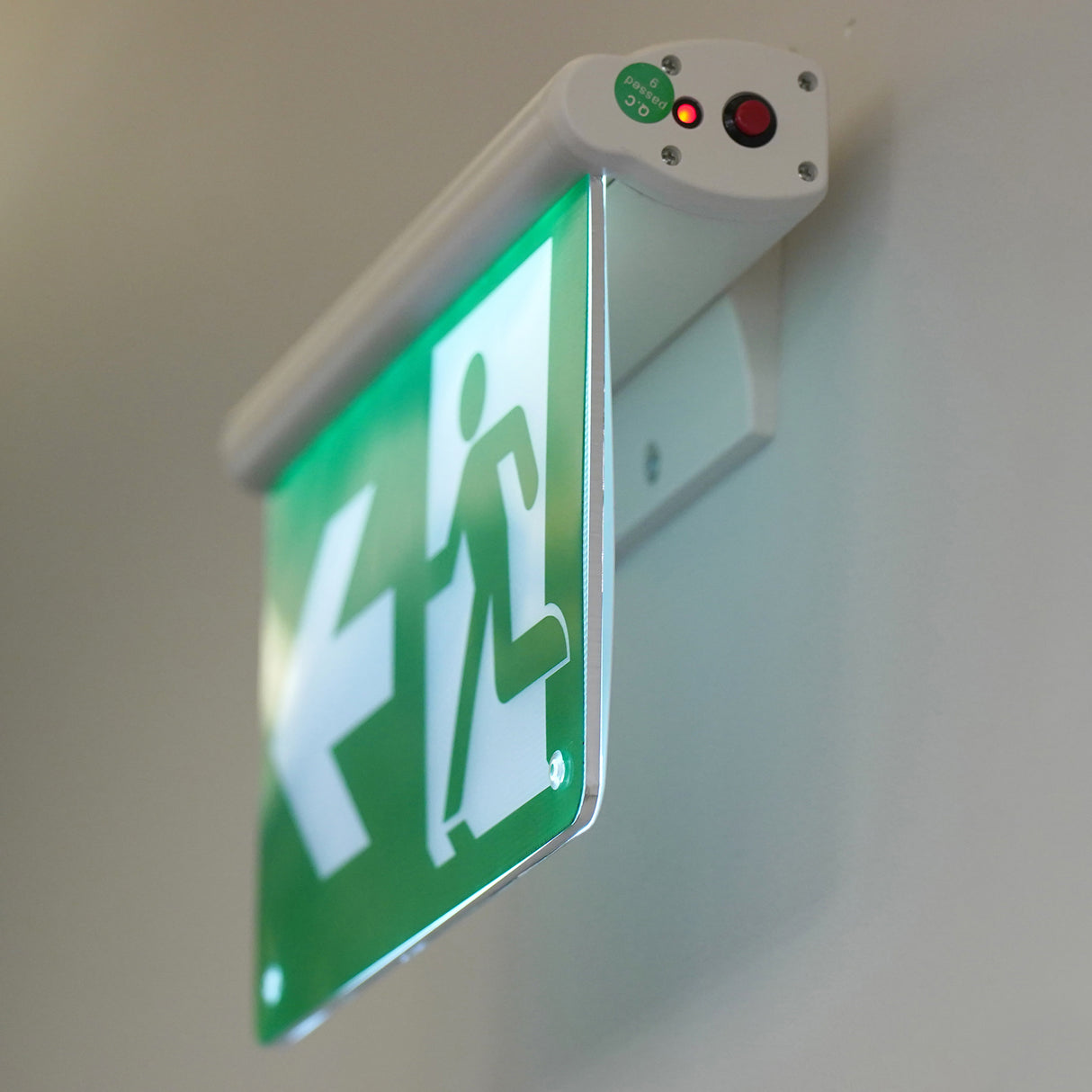

  • Maintenance Features: Equipped with a test button and charge indicator light for easy system checks.
  • Fire-Retardant Construction: Built with UL-94V-0 flame-rated materials to meet safety standards.
  • Battery Protection

Running Man Exit Sign For Universal Mounting

Specifications
  • Wattage
    2W
  • Voltage
    120V AC or 347V AC
  • Rating
    Indoor use / Dry location
  • Grade of Protection
    IP20
  • Dimensions
    347.5x232x42mm
  • Colour Temperature
    6500K
  • Insulation
    II, Range: 80m²
  • Frequency Range
    60Hz
  • Conversion Time
    <0.2 seconds
  • Charging Time
    24 hours
  • Emergency Duration Time
    ≥120 min
  • Battery Type
    Rechargeable
  • Battery
    Ni-CD 3.6V 900mAh (SU include battery)
  • Material
    Injection molded thermoplastic ABS housing, Cover: PMMA
  • Operating Temperature
    0°C ~ +40°C
  • Warranty
    5 Years

Certifications

Product features

PRODUCT SHEETS

Spec Sheet

OE-G026 Spec Sheet

Instruction Manual

OE-G026 Instruction Manual

Dimmer List

NA

IES Files

NA
