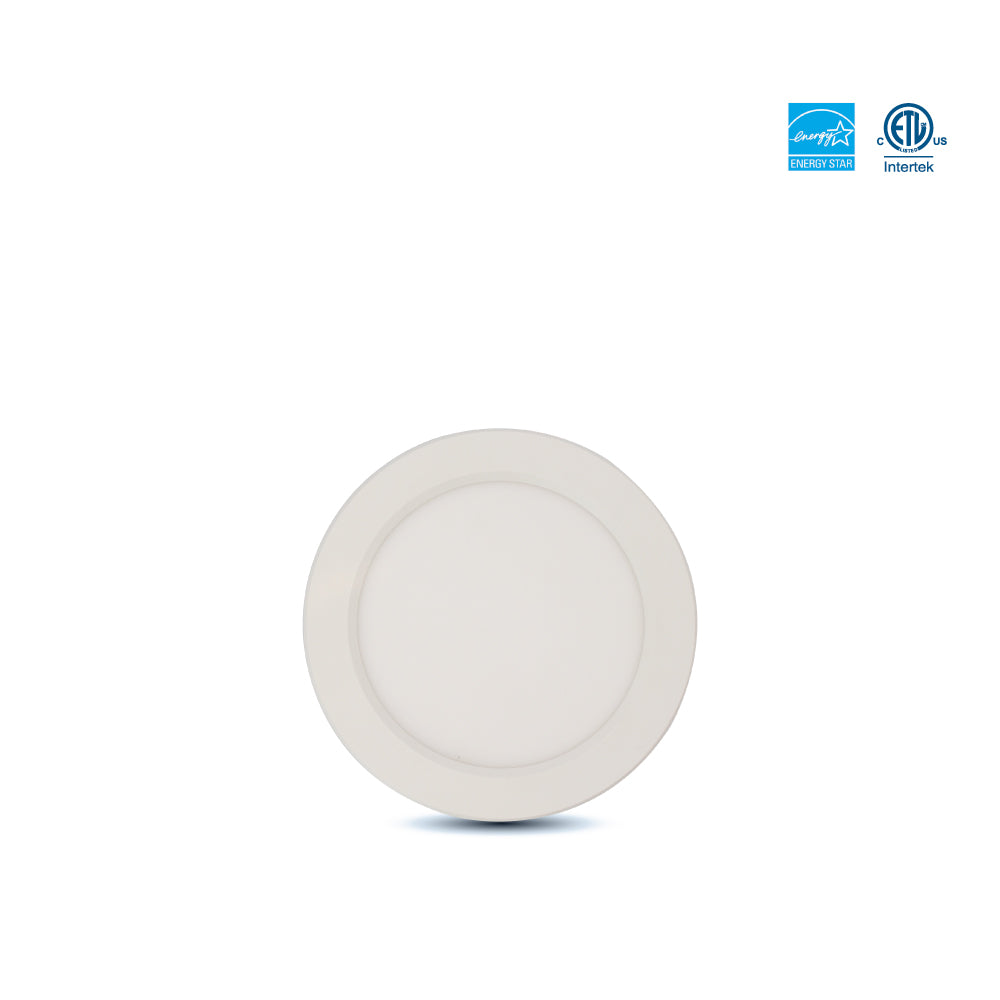

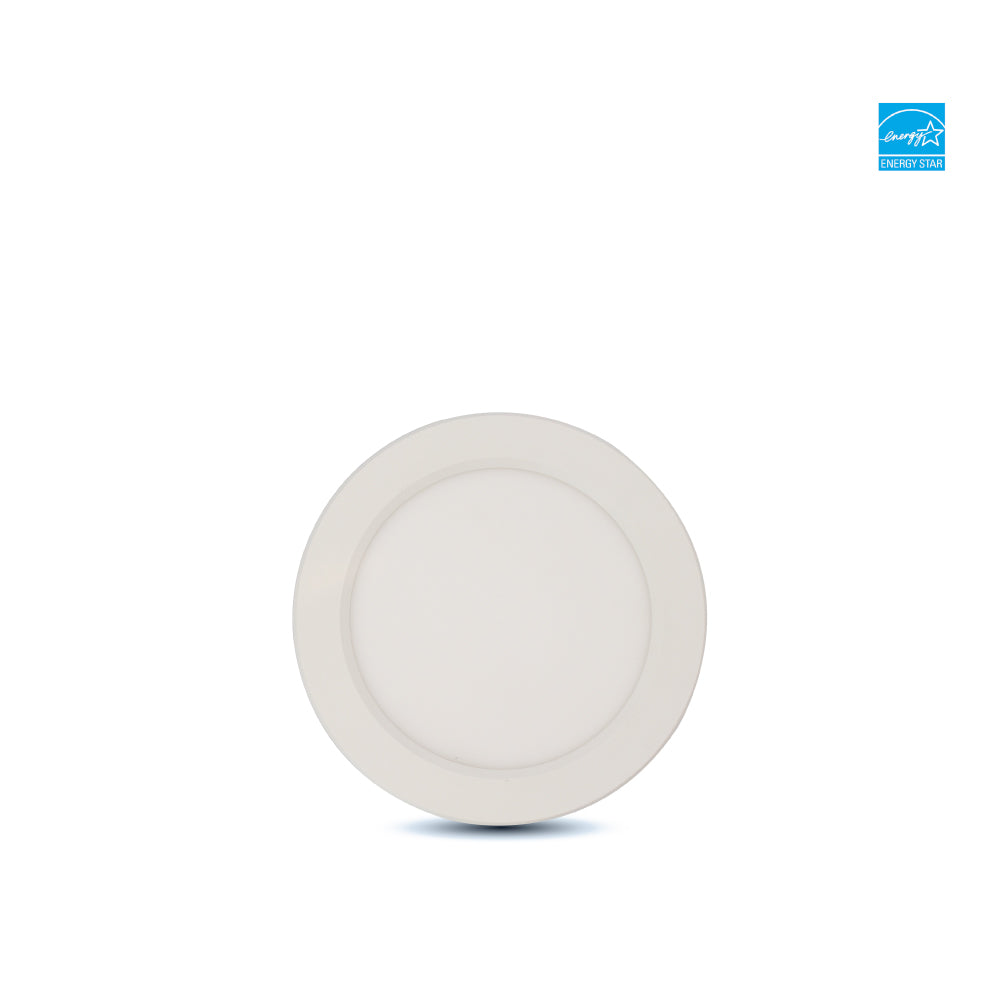

FM1-5-5CCT

5" Super Slim LED Flush Mount - Features clippable trims and selectable color temperature (CCT) for a sleek, customizable lighting solution.

HIGHLIGHTS

  • Edge-Lit Technology: Provides instant-on illumination with no glare or dark spots for comfortable lighting.
  • Ultra-Slim Profile: At just 0.7" thick, it installs easily on standard J-boxes using the included mounting bracket.
  • Durable Construction: Made with a PC lamp body and a white translucent acrylic lens for long-lasting performance.
  • Advanced Dimming & Safety: Triac dimmable, certified airtight, and IC rated for safe and efficient operation.
  • Selectable Color Temperature: Offers five CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any setting.
  • Extended Lifespan: Engineered for longevity with a rated life of over 50,000 hours.

5CCT Selectable

Specifications
  • Wattage
    10W
  • Voltage
    120V AC
  • Lumens
    600 lmn
  • Beam Angle
    110°
  • Lifetime
    50,000 hours
  • CRI
    80Ra+
  • Dimmable
    Yes (TRIAC dimming)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Grade of Protection
    IP54
  • Rating
    IC rated/ Wet location / Indoor use
  • Application
    Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years

Certifications

Product features



Interchangeable Rings (sold separately)



      Black Ring
FM1-5-5CCT-RING-BK
Black


      Satin Nickel Ring
FM1-5-5CCT-RING-SN
Satin Nickel





Accessories



      Retrofit Kit
FM1-RF5-KIT
Retrofit Kit



PRODUCT SHEETS

Spec Sheet

FM1-5-5CCT Spec Sheet

Instruction Manual

FM1-5-5CCT Instruction Manual

Dimmer List

FM1-5-5CCT Compatible Dimmer List

IES Files

FM1-5-5CCT IES Files
