FM1-MS7-5CCT

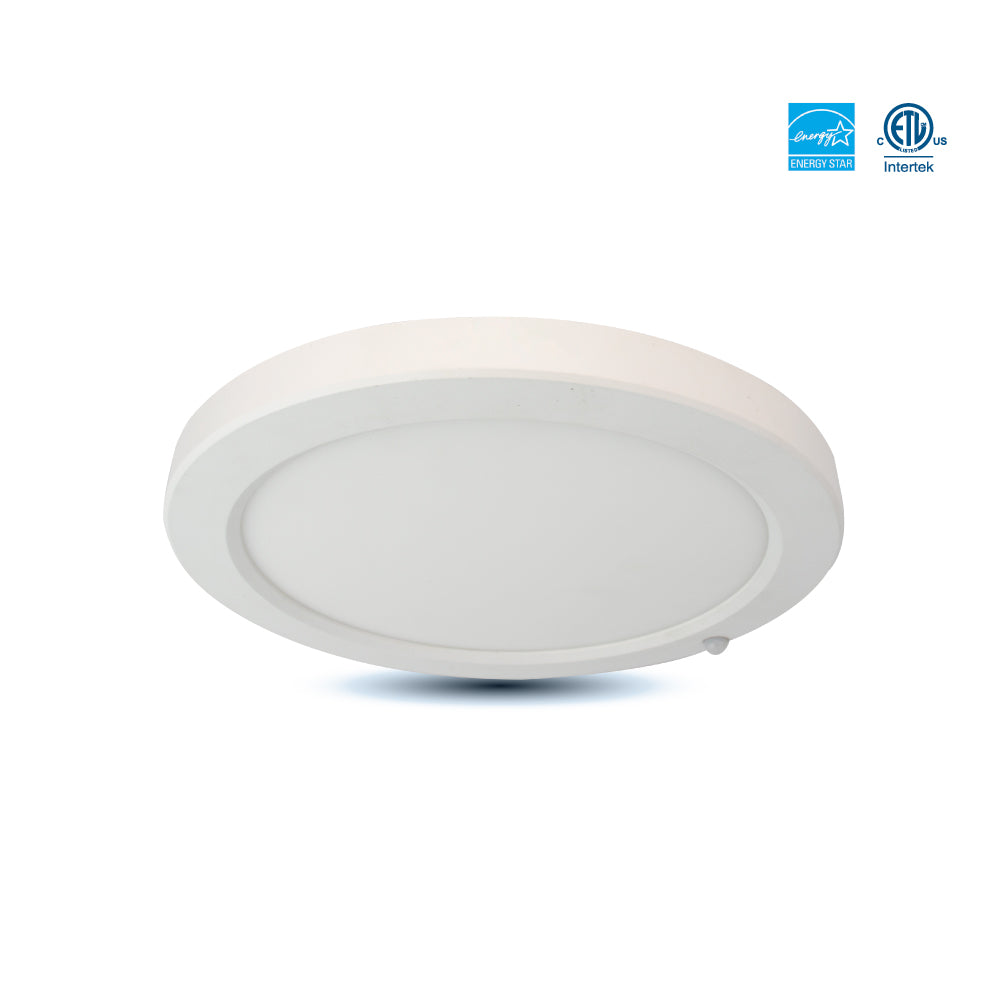

7" Round LED Closet Light - Equipped with a PIR motion sensor and selectable color temperature (CCT) for smart, customizable illumination.

HIGHLIGHTS

  • Integrated PIR Motion Sensor: Automatically detects movement for hands-free operation.
  • Auto Shut-Off Feature: Turns off completely after 30 seconds of no motion, conserving energy.
  • Edge-Lit Technology: Delivers instant-on lighting with no glare or dark spots for a clean, uniform glow.

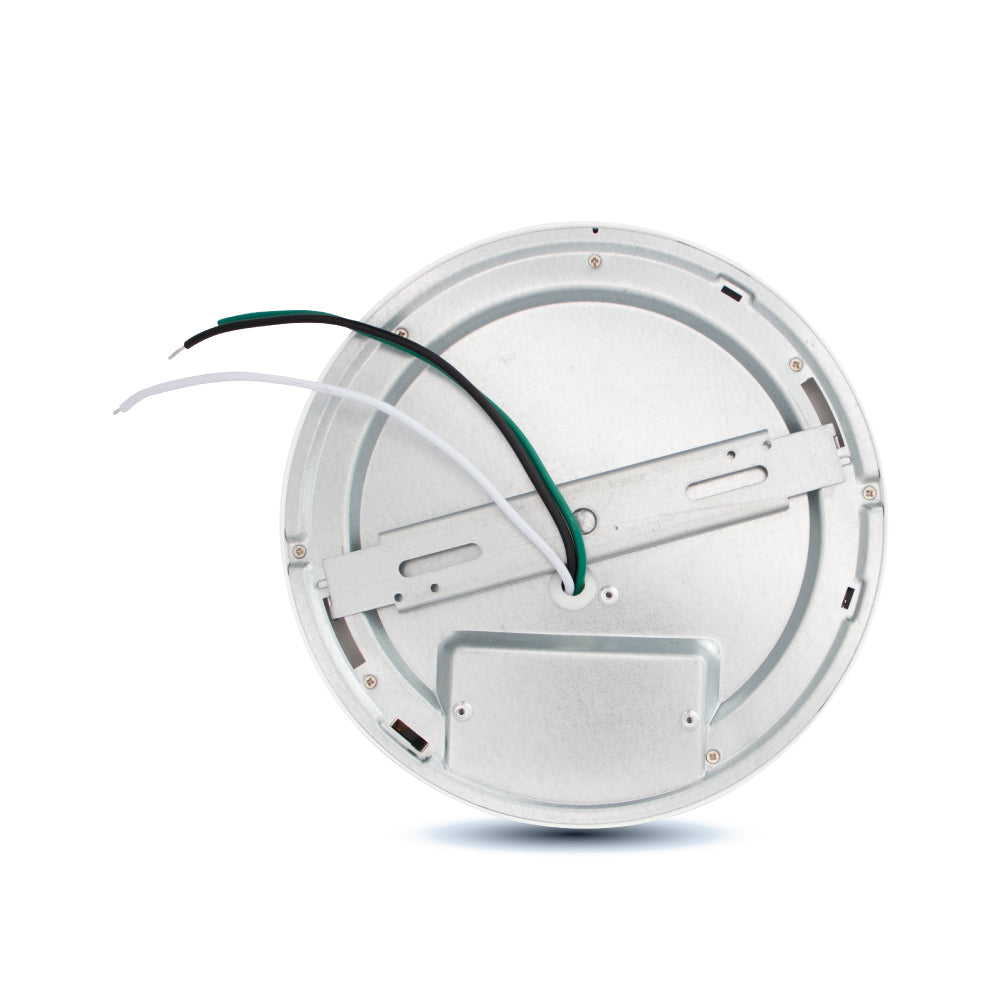

  • Slim & Easy Installation: Just 0.7" thick; mounts easily to standard J-boxes using the included bracket.
  • Durable Build: Constructed with a PC lamp body and white translucent acrylic lens for reliability and style.

PIR MOTION SENSOR AND 5CCT Selectable

Specifications
  • Wattage
    15W
  • Voltage
    120V AC
  • Lumens
    1000 lmn
  • Beam Angle
    110°
  • Lifetime
    50,000 hours
  • CRI
    80Ra+
  • Dimmable
    Yes (TRIAC dimming)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Grade of Protection
    IP54
  • Rating
    IC rated/ Damp location / Indoor use
  • Application
    Closets / Laundry Room / Corridors / Bathrooms
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years

CERTIFICATIONS

Product features

Accessories

Retrofit Kit
FM1-RF7+9-KIT
Retrofit Kit

PRODUCT SHEETS

Spec Sheet

FM1-MS7-5CCT Spec Sheet

Instruction Manual

FM1-MS7-5CCT Instruction Manual

Dimmer List

FM1-MS7-5CCT Compatible Dimmer List

IES Files

FM1-MS7-5CCT IES Files
