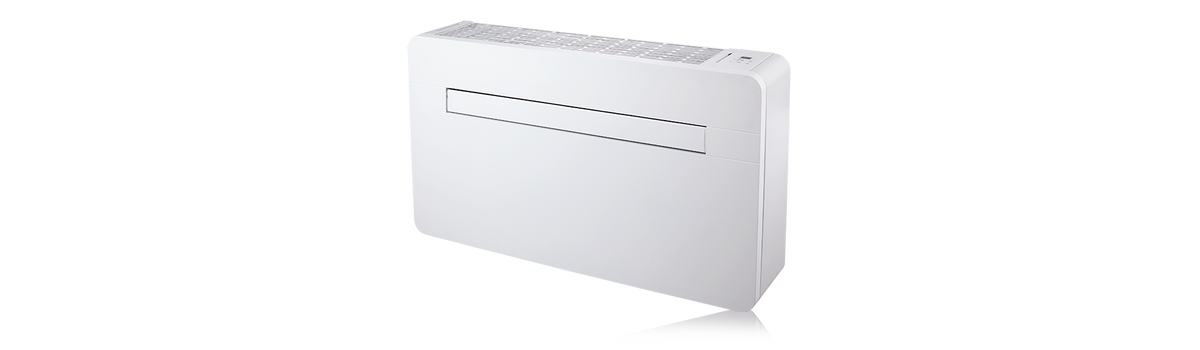

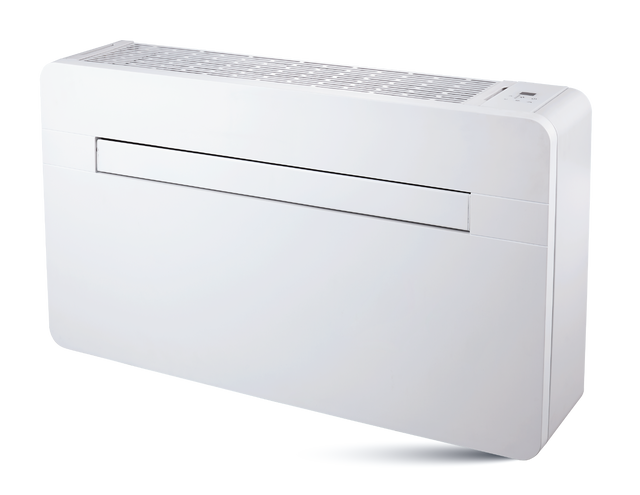

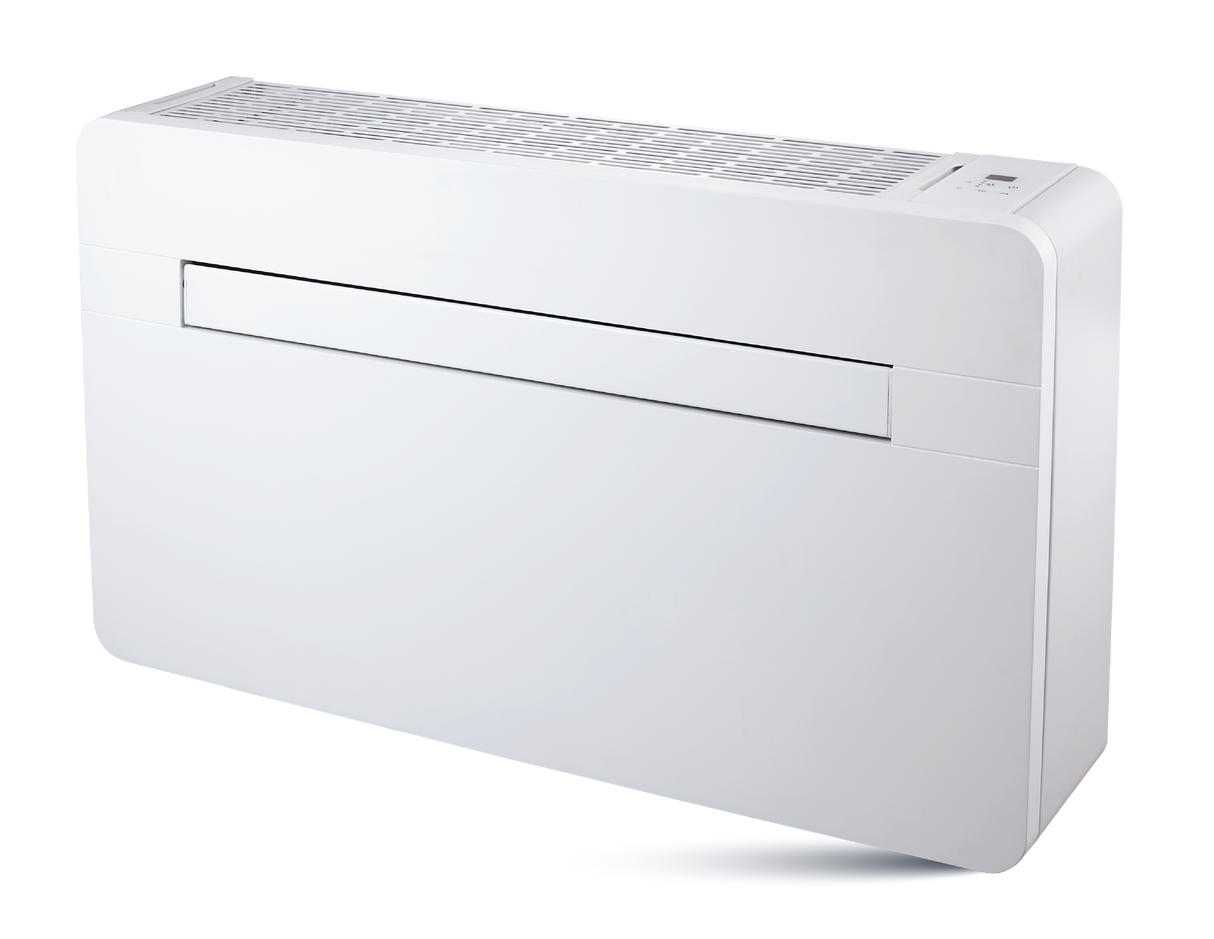

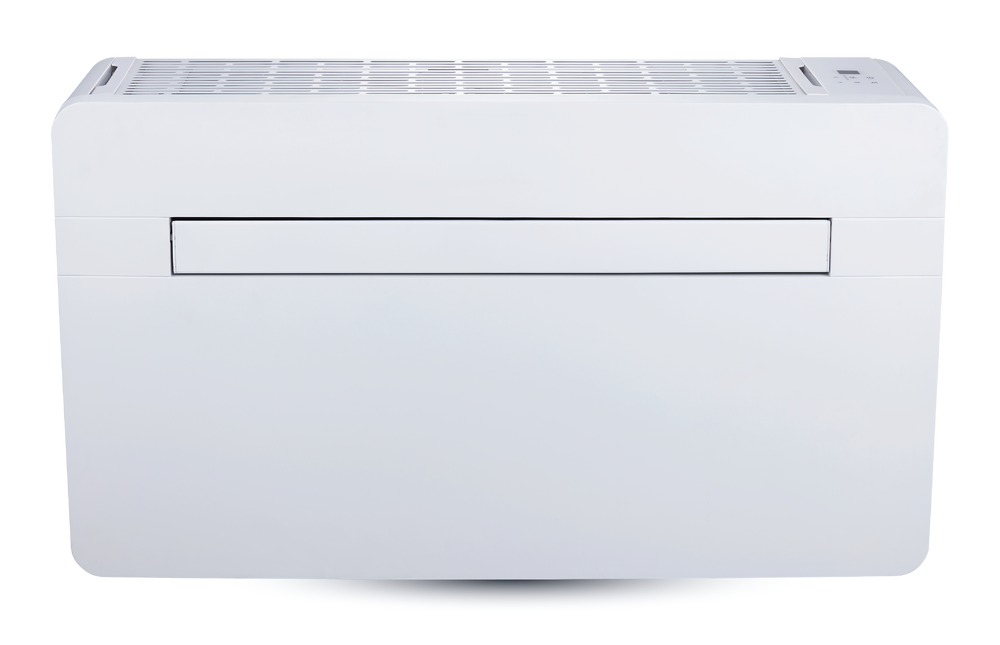

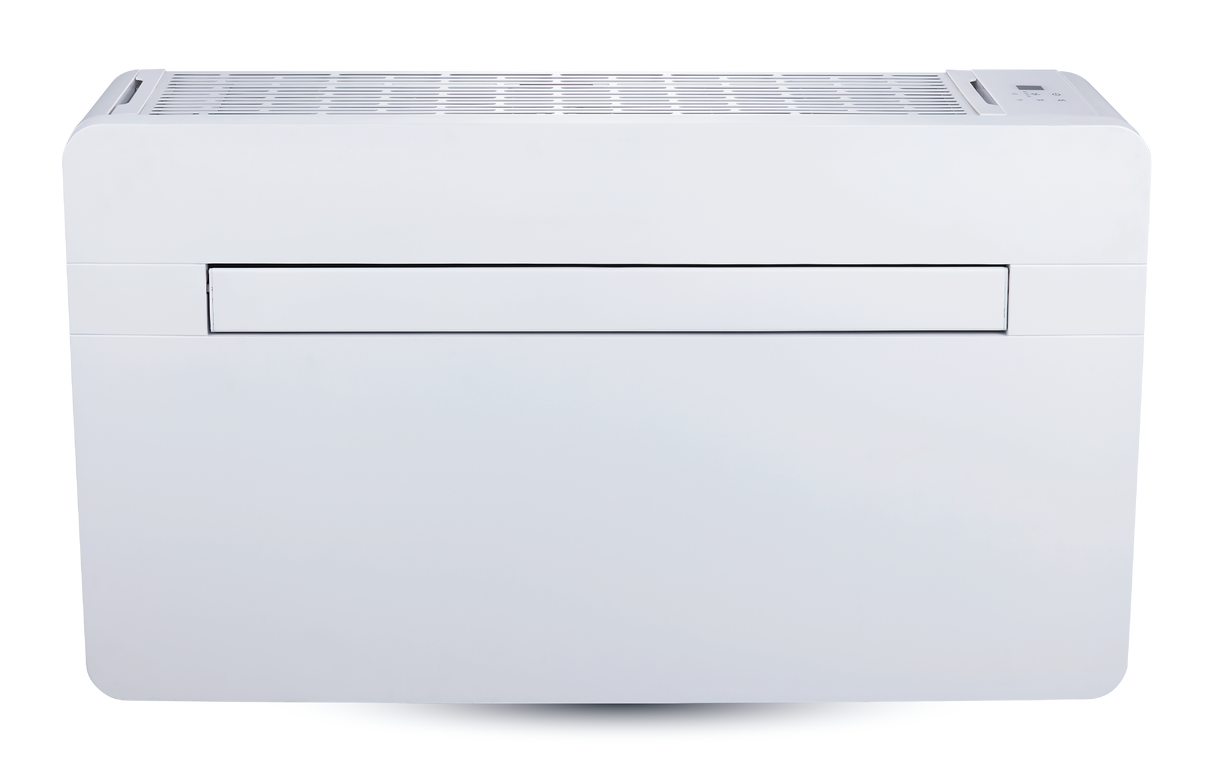

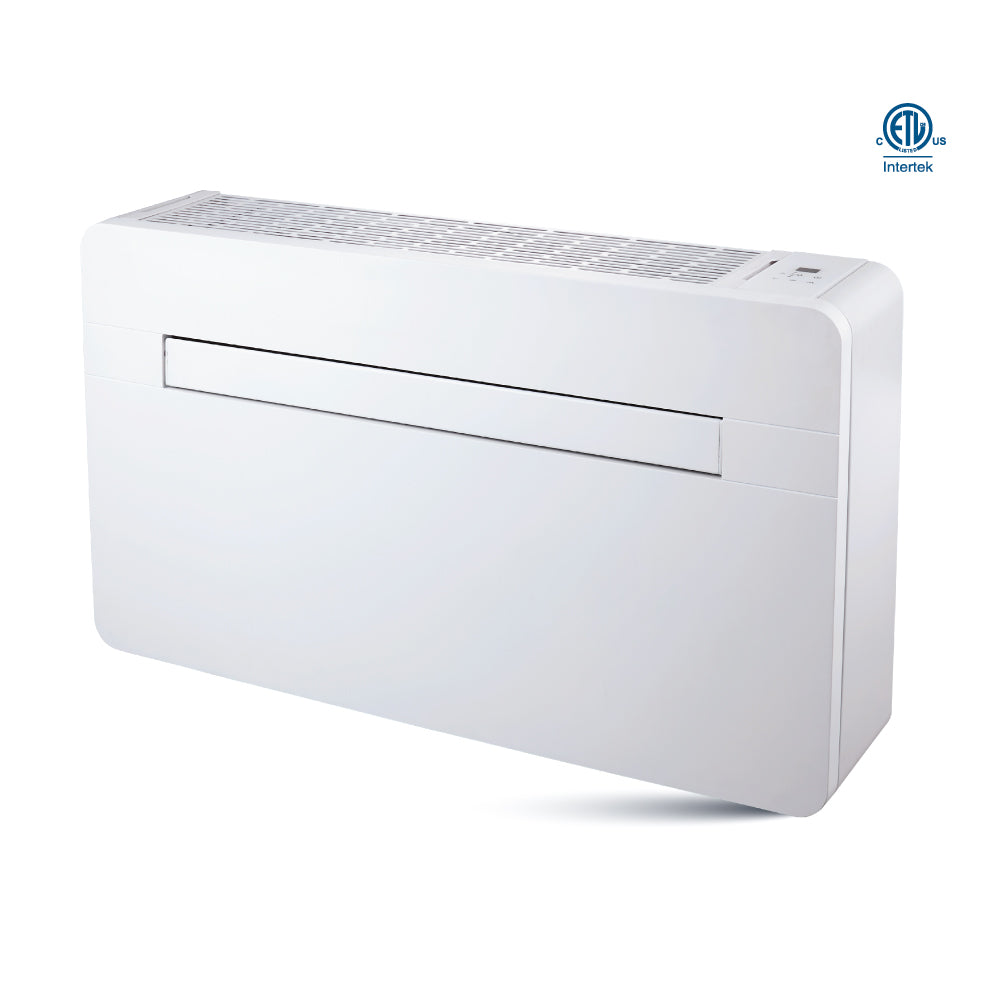

SOLO (1 TON)

All-in-one heat pump delivering compact, high-performance power for ultimate climate control and year-round comfort.

HIGHLIGHTS

Sleek, All-in-One Design: Revolutionary heat pump system with no outdoor unit, preserving building aesthetics.
Energy Efficient & Quiet: Advanced inverter compressor and variable-speed motor ensure high efficiency and whisper-quiet performance.

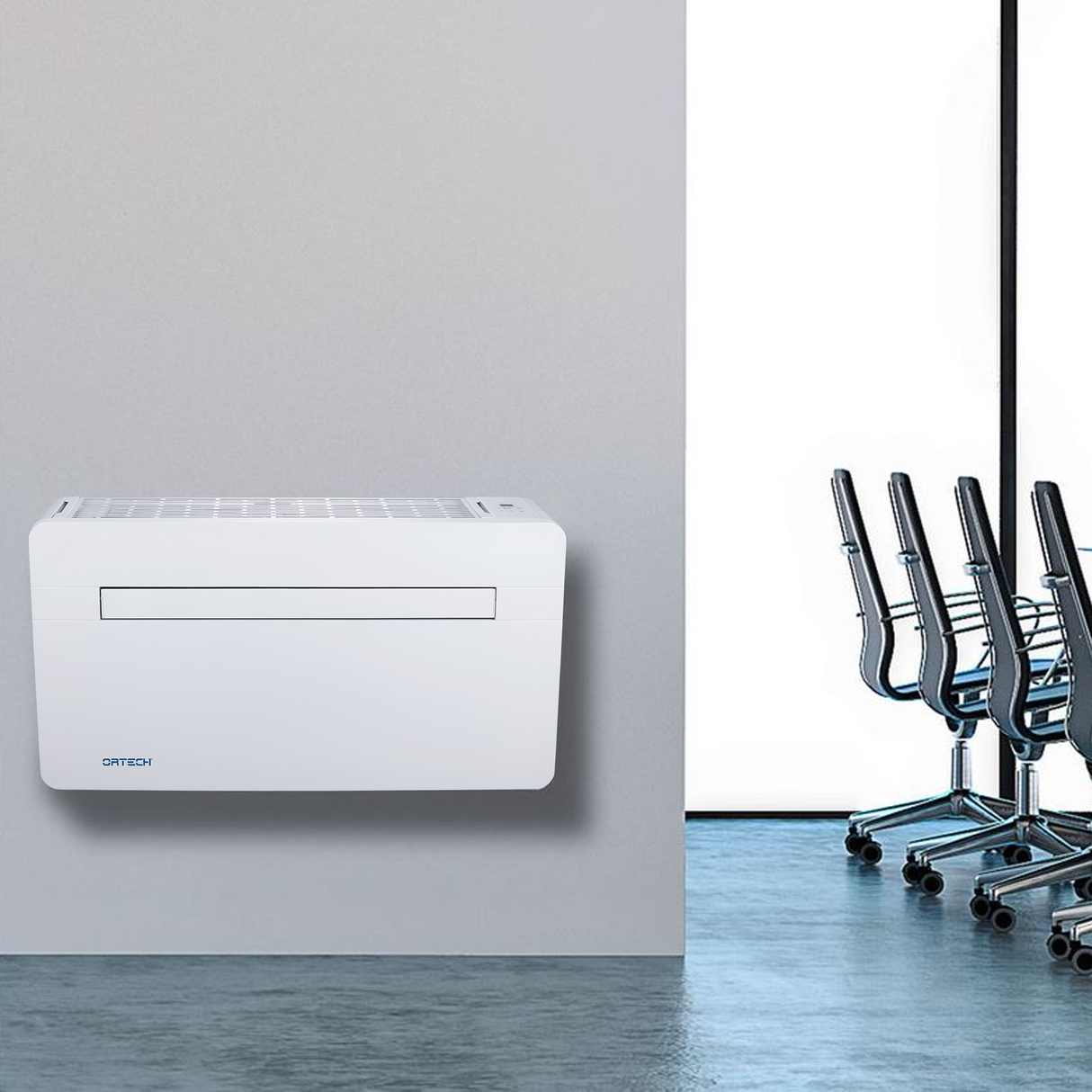

Effortless Installation & Operation: Perfect for multi-family homes, offices, and hotels with reliable, low-maintenance heating and cooling.
No Outdoor Unit: This sleek, all-indoor heat pump eliminates the need for an outdoor unit, making installation easier and more versatile.

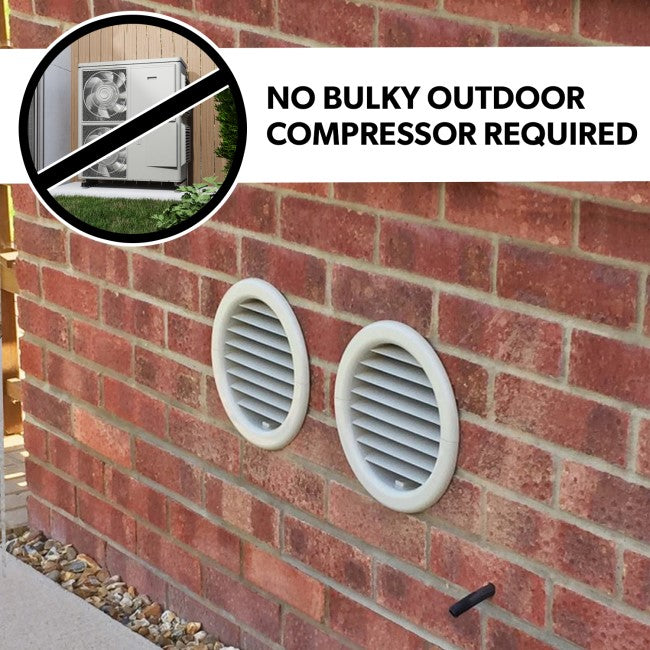

Venting Through Two Wall Ducts: Efficiently expels and intakes air through just two small wall ducts, reducing structural impact and maintaining the aesthetics of your building.
Dual Functionality (Heating & Cooling): Enjoy year-round comfort with seamless heating and cooling in a single, energy-efficient unit.
Drain pan heater: Helps evaporate water in drain pan to reduce chance of freezing.
Suitable for both new construction & any type of retrofit requirement
EC fan motor

INVISIBLE OUTSIDE, INCREDIBLE INSIDE

Specifications

Cooling Capacity

Rated: 12,030 Btu/h
(Min-Max: 6,440-12,030 Btu/h)
Heating Capacity

Rated: 11,970 Btu/h+3000W(electric heat)
(Min-Max: 4,370-11,970 Btu/h)
Electrical

Voltage: 208V-230V/50-60Hz/single phase
Rated Current (cooling/heating): 6.1A/4.8A
MCA: 23A
MOCP: 30A
Input Power

Rated Cooling: 1209W
Rated Heating: 947W
Sound

Indoor: 46 db(A)
Outdoor: 50 db(A)
Fan Data

Indoor Airflow: 215-330 CFM
Outdoor Airflow: 320-440 CFM
Operating Range

Cooling: 23°F - 109°F
Heating: 5°F - 75°F
Refrigerant

R32/22.9oz
Compressor

Invertor Technology
Modes

Cooling, Heating, Dehumidity, Auto
Size

39.4" x 22.8" x 8.6"
Efficiency

SEER2: 15.5 | HSPF2: 8.29
Fan Weight

117lbs
Power Supply

Power Cord or Hardwired

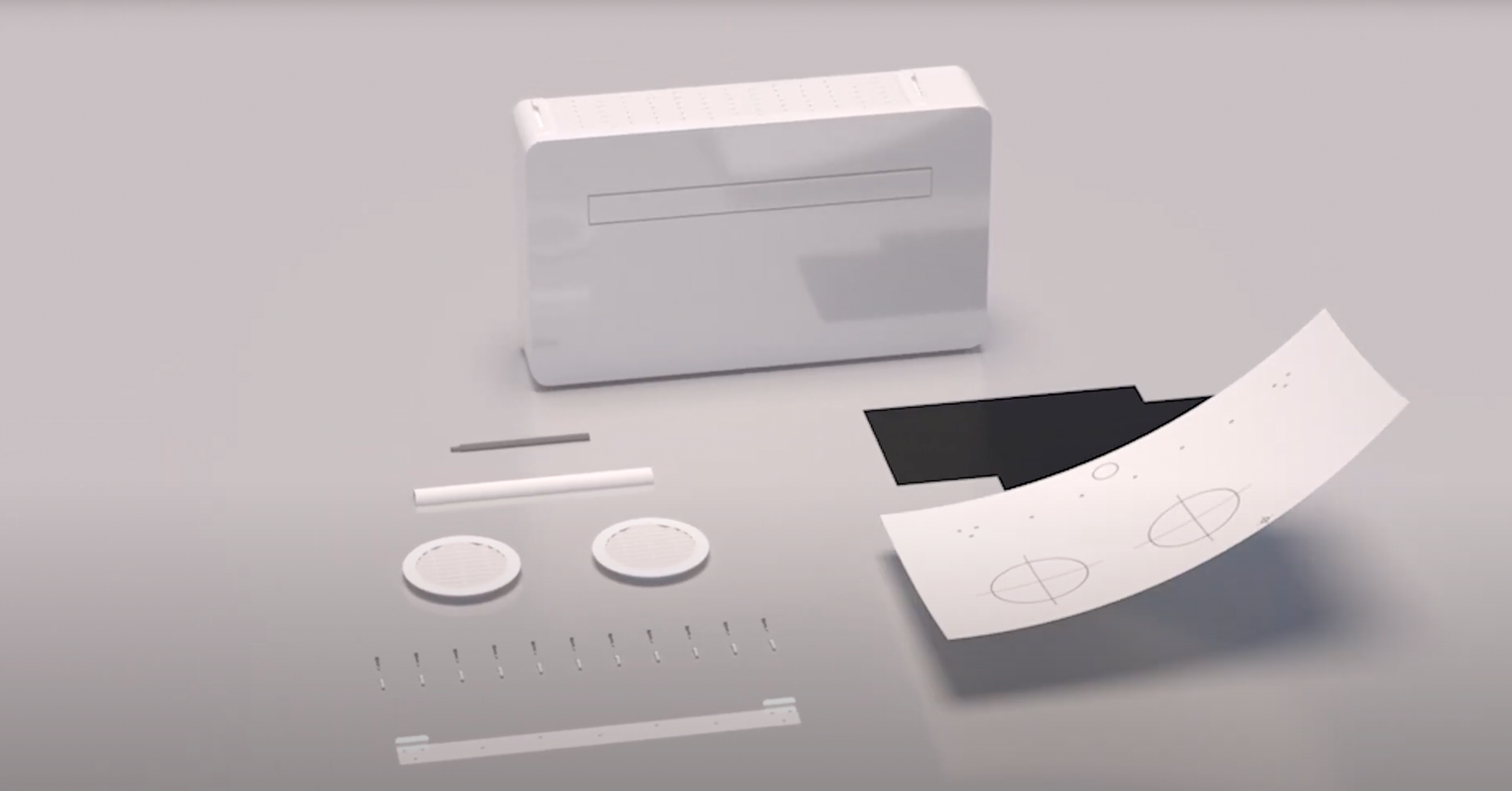

Check out the installation video

*Values are subject to change with model revisions. Always refer to the latest literature.

INDOOR TEMPERATURE
Maximum Operating Temperature in Cooling Mode	DB 80°F/26.7°C WB 19.4°F/67°C
Minimum Operating Temperature in Cooling Mode	DB 67°F/19.4°C WB 57°F/13.9°C
Maximum Operating Temperature in Heating Mode	DB 80°F/26.7°C
Minimum Operating Temperature in Heating Mode	DB 70°F/21.1°C WB 60°F/15.6°C

OUTDOOR TEMPERATURE
Maximum Operating Temperature in Cooling Mode	DB 115°F/46.1°C WB 75°F/23.9°C
Minimum Operating Temperature in Cooling Mode	DB 67°F/19.4°C WB 57°F/13.9°C
Maximum Operating Temperature in Heating Mode	DB 75°F/23.9°C WB 65°F/18.3°C
Minimum Operating Temperature in Heating Mode	DB 17°F/-8.3°C WB 15°F/-9.4°C

Integrated Touch Screen
(included)

Remote control
(included)

Thermostat
(pending)

Sidwe Wall Adapter Kit
(accessory)
