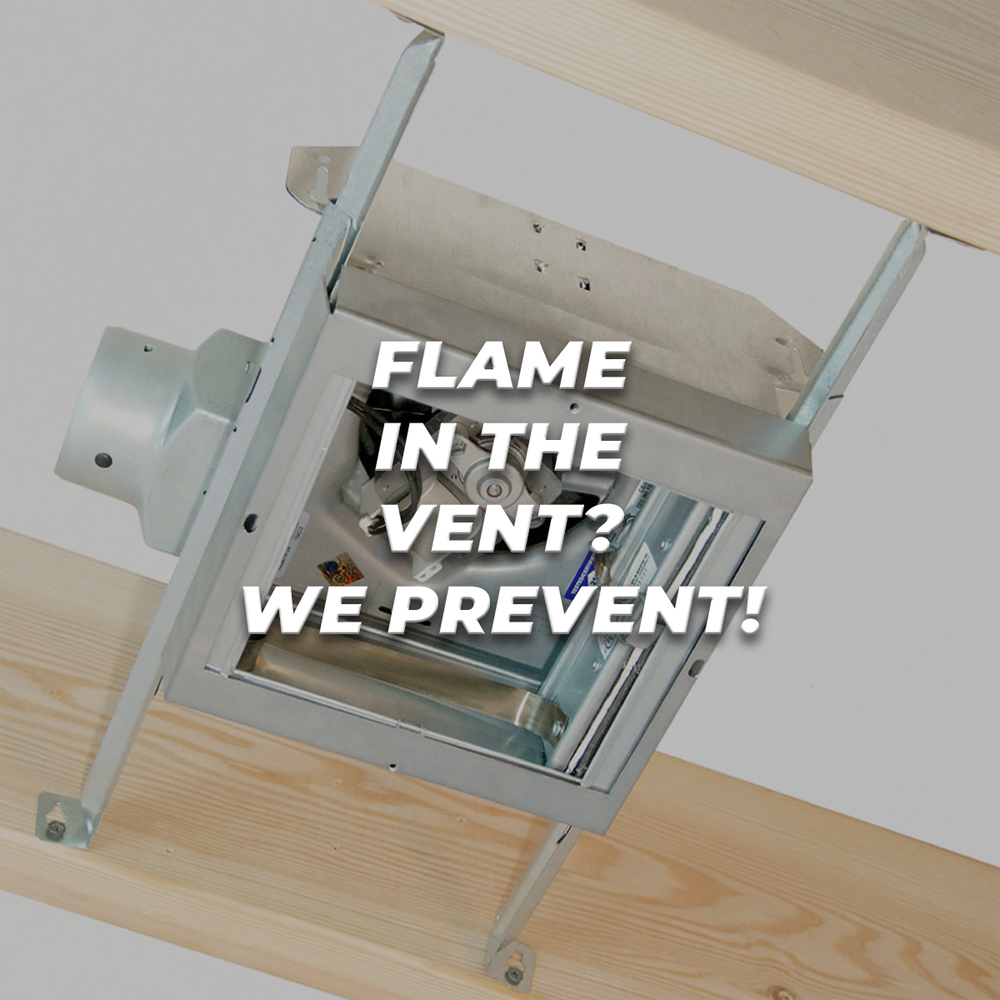

FIRE DAMPER-PB

Fire damper For All ORTECH Universal And Premium Series PB Fans

HIGHLIGHTS

Fire Resistant: Up to 3 hours
Fire Protection: Includes a flexible fire blanket for enhanced safety
Thermal Link: Equipped with +165ºF standard fusible link
Frame Material: Made from 21-gauge galvanized steel
Insulation: Features fiberglass cover and ceramic fiber for thermal resistance
Fire Rating: Ceiling radiation damper rated for 3 hours
Frame Design: Roll-framed galvanized steel frame for added durability
Spring Mechanism: Spring steel rolled springs with minimum force of 4.496 lbf

Specifications

Material

Galvanized Steel Frame, Fabric
Galvanized Steel

21 gauge for frame
Fabric

1/8" thick, 12.484 lbs/ft³, environment temperature +1100ºC
Fusible Link

165°F, 29/64" width
Springs

Spring steel rolled, 19/32" width, force of 1 springs ≥ 4.496 lbf
Force of 1 Spring

≥4.496 lbf

CERTIFICATIONS

Compatible Fans (sold separately)

OD45-1109PB, OD45-900PB, OD-9005PB, Od-1109PB, OD-1209PB, OD-1505PB, ODD-110-18PB, ODD-300-3
