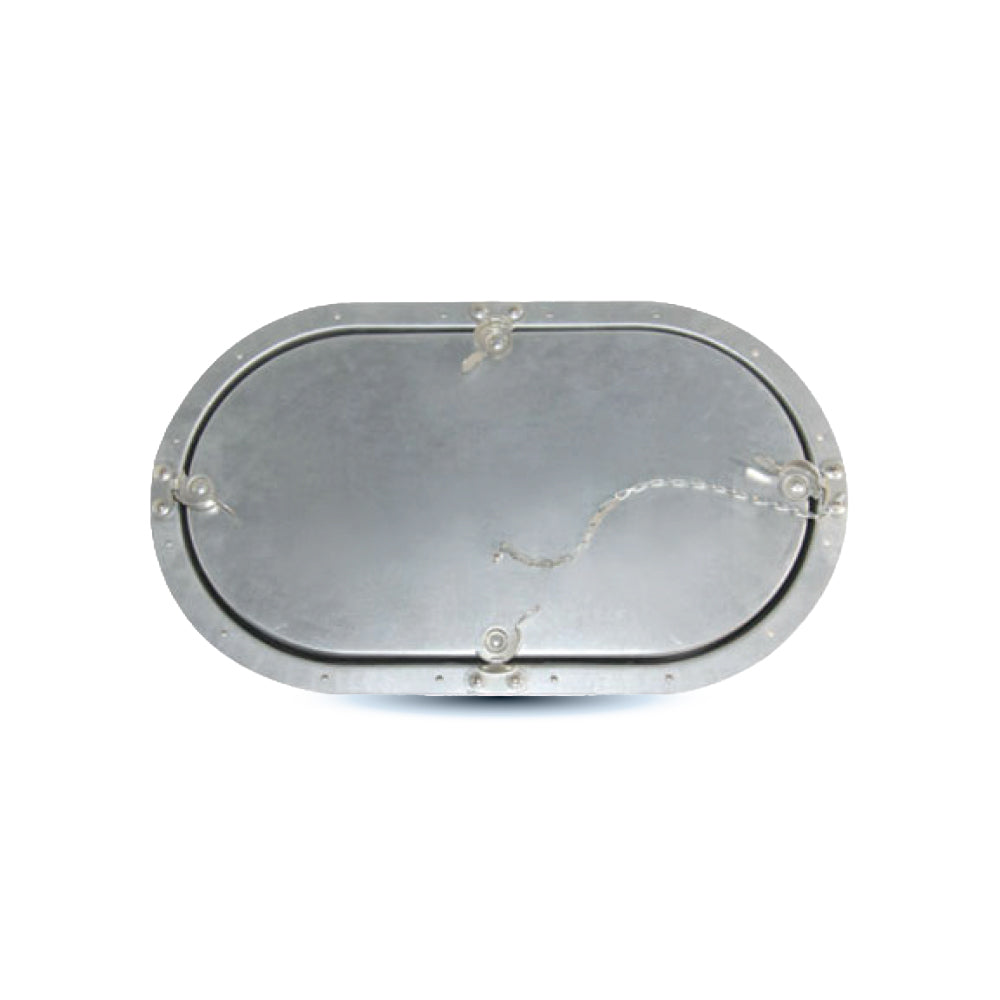

IAD SERIES

Indoor access door for typical ductwork. Safety chain & neoprene gasket included.

HIGHLIGHTS

  • Safety Feature: Includes retaining chain between door and frame
  • Easy Access: Provides quick access to volume control dampers, coils, filters, and equipment

PRODUCT SHEETS

Spec Sheet

IAD Series Spec Sheet

Instruction Manual

IAD Series Instruction Manual

Specifications
  • Insulation
    Foil faced foam
  • Material
    Galvanized Iron (IAD-8x5 and IAD 12x6), Galvanized Steel (IAD-18x10 and IAD-21x14)
  • Included
    Neoprene gasket / Safety chain
  • Cam Locks
    2 (IAD 8x5 & IAD 12x6) | 4 (IAD 18x10 & IAD 21x14)
  • Metal Thickness
    IAD-8x5 and IAD-12x16: 0.7mm
  • Max. Pressure
    3" w.g. (IAD 8x5 & IAD 12x6) | 2" w.g. (IAD 18x10 & IAD 21x14)
  • Thickness
    IAD-18x10 and IAD-21x14: 24 gauge
