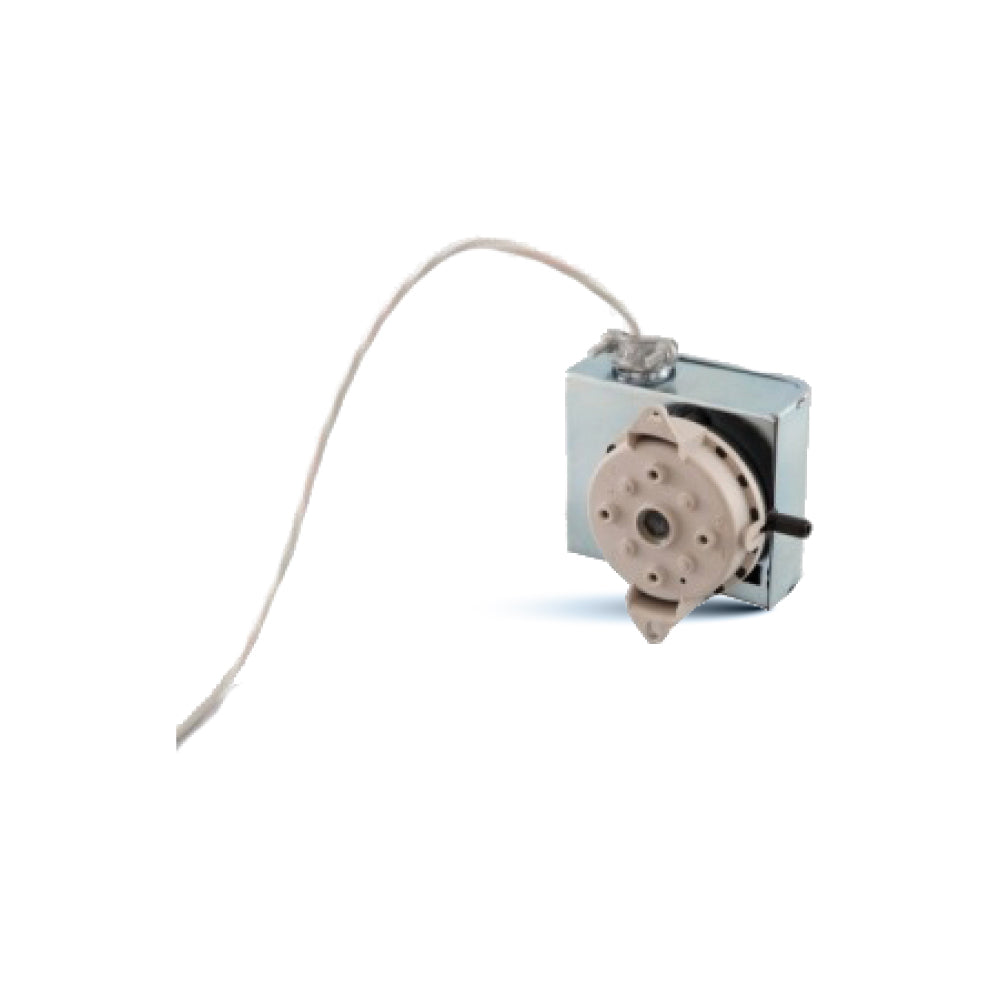

SDS-10

Air pressure sensing switch integrated with an electric cycle timing board, designed for precise airflow monitoring and timed control in ventilation and HVAC systems.

HIGHLIGHTS

Timing Range Adjustable up to 10 minutes
SPDT / SPST Electrical Load Rated for 1/10 HP at 120–277V AC
Pilot Duty Ratings 28VA at 24V AC; 125VA at 120V AC
SPST Resistive Load Supports 3 Amps at 24V and 120–277V AC
Tubing Requirement Requires 1/4" inlet tubing (not included)

OPTIONS INCLUDE

Electronic Cycle Timing Module, 10 min-ON-15sec-OFF
3 conductor cable with ground, 10" long external length
Switch enclosure with removable cover will accept 3-1/2" conduit connections
Probe accessory kit, with 2" long insert probe and (4) #8 x 1/2 square drive (Type TEK) screws
