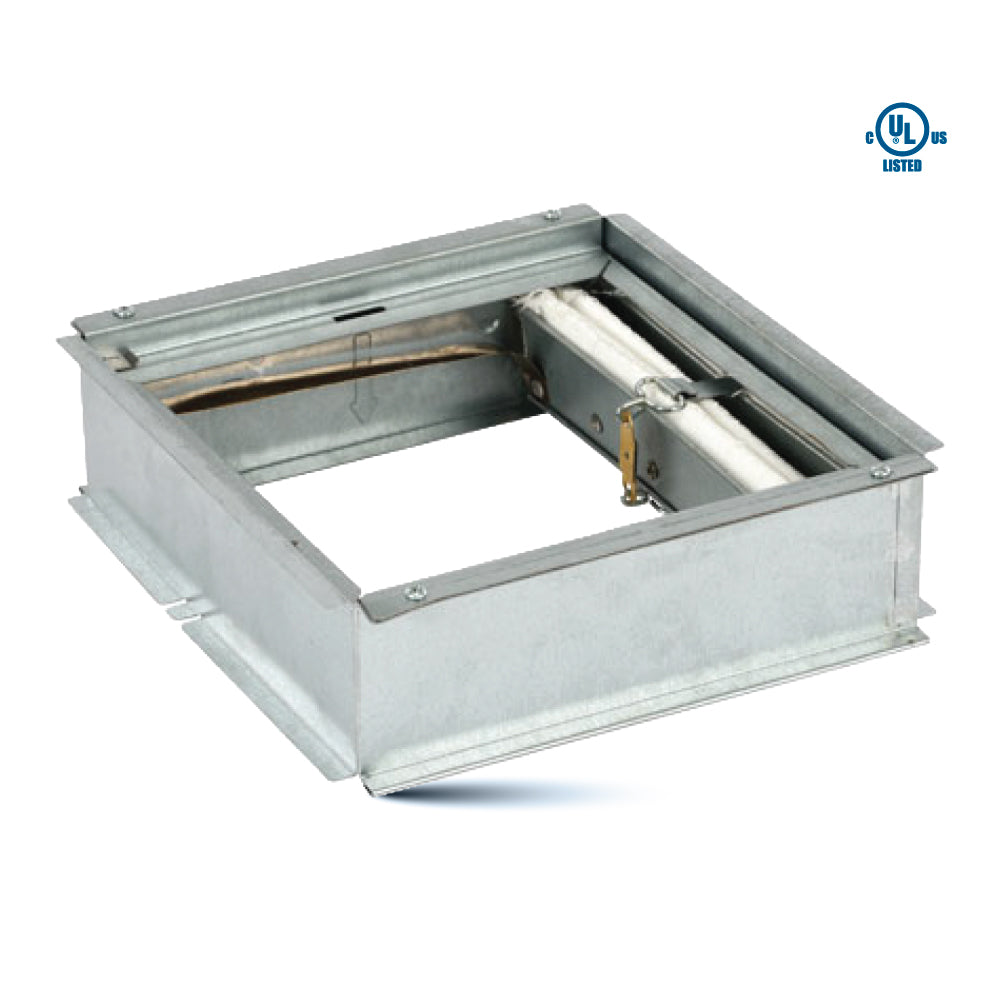

FIRE DAMPER-ODC

Fire Damper for the Next Generation Compact Series Fans Only

HIGHLIGHTS

  • Fire Resistant: Up to 3 hours
  • Fire Protection: Equipped with a flexible fire blanket for enhanced safety
  • Temperature Link: Includes +165°F standard thermal link
  • Spring Mechanism: Spring steel rolled springs provide reliable operation
  • Frame Material: Made from 21-gauge galvanized steel
  • Fire Rating: Ceiling radiation damper rated for 3 hours
  • Insulation: Comes with fiberglass cover and ceramic fiber for thermal resistance
  • Damper Adapter: Constructed from 25-gauge galvanized steel
  • Spring Force: Each spring delivers no less than 4.496 lbf of force
  • Frame Design: Features roll-framed galvanized steel frame for durability

U.L. 555C CLASSIFIED ASSEMBLIES AND ULC S112.2 LISTED

Specifications
  • Material
    Galvanized Steel Frame, Fabric
  • Galvanized Steel
    21 gauge for frame / 25 gauge for Damper Adapter
  • Fabric
    1/8" thick, 12.484 lbs/ft³
  • Fusible Link
    165°F, 29/64" width
  • Springs
    Spring steel rolled, 19/32" width
  • Force of 1 Spring
    ≥4.496 lbf

CERTIFICATIONS

Compatible Fans (sold separately)

ODC Fan Series

PRODUCT SHEETS

Spec Sheet

FIRE DAMPER-ODC Spec Sheet

Instruction Manual

FIRE DAMPER-ODC Instruction Manual

Revit Files

NA
