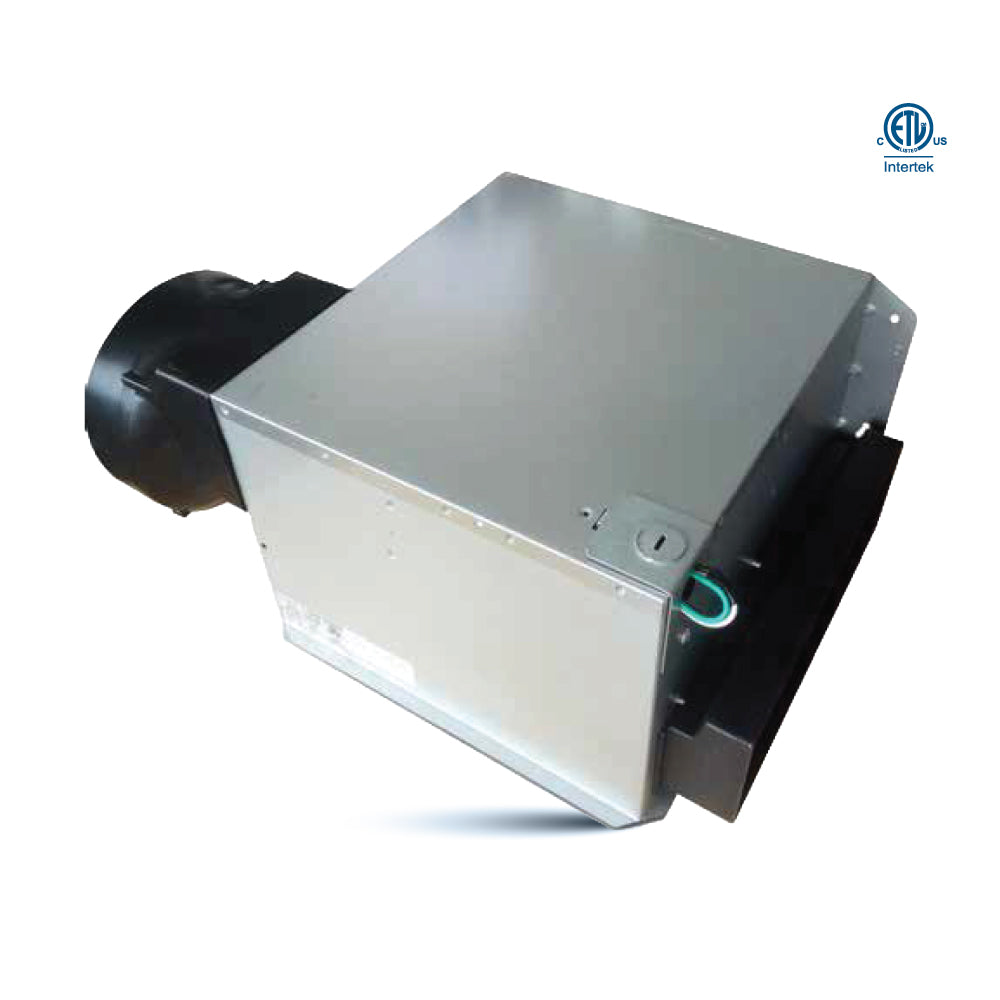

ODDIN-110

Universal Series inline fan delivering 90 to 140 CFM airflow, equipped with a 6-inch detachable metal collar for versatile installation and efficient ventilation performance.

HIGHLIGHTS

  • Low-speed feature – Built-in speed controller allows continuous 24/7 operation to meet local building codes
  • Adjustable airflow – Single fan delivers four CFM settings ranging from 90 to 140 CFM (variable speed from 30 to 140 CFM)
  • Extended run time – Fan continues running briefly after shutoff to ensure removal of stale air
  • Time delay function – Built-in delay can be set from 3 to 30 minutes after the fan is turned off
  • Factory-set speeds – Five fan speeds are preset to match performance levels shown on the fan chart
  • Slide shift controls – Fan performance can be adjusted using built-in slide shift controls
  • Flexible mounting – Suitable for ceiling or wall installation, designed for quiet and efficient air exhaust

UNIVERSAL SERIES FAN

Specifications
  • Dimensions
    Intake: 10" x 3-1/4"
  • Air Volume (CFM)
    90 | 110 | 120 | 140
  • Noise (sones)
    0.5 | 0.9 | 1.2 | 1.6
  • Fan Watts
    8.1W | 10.3W | 12.2W | 15.6W
  • Duct Diameter
    6"
  • Power Rating
    120V/60Hz
  • Housing Size
    11-5/16" x 10-1/2" x 7-3/4"
  • Fan Weight
    10.5 lbs
  • Inlet Size
    10" x 3-1/4"
  • Warranty
    5 Years

CERTIFICATIONS

Product features

PRODUCT SHEETS

Spec Sheet

ODDIN-110 Spec Sheet

Instruction Manual

ODDIN-110 Instruction Manual

Revit Files

NA
