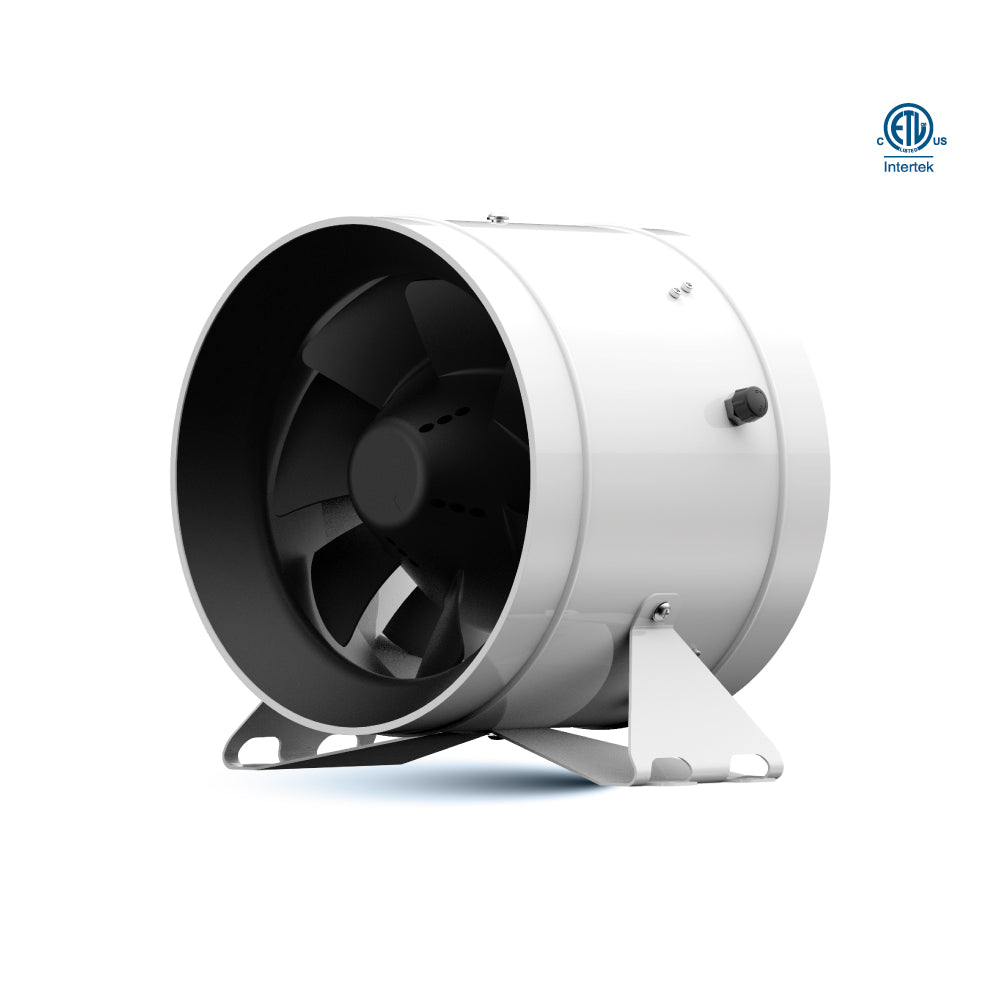

ODDMF-10-1070

10-inch compact mixed flow inline fan featuring a cutting-edge brushless EC motor for high efficiency, quiet operation, and advanced airflow performance.

HIGHLIGHTS

  • Advanced motor design – 6-pole brushless motor with sine wave technology
  • High-efficiency EC motor – Equipped with cutting-edge brushless EC motor for optimal performance
  • Durable and aerodynamic build – Aluminum housing with jet-engine style double impellers
  • Energy-saving operation – Operates with significantly lower power consumption than average fans

MIXED FLOW INLINE FAN

Specifications
  • Voltage
    120V AC/60Hz
  • Grade of Protection
    IP 64 (IP 68 available on custom order)
  • Size
    10" (250 mm)
  • Motor
    EC Motor
  • Static Pressure (in inches w.g.)
    2.05 in H₂O / 510 Pa
  • Noise (sones)
    65 dBA
  • Fan Weight
    6.6 lbs
  • Max. Speed
    3200 RPM
  • Max. Airflow
    1065 CFM
  • Max. Power
    150W
  • Impeller Design
    Mixed Flow
  • Warranty
    5 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.33 SP 0.66 SP 0.88 SP 1.08 SP 1.16 SP 1.39 SP 1.82 SP 2.05 SP
1065 CFM 928.46 CFM 789.77 CFM 680.81 CFM 532.56 CFM 397.00 CFM 266.00 CFM 136.80 CFM 0.00 CFM




Accessories (sold separately)

ODDMF-ST
ODDMF-ST
(6 speed smart controller with thermal probe; compatible with mixed flow inline ODDMF fans/silencers)

Product features

PRODUCT SHEETS

Spec Sheet

ODDMF-10-1070 Spec Sheet

Instruction Manual

ODDMF-10-1070 Instruction Manual

Revit Files

NA
