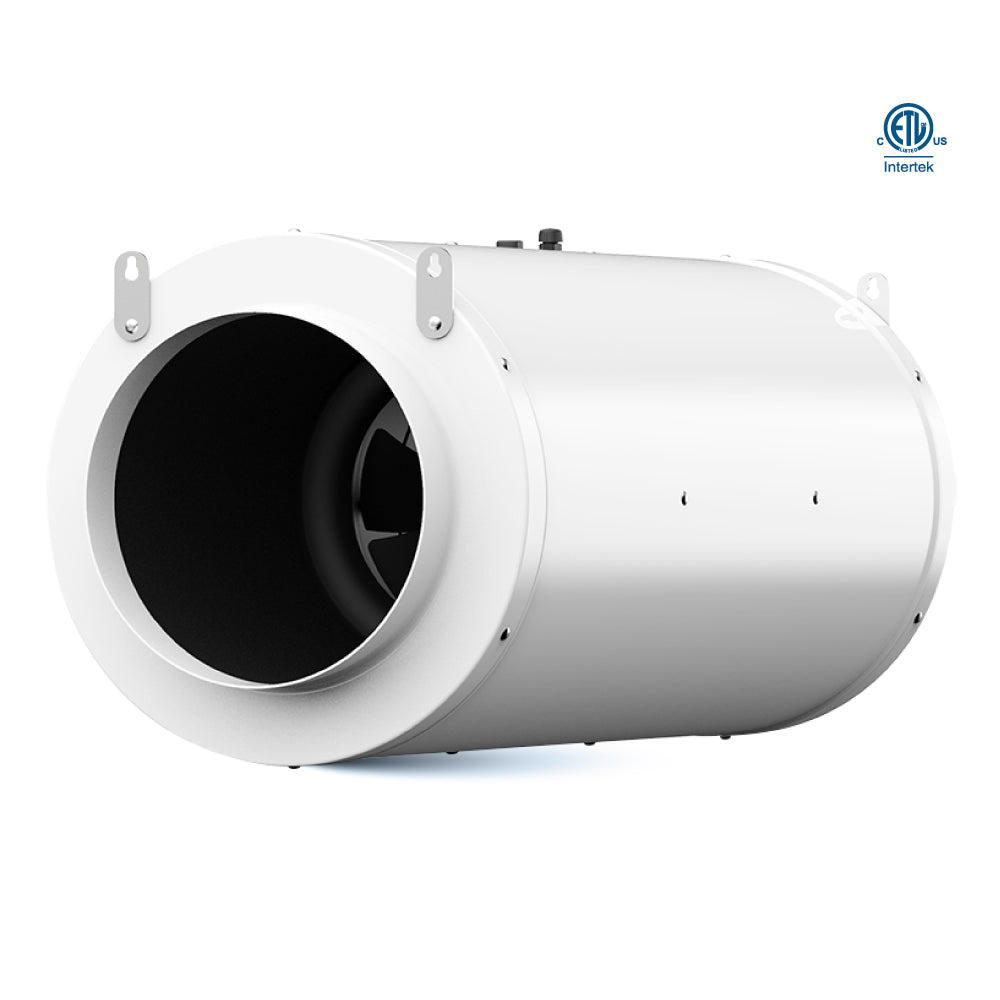

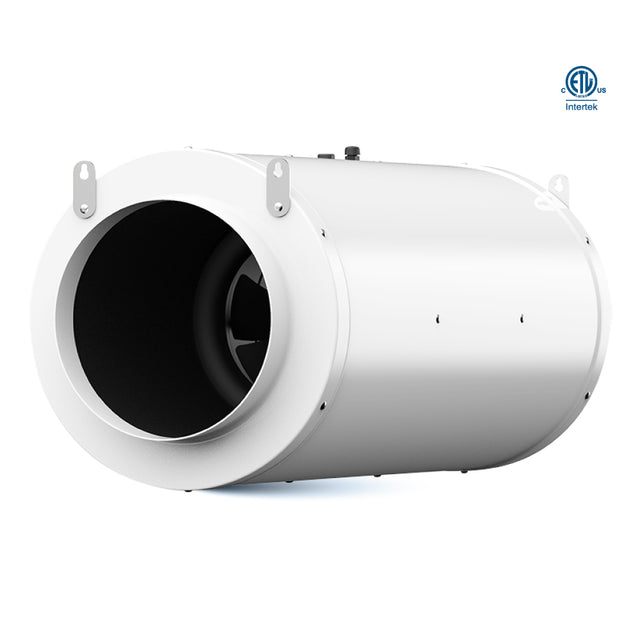

ODDMF-12-1750-Q

Silenced version of the ODDMF inline fan series, constructed with a 12-inch inline fan for reduced noise and powerful ventilation performance.

HIGHLIGHTS

  • Vibration-free design – Engineered for stability and minimal vibration
  • Brushless motor – 6-pole motor with sine wave technology for smooth operation
  • Low noise output – Quieter than standard mixed flow inline fans
  • Durable construction – Cold-rolled steel housing with aluminum flange for strength and longevity

MIXED FLOW SILENCER

Specifications
  • Voltage
    120V AC/60Hz
  • Grade of Protection
    IP 64 (IP 68 available on custom order)
  • Size
    12" (315 mm)
  • Motor
    EC Motor
  • Static Pressure (in inches w.g.)
    2.40 in H₂O / 598 Pa
  • Noise (sones)
    60 dBA
  • Fan Weight
    46.3 lbs
  • Max. Speed
    2800 RPM
  • Max. Airflow
    1640 CFM
  • Max. Power
    260W
  • Impeller Design
    Mixed Flow
  • Warranty
    5 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.67 SP 1.02 SP 1.09 SP 1.31 SP 1.40 SP 1.92 SP 2.41 SP
1639.43 CFM 1405.34 CFM 1265.78 CFM 1223.59 CFM 714.34 CFM 526.52 CFM 270.52 CFM 0.00 CFM




Accessories (sold separately)

ODDMF-ST
ODDMF-ST
(6 speed smart controller with thermal probe; compatible with mixed flow inline ODDMF fans/silencers)

Product features

PRODUCT SHEETS

Spec Sheet

ODDMF-12-1750-Q Spec Sheet

Instruction Manual

ODDMF-12-1750-Q Instruction Manual

Revit Files

NA
