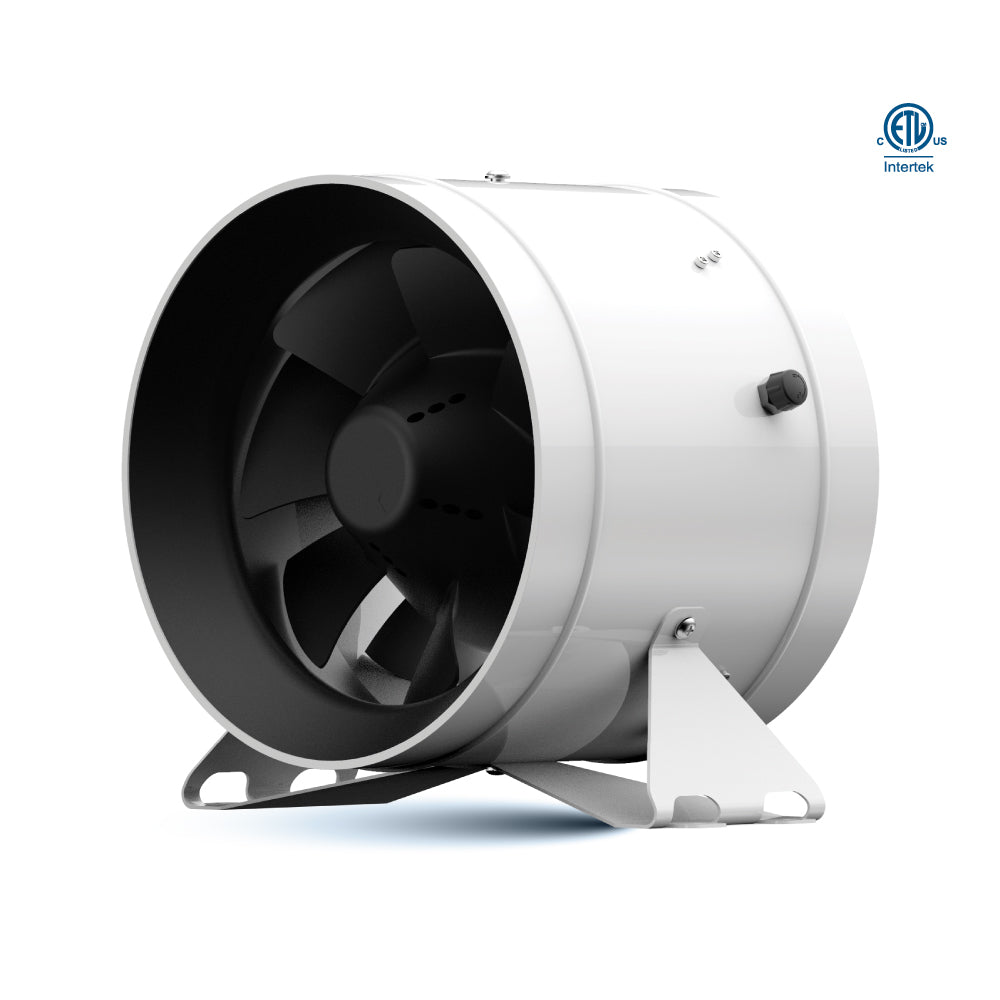

ODDMF-12-1760

12-inch compact mixed flow inline fan featuring a cutting-edge brushless EC motor for high efficiency, quiet operation, and advanced airflow performance.

HIGHLIGHTS

  • Advanced motor design – 6-pole brushless motor with sine wave technology
  • High-efficiency EC motor – Equipped with cutting-edge brushless EC motor for optimal performance
  • Durable and aerodynamic build – Aluminum housing with jet-engine style double impellers
  • Energy-saving operation – Operates with significantly lower power consumption than average fans

MIXED FLOW INLINE FAN

Specifications
  • Voltage
    120V AC/60Hz
  • Grade of Protection
    IP 64 (IP 68 available on custom order)
  • Size
    12" (315 mm)
  • Motor
    EC Motor
  • Static Pressure (in inches w.g.)
    2.40 in H₂O / 598 Pa
  • Noise (sones)
    70 dBA
  • Fan Weight
    18.7 lbs
  • Max. Speed
    2800 RPM
  • Max. Airflow
    1640 CFM
  • Max. Power
    260W
  • Impeller Design
    Mixed Flow
  • Warranty
    5 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.67 SP 1.02 SP 1.09 SP 1.31 SP 1.40 SP 1.92 SP 2.41 SP
1639.43 CFM 1405.34 CFM 1265.78 CFM 1223.59 CFM 714.34 CFM 526.52 CFM 270.52 CFM 0.00 CFM




Accessories (sold separately)

ODDMF-ST
ODDMF-ST
(6 speed smart controller with thermal probe; compatible with mixed flow inline ODDMF fans/silencers)

Product features

PRODUCT SHEETS

Spec Sheet

ODDMF-12-1760 Spec Sheet

Instruction Manual

ODDMF-12-1760 Instruction Manual
