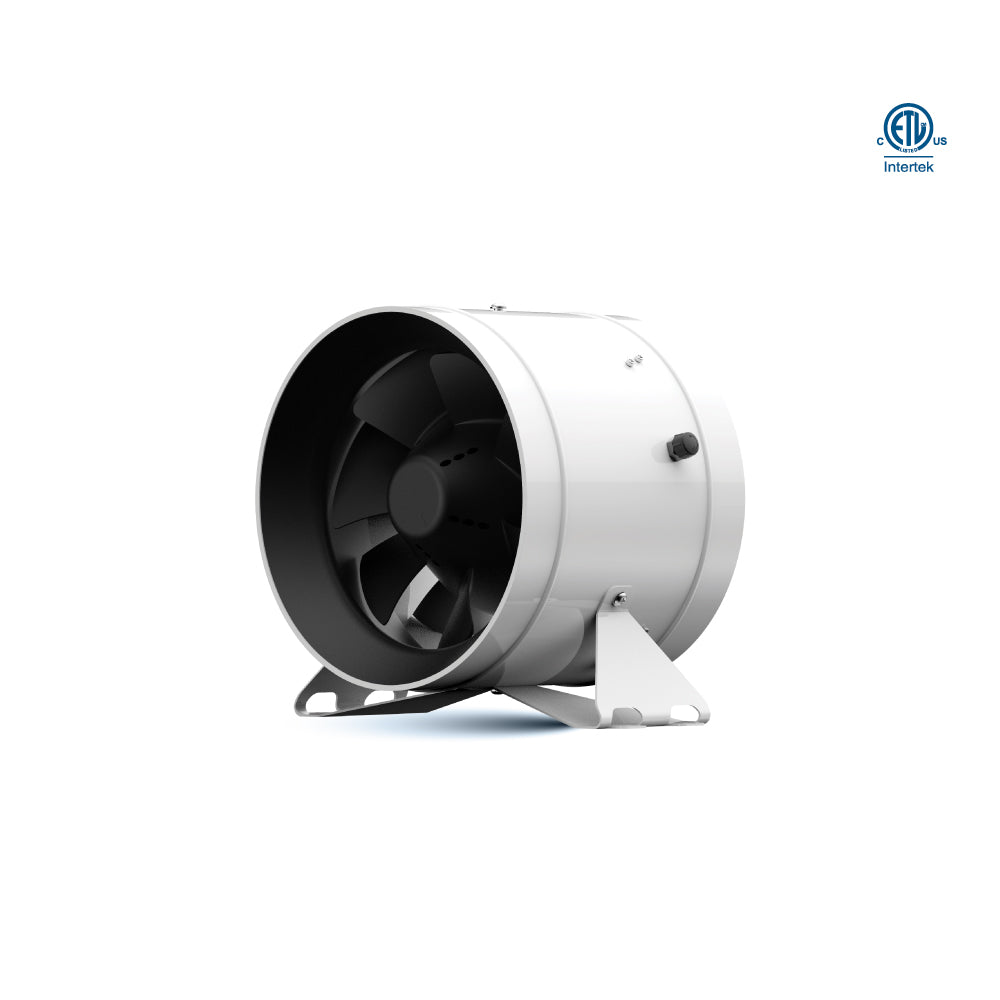

ODDMF-5-170

5-inch compact mixed flow inline fan featuring a cutting-edge brushless EC motor for high efficiency, quiet operation, and advanced airflow performance.

HIGHLIGHTS

  • Precision motor control – 4-pole brushless motor with Hall IC for enhanced efficiency
  • High-performance EC motor – Features cutting-edge brushless EC motor technology
  • Robust and aerodynamic design – Constructed with aluminum housing and jet-engine style double impellers
  • Low energy usage – Operates at much lower power consumption compared to standard fans

PRODUCT SHEETS

Spec Sheet

ODDMF-5-170 Spec Sheet

Instruction Manual

ODDMF-5-170 Instruction Manual

Revit Files

NA

MIXED FLOW INLINE FAN

Specifications
  • Voltage
    120V AC/60Hz
  • Grade of Protection
    IP 64 (IP 68 available on custom order)
  • Size
    5" (125 mm)
  • Motor
    EC Motor
  • Static Pressure (in inches w.g.)
    1.46 in H₂O / 363 Pa
  • Noise (sones)
    54.4 dBA
  • Fan Weight
    2.4 lbs
  • Max. Speed
    5000 RPM
  • Max. Airflow
    166 CFM
  • Max. Power
    20W
  • Impeller Design
    Mixed Flow
  • Warranty
    5 Years

Static Pressure Table

0.00 SP 0.24 SP 0.43 SP 0.58 SP 0.62 SP 0.74 SP 0.95 SP 1.29 SP 1.46 SP
163 CFM 142.70 CFM 120.89 CFM 98.10 CFM 81.12 CFM 60.08 CFM 37.93 CFM 17.93 CFM 0.00 CFM




Accessories (sold separately)

ODDMF-ST
ODDMF-ST
(6 speed smart controller with thermal probe; compatible with mixed flow inline ODDMF fans/silencers)
