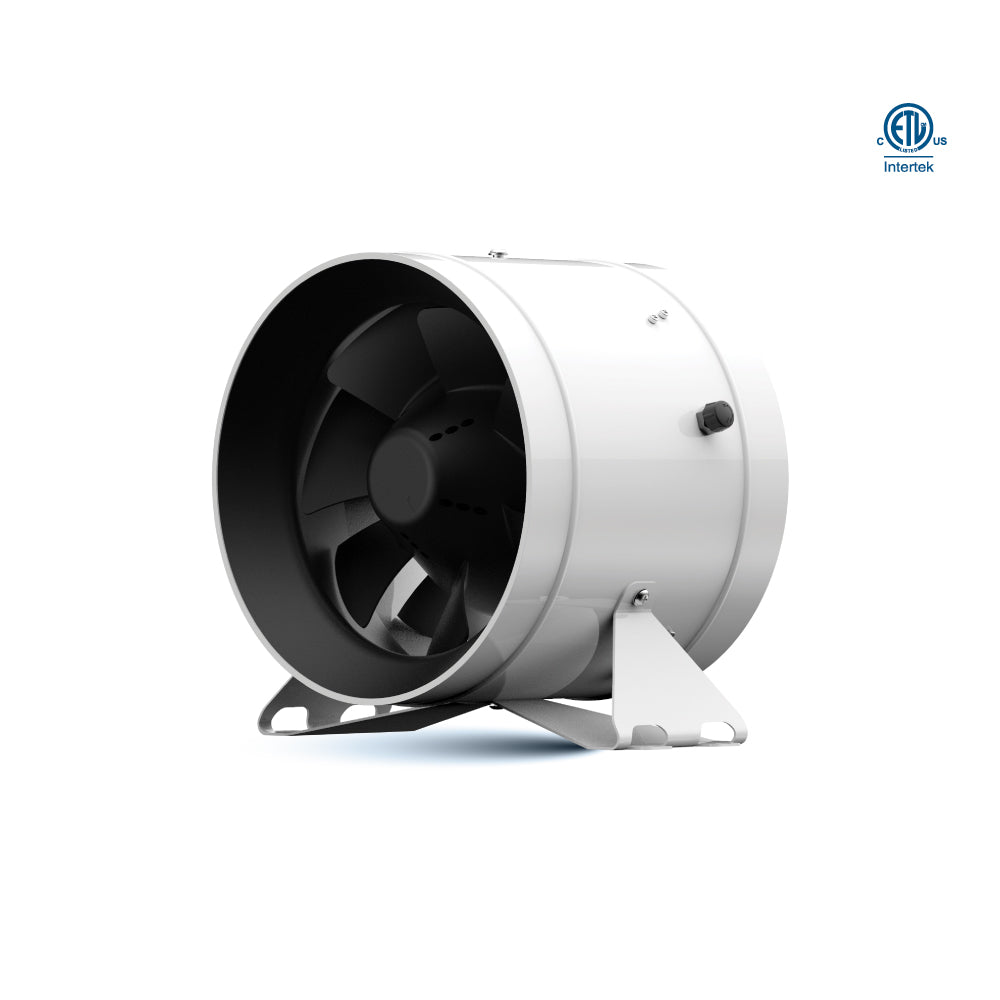

ODDMF-8-710

8-inch compact mixed flow inline fan featuring a cutting-edge brushless EC motor for high efficiency, quiet operation, and advanced airflow performance.

HIGHLIGHTS

  • Smooth motor operation – 6-pole brushless motor with sine wave technology for reduced vibration
  • Efficient EC motor – Integrated cutting-edge brushless EC motor for superior airflow control

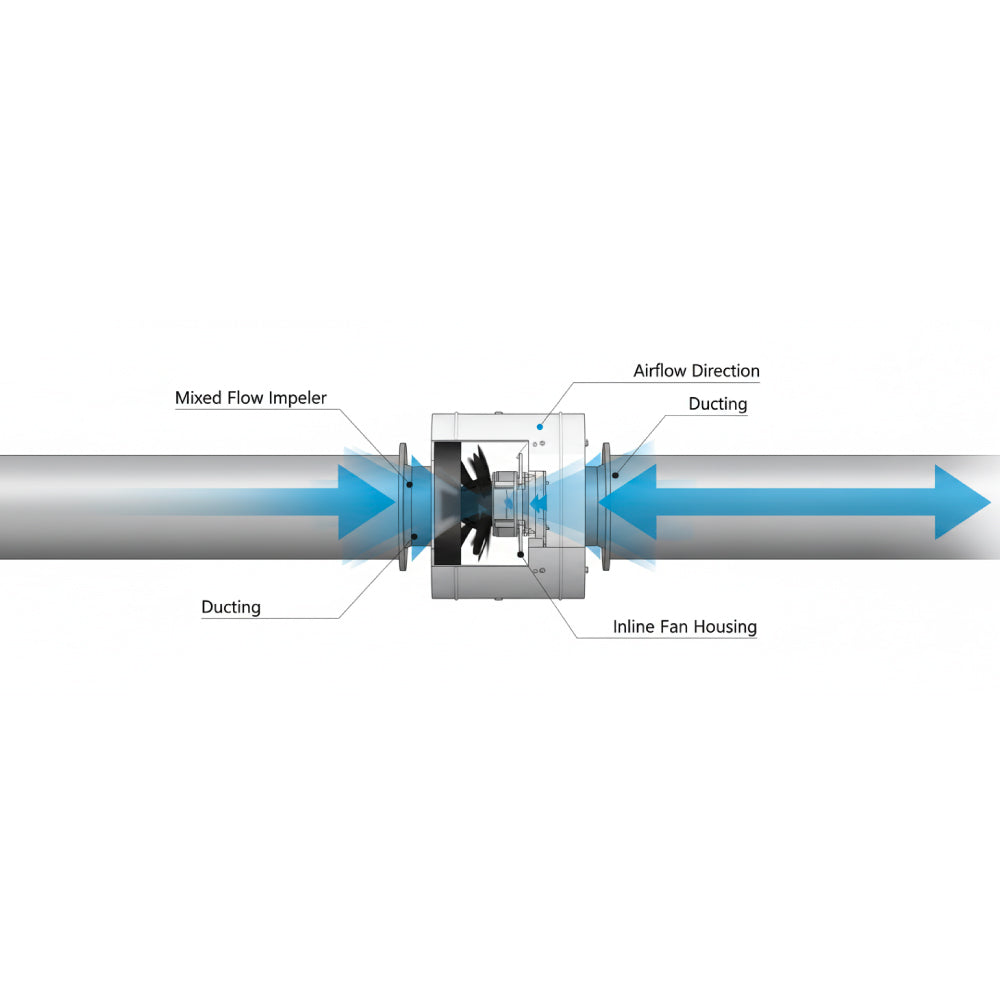

  • Aerodynamic construction – Aluminum housing with jet-engine inspired double impellers
  • Energy-efficient performance – Consumes significantly less power than conventional fans

MIXED FLOW INLINE FAN

Specifications
  • Voltage
    120V AC/60Hz
  • Grade of Protection
    IP 64 (IP 68 available on custom order)
  • Size
    8" (200 mm)
  • Motor
    EC Motor
  • Static Pressure (in inches w.g.)
    2.09 in H₂O / 520 Pa
  • Noise (sones)
    61.6 dBA
  • Fan Weight
    5.5 lbs
  • Max. Speed
    3800 RPM
  • Max. Airflow
    710 CFM
  • Max. Power
    75W
  • Impeller Design
    Mixed Flow
  • Warranty
    5 Years

CERTIFICATIONS

Static Pressure Table

0.01 SP 0.55 SP 0.85 SP 1.06 SP 1.16 SP 1.16 SP 1.35 SP 1.74 SP 2.09 SP
710.00 CFM 611.96 CFM 533.31 CFM 440.05 CFM 353.09 CFM 271.55 CFM 175.25 CFM 87.34 CFM 0.00 CFM




Accessories (sold separately)

ODDMF-ST
ODDMF-ST
(6 speed smart controller with thermal probe; compatible with mixed flow inline ODDMF fans/silencers)

Product features

PRODUCT SHEETS

Spec Sheet

ODDMF-8-710 Spec Sheet

Instruction Manual

ODDMF-8-710 Instruction Manual

Revit Files

NA
