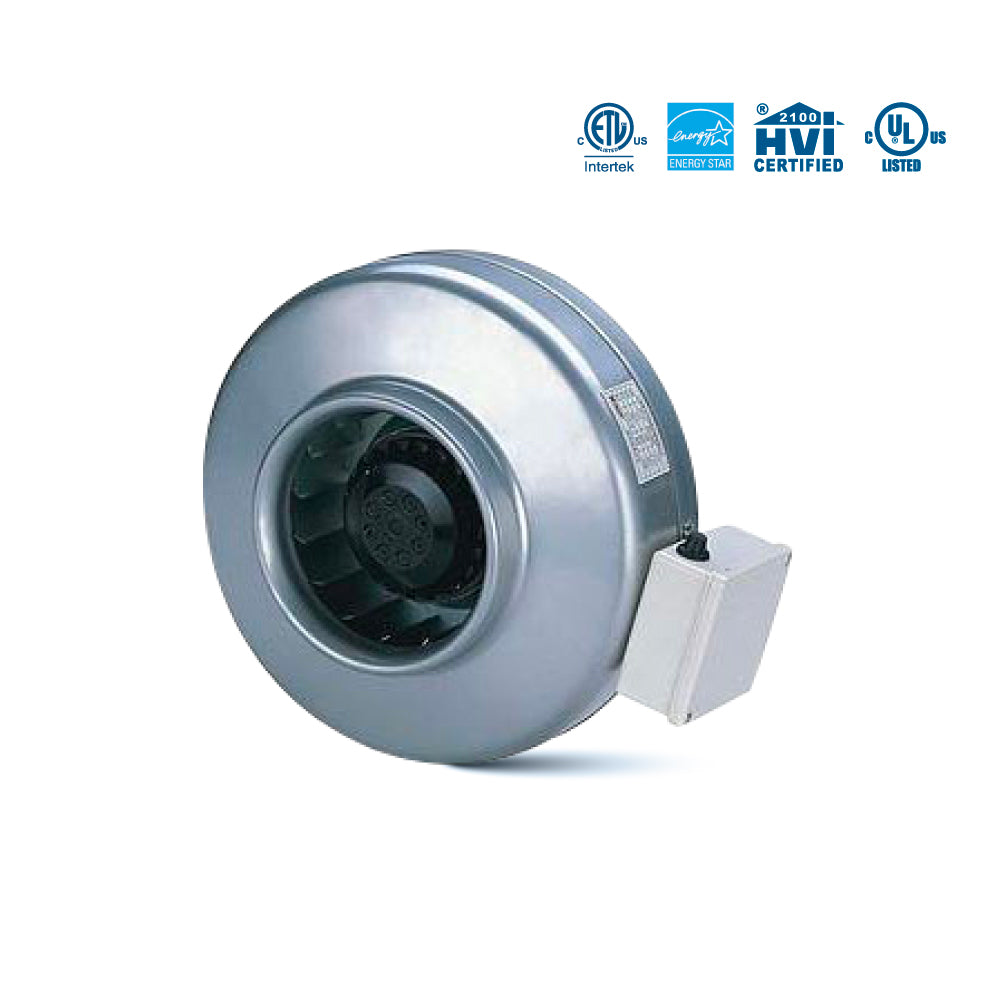

OIF10-670

10-inch duct inline fan designed for commercial and residential use, offering 100% speed controllability for precise airflow management and versatile ventilation performance.

HIGHLIGHTS

  • CSA compliant – Meets CSA C22.2 No.113 standard clause 12 for dryer exhaust duct power ventilators
  • Efficient motor system – High-performance external rotor motor and impeller for quiet, energy-saving operation
  • Maintenance-free bearings – Permanently lubricated ball bearings require no upkeep
  • Versatile installation – Suitable for high static pressure applications and easy to install
  • Wide temperature range – Operates reliably from -10°C to +80°C
  • Durable housing – Constructed with painted cold-rolled steel for long-lasting performance

100% speed controllable inline fan

Specifications
  • Wattage
    220W
  • Voltage
    120V AC/60Hz
  • Amps
    1.88
  • Size
    10" (250 mm)
  • Noise (sones)
    4.4
  • Max. Speed
    2660 RPM
  • Coverage Area
    580-680 ft²
  • Warranty
    3 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.20 SP 0.40 SP 0.60 SP 0.80 SP 1.00 SP 1.30 SP 1.68 SP 1.92 SP 2.50 SP
566.00 CFM 513.00 CFM 457.00 CFM 396.00 CFM 333.00 CFM 274.00 CFM 210.00 CFM 139.00 CFM 95.00 CFM 0.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)

Product features

PRODUCT SHEETS

Spec Sheet

OIF10-670 Spec Sheet
SDS-10 Air Pressure Sensing Switch Spec Sheet

Instruction Manual

OIF10-670 Instruction Manual
OIF10-670 Operation and Maintenance Guide
