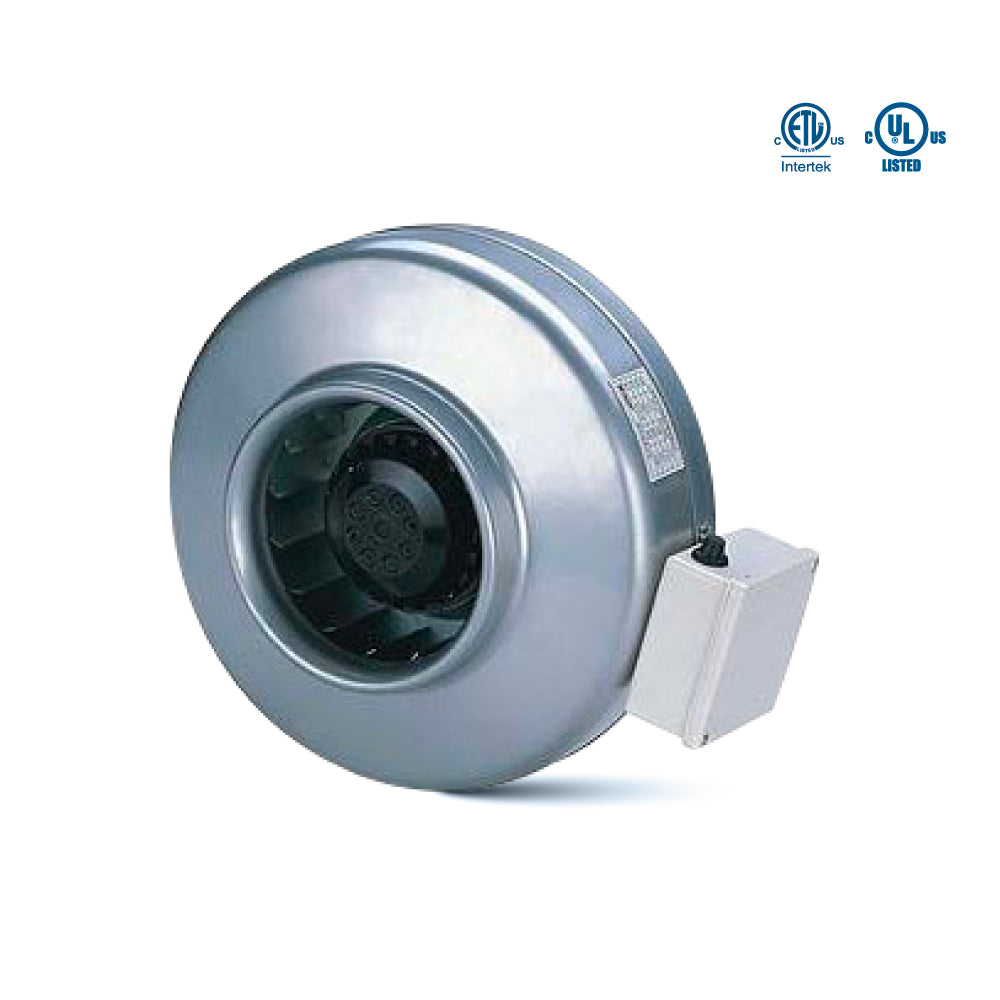

OIF12-880

12-inch duct inline fan designed for commercial and residential use, offering 100% speed controllability for precise airflow management and versatile ventilation performance.

HIGHLIGHTS

  • CSA compliant – Meets CSA C22.2 No.113 standard clause 12 for dryer exhaust duct power ventilators
  • Efficient motor system – High-performance external rotor motor and impeller for quiet, energy-saving operation
  • Maintenance-free bearings – Permanently lubricated ball bearings require no upkeep
  • Versatile installation – Suitable for high static pressure applications and easy to install
  • Wide temperature range – Operates reliably from -10°C to +80°C
  • Durable housing – Constructed with painted cold-rolled steel for long-lasting performance

100% speed controllable inline fan

Specifications
  • Wattage
    210W
  • Voltage
    120V AC/60Hz
  • Amps
    1.80
  • Size
    12" (315 mm)
  • Noise (sones)
    5.0
  • Max. Speed
    2730 RPM
  • Coverage Area
    680-780 ft²
  • Warranty
    3 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.20 SP 0.40 SP 0.60 SP 0.80 SP 1.00 SP 1.45 SP 2.00 SP 2.40 SP 3.00 SP
767.00 CFM 682.00 CFM 566.00 CFM 413.00 CFM 300.00 CFM 238.00 CFM 173.00 CFM 92.00 CFM 53.00 CFM 0.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)

Product features

PRODUCT SHEETS

Spec Sheet

OIF12-880 Spec Sheet
SDS-10 Air Pressure Sensing Switch Spec Sheet

Instruction Manual

OIF12-880 Instruction Manual
OIF12-880 Operation and Maintenance Guide
