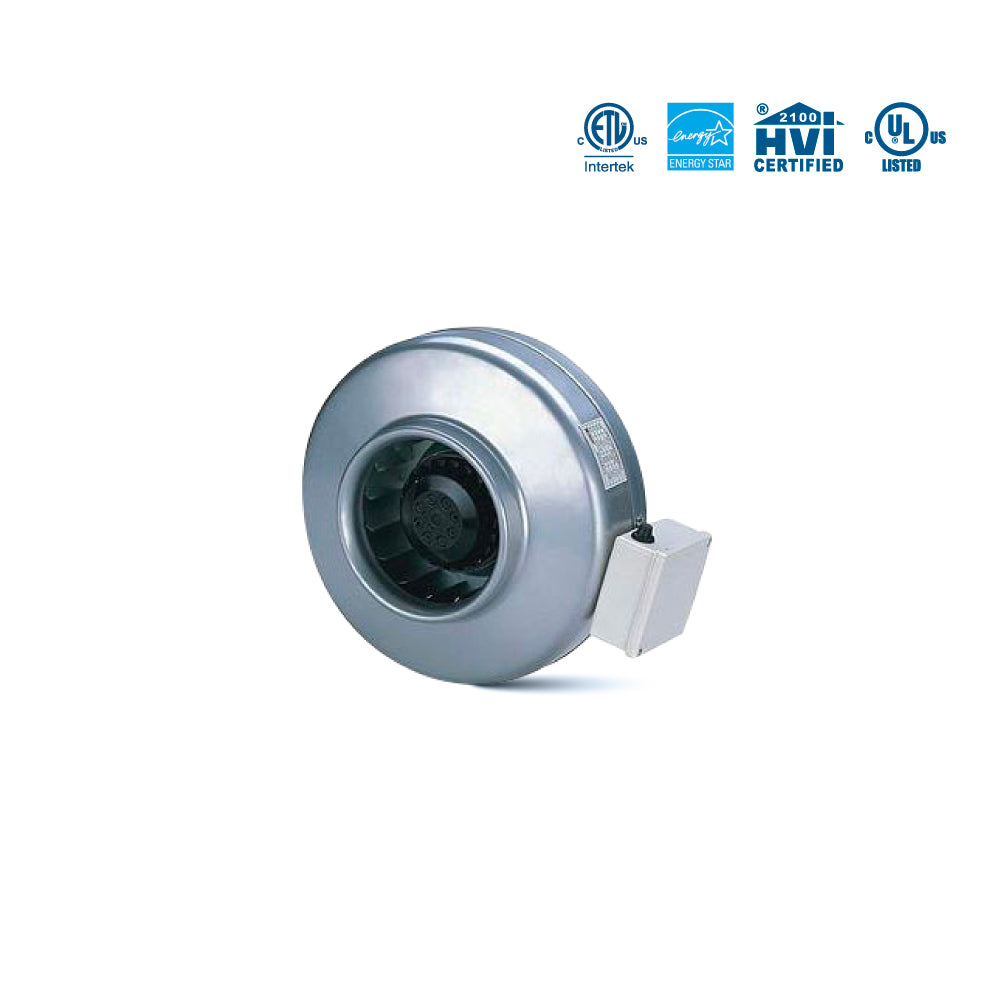

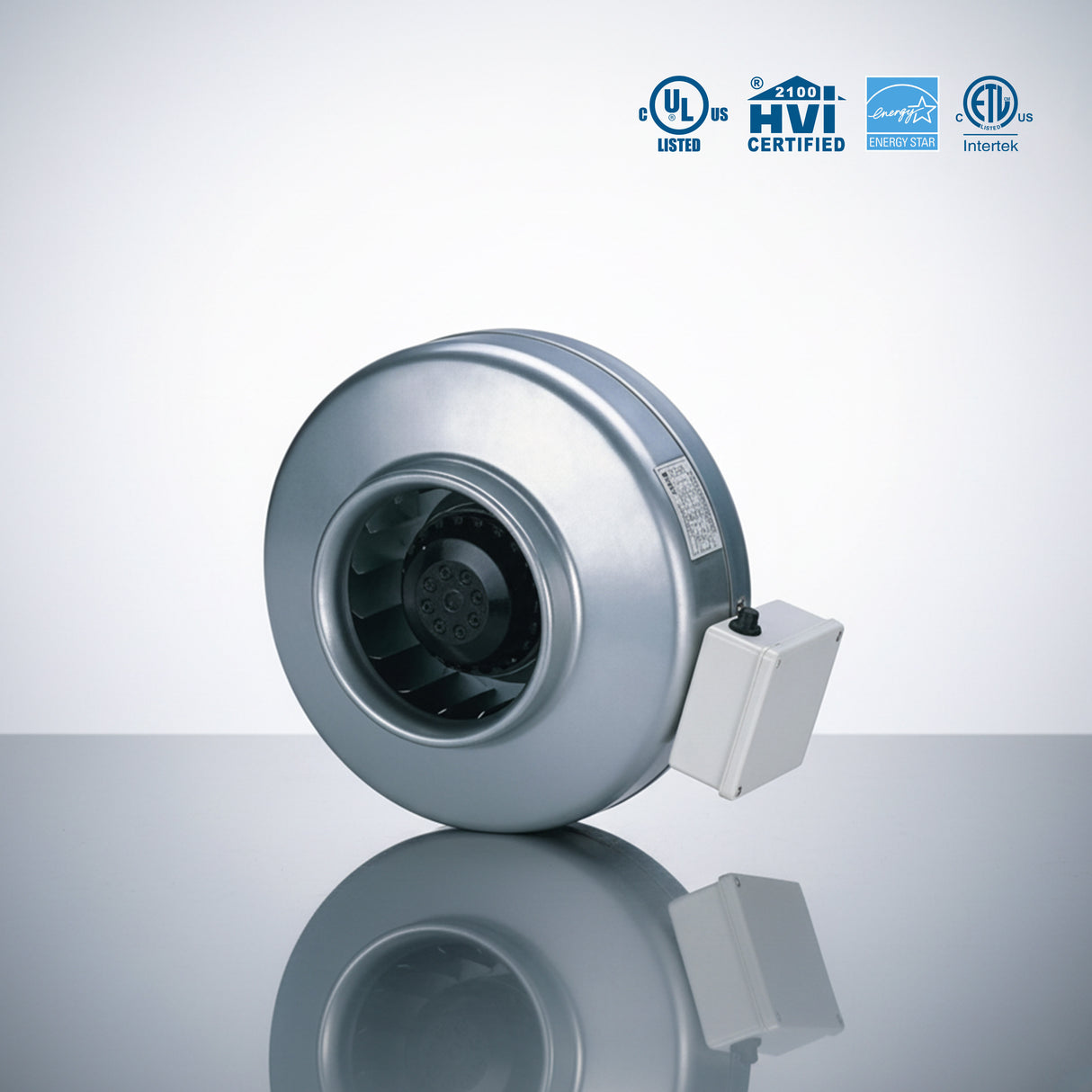

OIF5-190

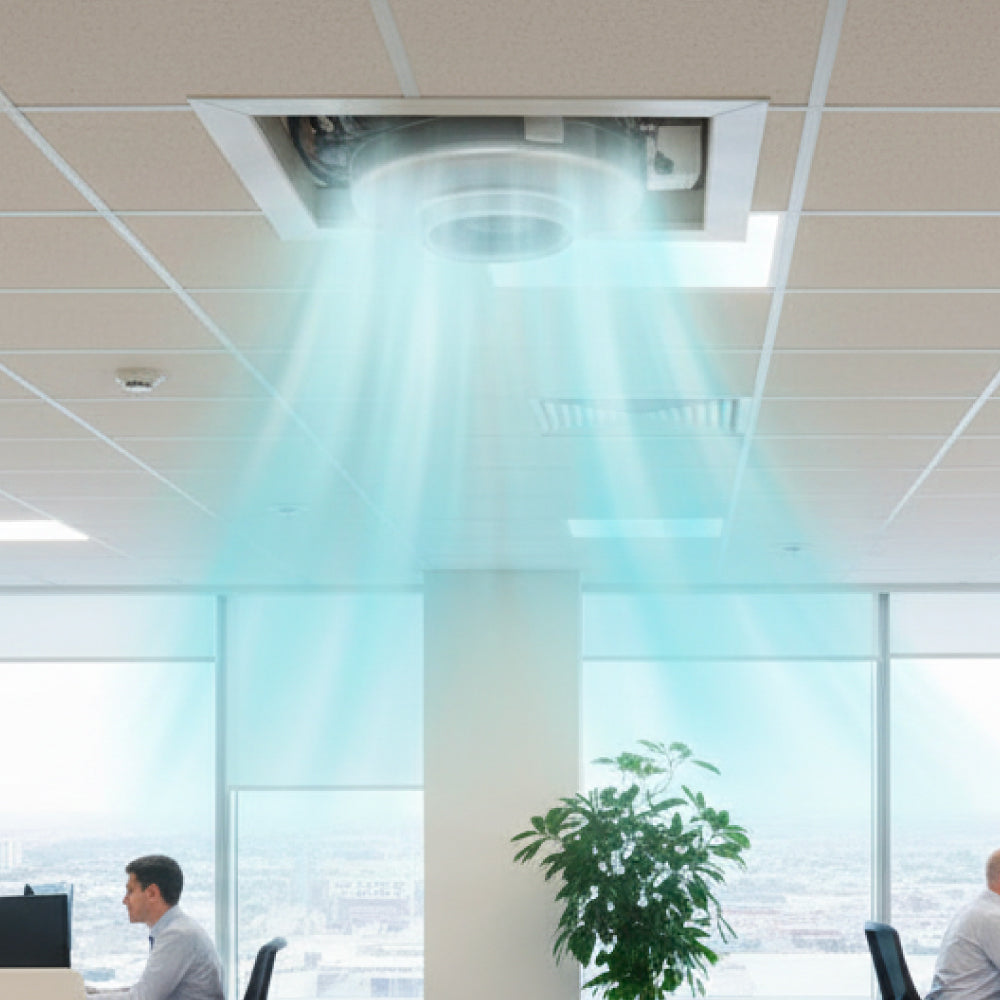

5-inch duct inline fan designed for commercial and residential use, offering 100% speed controllability for precise airflow management and versatile ventilation performance.

HIGHLIGHTS

  • Efficient motor system – High-performance external rotor motor and impeller for quiet, energy-saving operation
  • Maintenance-free bearings – Permanently lubricated ball bearings require no upkeep
  • Versatile installation – Suitable for high static pressure applications and easy to install
  • Wide temperature range – Operates reliably from -10°C to +80°C
  • Durable housing – Constructed with painted cold-rolled steel for long-lasting performance

PRODUCT SHEETS

Spec Sheet

OIF5-190 Spec Sheet
SDS-10 Air Pressure Sensing Switch Spec Sheet

Instruction Manual

OIF5-190 Instruction Manual
OIF5-190 Operation and Maintenance Guide

Revit Files

NA

100% speed controllable inline fan

Specifications
  • Wattage
    102W
  • Voltage
    120V AC/60Hz
  • Amps
    0.86
  • Size
    5" (125 mm)
  • Noise (sones)
    2.6
  • Max. Speed
    2420 RPM
  • Coverage Area
    150-200 ft²
  • Warranty
    3 Years

Static Pressure Table

0.00 SP 0.10 SP 0.20 SP 0.30 SP 0.40 SP 0.52 SP 0.64 SP 0.76 SP 0.90 SP 1.10 SP
222.00 CFM 200.00 CFM 181.00 CFM 161.00 CFM 139.00 CFM 118.00 CFM 93.00 CFM 69.00 CFM 41.00 CFM 0.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)
