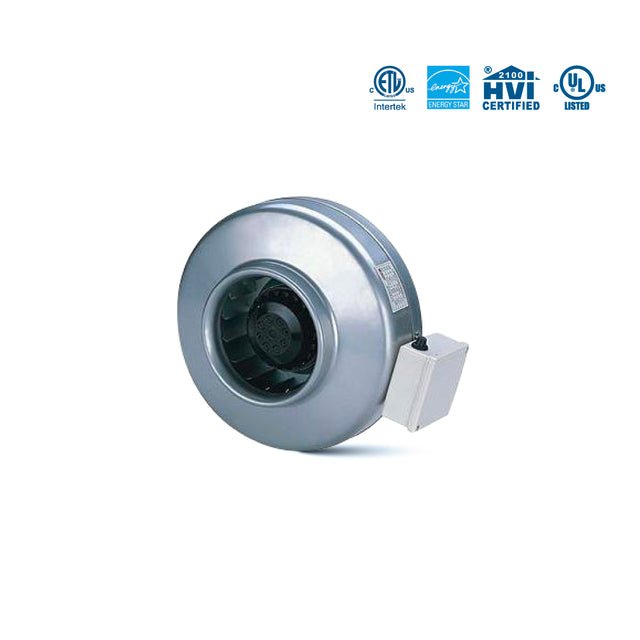

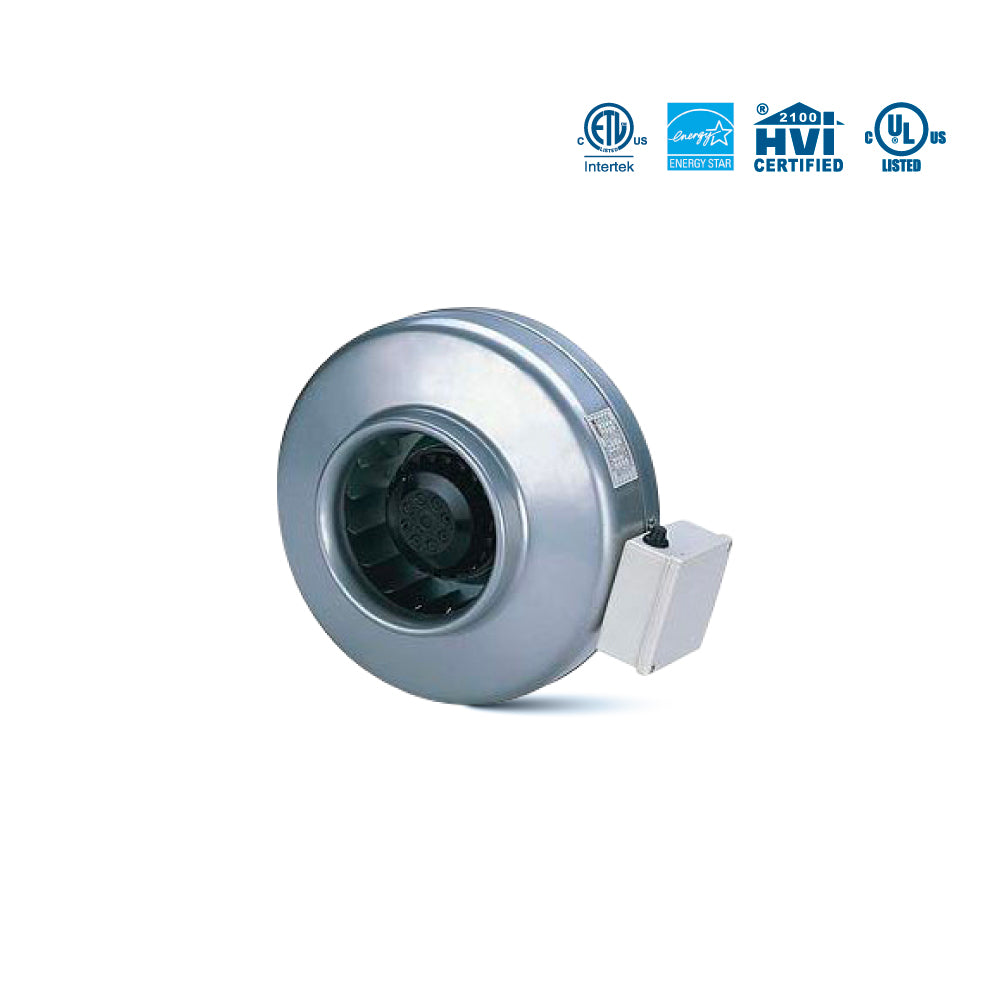

OIF6-260

6-inch duct inline fan designed for commercial and residential use, offering 100% speed controllability for precise airflow management and versatile ventilation performance.

HIGHLIGHTS

  • CSA compliant – Meets CSA C22.2 No.113 standard clause 12 for dryer exhaust duct power ventilators
  • Efficient motor system – High-performance external rotor motor and impeller for quiet, energy-saving operation
  • Maintenance-free bearings – Permanently lubricated ball bearings require no upkeep
  • Versatile installation – Suitable for high static pressure applications and easy to install
  • Wide temperature range – Operates reliably from -10°C to +80°C
  • Durable housing – Constructed with painted cold-rolled steel for long-lasting performance

100% speed controllable inline fan

Specifications
  • Wattage
    105W
  • Voltage
    120V AC/60Hz
  • Amps
    0.88
  • Size
    6" (150 mm)
  • Noise (sones)
    2.8
  • Max. Speed
    2620 RPM
  • Coverage Area
    200-280 ft²
  • Warranty
    3 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.10 SP 0.20 SP 0.30 SP 0.40 SP 0.60 SP 0.80 SP 1.00 SP 1.10 SP 1.30 SP
238.00 CFM 221.00 CFM 199.00 CFM 175.00 CFM 155.00 CFM 119.00 CFM 85.00 CFM 44.00 CFM 19.00 CFM 0.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)

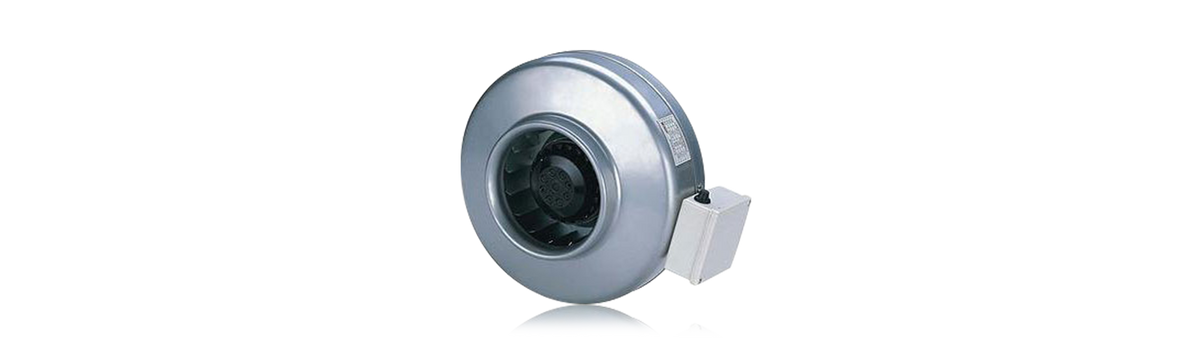

Product features

PRODUCT SHEETS

Spec Sheet

OIF6-260 Spec Sheet
SDS-10 Air Pressure Sensing Switch Spec Sheet

Instruction Manual

OIF6-260 Instruction Manual
OIF6-260 Operation and Maintenance Guide
