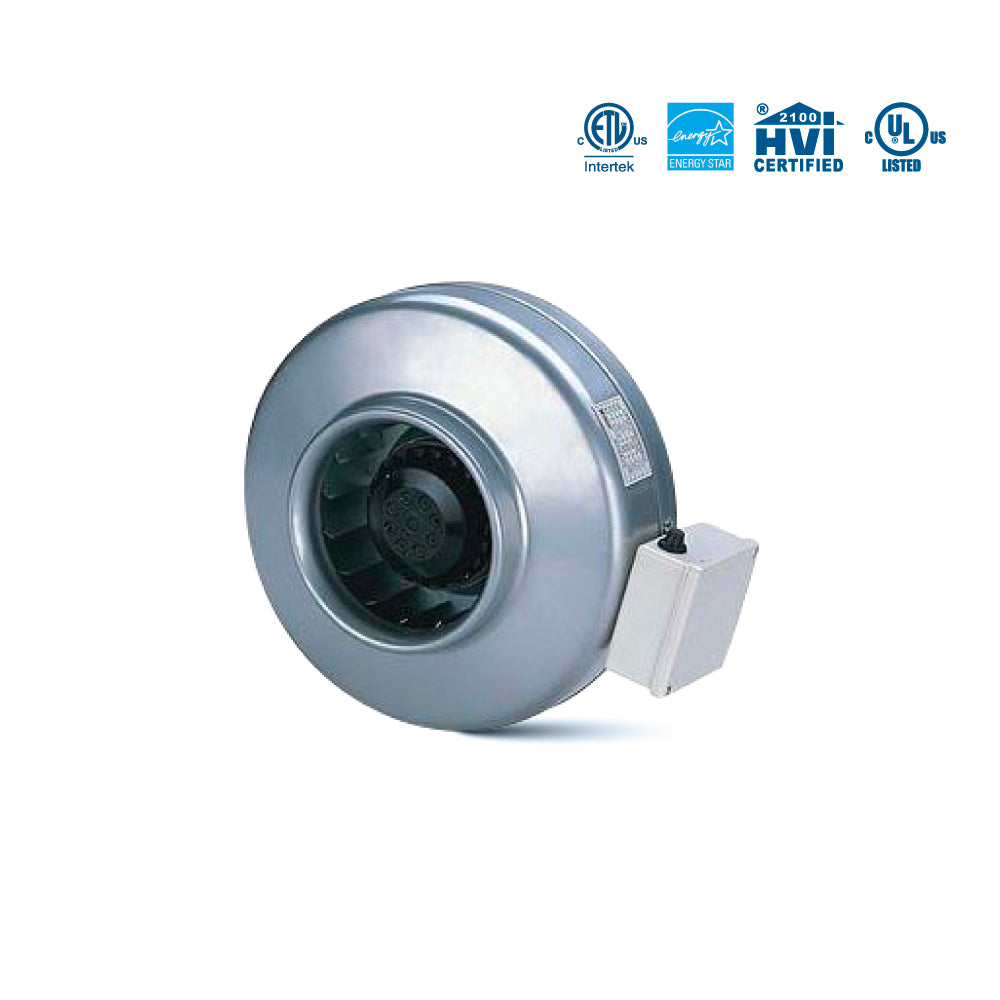

OIF8-560

8-inch duct inline fan designed for commercial and residential use, offering 100% speed controllability for precise airflow management and versatile ventilation performance.

HIGHLIGHTS

  • CSA compliant – Meets CSA C22.2 No.113 standard clause 12 for dryer exhaust duct power ventilators
  • Efficient motor system – High-performance external rotor motor and impeller for quiet, energy-saving operation
  • Maintenance-free bearings – Permanently lubricated ball bearings require no upkeep
  • Versatile installation – Suitable for high static pressure applications and easy to install
  • Wide temperature range – Operates reliably from -10°C to +80°C
  • Durable housing – Constructed with painted cold-rolled steel for long-lasting performance

100% speed controllable inline fan

Specifications
  • Wattage
    235W
  • Voltage
    120V AC/60Hz
  • Amps
    2.03
  • Size
    8" (200 mm)
  • Noise (sones)
    3.7
  • Max. Speed
    2530 RPM
  • Coverage Area
    400-580 ft²
  • Warranty
    3 Years

CERTIFICATIONS

Static Pressure Table

0.00 SP 0.20 SP 0.40 SP 0.60 SP 0.80 SP 1.00 SP 1.20 SP 1.44 SP 1.64 SP 1.72 SP
425.00 CFM 383.00 CFM 345.00 CFM 303.00 CFM 259.00 CFM 220.00 CFM 172.00 CFM 110.00 CFM 49.00 CFM 0.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)

Product features

PRODUCT SHEETS

Spec Sheet

OIF8-560 Spec Sheet
SDS-10 Air Pressure Sensing Switch Spec Sheet

Instruction Manual

OIF8-560 Instruction Manual
OIF8-560 Operation and Maintenance Guide
