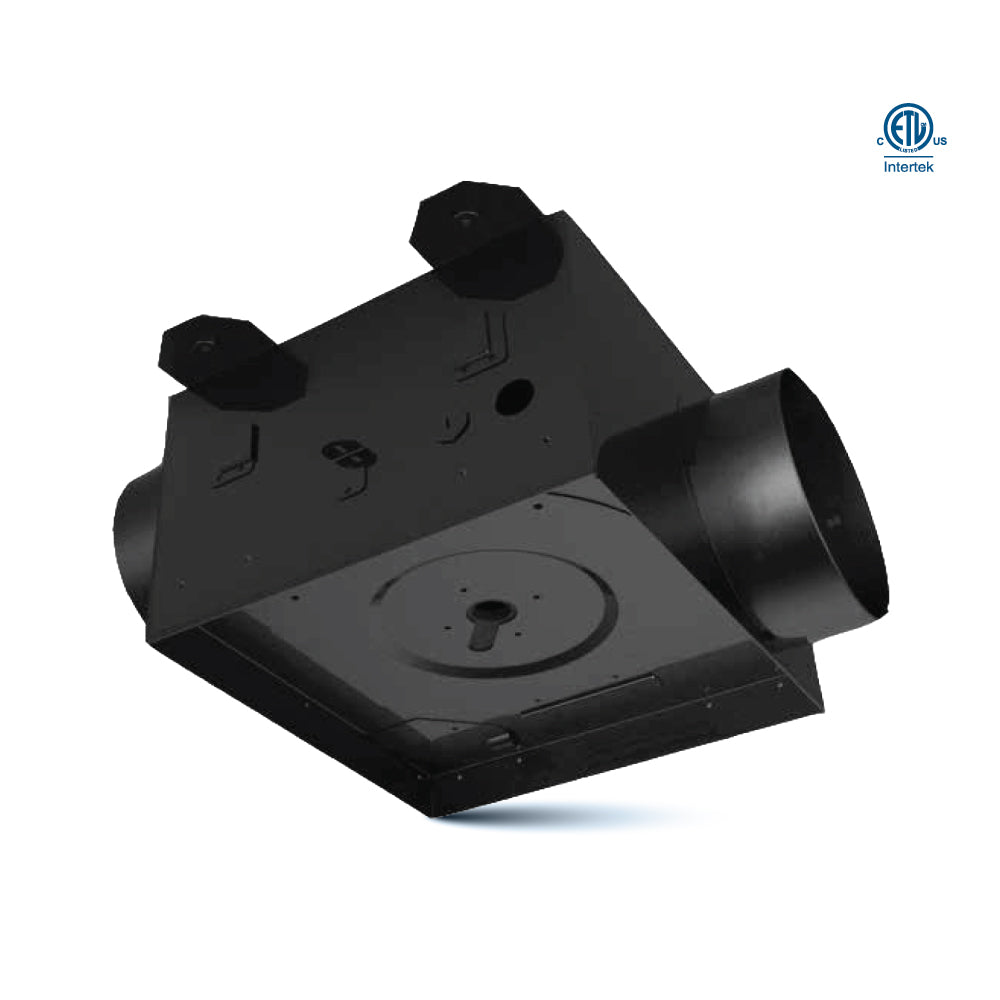

SDF200

5-inch single intake dryer booster fan designed for ceiling and wall mounting, providing enhanced airflow and efficient dryer exhaust support.

HIGHLIGHTS

  • Enhanced airflow – Designed to improve efficiency of residential and commercial dryer systems
  • Improved safety and performance – Reduces drying time, prevents lint build-up, and minimizes overheating in long duct runs
  • Compact and efficient design – Integrates easily into existing HVAC setups while extending dryer lifespan

DRYER BOOSTER FAN

Specifications
  • Dimensions
    10-1/2” x 11 ”x 6”
  • Amps
    0.9
  • Noise (sones)
    2.5
  • Power Rating
    120V/60Hz
  • Discharge
    5"
  • Fan Weight
    12 lbs
  • Max. Speed
    2600 RPM
  • Inlet Size
    5"
  • Warranty
    3 Years
  • Case Quantities
    1

CERTIFICATIONS

Static Pressure Table

0.10 SP 0.20 SP 0.30 SP 0.40 SP 0.50 SP 0.60 SP 0.70 SP 0.80 SP
206.00 CFM 203.00 CFM 196.00 CFM 190.00 CFM 183.00 CFM 176.00 CFM 168.00 CFM 160.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)
Amp Sensor
AS-0 | AS-5 | AS-10 | AS-15
(Amp Sensor)

PRODUCT SHEETS

Spec Sheet

SDF200 Spec Sheet

Instruction Manual

SDF200 Instruction Manual
Wiring Diagram
Operations and Maintenance Guide

Revit Files

NA
