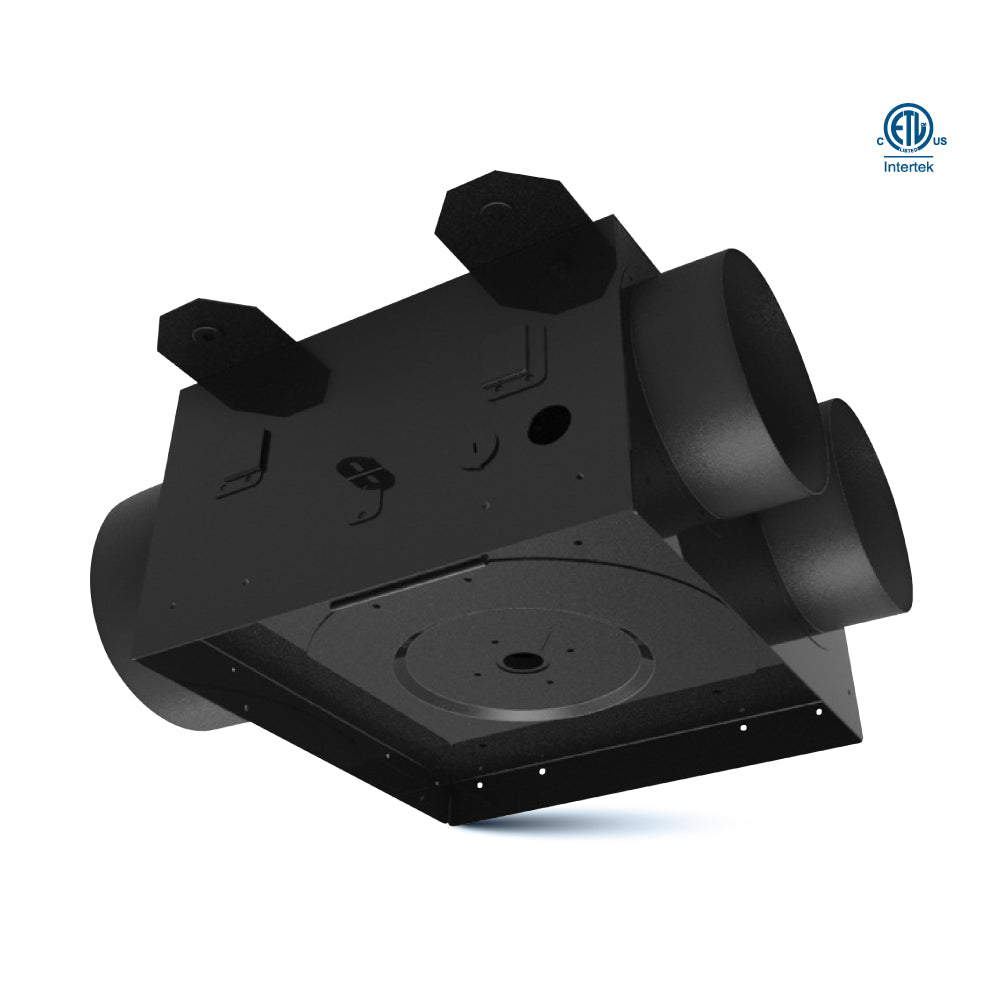

SDF200-2

4-inch dual intake dryer booster fan designed for ceiling and wall mounting, engineered to improve dryer efficiency and airflow in residential and commercial ventilation systems.

HIGHLIGHTS

  • Efficiency Enhancement: Improves airflow in residential and commercial dryer systems
  • Faster Drying: Reduces drying time and prevents lint build-up
  • Overheating Prevention: Minimizes risk of dryer overheating in long duct runs
  • Compact Design: Energy-efficient and integrates seamlessly into existing HVAC setups
  • Reliable Performance: Maintains dryer efficiency and extends appliance lifespan

DRYER BOOSTER FAN

Specifications
  • Dimensions
    10-1/2” x 11 ”x 6”
  • Amps
    0.9
  • Noise (sones)
    2.5
  • Power Rating
    120V/60Hz
  • Discharge
    5"
  • Fan Weight
    12 lbs
  • Max. Speed
    2600 RPM
  • Inlet Size
    4"
  • Warranty
    3 Years
  • Case Quantities
    1

CERTIFICATIONS

Static Pressure Table

0.10 SP 0.20 SP 0.30 SP 0.40 SP 0.50 SP 0.60 SP 0.70 SP 0.80 SP
235.00 CFM 222.00 CFM 211.00 CFM 205.00 CFM 195.00 CFM 186.00 CFM 175.00 CFM 169.00 CFM




Accessories (sold separately)

SDS-10
SDS-10
(Air Pressure Sensing Switch)
Amp Sensor
AS-0 | AS-5 | AS-10 | AS-15
(Amp Sensor)

PRODUCT SHEETS

Spec Sheet

SDF200-2 Spec Sheet

Instruction Manual

SDF200-2 Instruction Manual
Wiring Diagram
Operations and Maintenance Guide

Revit Files

NA
