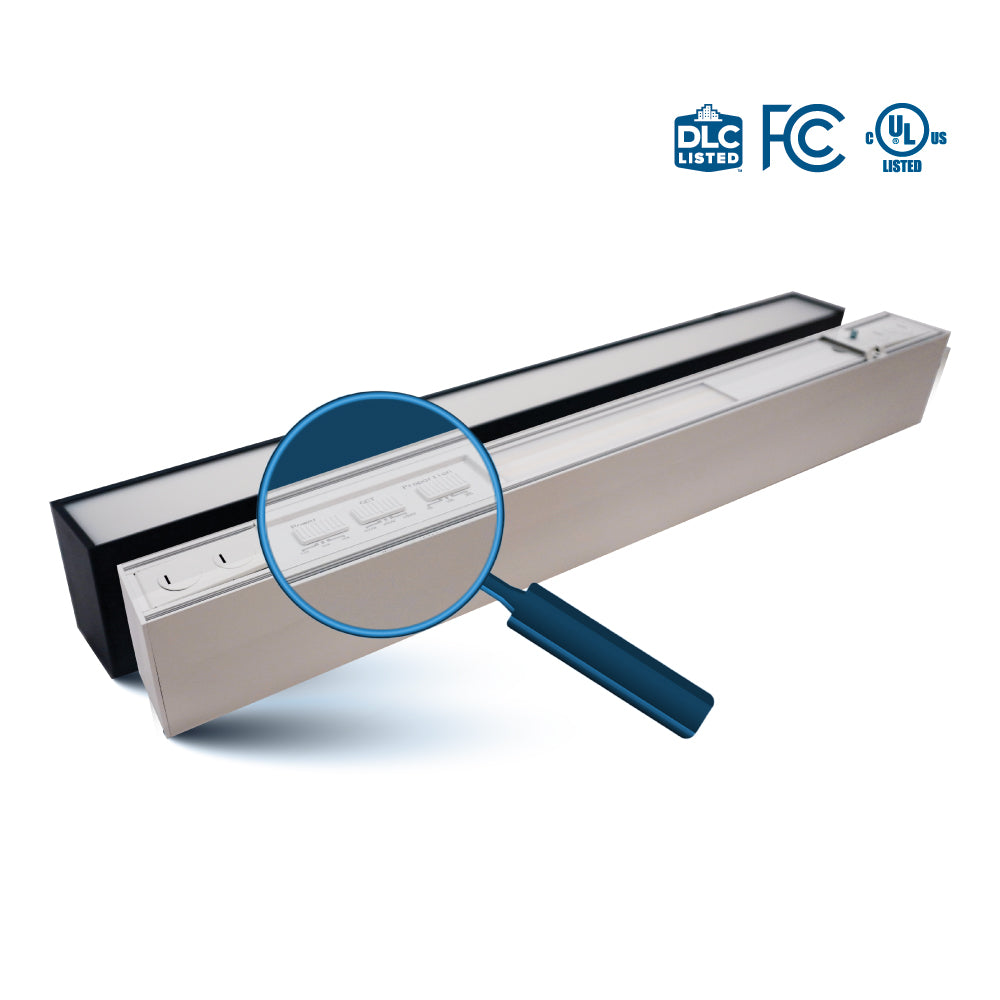

8ALS-3CCT+W

8-Foot LED Architectural Strip Lights Featuring Selectable Color Temperature and Wattage - Perfect for Enhancing a Variety of Spaces and Layouts

Color: White

HIGHLIGHTS

  • Selectable Power & CCT: Easily adjust power and color temperature across three preset levels to suit your lighting needs.
  • Customizable Light Distribution: Choose from 70% Downlight / 30% Uplight, 90% Downlight / 10% Uplight, or 100% Downlight for versatile illumination control.
  • Sleek Aluminum Housing: Durable extruded-aluminum body designed to complement open-plan architectural spaces.
  • Smooth Dimming: Standard 0–10V dimming for seamless brightness control.
  • Smart Sensor Control: PIR sensor settings can be easily configured using the PNP-REMOTE. One remote can control multiple sensors. (PIR Sensor & Remote sold separately.)
  • Suspended Mounting Included: Comes with 4.92 ft. aircraft cables for quick and secure suspended installation.
  • Linkable Design: Only one power cord kit is needed to connect multiple fixtures. (Power cord kit not included. Refer to spec sheet page 3 for connection limits.)

DLC No. / Product ID: 2ALS-3CCT+W-BK: S-LNDM88  |  2ALS-3CCT+W-WH: S-LNDM88

3CCT AND WATTAGE SELECTABLE

Specifications
  • Wattage
    60W/80W/100W
  • Voltage
    AC120-347V
  • Lumens
    130 lmn/W
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated | Dry and damp location
  • Grade of Protection
    IP40
  • Application
    Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PS(Polystyrene)
  • Operating Temperature
    -20°C ~ 45°C
  • Warranty
    5 Years
  • Case Quantities
    12

CERTIFICATIONS

Product features

FOR FLEXIBLE AND CREATIVE LIGHTING SOLUTIONS

  • I CONNECTOR

  • L CONNECTOR

  • V CONNECTOR

  • Suspended Mount

  • X CONECTOR

  • V CONNECTOR

Accessories (sold separately)

L CONNECTOR
L CONNECTOR
ALS-L-CONN-BK (black)
ALS-L-CONN-WH (white)
T CONNECTOR
T CONNECTOR
ALS-T-CONN-BK (black)
ALS-T-CONN-WH (white)
V CONNECTOR
V CONNECTOR
ALS-V-CONN-BK (black)
ALS-V-CONN-WH (white)
X CONNECTOR
X CONNECTOR
ALS-X-CONN-BK (black)
ALS-X-CONN-WH (white)
Y CONNECTOR
Y CONNECTOR
ALS-Y-CONN-BK (black)
ALS-Y-CONN-WH (white)
I CONNECTOR
I CONNECTOR
ALS-I-CONN-BK (black)
ALS-I-CONN-WH (white)
SURFACE MOUNTED KITS
SURFACE MOUNTED KITS
ALS-SM-KIT
WALL MOUNTED KITS
WALL MOUNTED KITS
ALS-WM-KIT
CONDUIT MOUNTED KITS
CONDUIT MOUNTED KITS
ALS-COND-KIT
DROP CEILING CANOPY KITS
DROP CEILING CANOPY KITSS
ALS-DRP-KIT-BK (black)
ALS-DRP-KIT-WH (white)
RECESSED MOUNTED KITS
RECESSED MOUNTED KITS
ALS-RCSD-KIT (4ft = 1pcs | 8ft = 2pcs)
ALS-2RCSD-KIT (2ft only)
DRYWALL CANOPY KIT
DRYWALL CANOPY KIT
ALS-DWC-KIT-BK (black)
ALS-DWC-KIT-WH (white)
POWER CORD
POWER CORD (4ft. length)
ALS-PWR-KIT-BK (black)
ALS-PWR-KIT-WH (white)
END CAP
END CAP w/SENSOR
ALS-PIR-BK (black)
ALS-PIR-WH (white)
PNP REMOTE
PNP-REMOTE
To control multiple sensors

Check Out the Video to Learn How These Accessories Work

PRODUCT SHEETS

Spec Sheet

8ALS-3CCT+W Spec Sheet

Instruction Manual

8ALS-3CCT+W - Connectors
8ALS-3CCT+W - Surface Mounting
8ALS-3CCT+W - Wall Mounting
8ALS-3CCT+W - Conduit Mounting
8ALS-3CCT+W - Drop Ceiling Canopy
8ALS-3CCT+W - Recessed Mounting
8ALS-3CCT+W - Drywall Canopy
8ALS-3CCT+W - Power Cord
8ALS-3CCT+W - End Cap Sensor

Dimmer List

NA

IES Files

8ALS-3CCT+W IES Files
