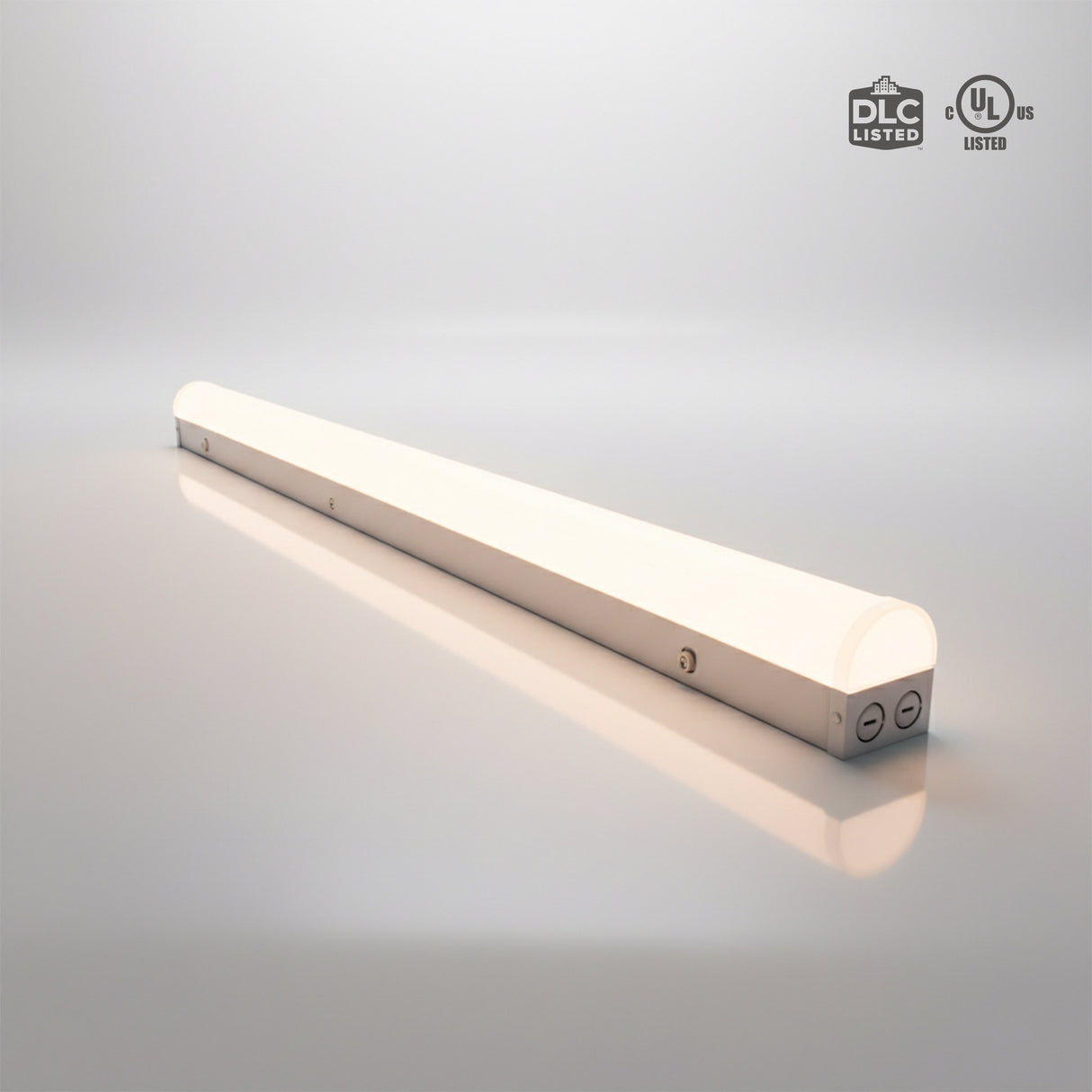

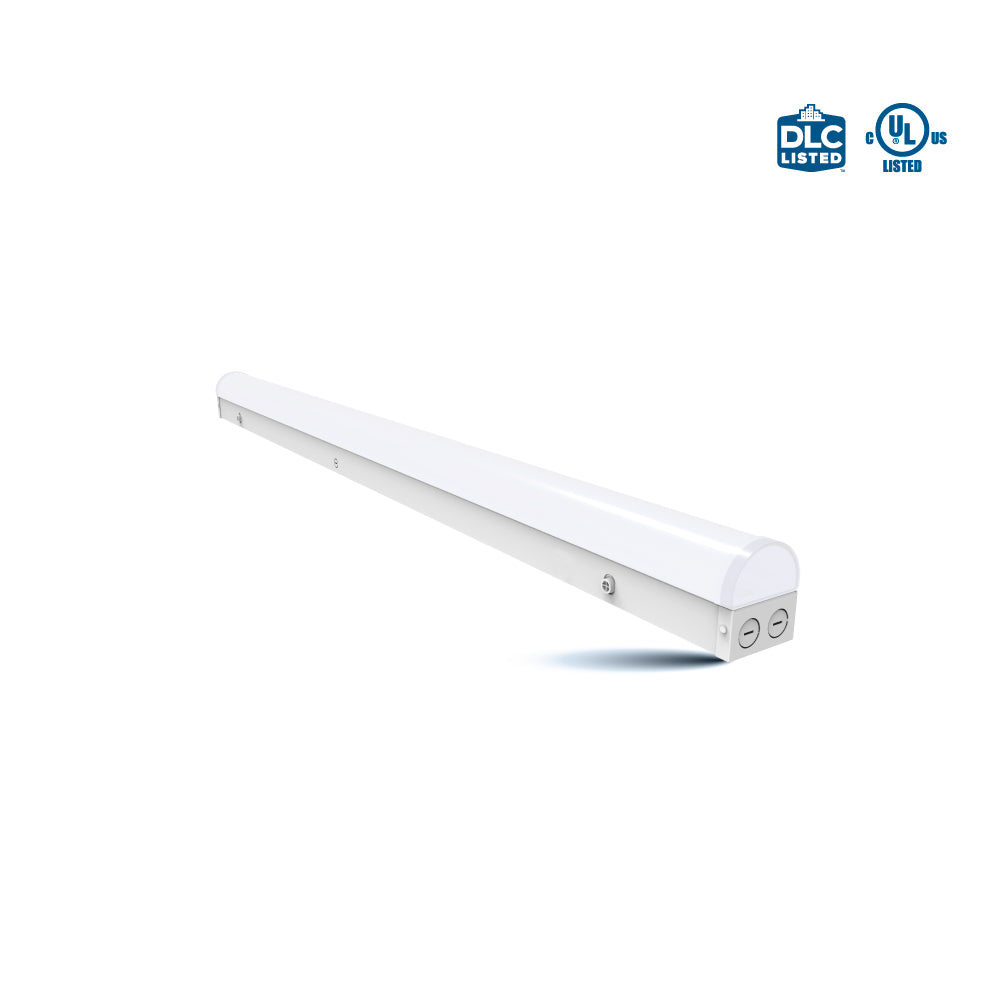

OL-ST2-3CCT+W

24" LED Linear Strip Light - Features selectable color temperature (CCT) and adjustable wattage for versatile, energy-efficient lighting in compact spaces.

HIGHLIGHTS

  • Daisy Chain Capability: Connect up to 48 units from a single power source at 347V for streamlined installation.
  • Flexible Dimming & Voltage Range: Supports 0–10V dimming and operates across 120–347V for broad compatibility.
  • Multiple Mounting Options: Available for both suspended and surface-mounted installations.
  • Versatile Applications: Ideal for schools, hospitals, supermarkets, offices, and warehouses.
  • Motion Sensor Option: For built-in motion sensor functionality, refer to model OL-ST2-3CCT+WMS.

DLC No. / Product ID: S-HLV6M5

PRODUCT SHEETS

Spec Sheet

OL-ST2-3CCT+W Spec Sheet

Instruction Manual

OL-ST2-3CCT+W Instruction Manual

Dimmer List

OL-ST2-3CCT+W Dimmer Compatible List

IES Files

OL-ST2-3CCT+W IES Files

SELECTABLE 3CCT and WATTAGE

Specifications
  • Wattage
    15W/20W/25W
  • Voltage
    AC 120-347V
  • Lumens
    1950 lmn | 2600 lmn | 3250 lmn
  • Beam Angle
    120°
  • CRI
    80
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Dry And Damp Location
  • Grade of Protection
    IP20
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Daisy Connection
    120V: 20 units
    277V: 38 units
    347V: 48 units
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    10

Daisy Connection

Accessories (sold separately)

OL-ST2-LINK-KIT
OL-ST2-LINK-KIT
OL-ST2-SUS-KIT
OL-ST2-SUS-KIT
(aircraft cable length: 4.2ft.)
